Electronic control roller shutter mechanism (zone button function)

DECO

white

DSR-5

  • DECO

    white

    DSR-5

  • DECO

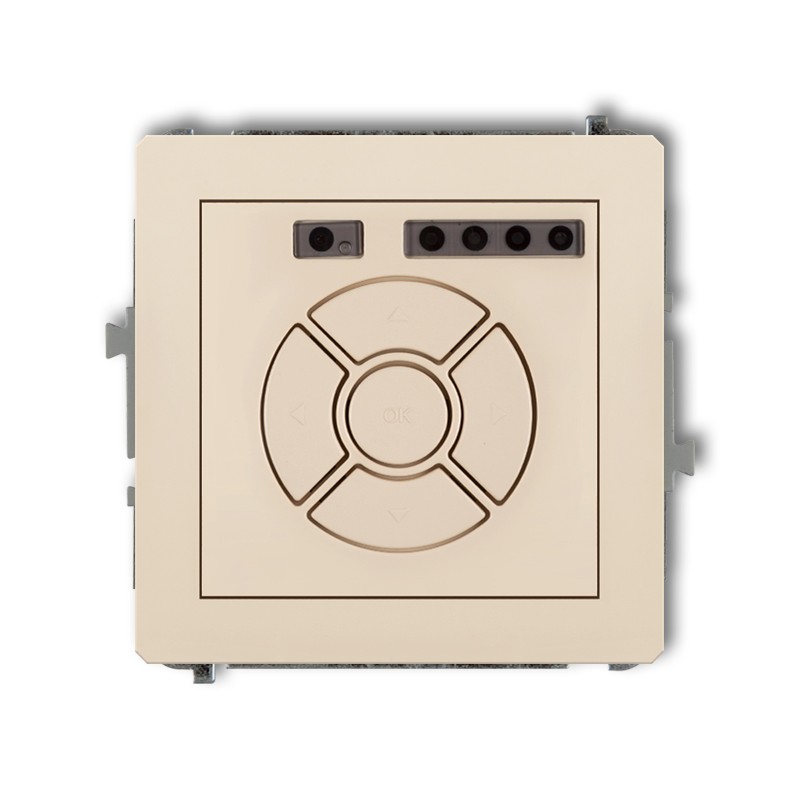

    beige

    1DSR-5

  • DECO

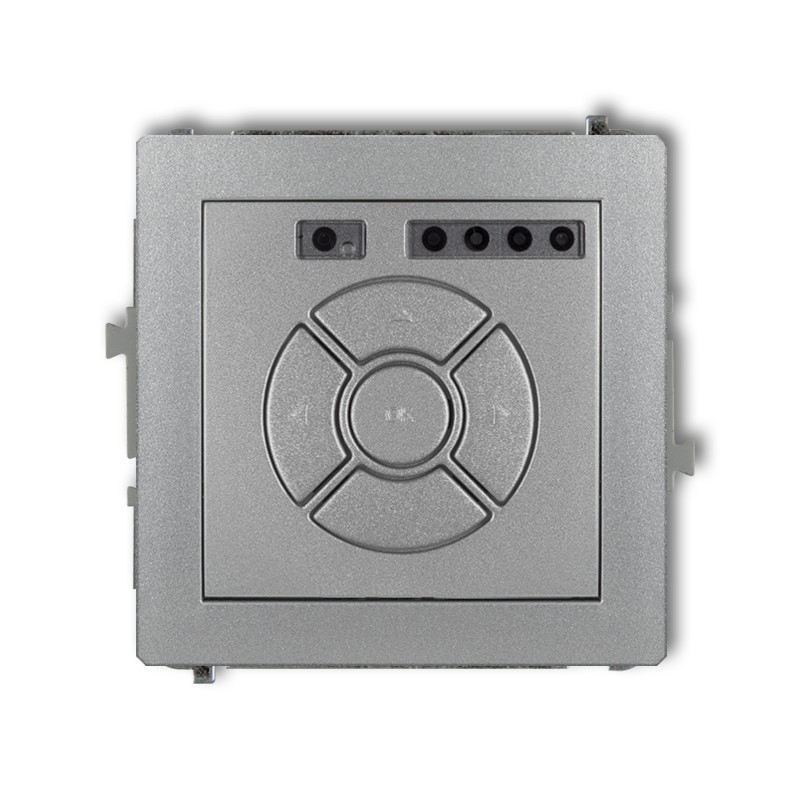

    silver metallic

    7DSR-5

  • DECO

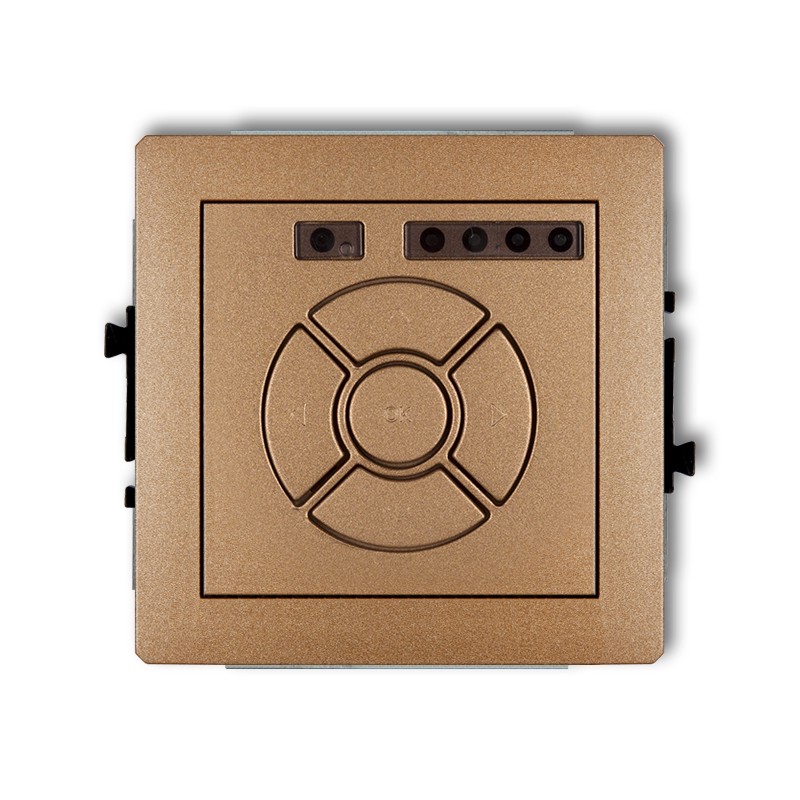

    gold metallic

    8DSR-5

  • DECO

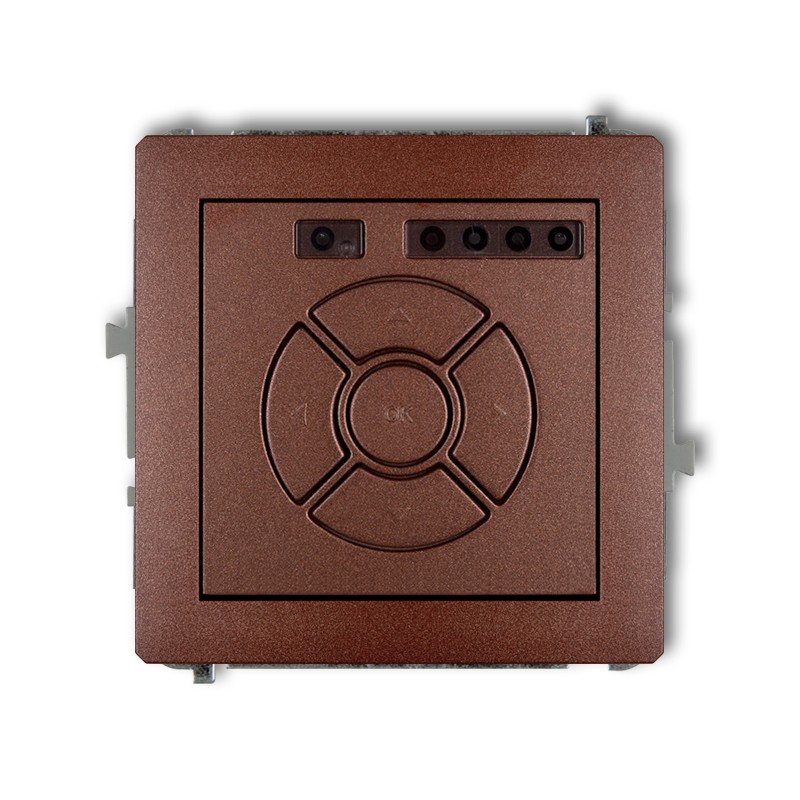

    9DSR-5

  • DECO

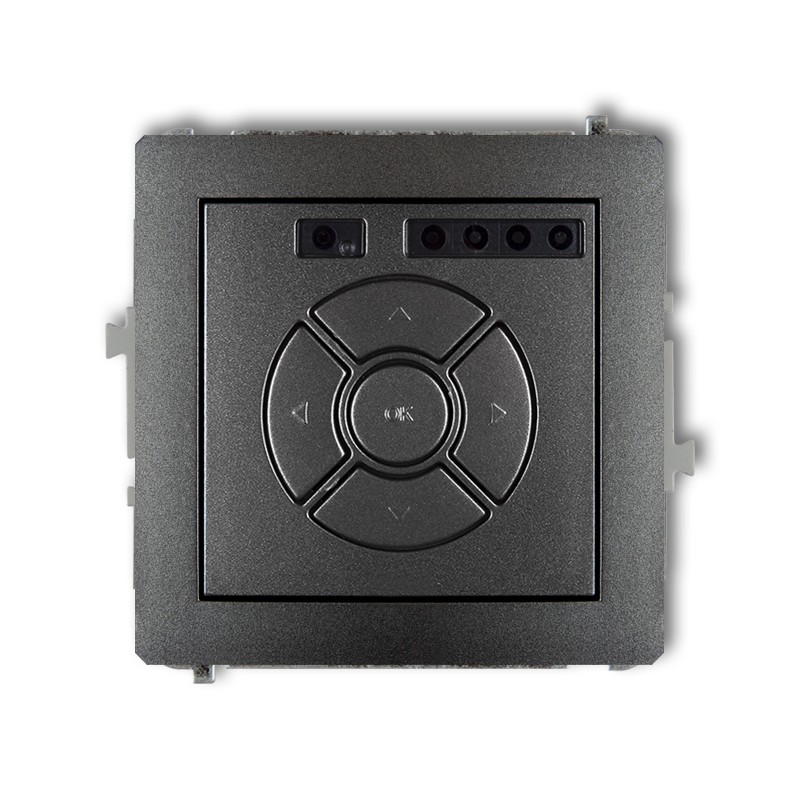

    graphite

    11DSR-5

  • DECO

    matt black

    12DSR-5

  • DECO

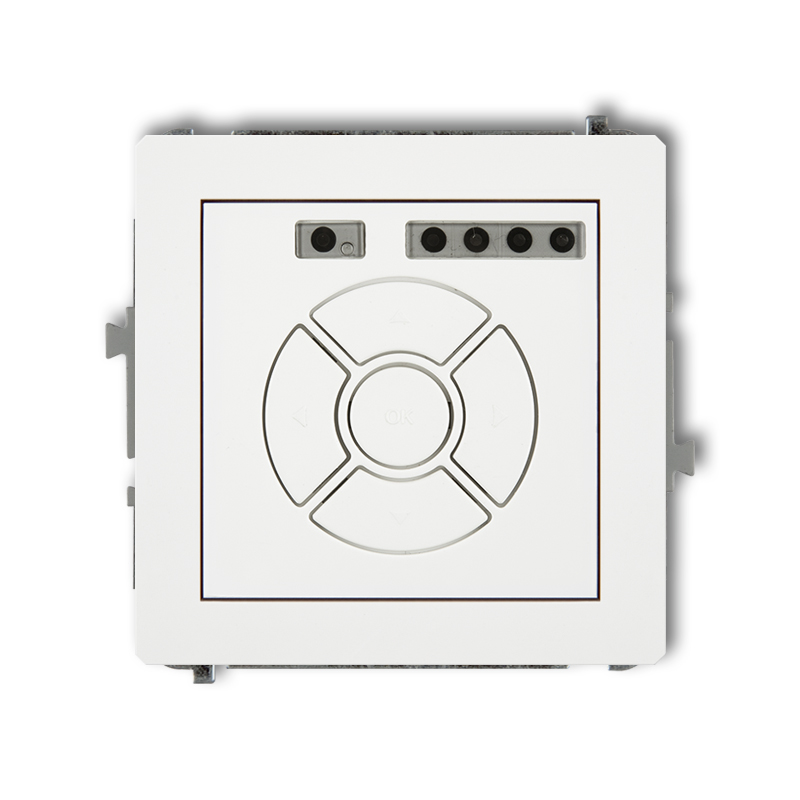

    matt white

    25DSR-5

  • DECO

    matt ecru

    26DSR-5

  • DECO

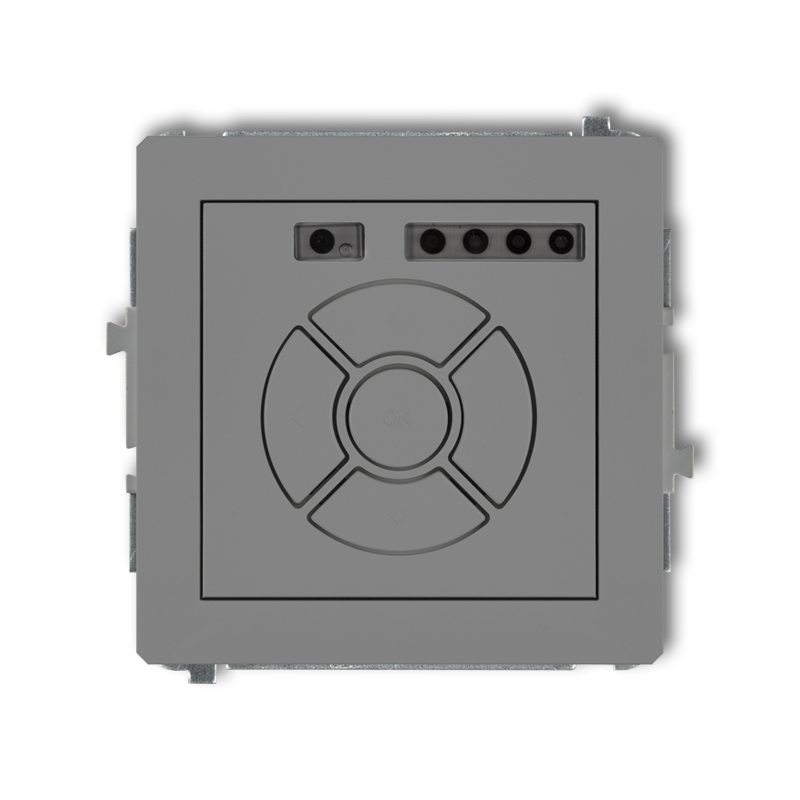

    matt grey

    27DSR-5

  • DECO

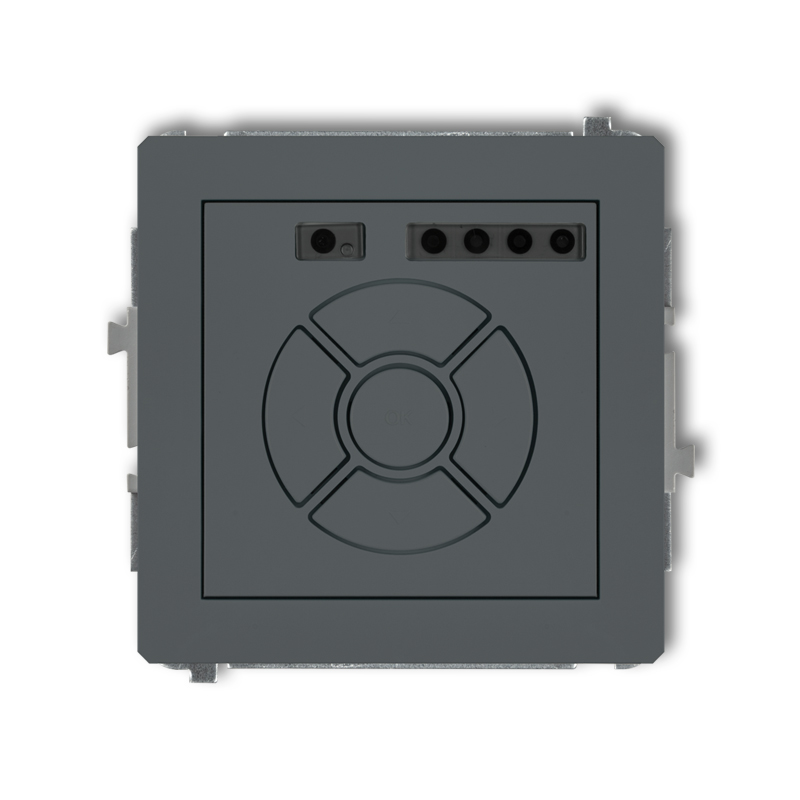

    matt graphite

    28DSR-5

  • DECO

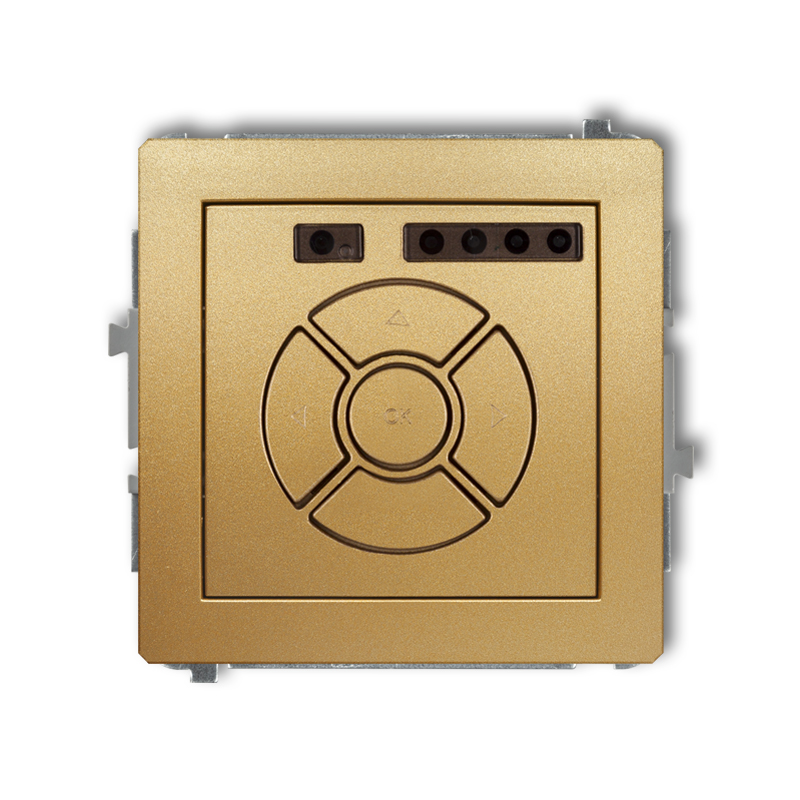

    gold

    29DSR-5

DECO mechanisms and frames are sold separately.

The device is designed for controlling roller blinds equipped with electric motor with power up to maximum 150W, 230V 50Hz electric mains-operated.

Note! one controller operates locally only one blind.

More information in the DOWNLOADS section.

Technical data

Protection index IP 20
Power supply 230 V~ 50 Hz
Load range max 150 W
Type of load Inductive – single phase motor 230 V~ 50 Hz
Type of work Intermittent
Cross-section of power supply cords 0,75 ... 1,5 mm2
Cross-section of control cords for BUS line 3 x 0,5 ... 1 mm2
