Radio/TV/SAT final socket (two antenna inputs) mechanism
![TREND](/media/filer_public/80/37/803783ea-e350-4a15-8e52-70d5e20c9ea7/gst.jpg)
white
GST
Product description
Downloads
Configurator
TREND mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 2400 MHz |
TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
SAT circut frequency range | 5 ÷ 2400 MHz |
Compression damping | 1,5 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw clamps |

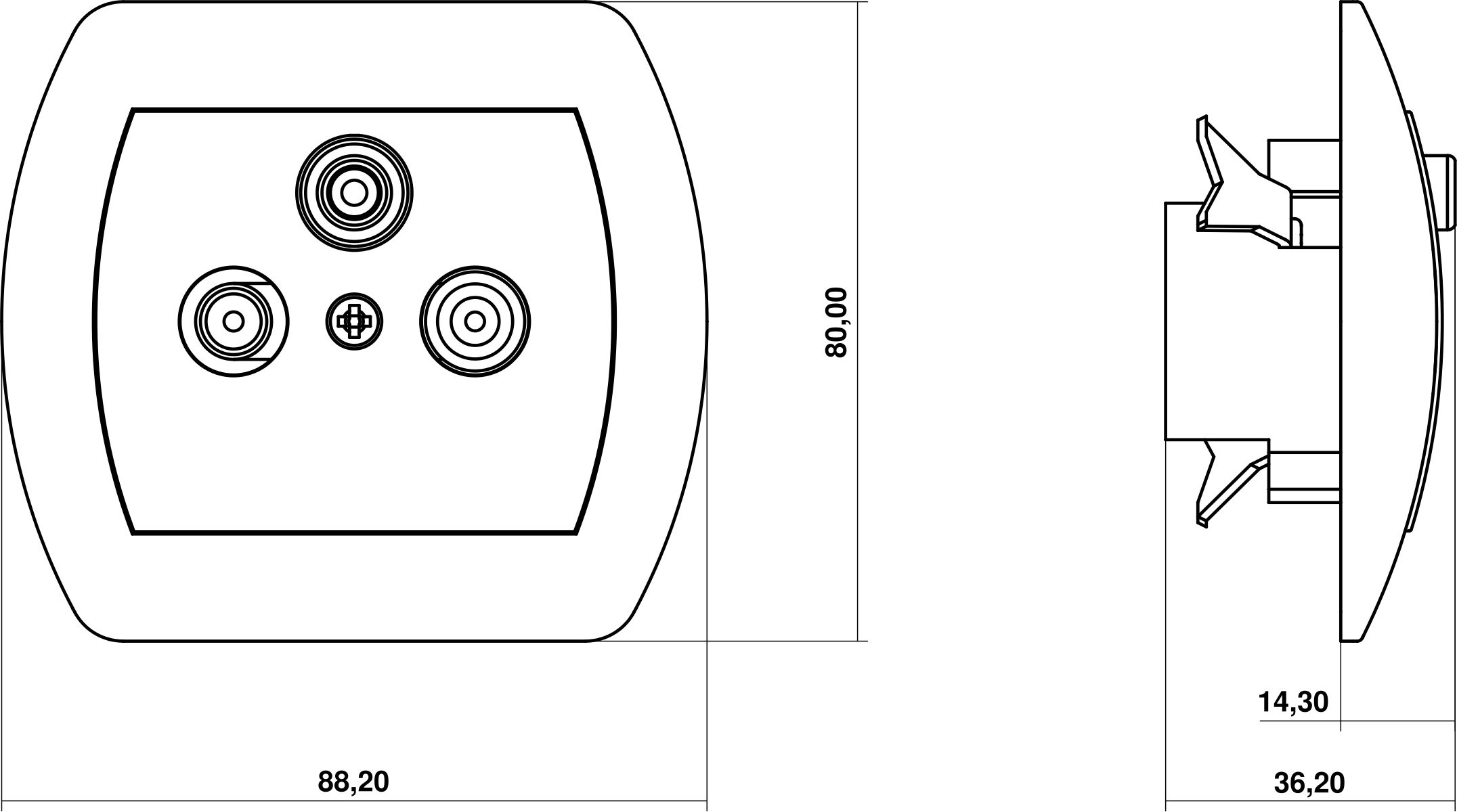

![Technical image](/media/techdata/karlik_trend_gniazdo_abonenckie_rtv-sat_17FcPdK.jpg)
Product variants
-
Radio/TV through socket mechanism the 9dB
white
G9P
-
Radio/TV final socket mechanism the 2dB
white
G2K
-
3F DATA (UPC) multimedia socket mechanism
beige
1GMU
-
Radio/TV final socket (in series of through sockets) mechanism the 6dB
silver metallic
7G6K
-
Radio/TV/SAT final socket (two antenna inputs) mechanism
silver metallic
7GST
-
Radio/TV/SAT final socket (two antenna inputs) mechanism
graphite
11GST
