The MINI series was created out of love for minimalism. The MINI series square frames are currently (80,0mm x 80,0mm x 6,3mm) the smallest and the most compacted design on the Polish market. The MINI sockets and switches are little functional elements, small accents on the wall that play an important role in creating a modern minimalist interior design.

  • Advantages of the series

  • Colours

  • Products

  • Downloads

  • Inspirations

  • Advantage

    > Minimalism

    The MINI series products are a combination of modern design and exceptional proportion. The MINI series square and with square edges frames are currently the smallest and the most compacted design on the Polish market. The small frame size (square: 80,0mm x 80,0mm x 6,3mm, with square edges: 82,0mm x 82x0mm x 6,3mm) is contradictory the biggest advantage of the collection.



  • Advantage

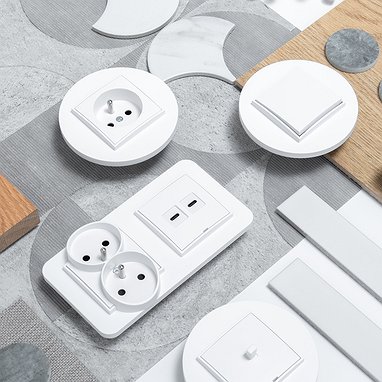

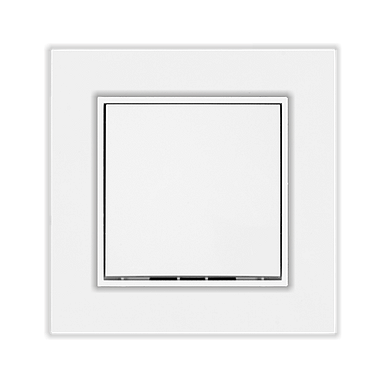

    > Three plastic frame shapes

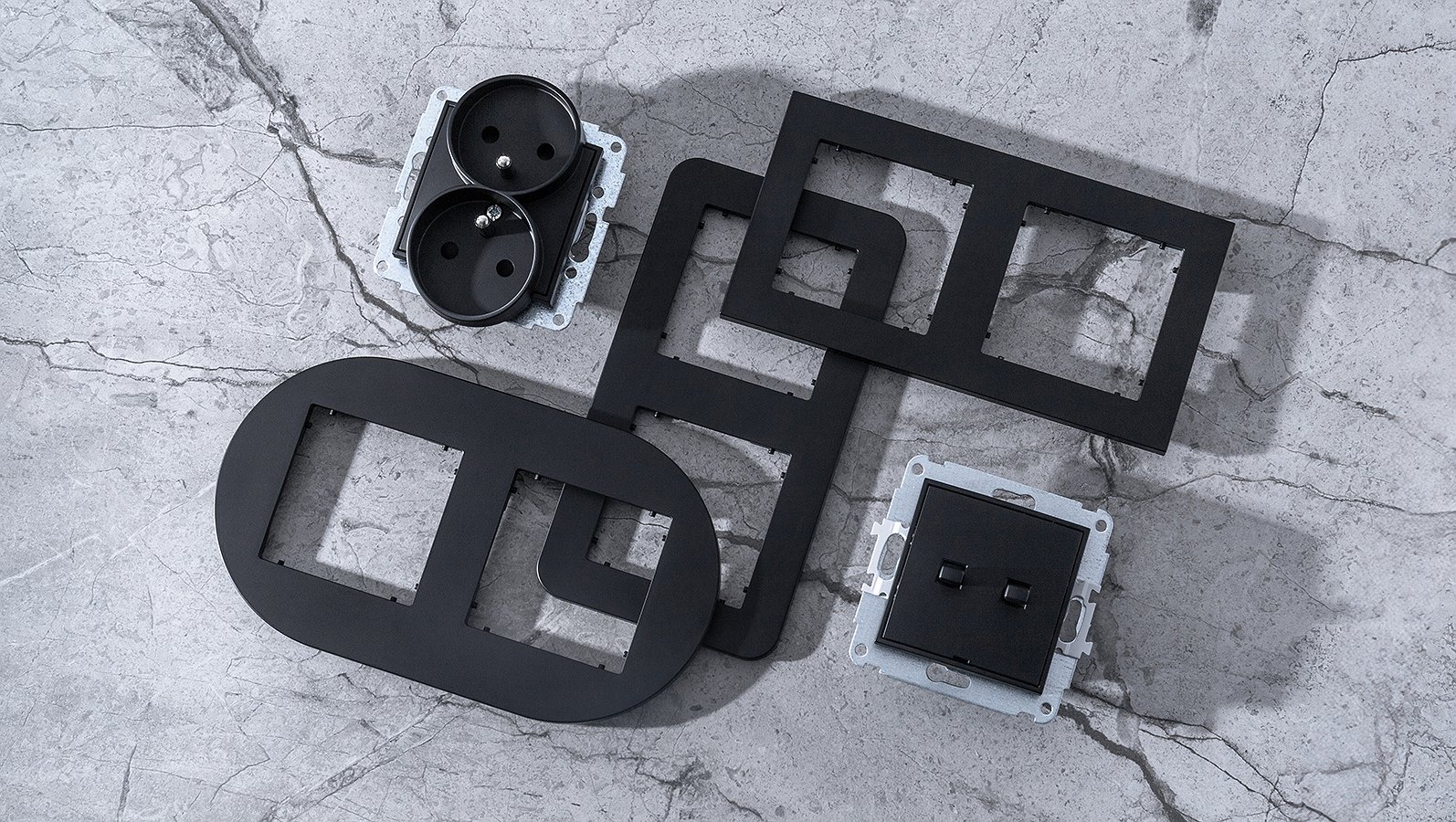

    The MINI flush-mounted series provides plastic frames in three shapes for the same mechanism: round, rounded corner, and square. This variety lets customers design their interiors according to personal preferences and the latest design trends. The MINI frames seamlessly integrate into any room, enhancing its unique style and character.

  • Advantage

    > Many colour combinations

    >> 13 colours of mechanisms;
    >> 13 colours of universal round plastic frames;
    >> 13 colours of universal plastic frames with rounded edges;
    >> 13 colours of universal square plastic frames;
    >> 25 colours of intermediate frames (including 12 pastel colours).

    The colours of the MINI series give you the opportunity to create many combinations in terms of universal mechanisms and frames. Intermediate frames are an additional element that can be changed – delicate colour accents make the equipment more original.

  • Advantage

    > Universal fames

    All MINI series frames are available from single to quintuple version and allow mechanisms to be assembled horizontally and vertically.

  • Advantage

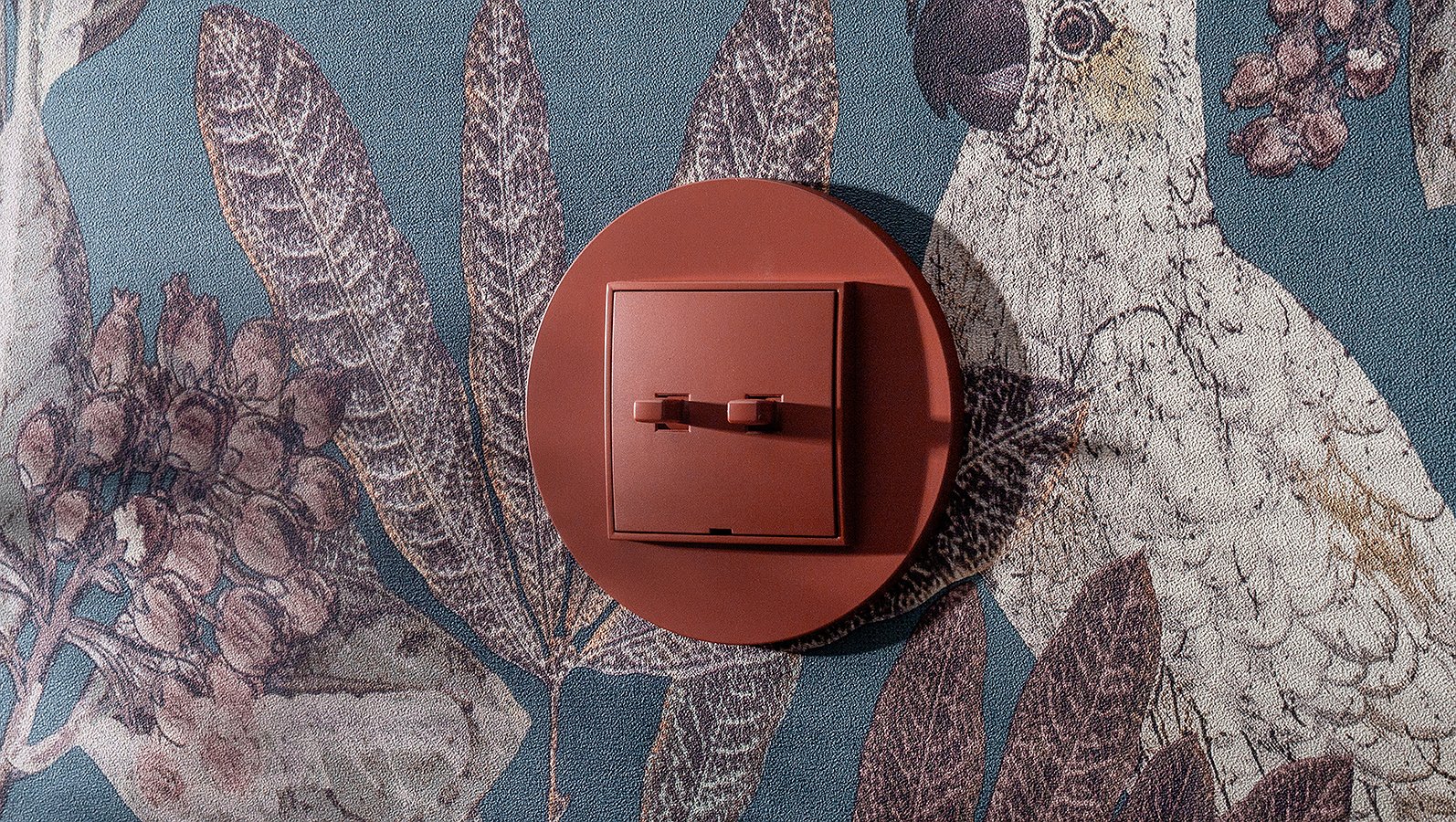

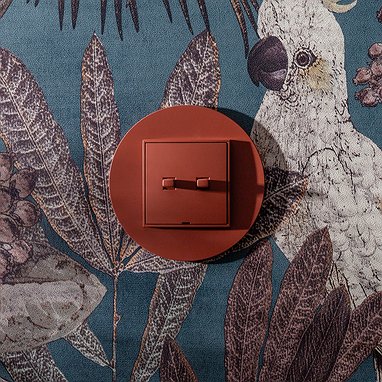

    > American style switches

    As part of the MINI series, unique switches with a lever mechanism are available American style switch mechanisms are available in all MINI series colours and can be combined into single or multiple systems.

  • Advantage

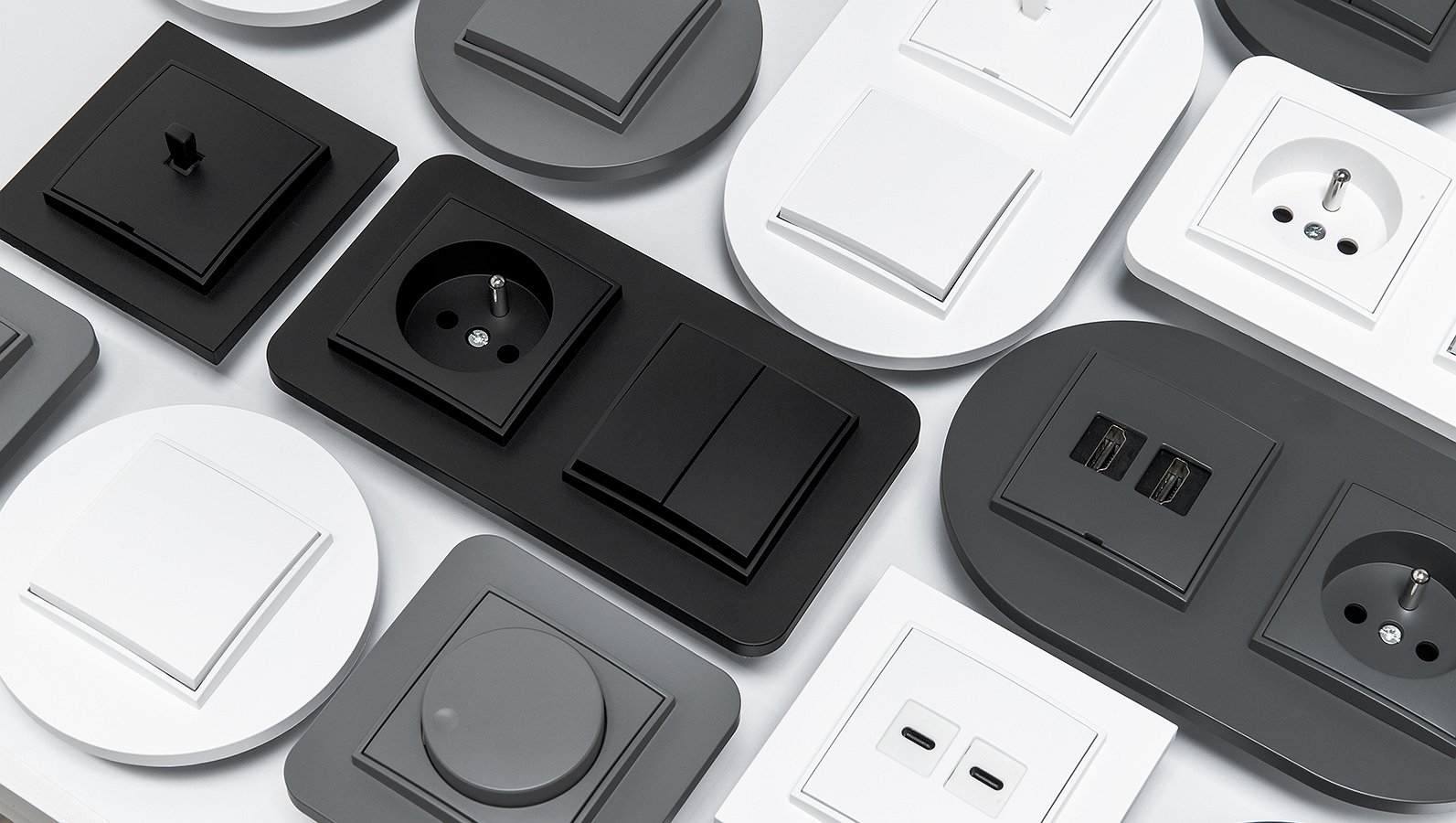

    > Different functions

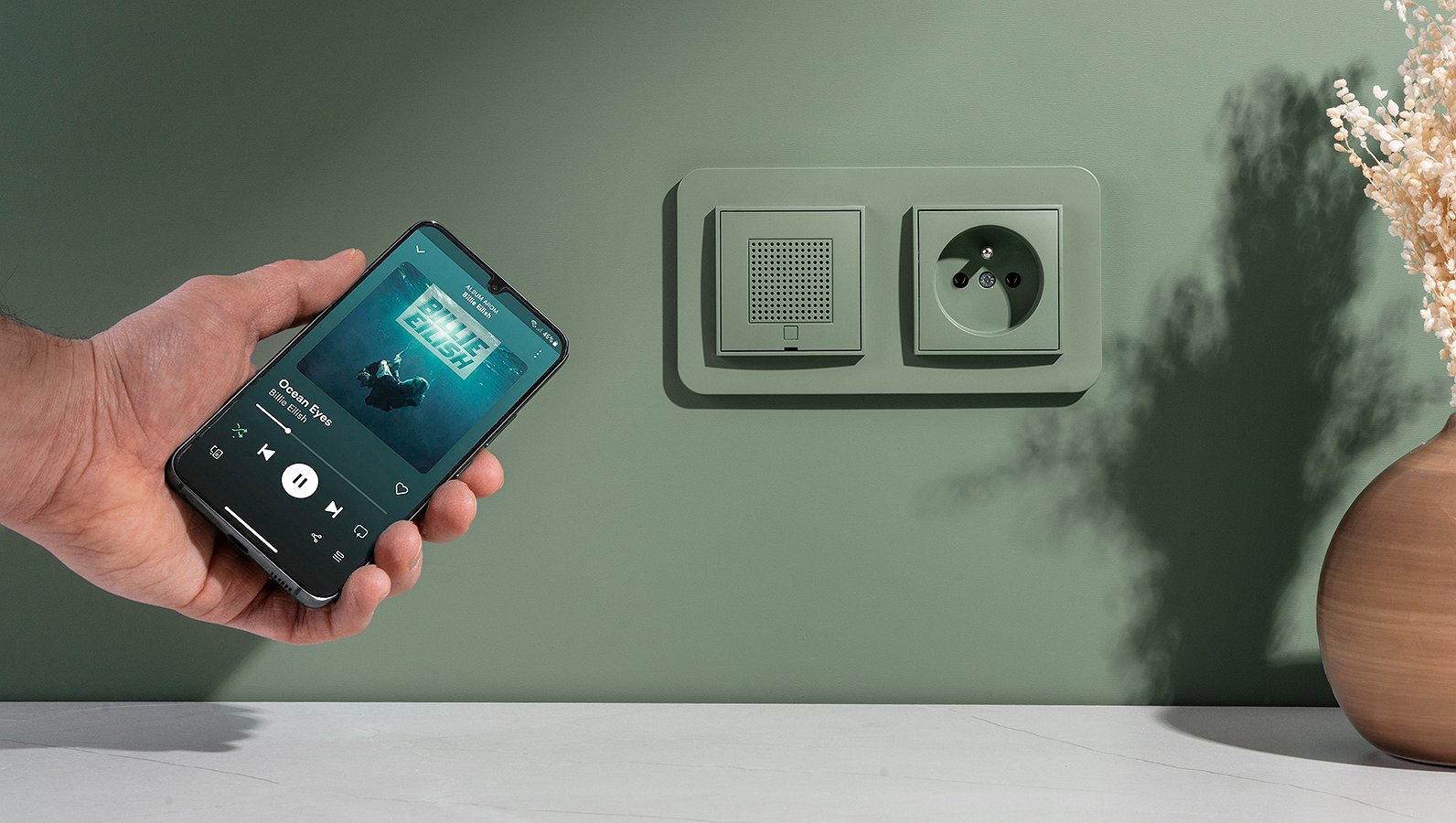

    The MINI series consists of different product categories ranging from basic switches to sophisticated electronics. The mechanisms perform more than 90 different functions according to your needs. The mechanisms are compatible with all frame shapes.

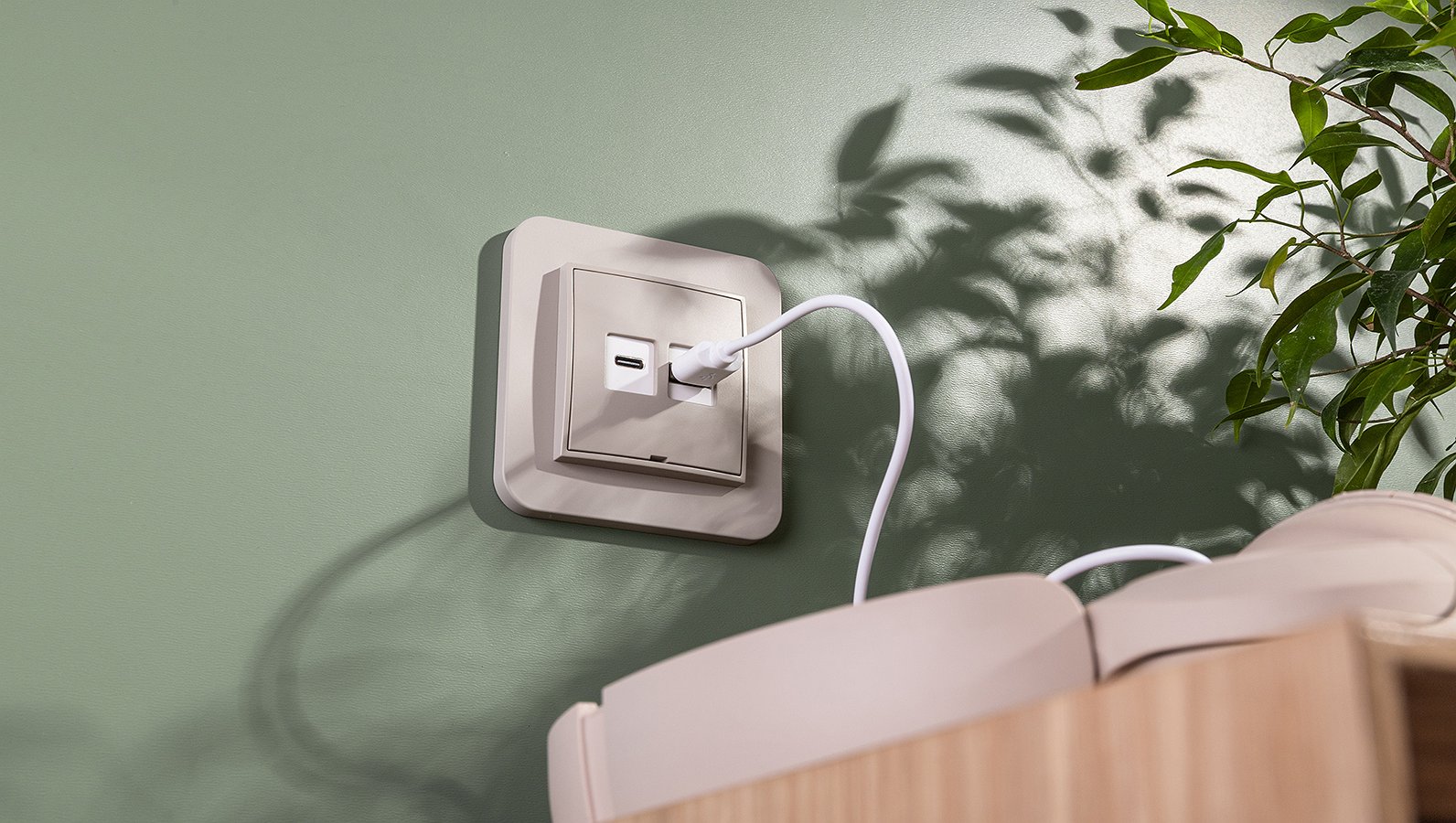

    Modern products such as switches, single sockets, double sockets, splash-proof sockets, RTV and SAT-TV sockets, satellite and TV antenna sockets, telephone and computer sockets, multimedia sockets, regulators, drivers, sensors and many others, improve the quality of your life.

  • Advantage

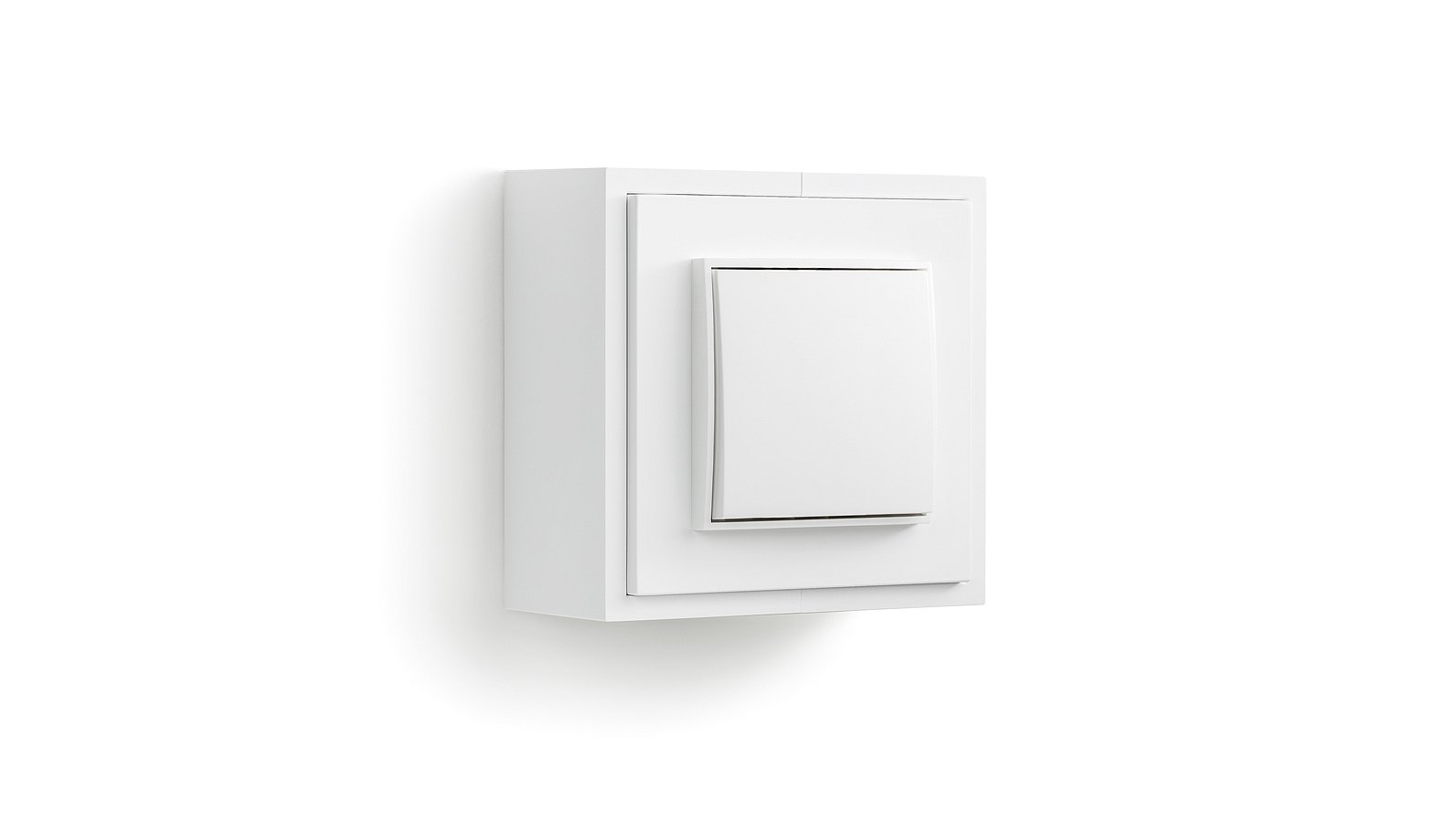

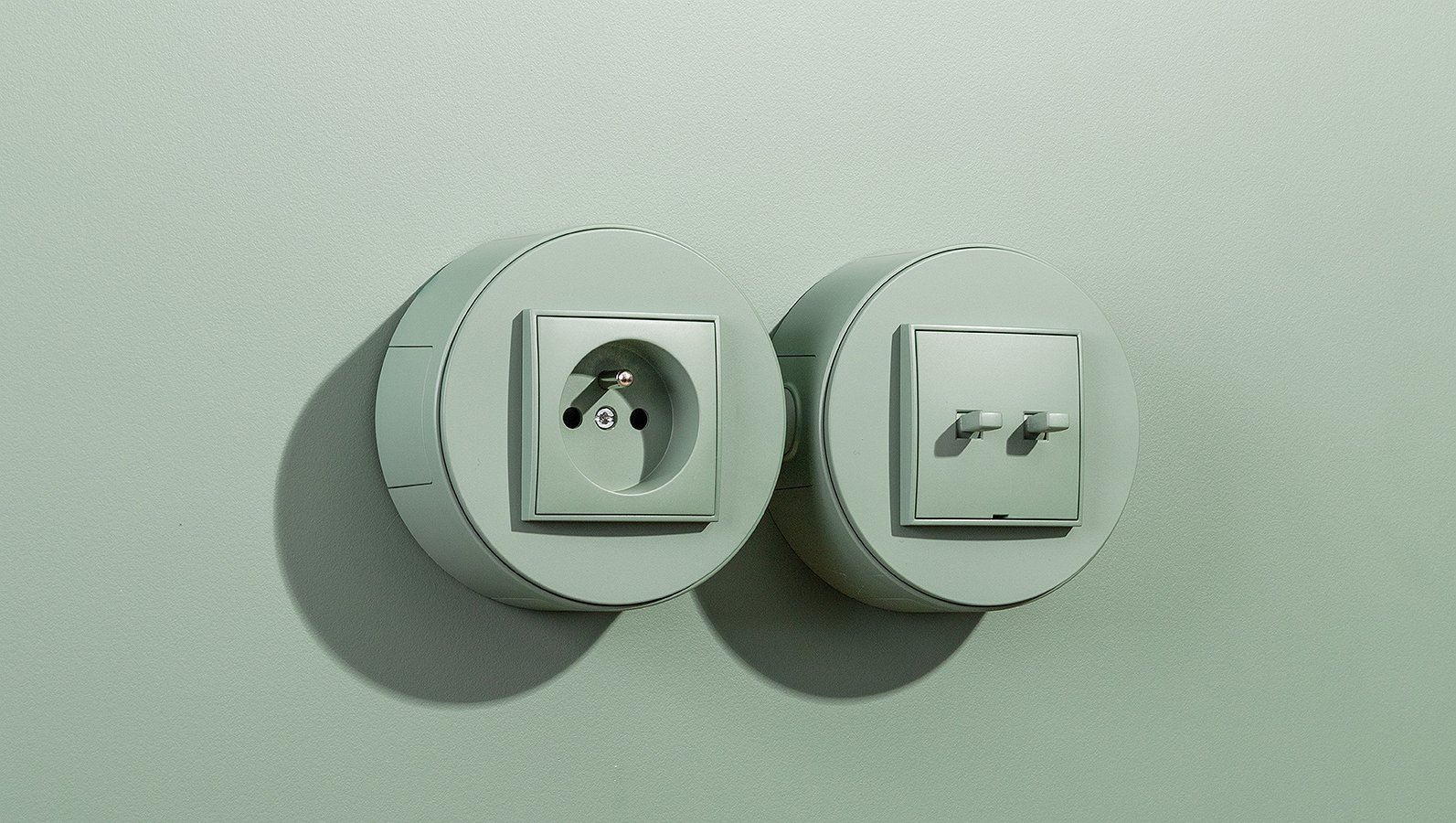

    > Surface-mounted box

    The DECO and MINI series surface-mounted boxes can be used where there is no way to install a flush-mounted wiring system. Surface-mounted boxes is sompatib;e only with square frames.

    The following boxes are available:
    >> single, foldable surface-mounted boxes,
    >> expansion modules turning a surface-mounted, foldable box into multiple frames.

    Individual elements of the surface-mounted, foldable box and the expansion module are connected without the use of tools to create boxes of any multiplicity.

    The box is 40 mm deep which allows the wires to be conveniently laid.

  • Advantage

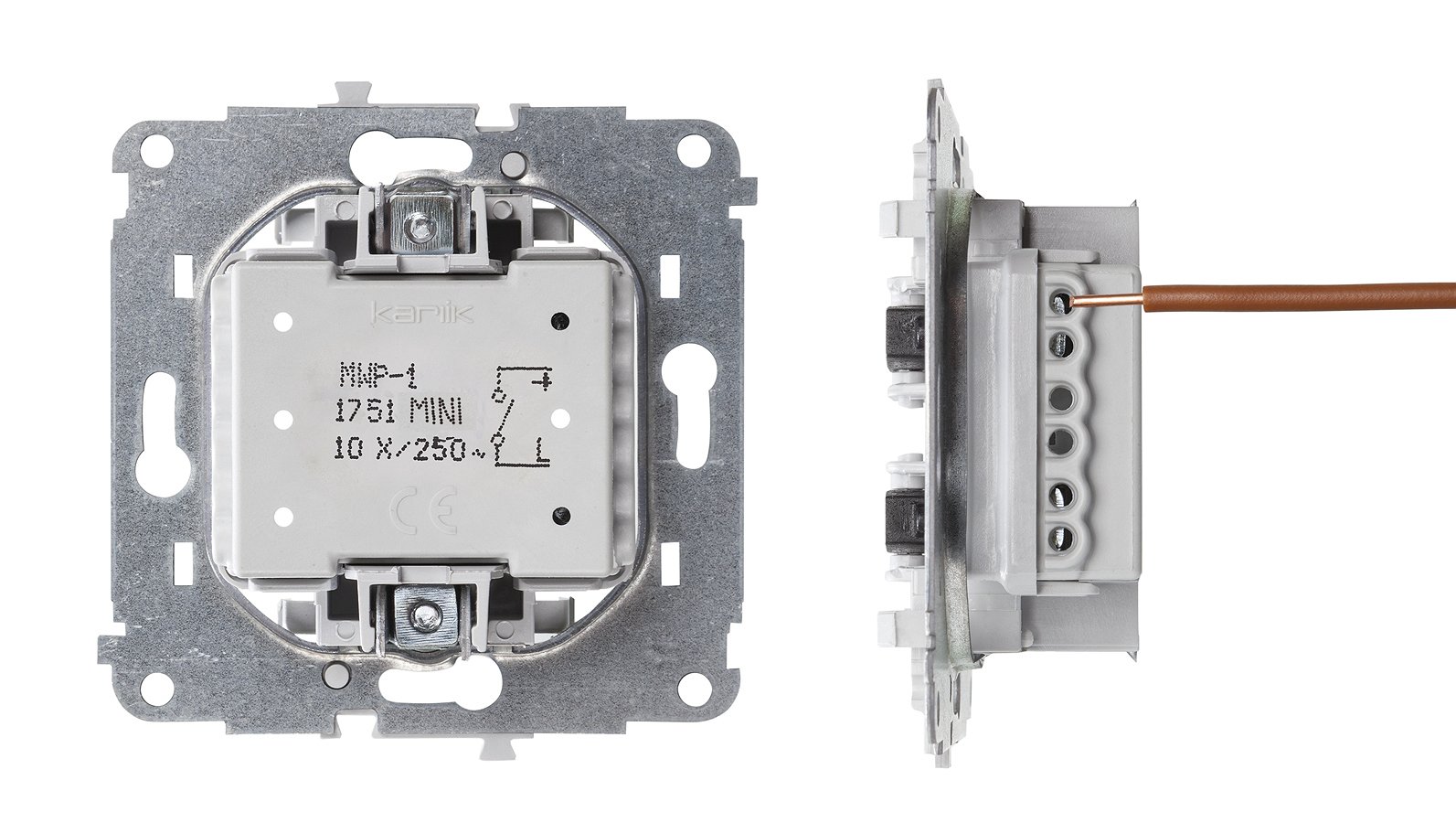

    > Technical advantages of the MINI series switches

    >> solid construction (metal mainframe) ensures proper installation;
    >> screw clamps guarantee secure connection;
    >> nuts to give stable support to screw clamps;
    >> dovetails in the socket cube are used to position the mechanisms horizontally in the case of multi-frame systems;
    >> reliable claws to secure the equipment mounting in the installation box;
    >> claws in a neutral position facilitate the mechanism insertion into the box; the claws are protected to prevent both damage to the conductor insulation and cuts during installation;
    >> switch mounting scheme shown on the cube allows for proper connection.

  • Advantage

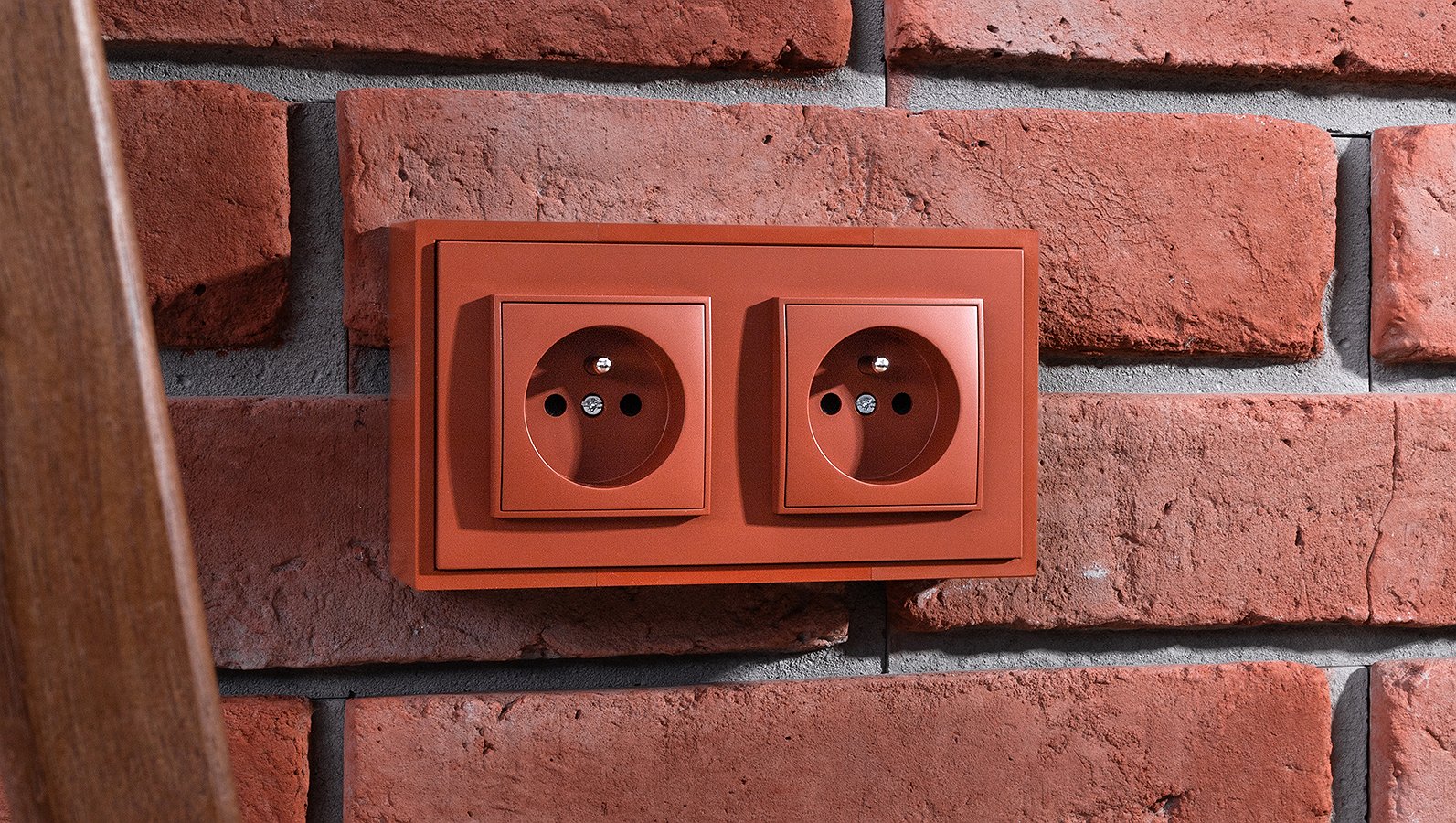

    > Technical advantages of the MINI series sockets

    >> solid construction (metal mainframe) ensures proper installation;
    >> screw clamps guarantee secure connection;
    >> nuts to give stable support to screw clamps;
    >> dovetails in the socket cube are used to position the mechanisms horizontally in the case of multi-frame systems;
    >> reliable claws to secure the equipment mounting in the installation box;
    >> claws in a neutral position facilitate the mechanism insertion into the box; the claws are protected to prevent both damage to the conductor insulation and cuts during installation;
    >> all MINI series single sockets have built-in current circuit apertures that protect children from having access to dangerous parts of the wiring system. MINI series single sockets do not require any additional external security measures.

  • Advantage

    > Illuminating modules for switches

    With illuminating module, the user can quickly find the switch in the dark which ensures safety.

    Illuminating modules are available in the following colours:
    >> incandescent white,
    >> LED: white, green, blue, red.

    Illuminating module for the selected switch (except for MWP-7, MWP-8, MWP-8.1, MWP-44.2, MWP-66, MWP-66.1, MWP-88, MWP-88.1, MWP-33, MWP-33.1, MWP-10.2, MWP-10.21, MWPUS-8, MWPUS-44.2, MWPUS-33, MWPUS-33.1, MWPUS-10.2, MWPUS-10.21) has to be purchased separately and mounted in the mechanism according to instructions.

    Illuminating modules are intended for self-assembly and can be mounted/demounted any time and anywhere.

  • Advantage

    > IP44 switch sealant

    With the IP44 sealant, the user can mount the switch in a room exposed to increased humidity such as a bathroom.

    The sealant for the selected switch (except for MWP-7, MWP-8 and switches in American style) has to be purchased separately and mounted in the mechanism according to instructions.

    The sealant is intended for self-assembly and can be mounted at any time and anywhere.

  • Advantage

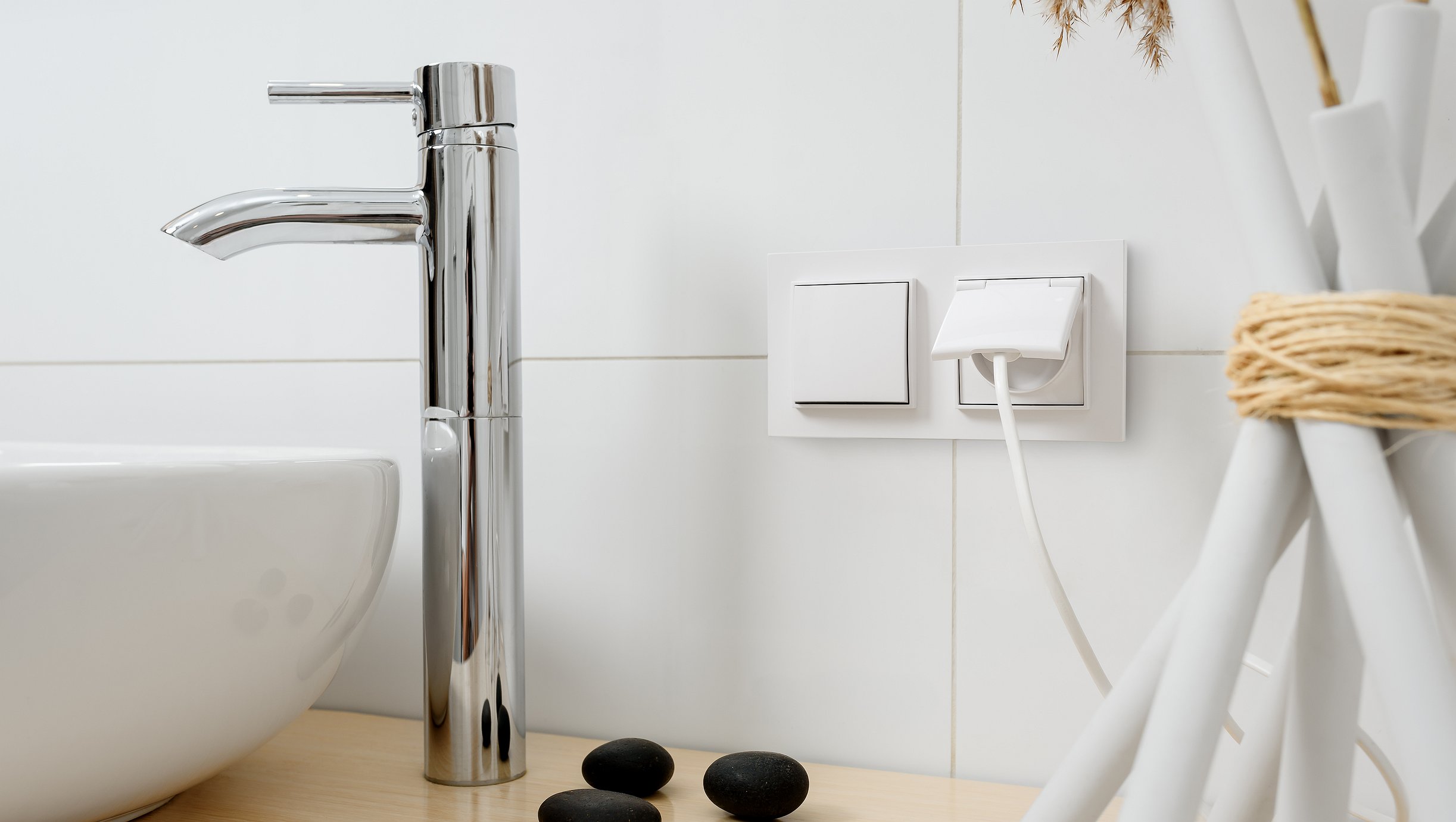

    > IP44 splash-proof socket (with a flap)

    The splash-proof socket is used in rooms exposed to moisture such as bathrooms, garages, cellars, terraces, utility rooms with access to water. The MINI splash-proof sockets have the IP44 degree of protection which provides protection against solid bodies of 1 mm or more in diameter and water splashes coming from any direction.

    The MINI splash-proof sockets structure allows the flap to be lifted at an angle of 180 degrees.

MECHANISMS

  • MINI

    white

  • MINI

    silver metallic (7)

  • MINI

    graphite (11)

  • MINI

    matt black (12)

  • MINI

    matt white (25)

  • MINI

    matt grey (27)

  • MINI

    matt graphite (28)

  • MINI

    gold (29)

  • MINI

    taupe (60)

  • MINI

    sage (61)

  • MINI

    salmon (62)

  • MINI

    terracotta (63)

  • MINI

    navy blue (64)

UNIVERSAL ROUND PLASTIC FRAMES

  • MINI

    white

  • MINI

    silver metallic (7)

  • MINI

    graphite (11)

  • MINI

    matt black (12)

  • MINI

    matt white (25)

  • MINI

    matt grey (27)

  • MINI

    matt graphite (28)

  • MINI

    gold (29)

  • MINI

    taupe (60)

  • MINI

    sage (61)

  • MINI

    salmon (62)

  • MINI

    terracotta (63)

  • MINI

    navy blue (64)

UNIVERSAL PLASTIC FRAMES WITH ROUNDED EDGES

  • MINI

    white

  • MINI

    silver metallic (7)

  • MINI

    graphite (11)

  • MINI

    matt black (12)

  • MINI

    matt white (25)

  • MINI

    matt grey (27)

  • MINI

    matt graphite (28)

  • MINI

    gold (29)

  • MINI

    taupe (60)

  • MINI

    sage (61)

  • MINI

    salmon (62)

  • MINI

    terracotta (63)

  • MINI

    navy blue (64)

UNIVERSAL SQUARE PLASTIC FRAMES

  • MINI

    white

  • MINI

    silver metallic (7)

  • MINI

    graphite (11)

  • MINI

    matt black (12)

  • MINI

    matt white (25)

  • MINI

    matt grey (27)

  • MINI

    matt graphite (28)

  • MINI

    gold (29)

  • MINI

    taupe (60)

  • MINI

    sage (61)

  • MINI

    salmon (62)

  • MINI

    terracotta (63)

  • MINI

    navy blue (64)

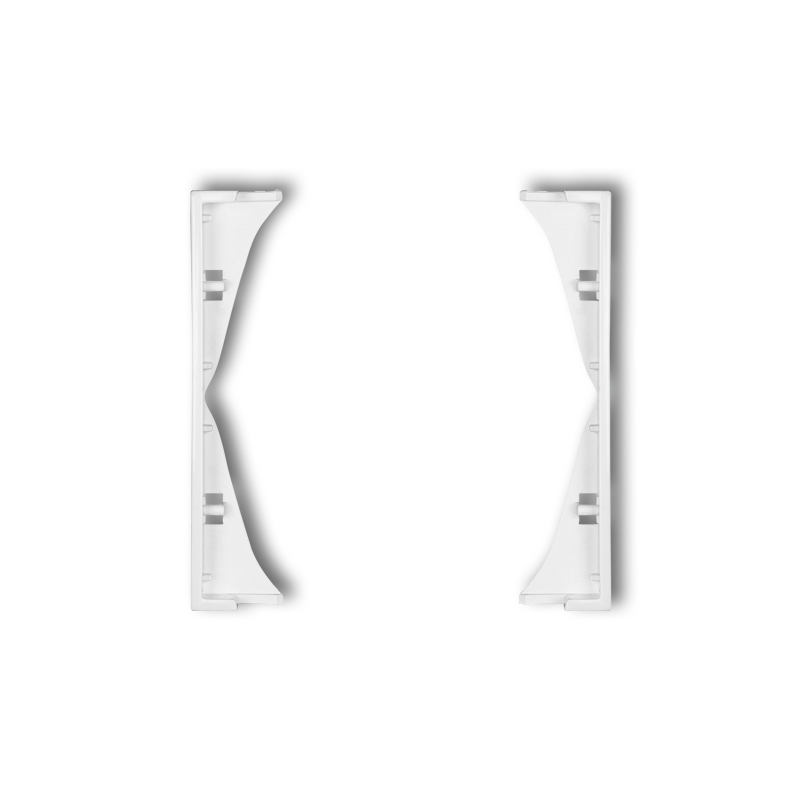

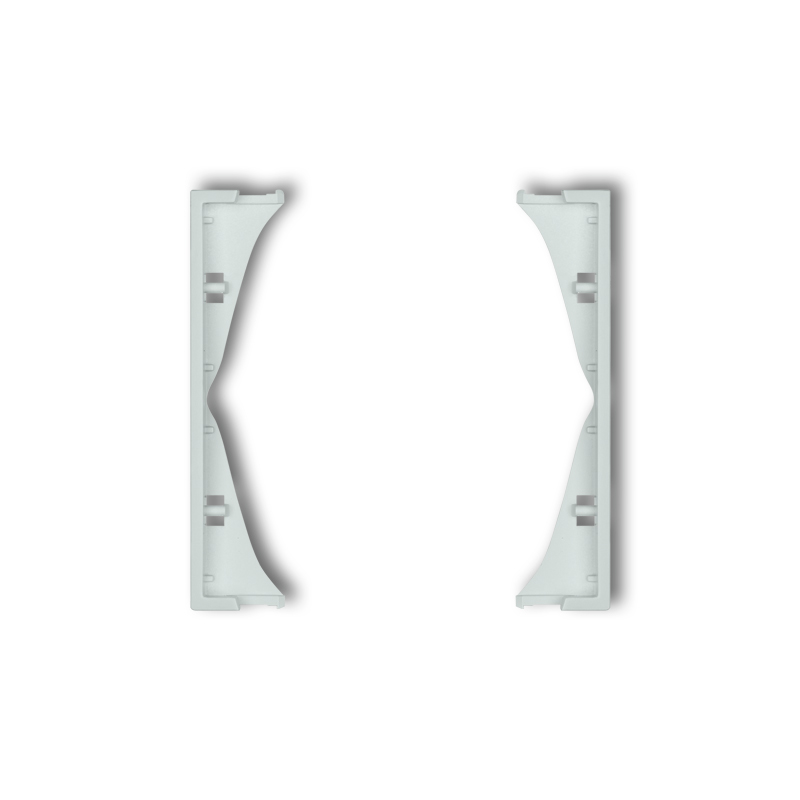

INTERMEDIATE FRAMES

  • MINI

    white

  • MINI

    silver metallic (7)

  • MINI

    graphite (11)

  • MINI

    matt black (12)

  • MINI

    matt white (25)

  • MINI

    matt grey (27)

  • MINI

    matt graphite (28)

  • MINI

    gold (29)

  • MINI

    taupe (60)

  • MINI

    sage (61)

  • MINI

    salmon (62)

  • MINI

    terracotta (63)

  • MINI

    navy blue (64)

  • MINI

    powder pink (40)

  • MINI

    lilac (41)

  • MINI

    lavender (42)

  • MINI

    canary yellow (43)

  • MINI

    peanut (44)

  • MINI

    peach (45)

  • MINI

    mint (46)

  • MINI

    ice blue (47)

  • MINI

    azure (48)

  • MINI

    chocolate (49)

  • MINI

    heater (50)

  • MINI

    emerald (51)

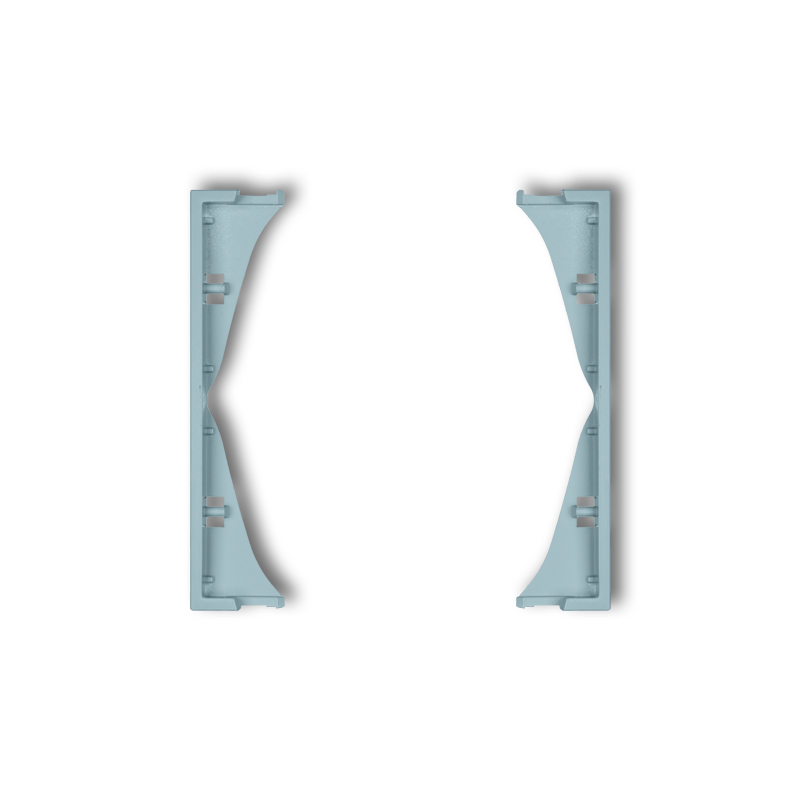

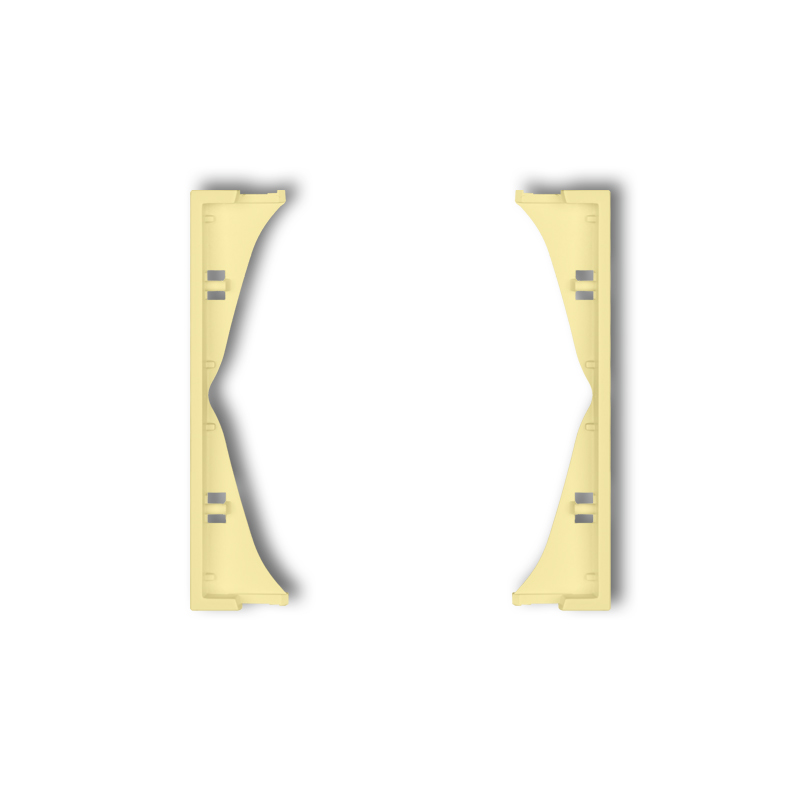

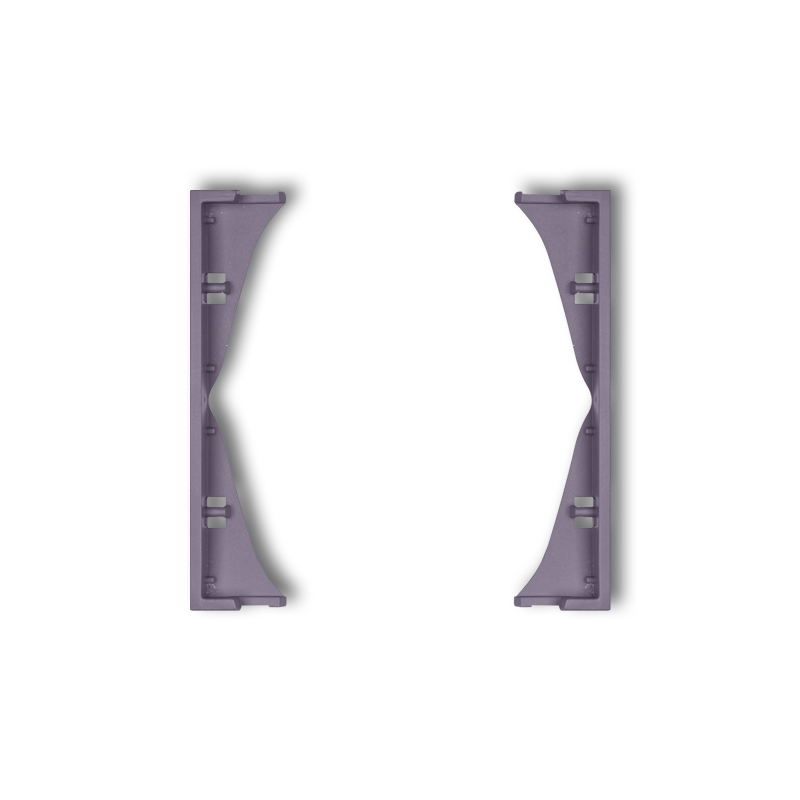

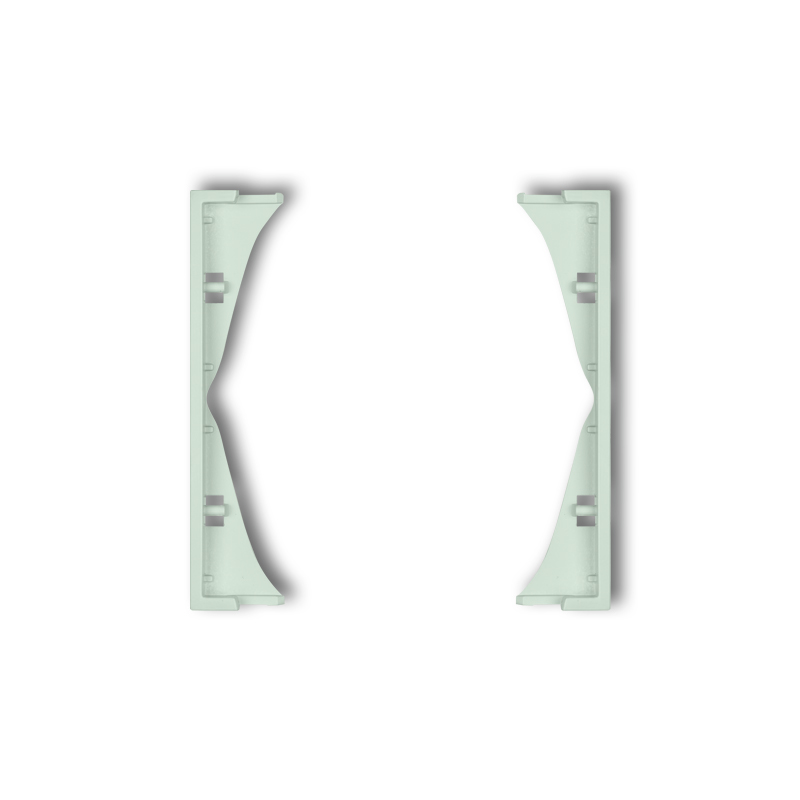

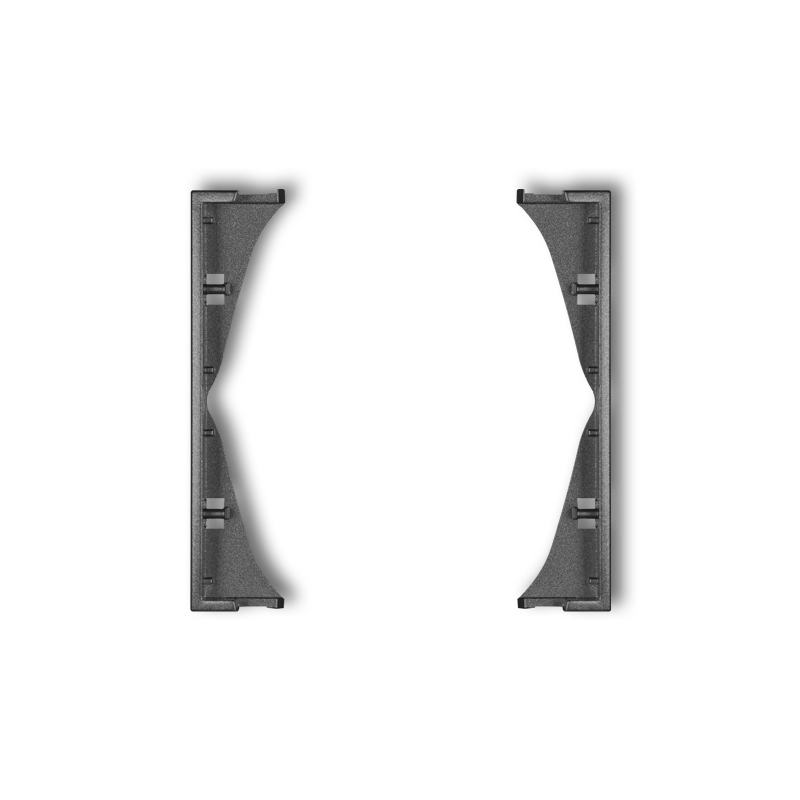

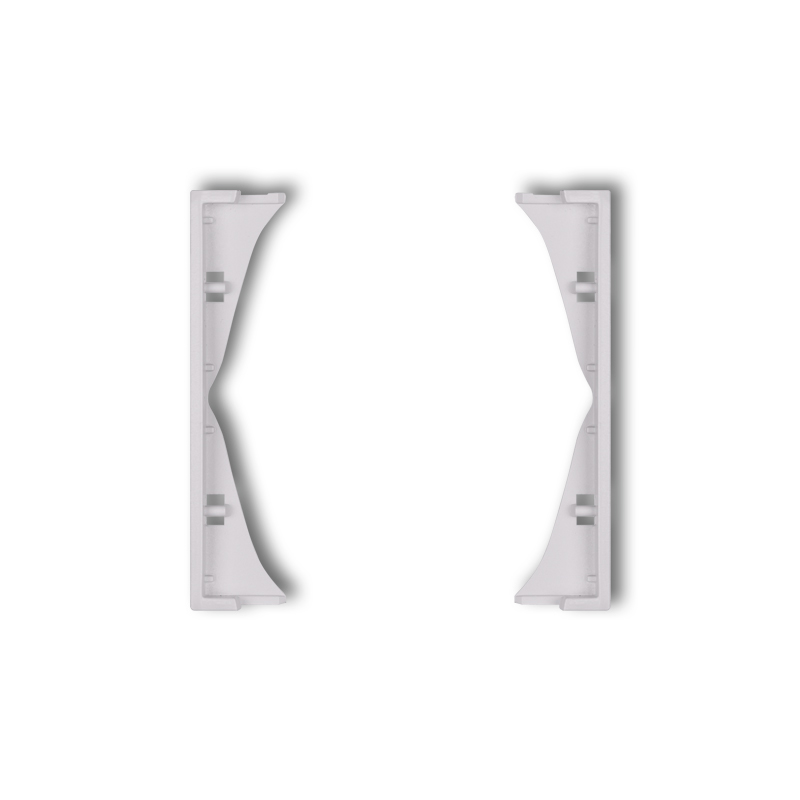

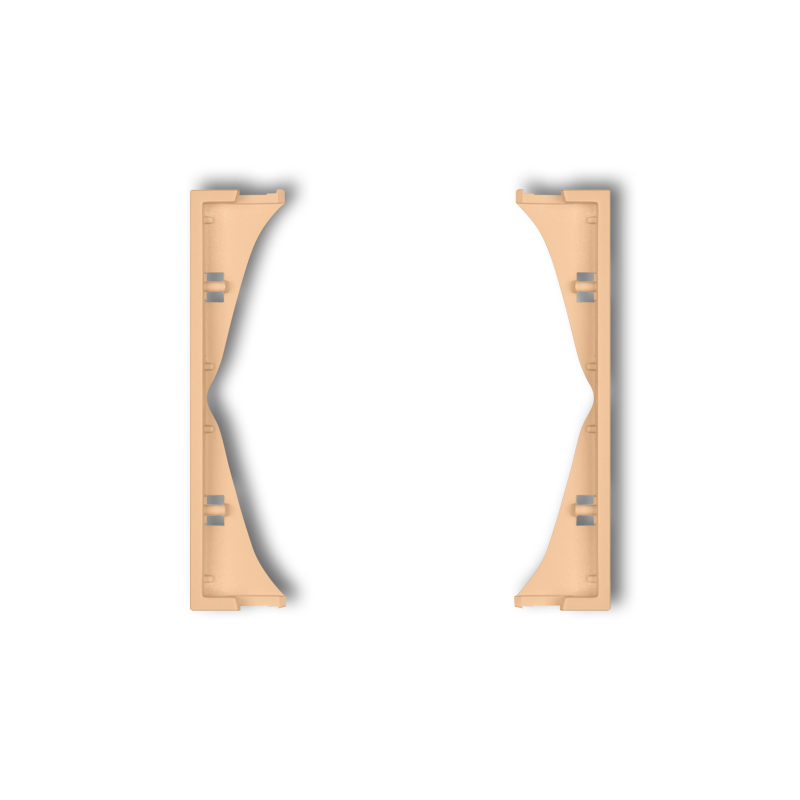

THE INTERMEDIATE FRAMES FOR DOUBLE SOCKET MECHANISMS

  • MINI

    white

  • MINI

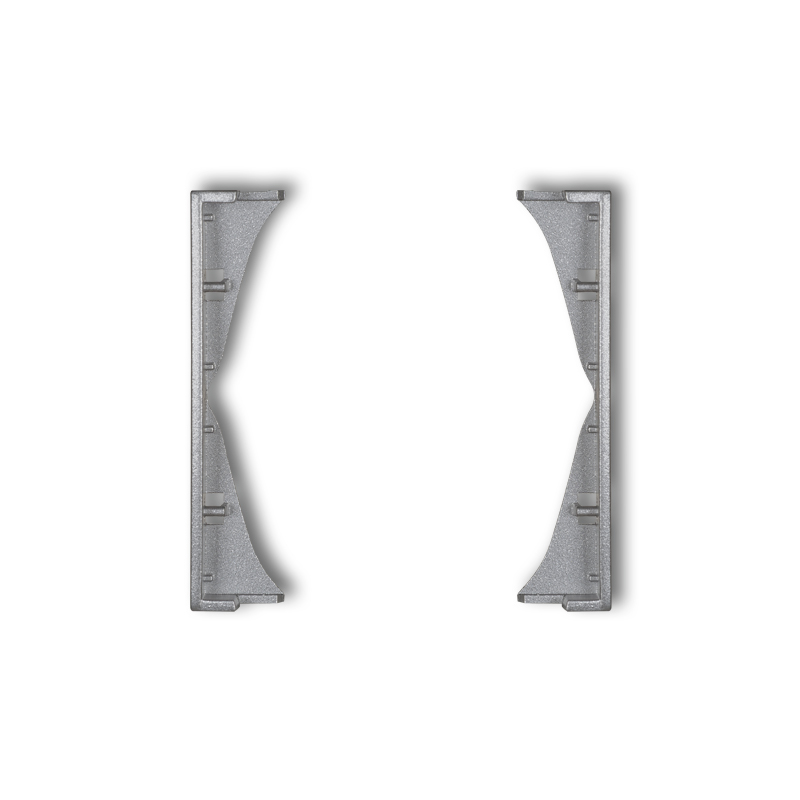

    silver metallic (7)

  • MINI

    graphite (11)

  • MINI

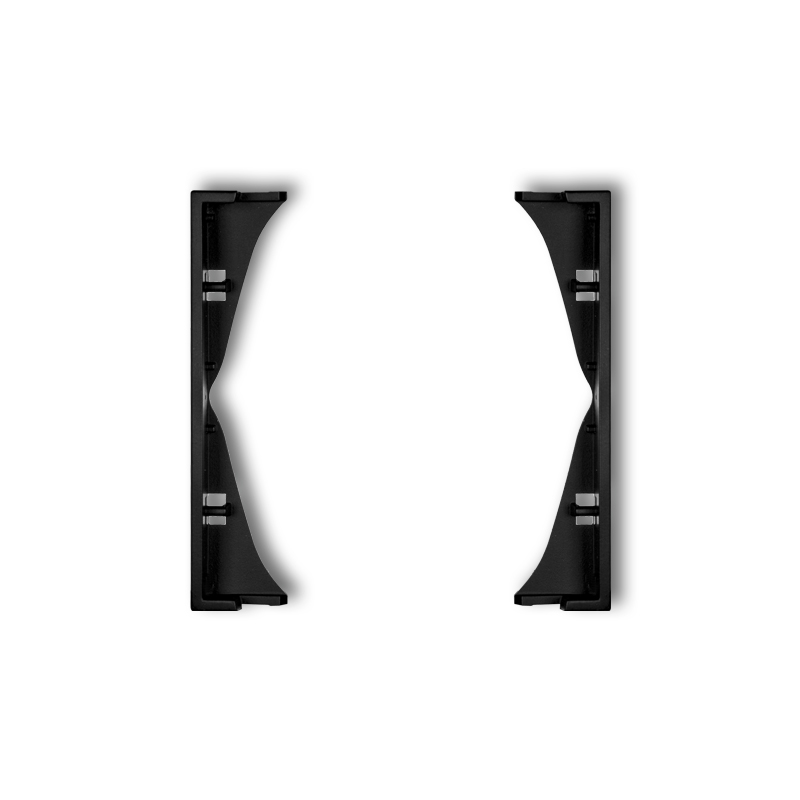

    matt black (12)

  • MINI

    matt white (25)

  • MINI

    matt grey (27)

  • MINI

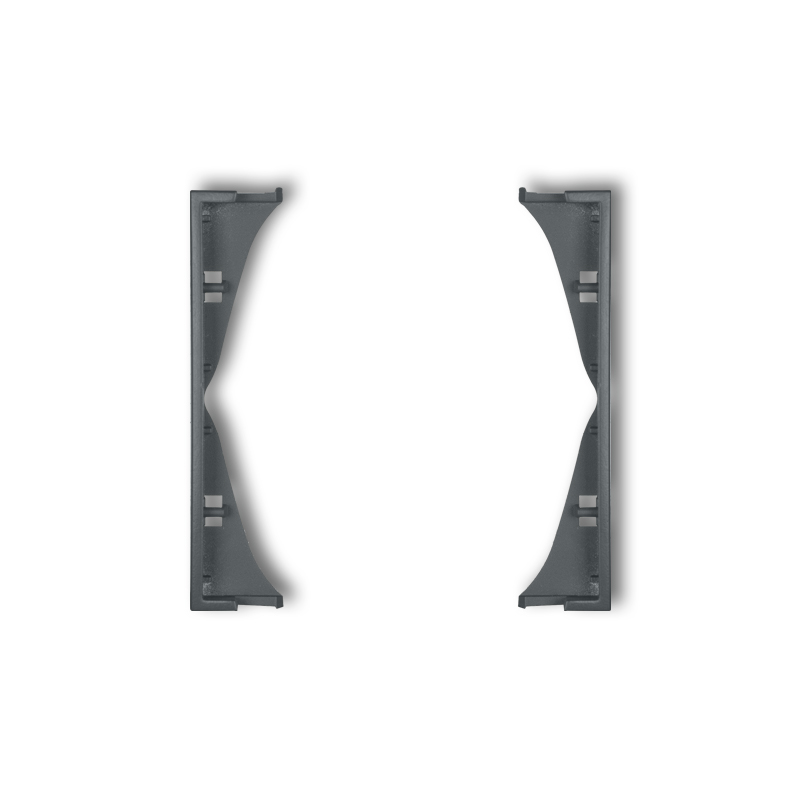

    matt graphite (28)

  • MINI

    gold (29)

  • MINI

    powder pink (40)

  • MINI

    lilac (41)

  • MINI

    lavender (42)

  • MINI

    canary yellow (43)

  • MINI

    peanut (44)

  • MINI

    peach (45)

  • MINI

    mint (46)

  • MINI

    ice blue (47)

  • MINI

    azure (48)

  • MINI

    chocolate (49)

  • MINI

    heater (50)

  • MINI

    emerald (51)

INSTRUCTIONS

3D MODELS

WARRANTY TERMS

PHOTO LIBRARY OF PRODUCTS (800x800px, 72DPI)

TECHNICAL DRAWINGS

DIAGRAMS

EU DECLARATIONS OF CONFORMITY

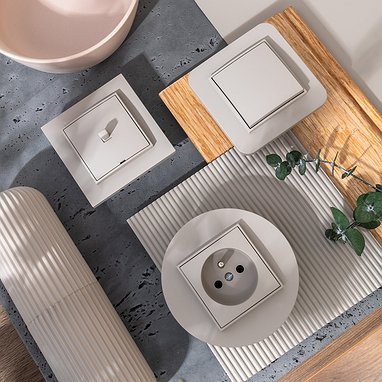

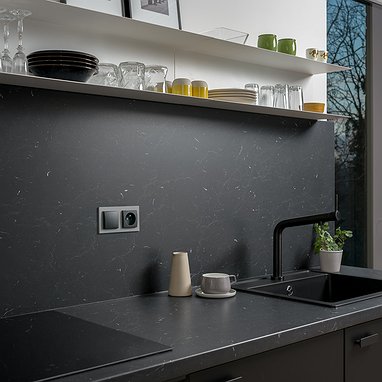

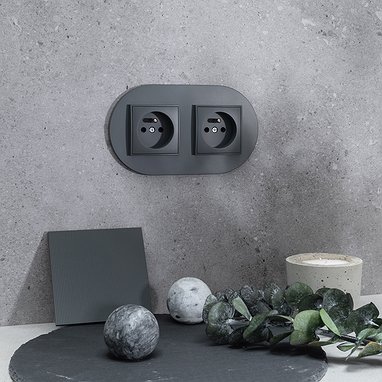

  • MINI, Zdjęcie: Stanisław Zajączkowski
