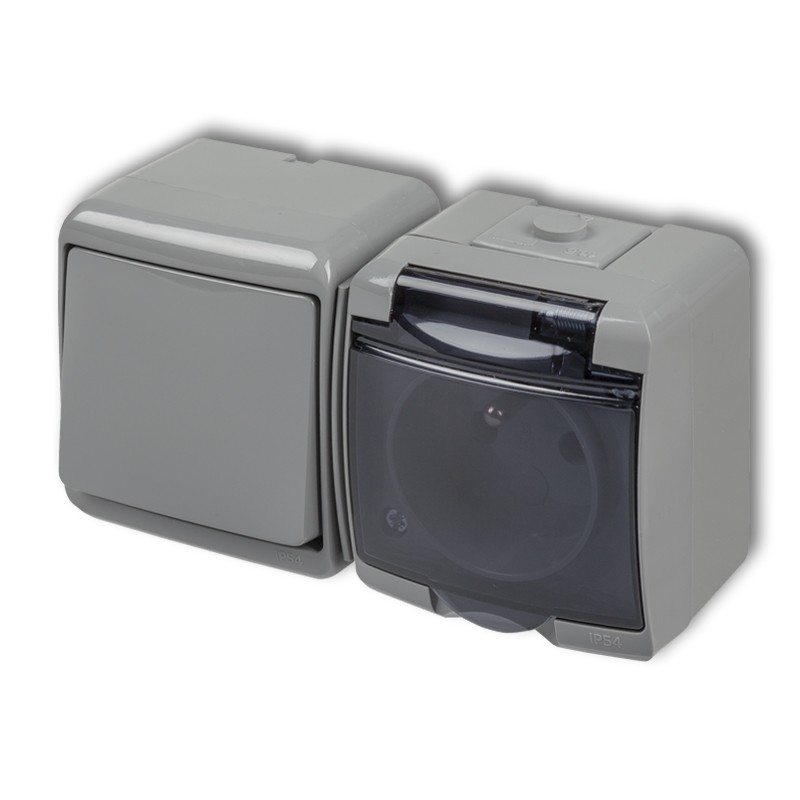

Single pole switch with single socket with the 2P+Z earth (shaded transparent cover; without increased contact protection/shutter)
white
WGHH-1d
-
white
WGHH-1d
-

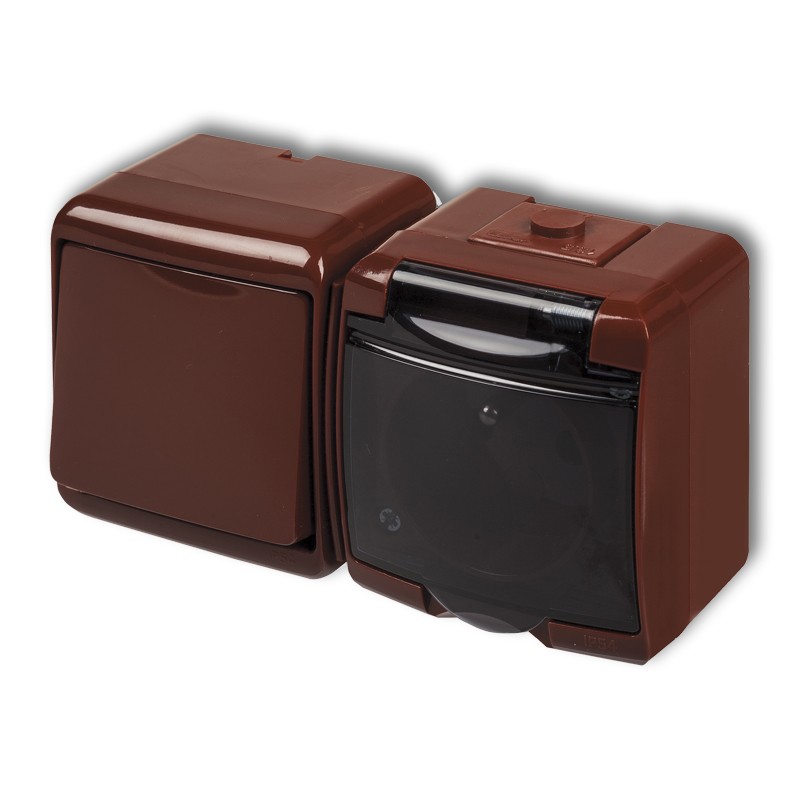

brown
4WGHH-1d
-
grey
10WGHH-1d
-
grey / graphite
30WGHH-1d
-

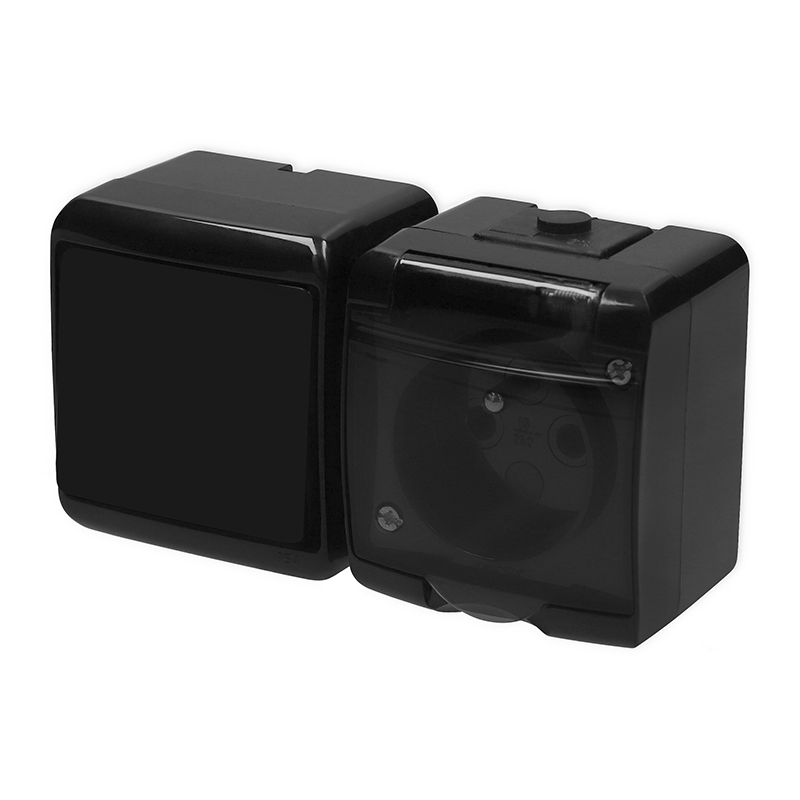

black
12WGHH-1d
Product description
Downloads
The JUNIOR series products can be used wherever there is dust and moisture, including in the industry.
According to the Ingress Protection Rating in terms of suitability for work in hazardous conditions such as dust and water, the JUNIOR accessories can be used:
>> in rooms exposed to large amounts of dust (workshops, garages, warehouses, etc.),
>> in areas of high humidity (terraces, gazebos). This product provides protection against splashes of water from any direction, it cannot be exposed to water.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 54 |
| Rated current | 10 AX / 16 A |
| Rated voltage | 250 V~ |
| Connection | Screw clamps |
| Increased contact protection/shutter | NO |
Product variants
-
Single pole switch with the 2P+Z single socket with earth (white cover; without increased contact protection/shutter)
white
WGHH-1
-
Two-way switch with single socket with the 2P+Z earth (brown cover, without increased contact protection/shutter)
brown
4WGHH-3
-
Single pole switch with single socket with the 2P+Z earth (shaded transparent cover, without increased contact protection/shutter)
brown
4WGHH-1d
-

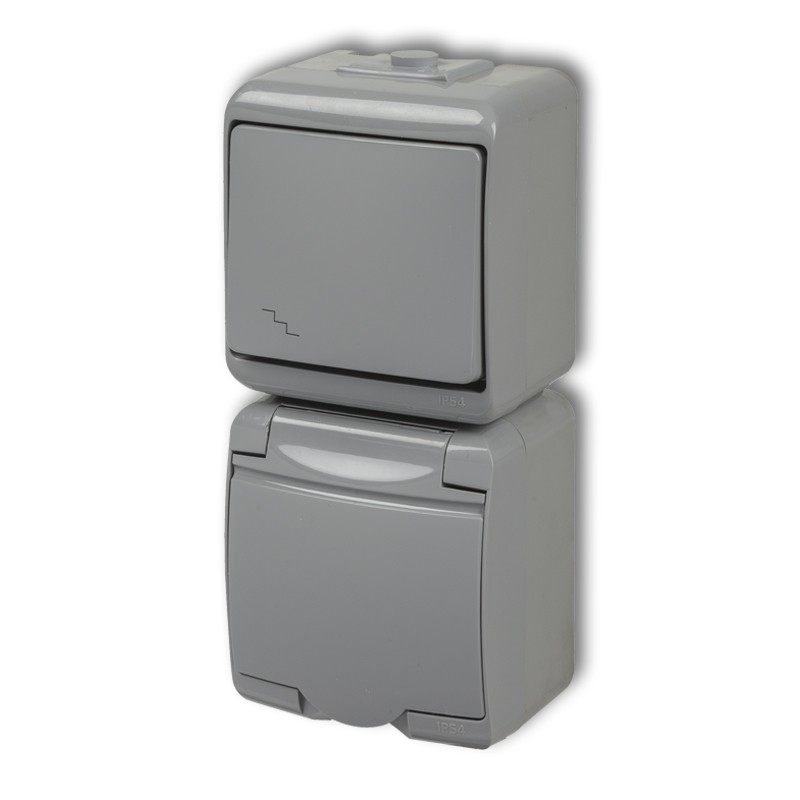

Two-way switch with single socket with the 2P+Z earth (grey cover, without increased contact protection/shutter)
grey
10WGHH-3
-
Single pole switch with single socket with the 2P+Z earth (shaded transparent cover, without increased contact protection/shutter)
grey
10WGHH-1d
-
Two-circuit switch with single socket with the 2P+Z earth (graphite cover, without increased contact protection/shutter)
grey / graphite
30WGHH-2
