Electronic dimmer push-rotary mechanism

FLEXI

white

FRO-1

  • FLEXI

    white

    FRO-1

  • FLEXI

    beige

    1FRO-1

  • FLEXI

    silver metallic

    7FRO-1

  • FLEXI

    gold metallic

    8FRO-1

  • FLEXI

    brown metallic

    9FRO-1

  • FLEXI

    graphite

    11FRO-1

The FLEXI series products are sold with an outer frame as a "monoblock" system, thereby allowing the user to create multiple connections vertically or horizontally. To this end, there is no need to buy additional external multiple frames. With an innovatively designed external frame, it is enough to remove the side of the frame and, using the tongue-and-groove, join any number of frames with each other.

Frames should be folded without the mechanisms.

Electronic lightning controller with push and rotary button (dimmer switch) enables stepless adjustment of light intensity from 0 to 100% of full power of the illumination and it can be used with almost every frame. With electricity consumption proportionate to the lightning level it increases comfort and daily electricity savings.

Lightning controller is used to control illumination level of typical incandescent lightning. Controlling involves the use of potentiometer with switch. The configuration enables intelligent control of lightning systems and is convenient and economic in use. The controller is equipped with overload and short-circuit protection.

Note!
Connecting two regulators in a two-way system may damage regulators.

More information in the DOWNLOADS section.

Technical data

Protection index IP 20
Power supply 230 V~ 50 Hz
Tolerance of voltage supply -15 ÷ +10%
Light control switch and regulation on potentiometer 10 ÷ 100%
Cooperation with load convectional incandescent, halogen 230 V~, low voltage halogen 12 V (with conventional and toroidal tranformer)
Load capacity 40 ÷ 400 W
Scope of regulation 5 ÷ 40°C
Control unit triac
Number of connection clamps 3
Cross section of connection cables max 1 mm2
Fixing of the casing standard flash-mounted wall box Ø 60 mm
Temperature working range from -20°C to +45°C
Withstand voltage 2 KV
Safety class II
Surge voltage category II
Contamination level 2

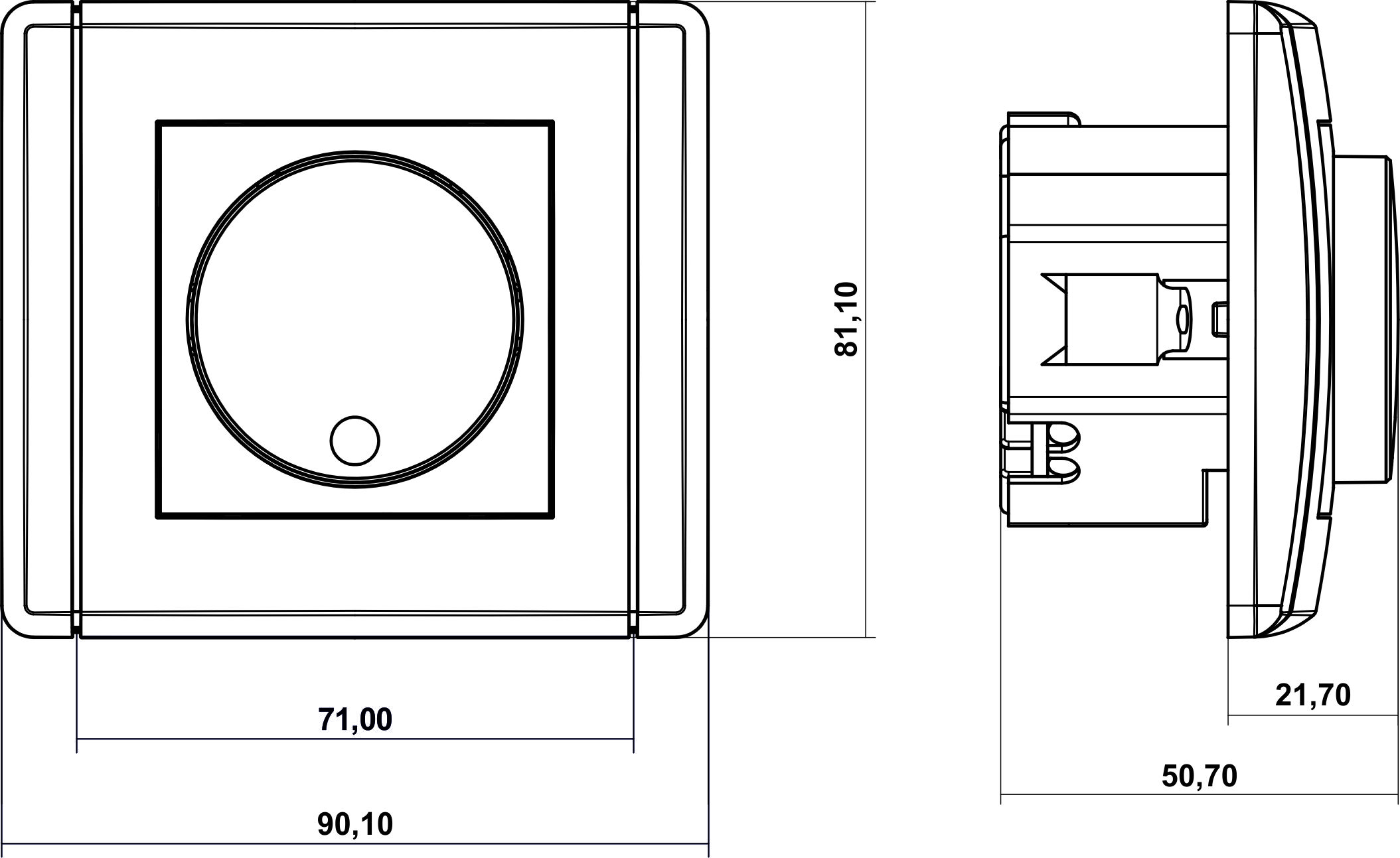

Technical image
