Dual USB charger mechanism USB C + USB A, 30W max.

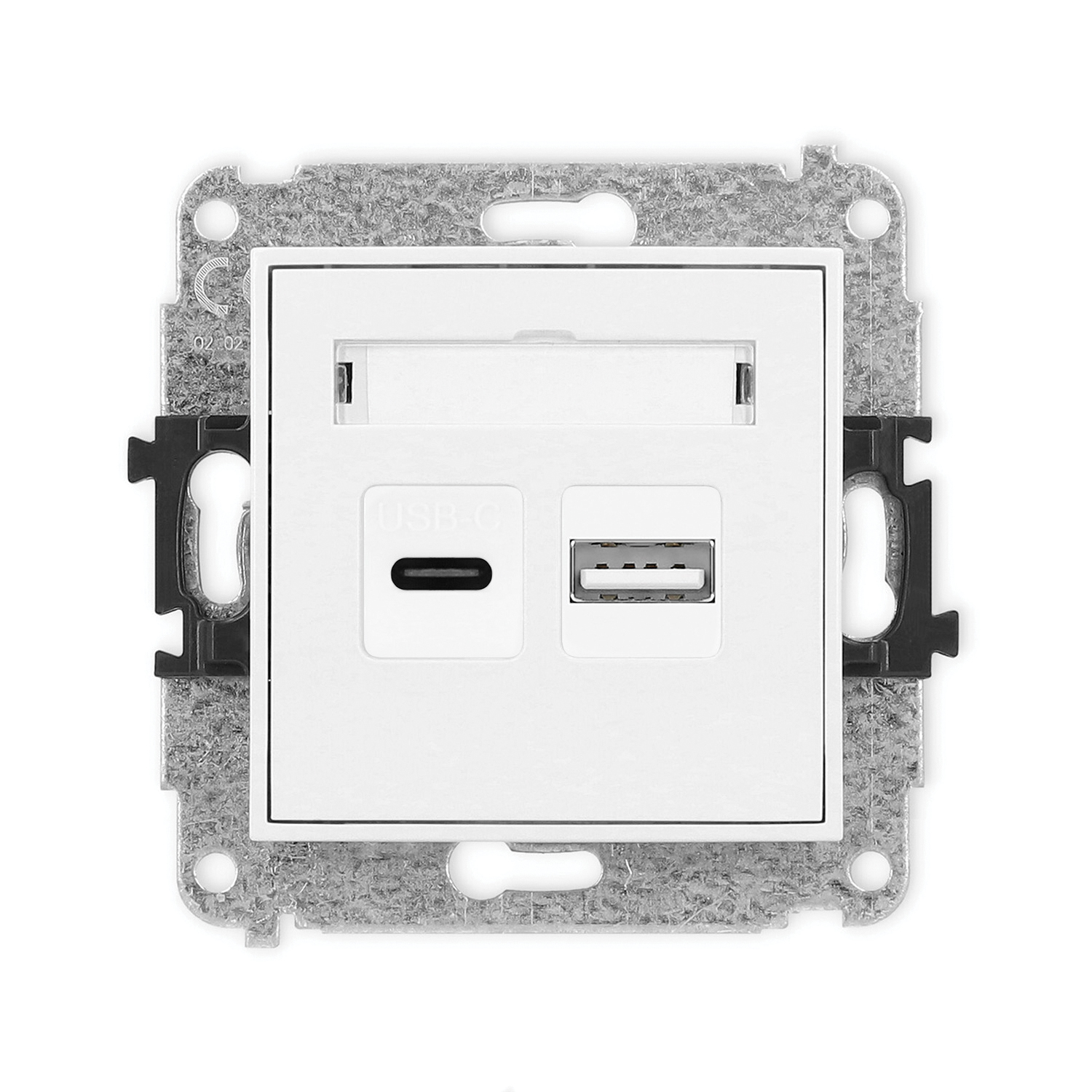

white
ICUSB-10
-
white
ICUSB-10
-

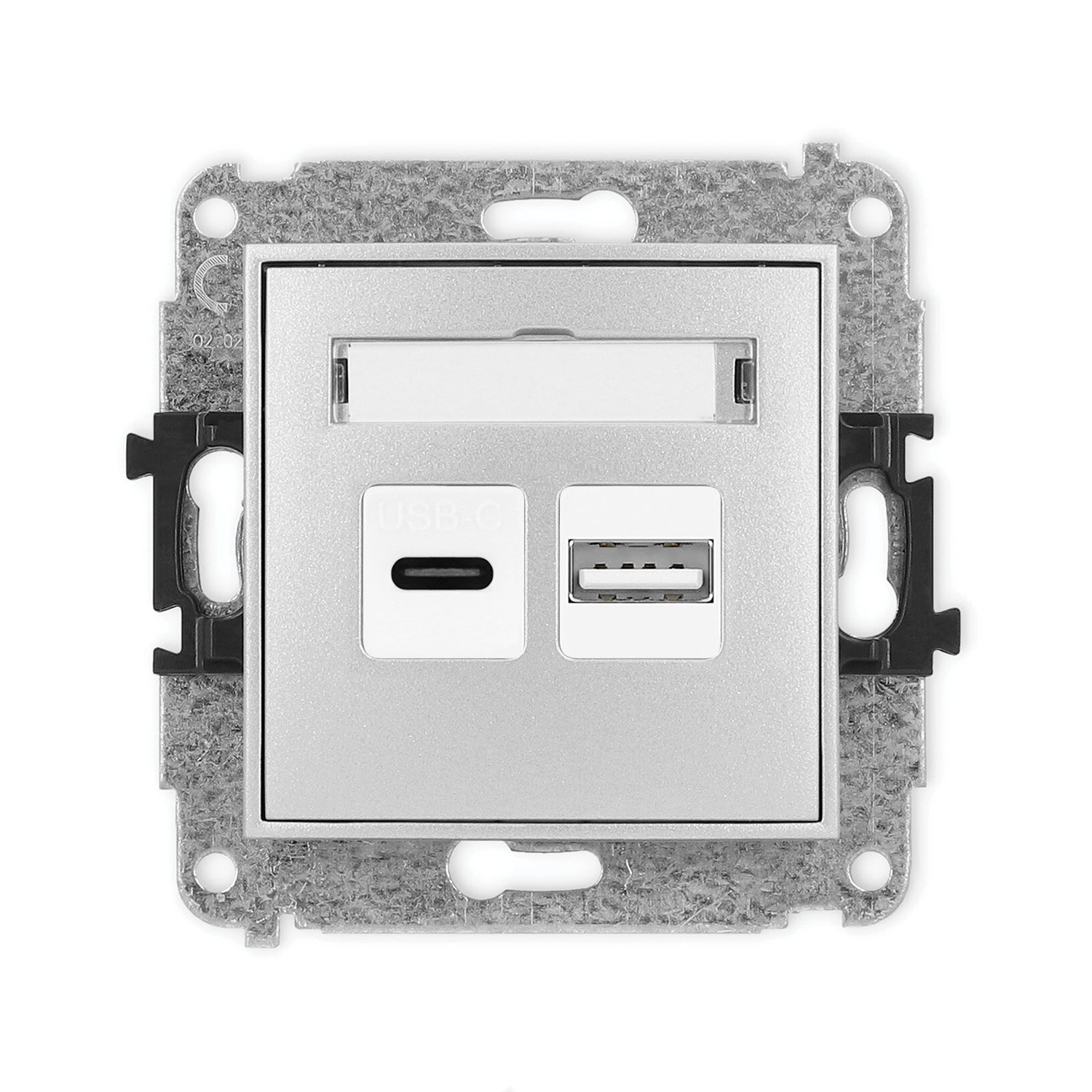

silver metalic
7ICUSB-10
-

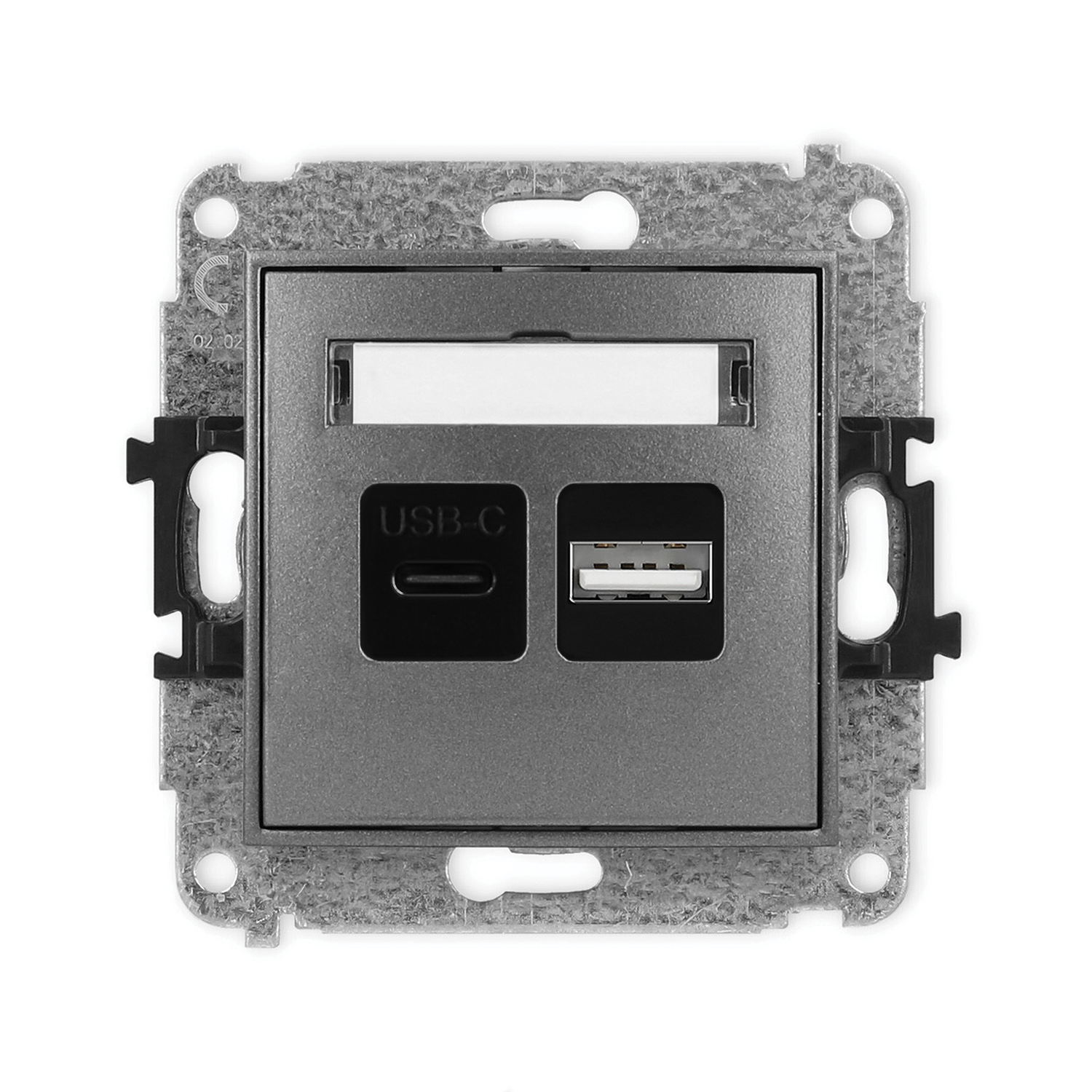

graphite
11ICUSB-10
-

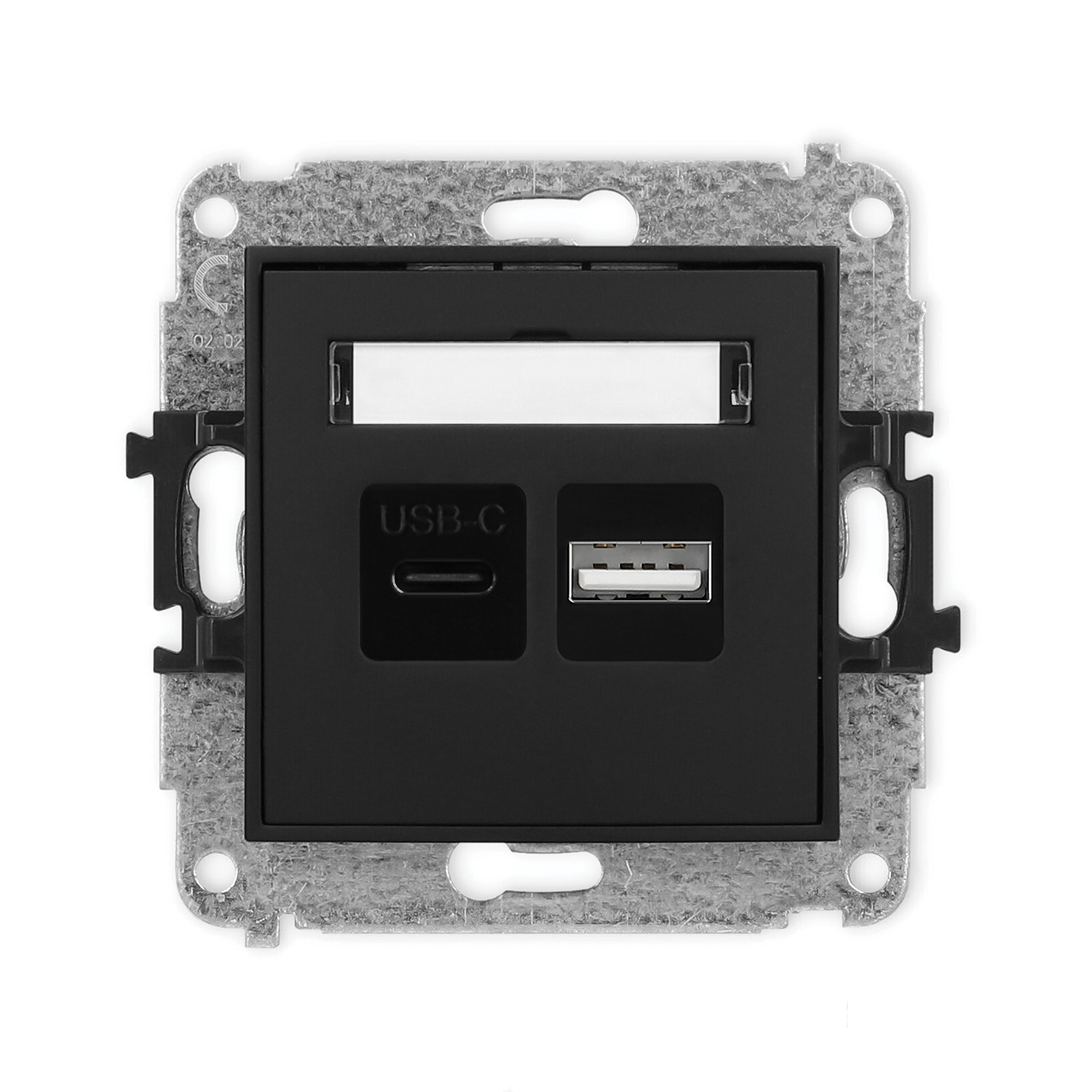

matt black
12ICUSB-10
-
matt white
25ICUSB-10
-
matt grey
27ICUSB-10
-
matt graphite
28ICUSB-10
-

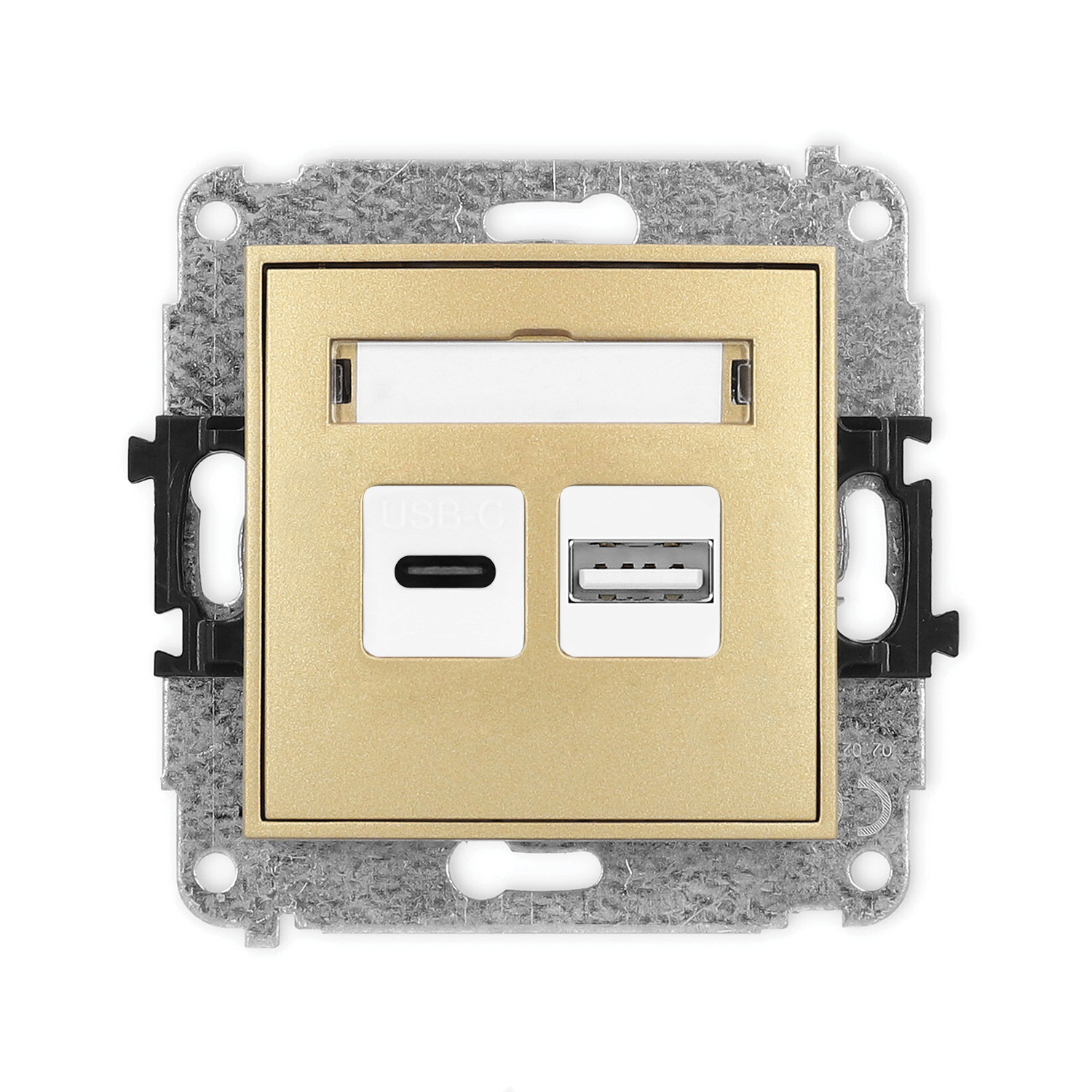

gold
29ICUSB-10
-

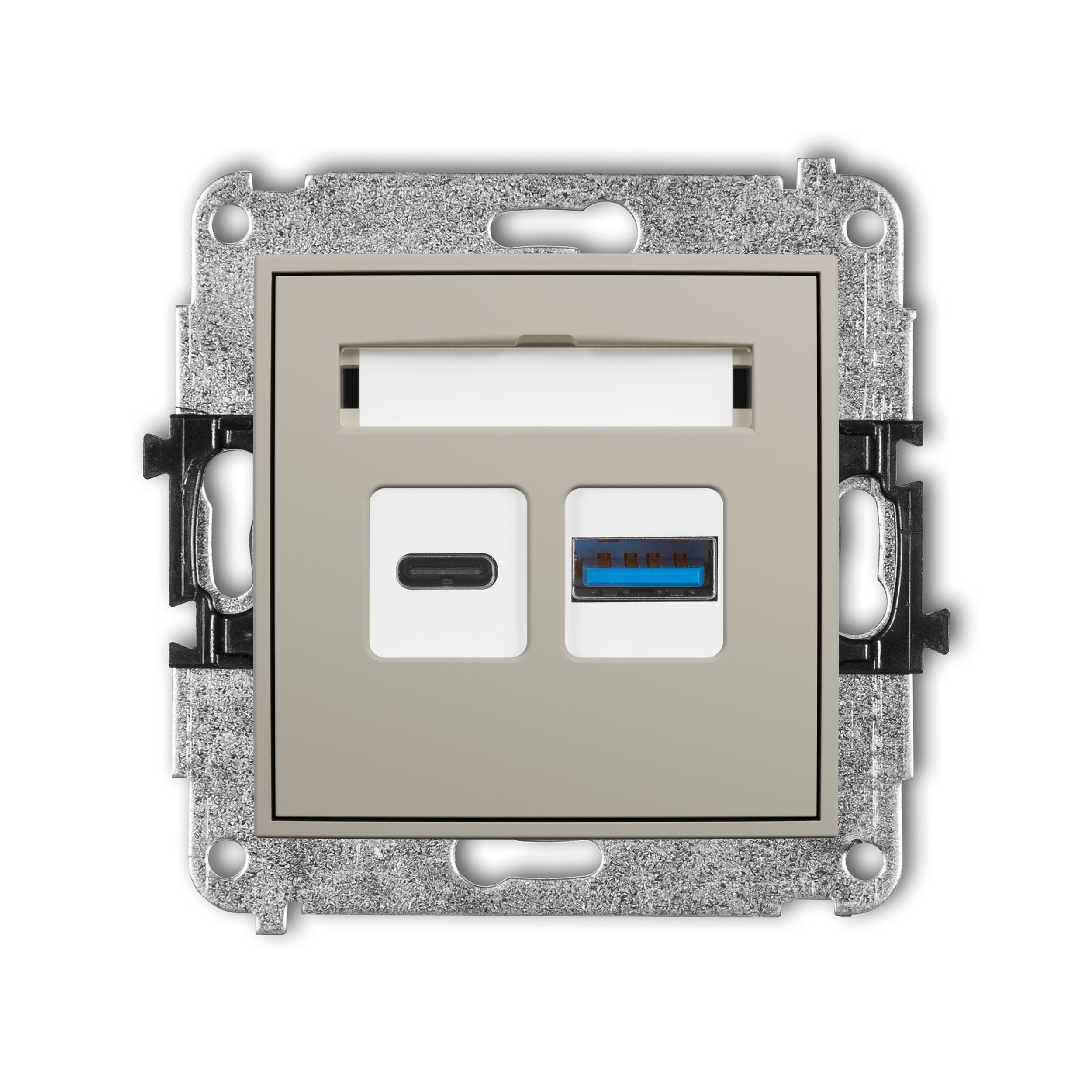

taupe
60ICUSB-10
-
sage
61ICUSB-10
-

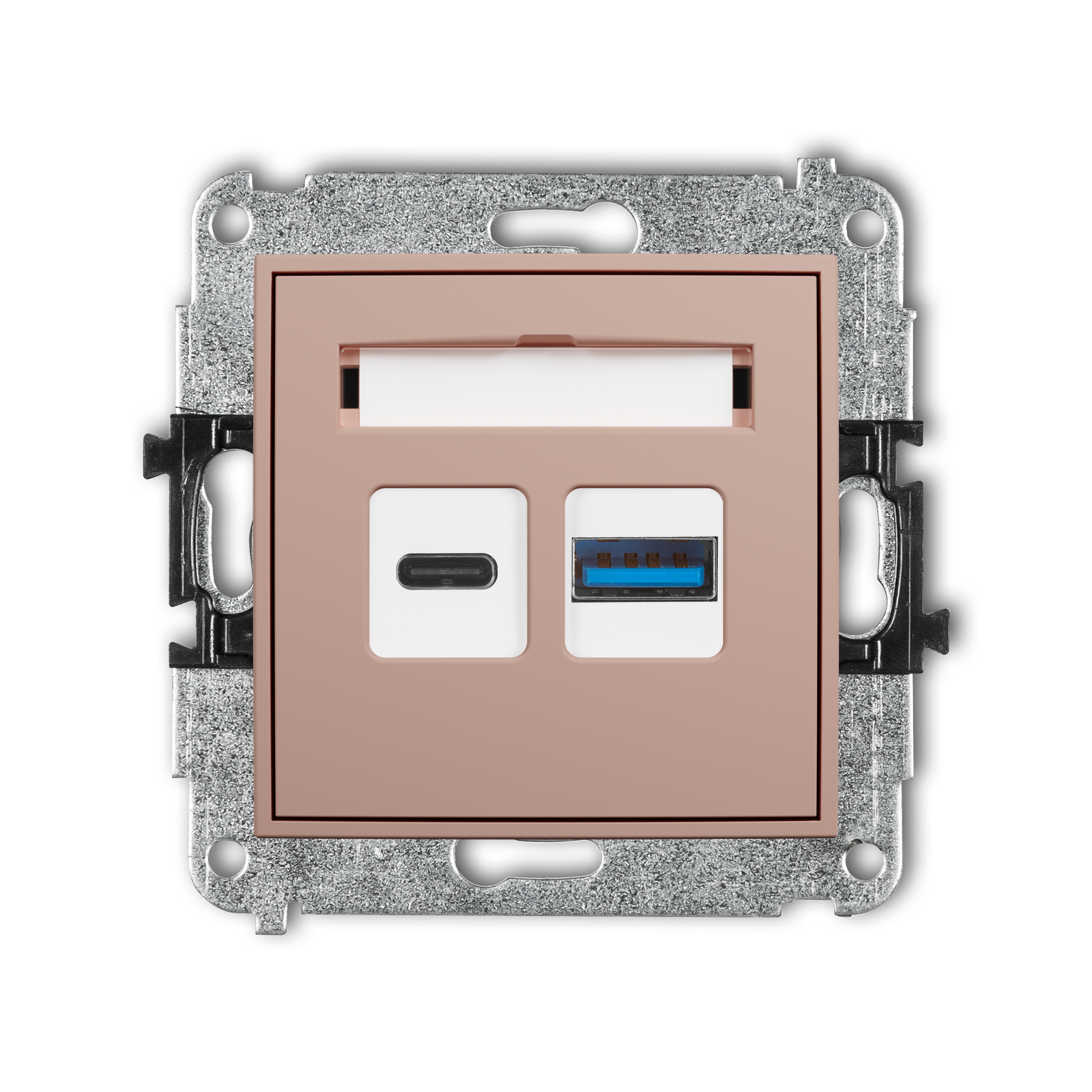

salmon
62ICUSB-10
-
terracotta
63ICUSB-10
-

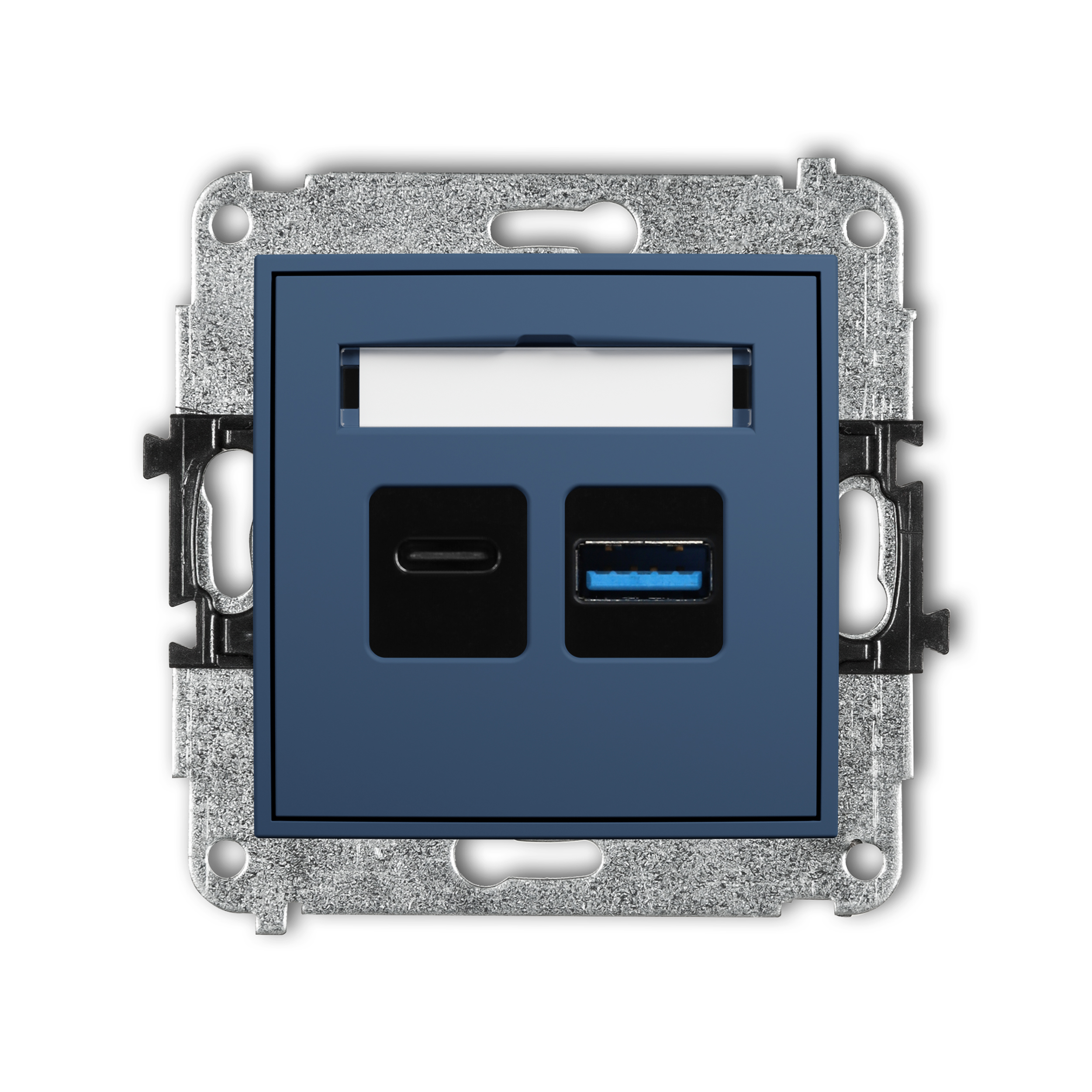

navy blue
64ICUSB-10
Product description
Downloads
USB charger mechanism with idle power supplu consumes less than about 0,1W.
The charger achieves a maximum output current of 3A when only one device is connected. When connecting two devices, the output current is divided equally between each USB port.
ICON mechanisms and frames are sold separately.
ICON series multimedia sockets connection method you find here.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated input voltage | 100-240 V~ 50/60Hz |
| Rated output current | 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, 30W Max (when connecting a device to only one USB-C output) |
| Rated output current | 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A, 30W Max (when connecting a device to only one USB-A output) |
| Rated output current | 5V/3A 15W Max (when connecting devices to two USB-A + USB-C outputs) |
| Connection type | USB-A, USB-C |
| Connection | Screw clamps |
| UV resistance | Resistant |
Complementary products
Related products
-
Single socket with the 2P+Z earth mechanism (with increased contact protection/shutter)
matt black
12IGP-1zp
-
Splash proof socket with the 2P+Z earth mechanism (shaded transparent cover, with increased contact protection/shutter)
matt white
25IGPB-1zdp
-
Single antenna TV socket mechanism
matt grey
27IGTV-1
-

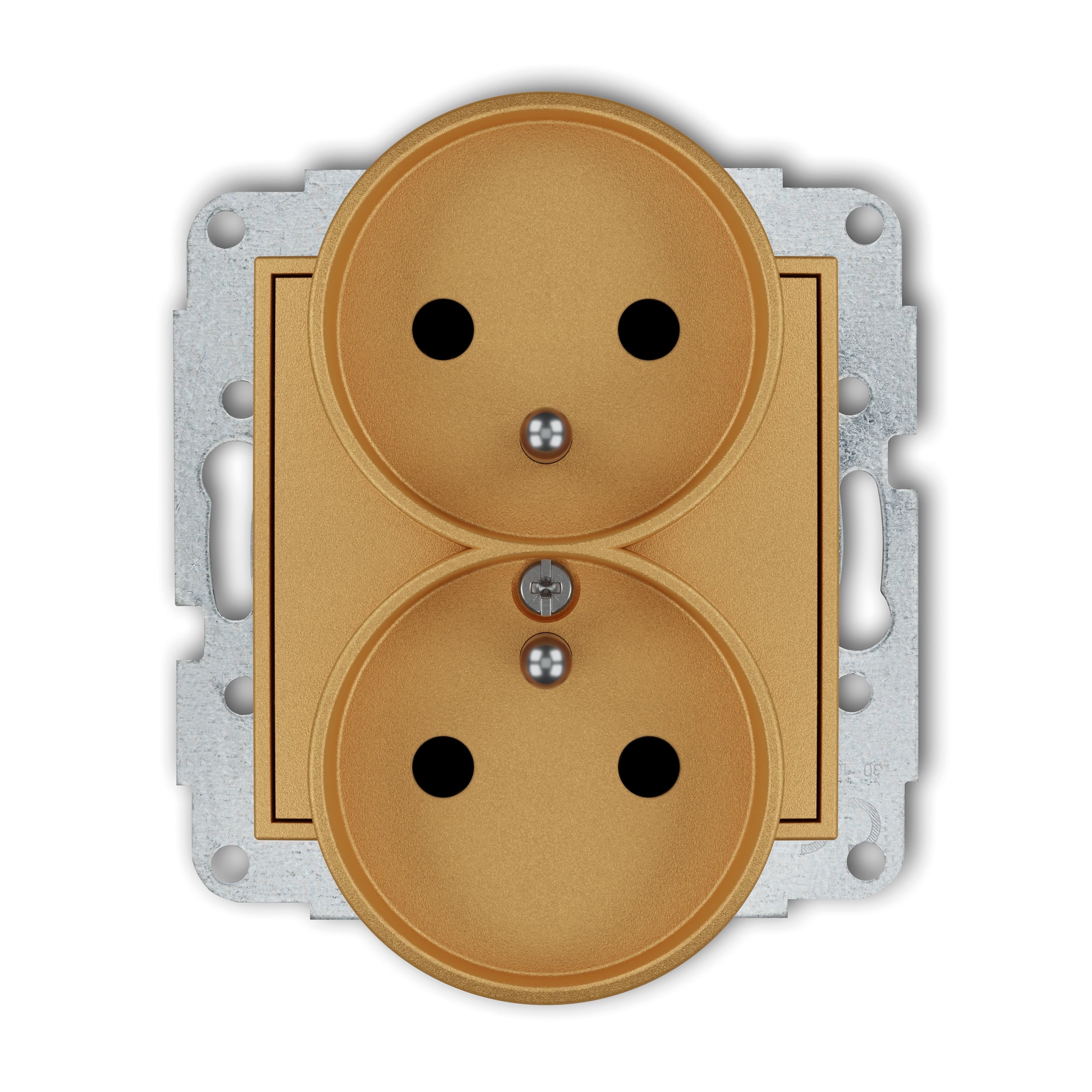

Double socket to a frame with the 2x(2P+Z) earth mechanism (with increased contact protection/shutter)
gold
29IGPR-2zp
-

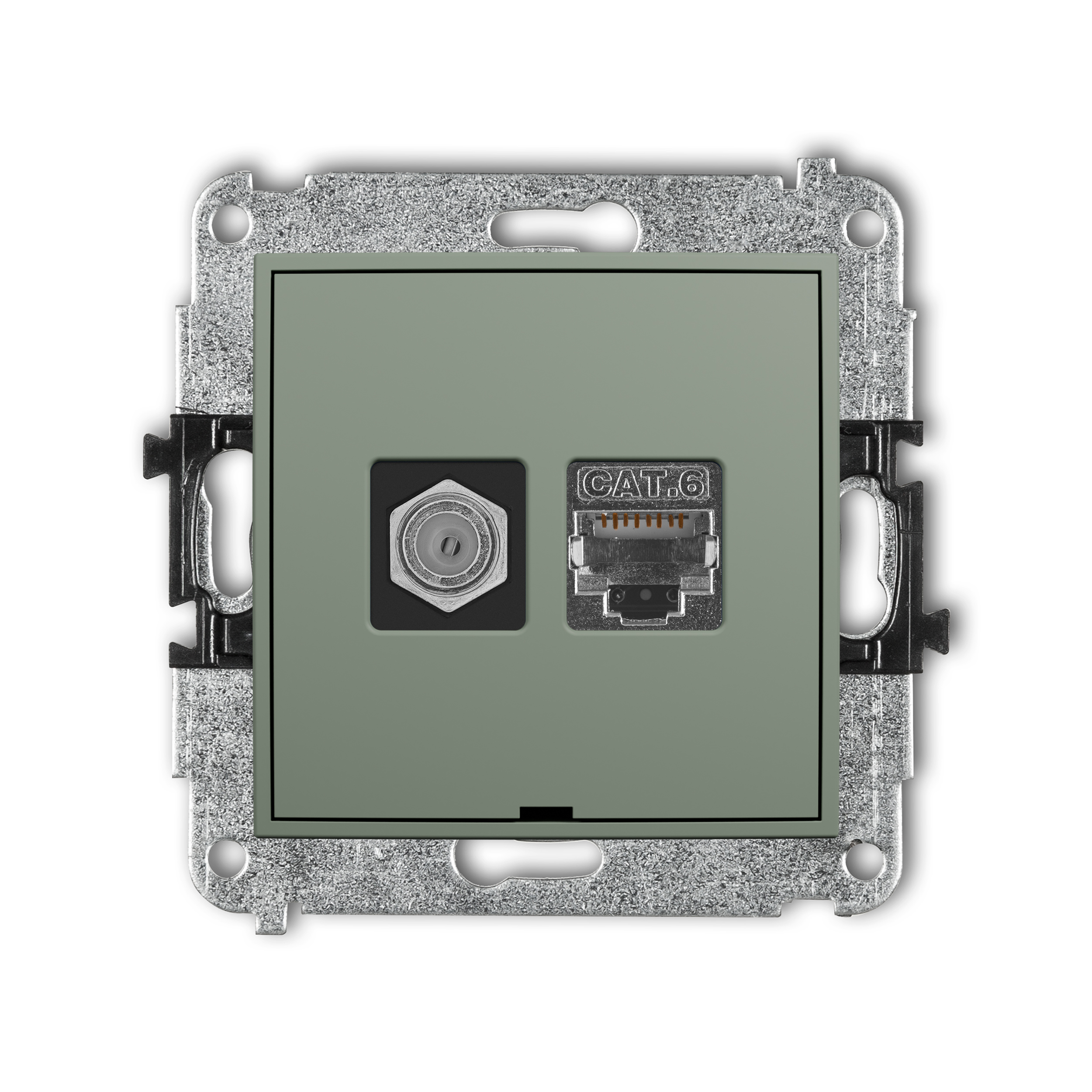

Single antenna F type socket (SAT) + single computer socket mechanism 1xRJ45, cat. 6, screened, 8-contact, without description field
