Electronic temperature controller mechanism with underfloor sensor

Electronic temperature controller mechanism with underfloor sensor

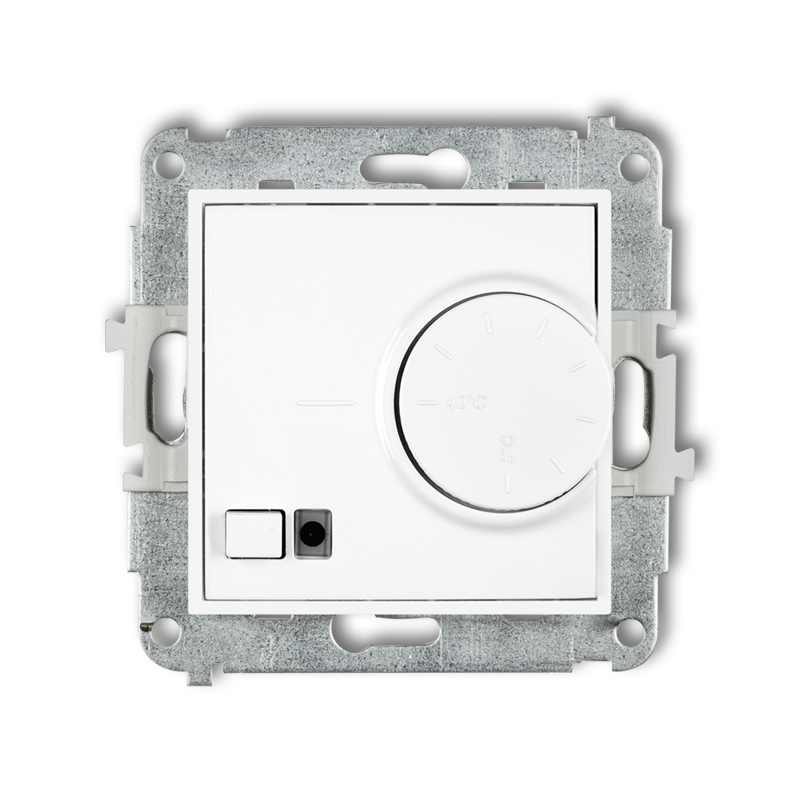

white

IRT-1

white

IRT-1

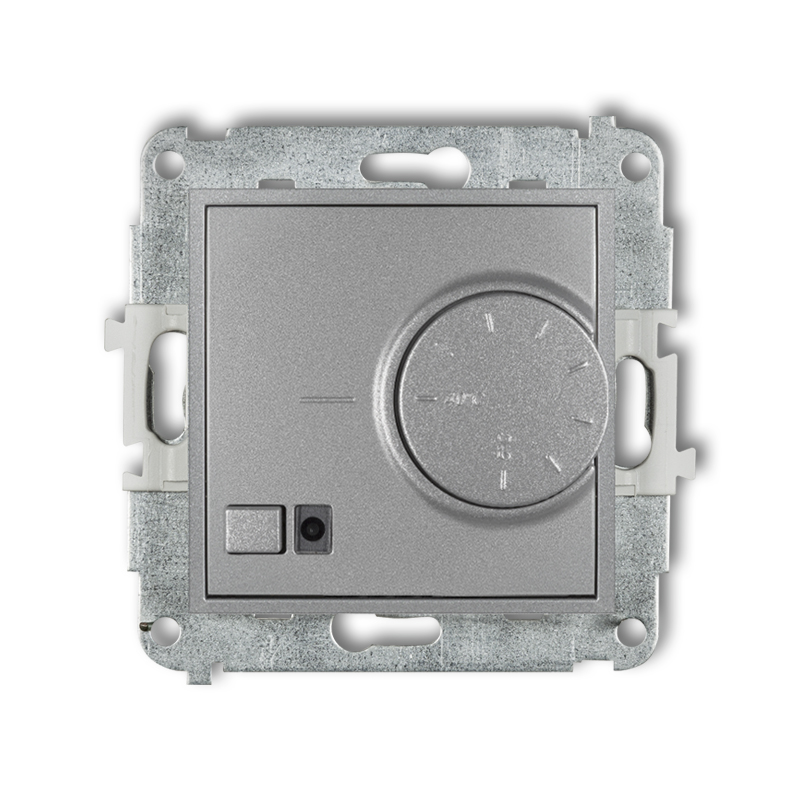

silver metallic

7IRT-1

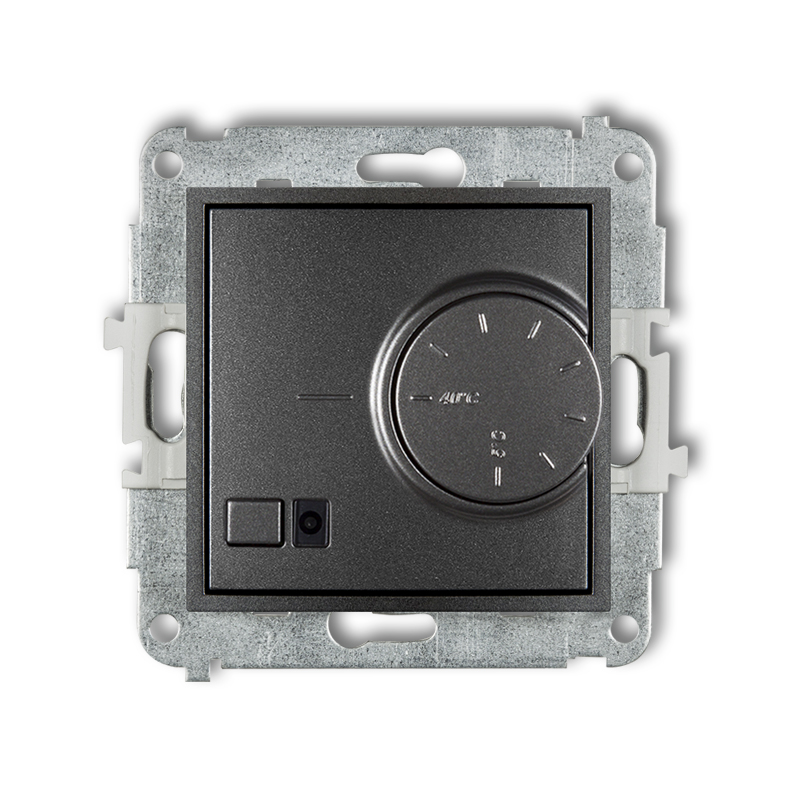

graphite

11IRT-1
matt black

12IRT-1
matt white

25IRT-1
matt grey

27IRT-1

matt graphite

28IRT-1

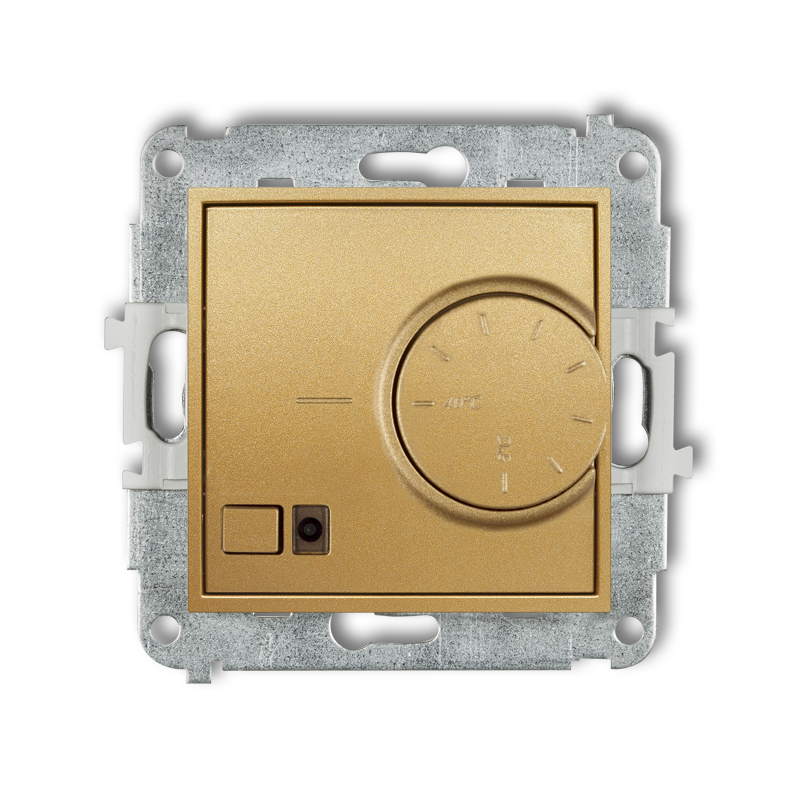

gold

29IRT-1

Product description
Downloads

ICON mechanisms and frames are sold separately.

Electronic temperature controller enables maintaining set floor temperature automatically. Each circuit constitutes independent heating system to be set individually. It is particularly important in case the electric or water underfloor heating constitutes the only heating system.

Note! In the case of a sensor with other parameters, there is a risk that the device will work incorrectly or with lower accuracy.

More information in the DOWNLOADS section.

The actual appearance of product may be different from the presented photographs.

Technical data

Protection index	IP 20
Power supply	230 V~ 50 Hz
Maximum load	3200 W
Temp. range	5 ÷ 40°C
Type of work	Continuous
Connection	Screw terminals
UV resistance	Resistant
Probe length	3 m
Maximum cable length	type: 50 m / 2 x 0.2 ÷ 1 mm2
Sensor measuring element	thermistor NTC 10K 1%
Sensor working temperature	-10 / 100 °C
Sensor protection degree	IP 67
