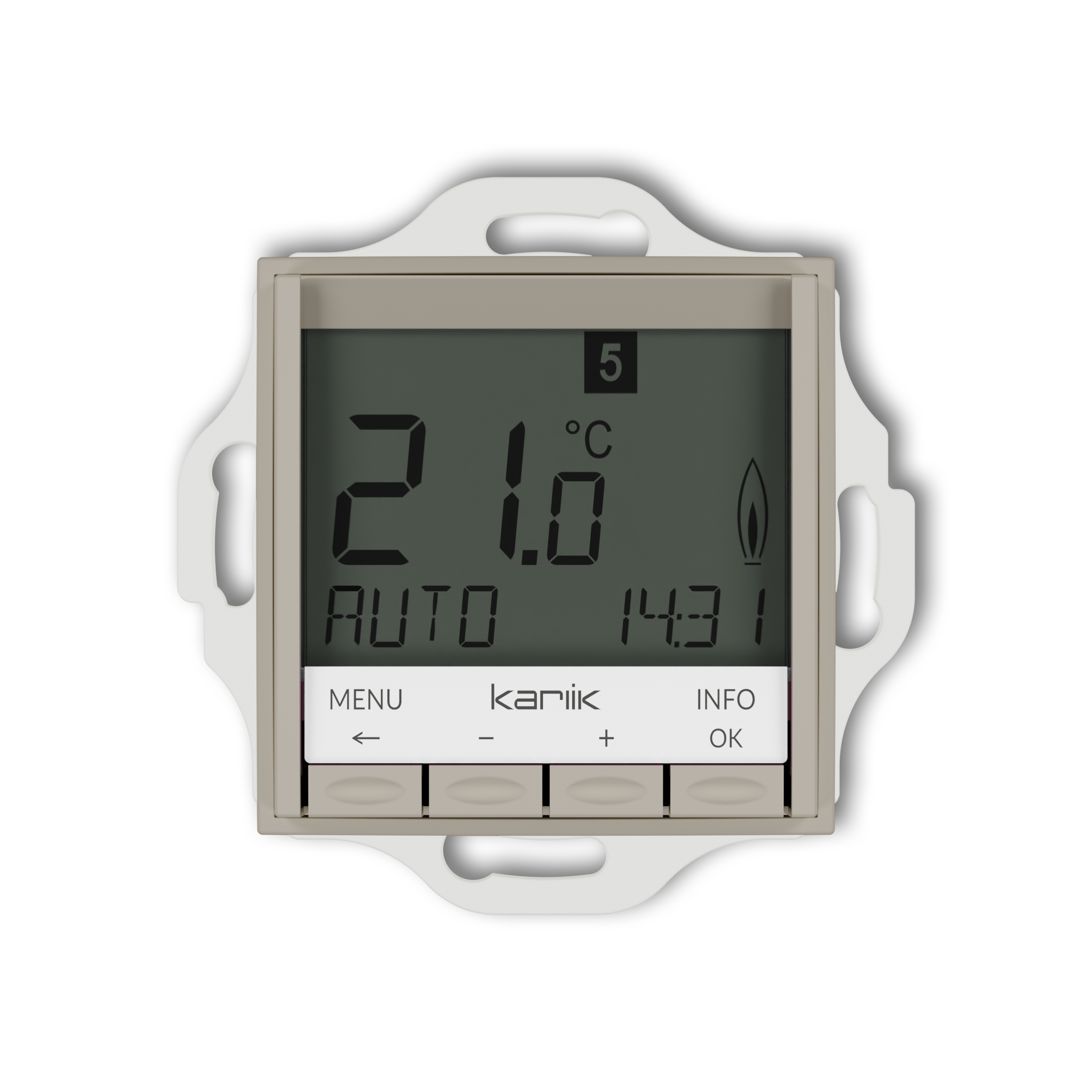

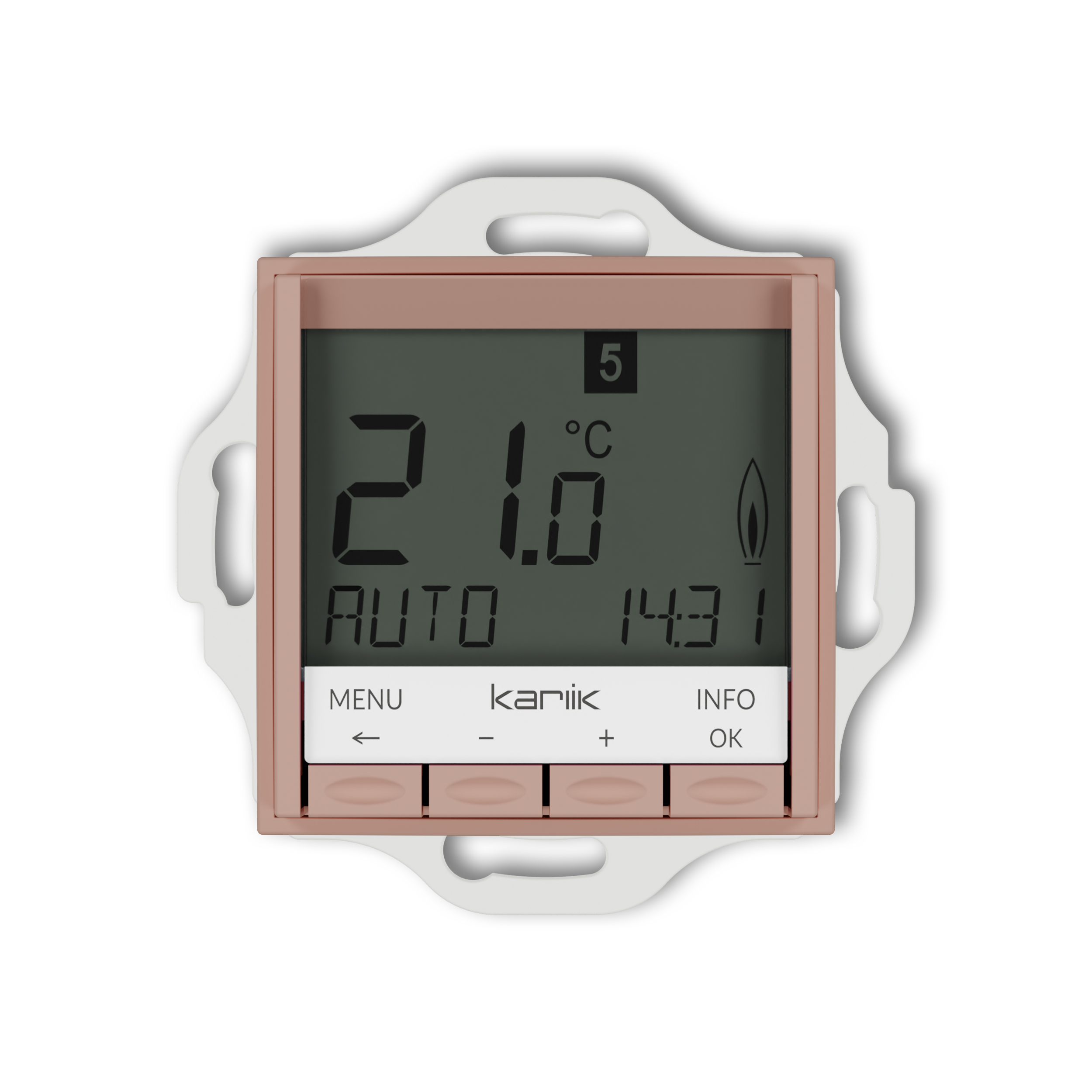

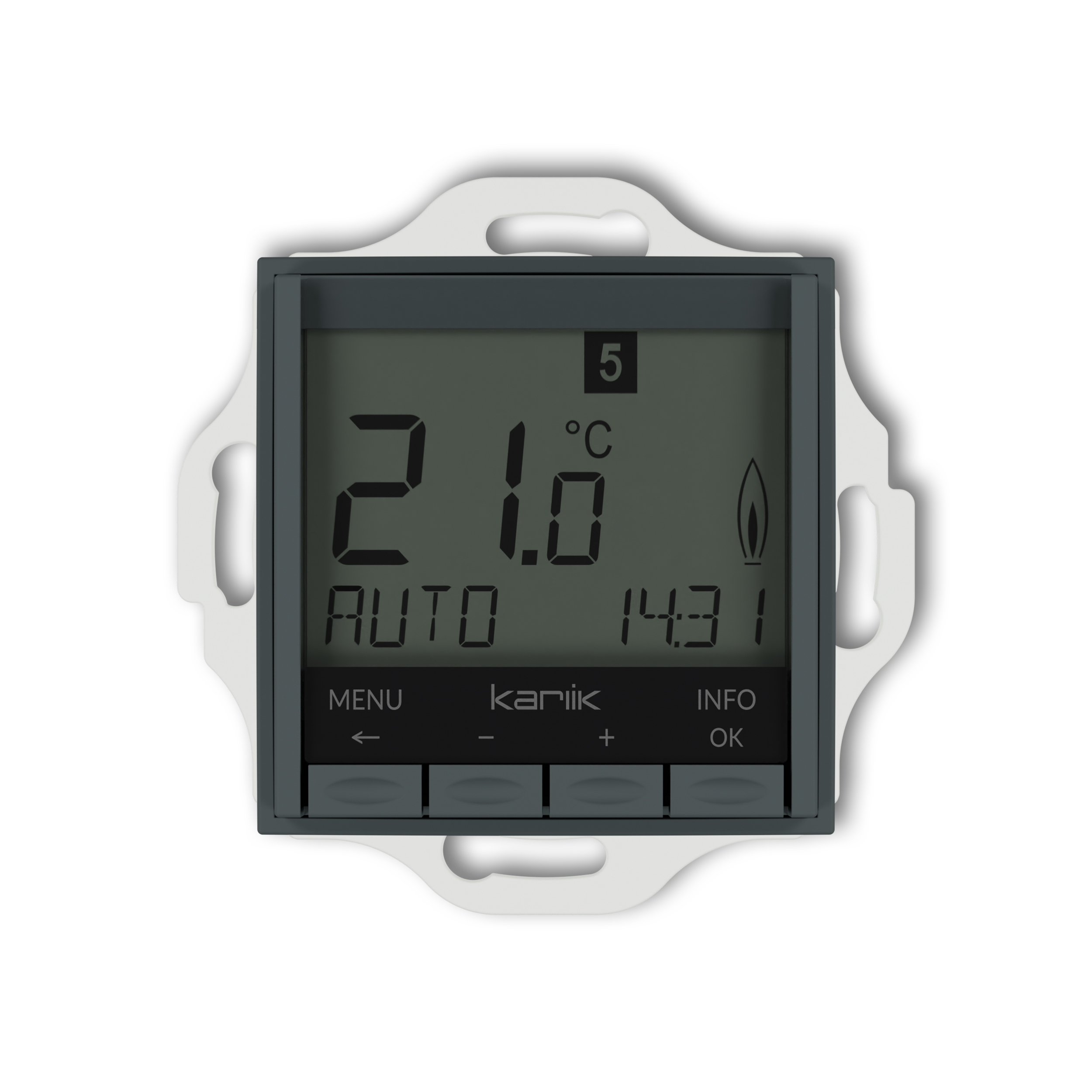

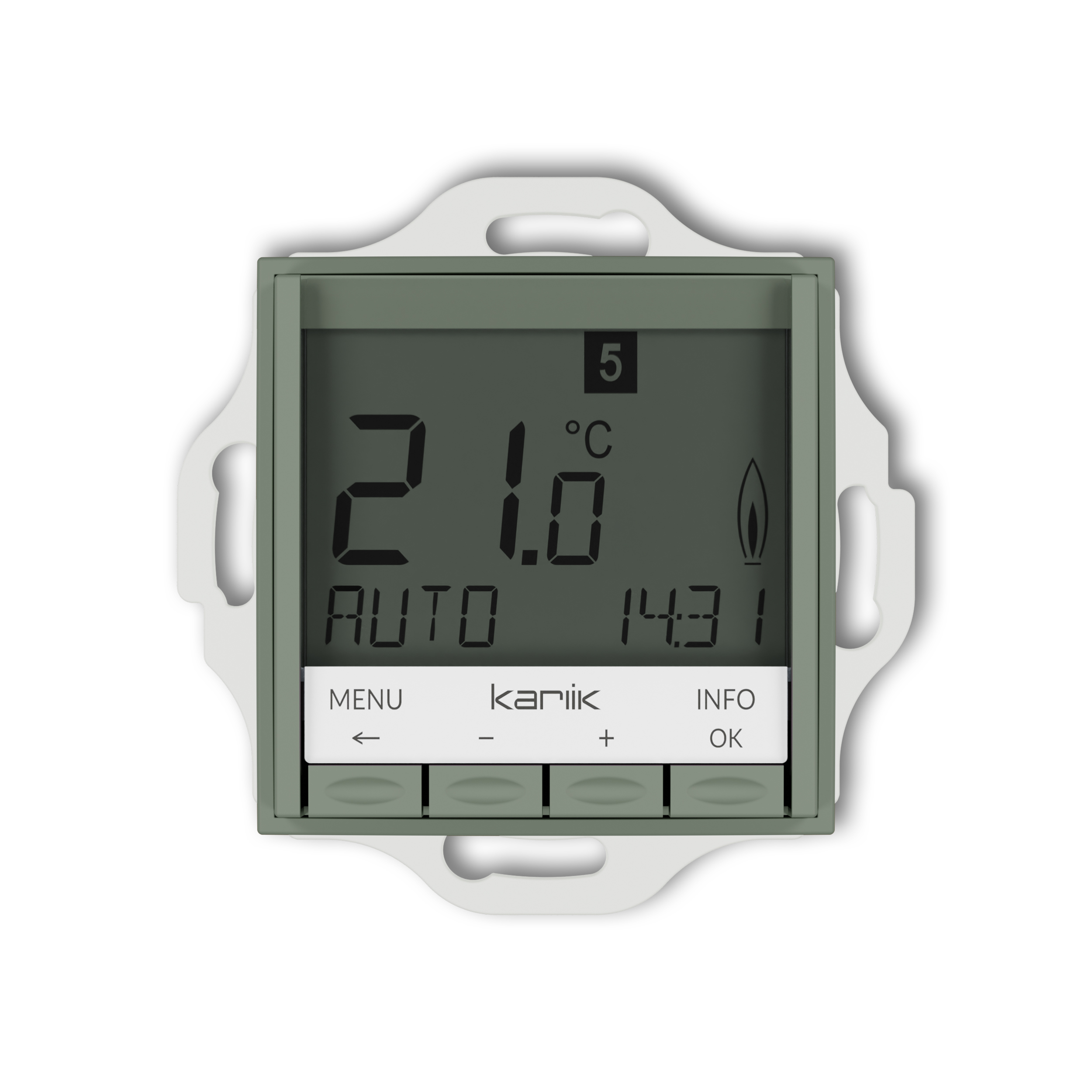

Universal electronic weekly temperature controller mechanism (white backlight)

Universal electronic weekly temperature controller mechanism (white backlight)

white

IRT-3.1

white

IRT-3.1
silver metallic

7IRT-3.1
graphite

11IRT-3.1
matt black

12IRT-3.1
matt white

25IRT-3.1
matt grey

27IRT-3.1

matt graphite

28IRT-3.1
gold

29IRT-3.1

Product description
Downloads

ICON mechanisms and frames are sold separately.

The electronic weekly temperature controller is universal, i.e. it can be used as:
> a room thermostat,
> a floor heating thermostat,
> a room thermostat with a limiter.

For underfloor heating, it is necessary to purchase a probe (SO-1). The probe is only compatible with:
> .DRT-3.1 and .DRT-3.2 in the DECO series,
> .IRT-3.1 and .IRT-3.2 in the ICON series,
> .MRT-3.1 and .MRT-3.2 in the MINI series.

…RT-3.1 and …RT-3.2 they differ in display color: white backlight and blue backlight.

The thermostat has a remote control function (detachable front panel of the regulator); this allows the user to configure the device in comfortable conditions, away from where the device is installed.

The menu is available in the following languages English, Russian, French, Hungarian, Czech, and Polish (default).

The actual appearance of product may be different from the presented photographs.

Technical data

Supply voltage	230 V AC 50 Hz (195-253 V)
Temperature setting range	5 °C-30 °C; in intervals of 0.5 °C
Temperature regulation in intervals after	0,1 °C
Connection current	10mA… 16(4)A*; 230 V~
Output signal	pulse width modulation PWM or ON/OFF
PWM time intervals	adjustable
Hysteresis	adjustable
The shortest time frame	10 minutes
Power consumption	~ 1,2 W
Clock accuracy	< 4 minutes / year
Action reserve	~ 10 years
Probe (optional)	SO-1, length 4 m, can be extended to 50 m
Ambient temperature during operation	0 °C-40 °C (no moisture)
Ambient temperature during storage	–20 °C-70 °C (no moisture)
Rated surge voltage	4 kV
Head testing temperature	115 °C
Voltage and current for interference measurements	230 V, 0,1A
Protection index	IP 30
Protection class of the cover	II
Software class	A
Degree of pollution	2
Display color	IRT-3.1 - white backlight; IRT-3.2 - blue backlight
Relay	Output, 230 V
