Dual USB charger mechanism USB C + USB A, 30W max., without description field
white
ICUSBBO-10
-
white
ICUSBBO-10
-
silver metalic

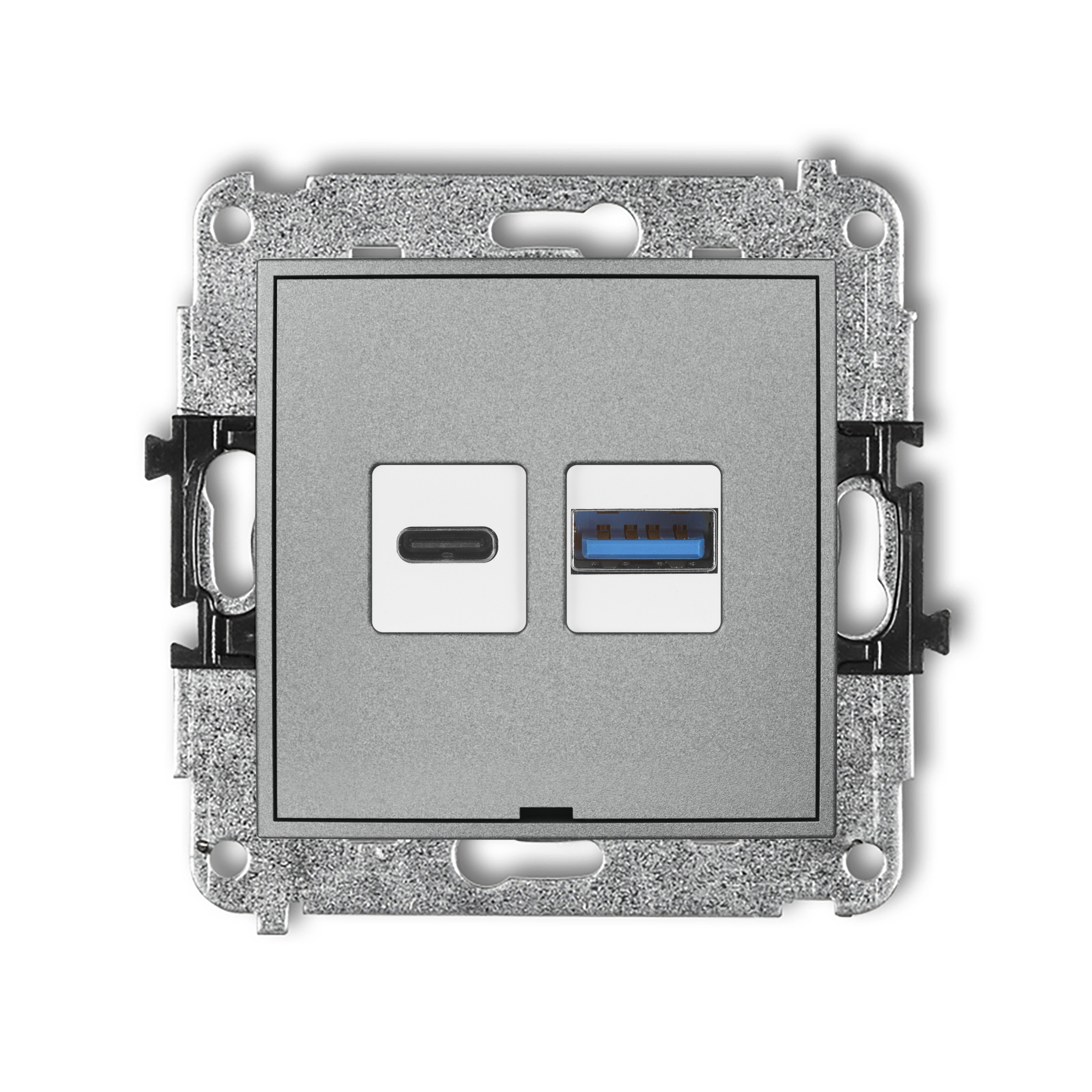

7ICUSBBO-10
-
graphite

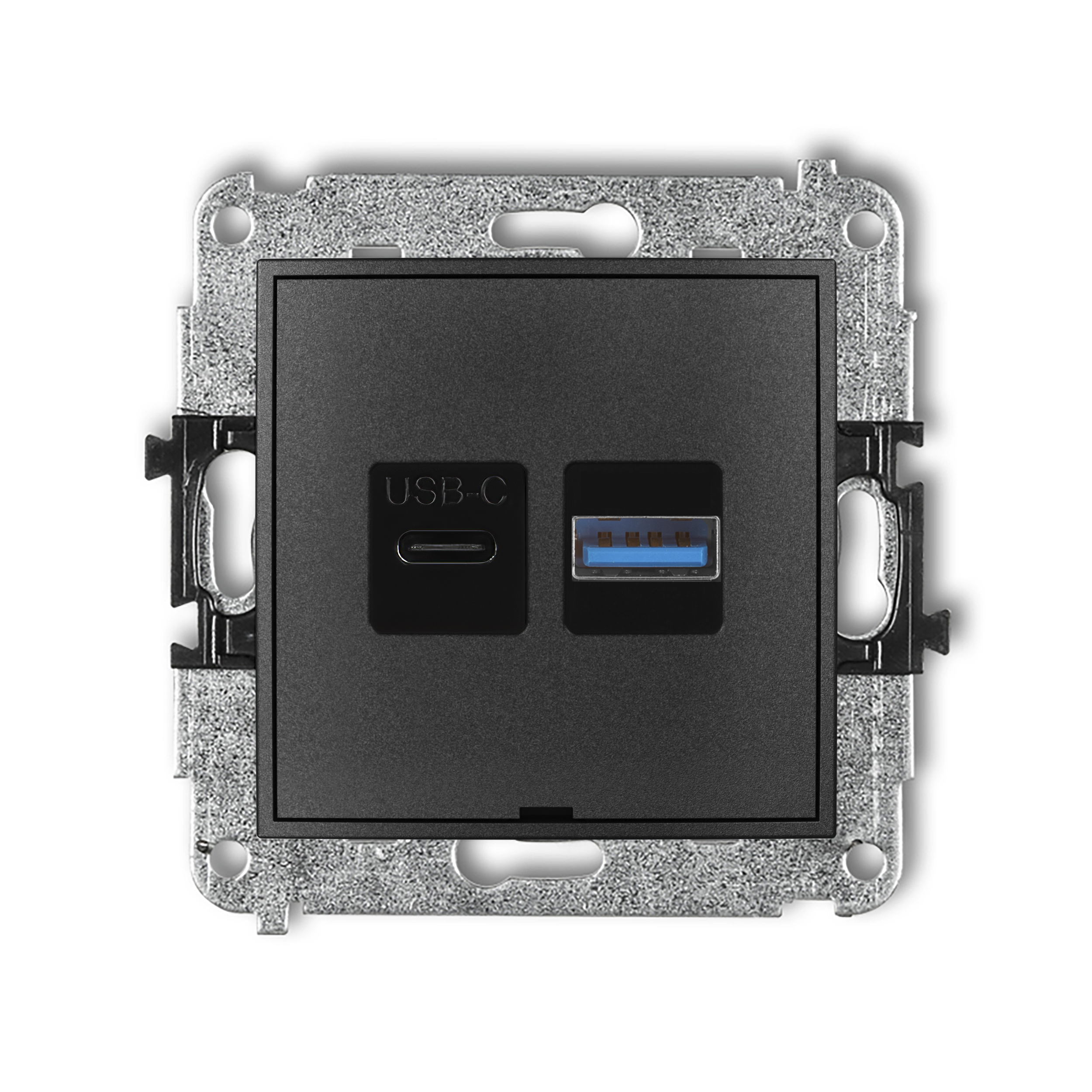

11ICUSBBO-10
-

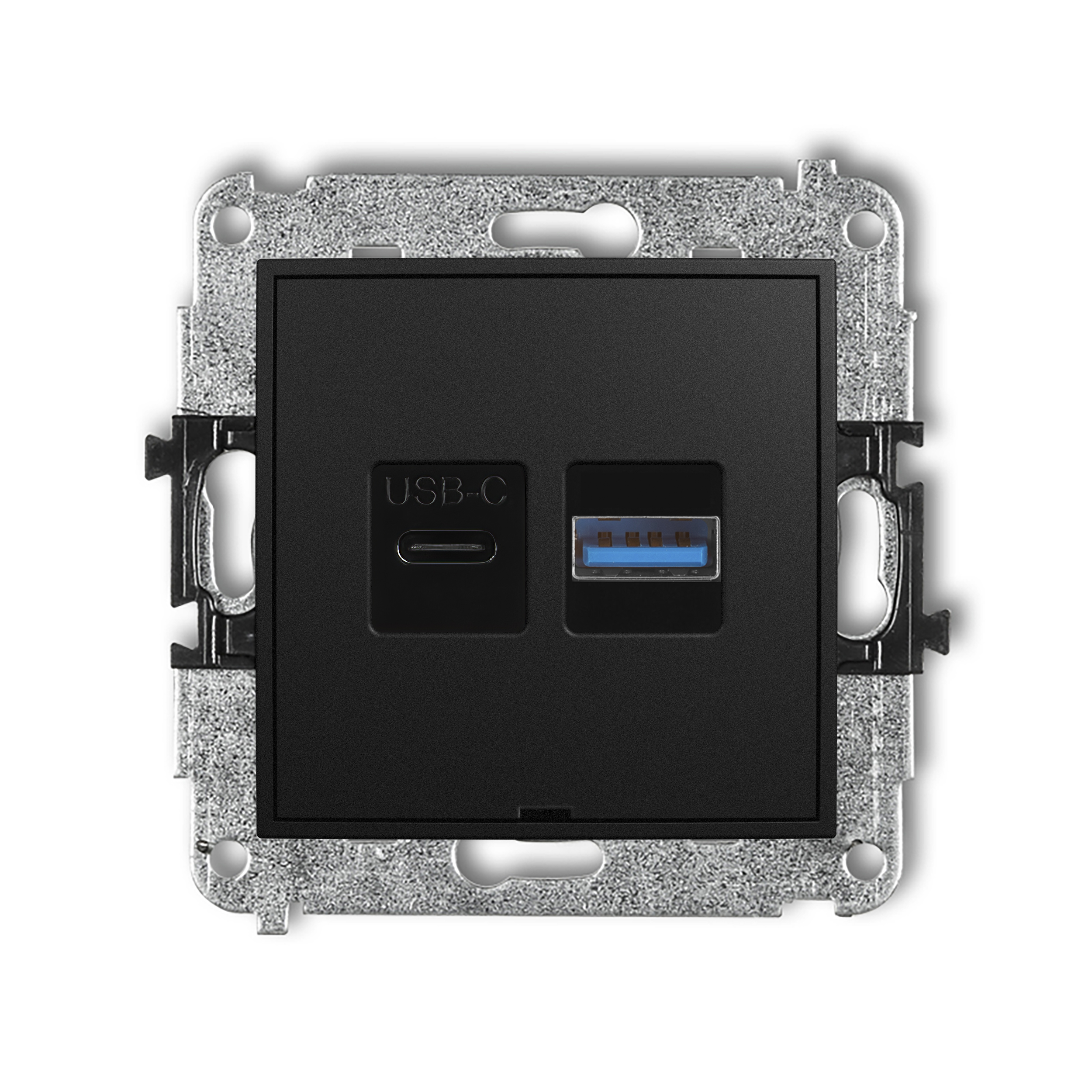

matt black
12ICUSBBO-10
-
matt white

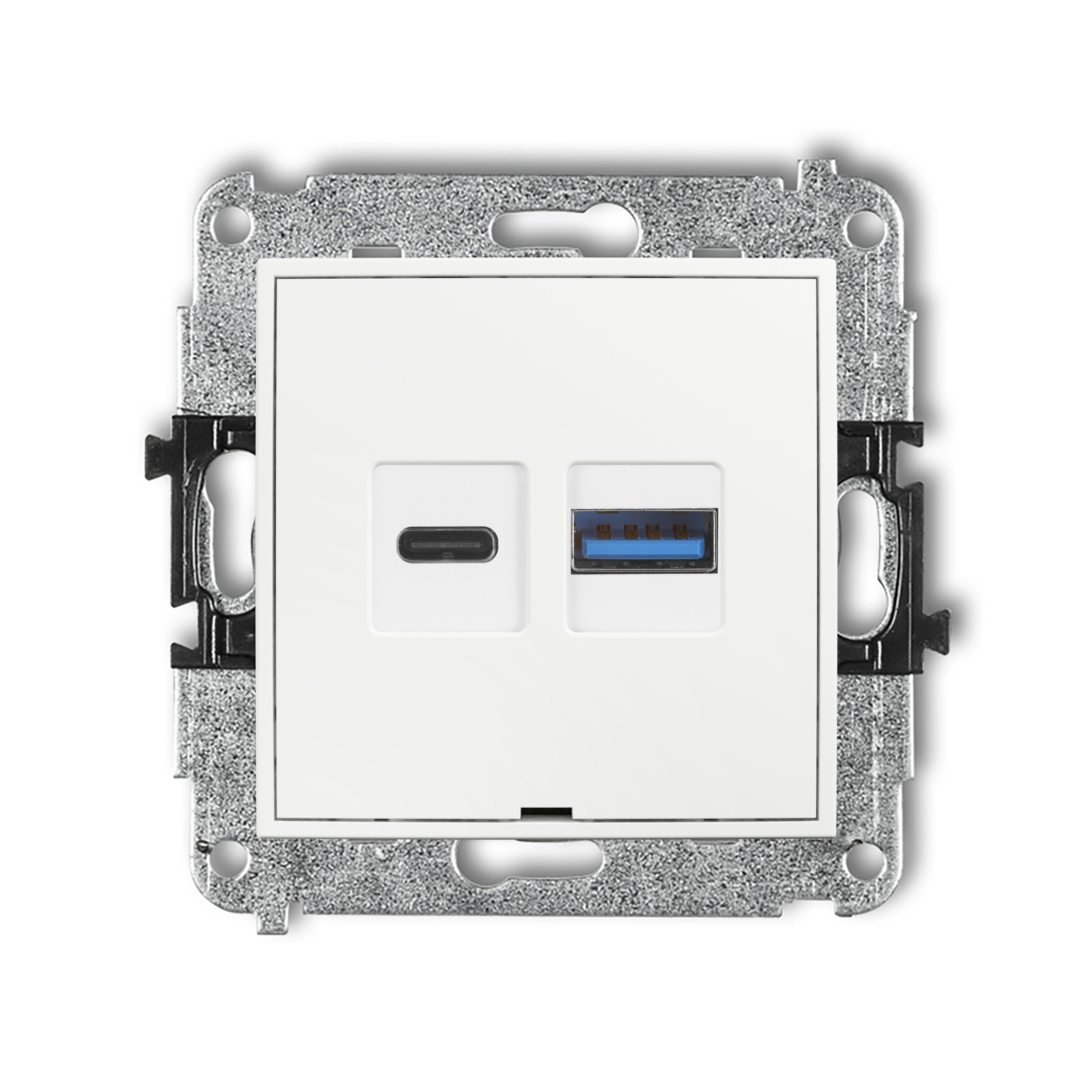

25ICUSBBO-10
-
matt grey

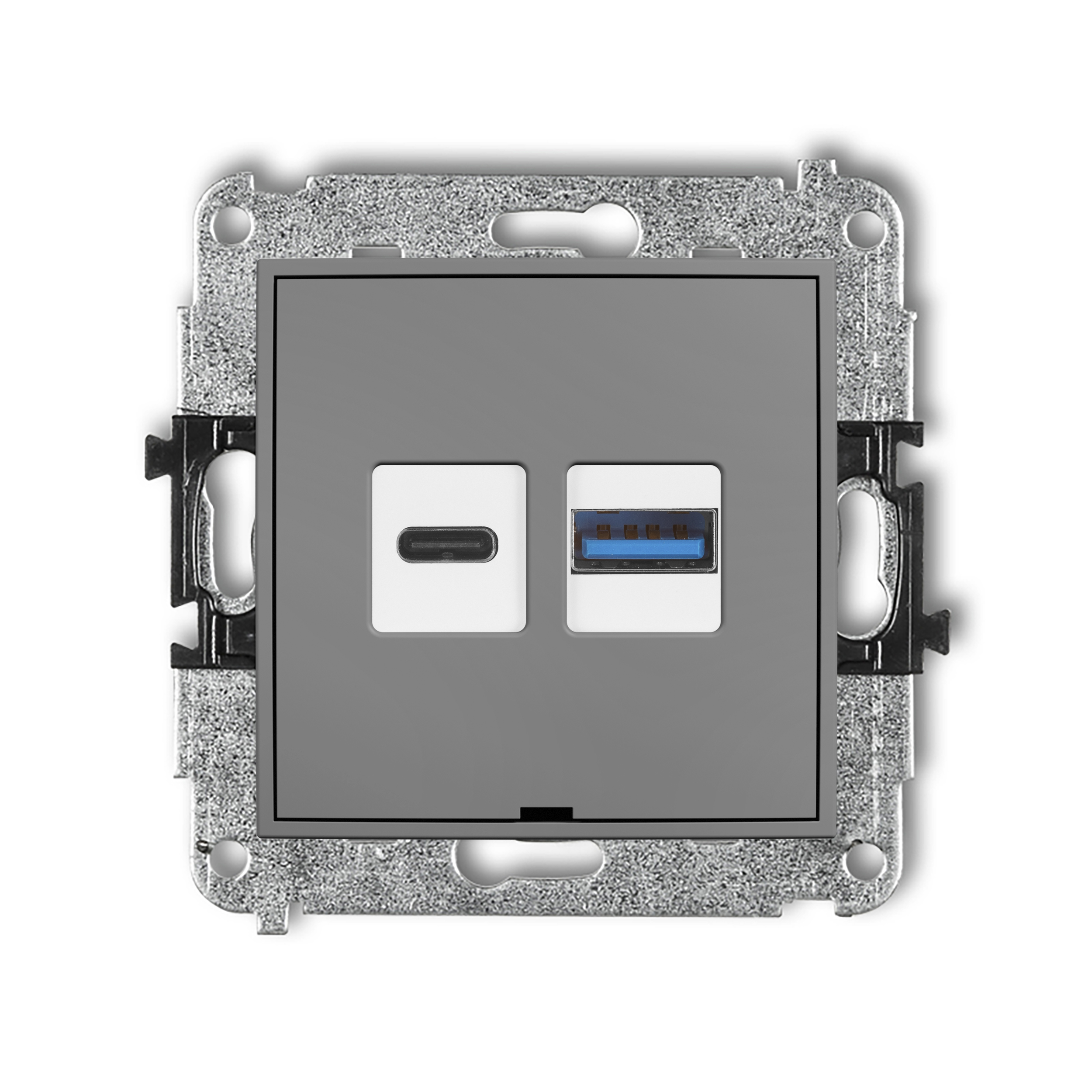

27ICUSBBO-10
-

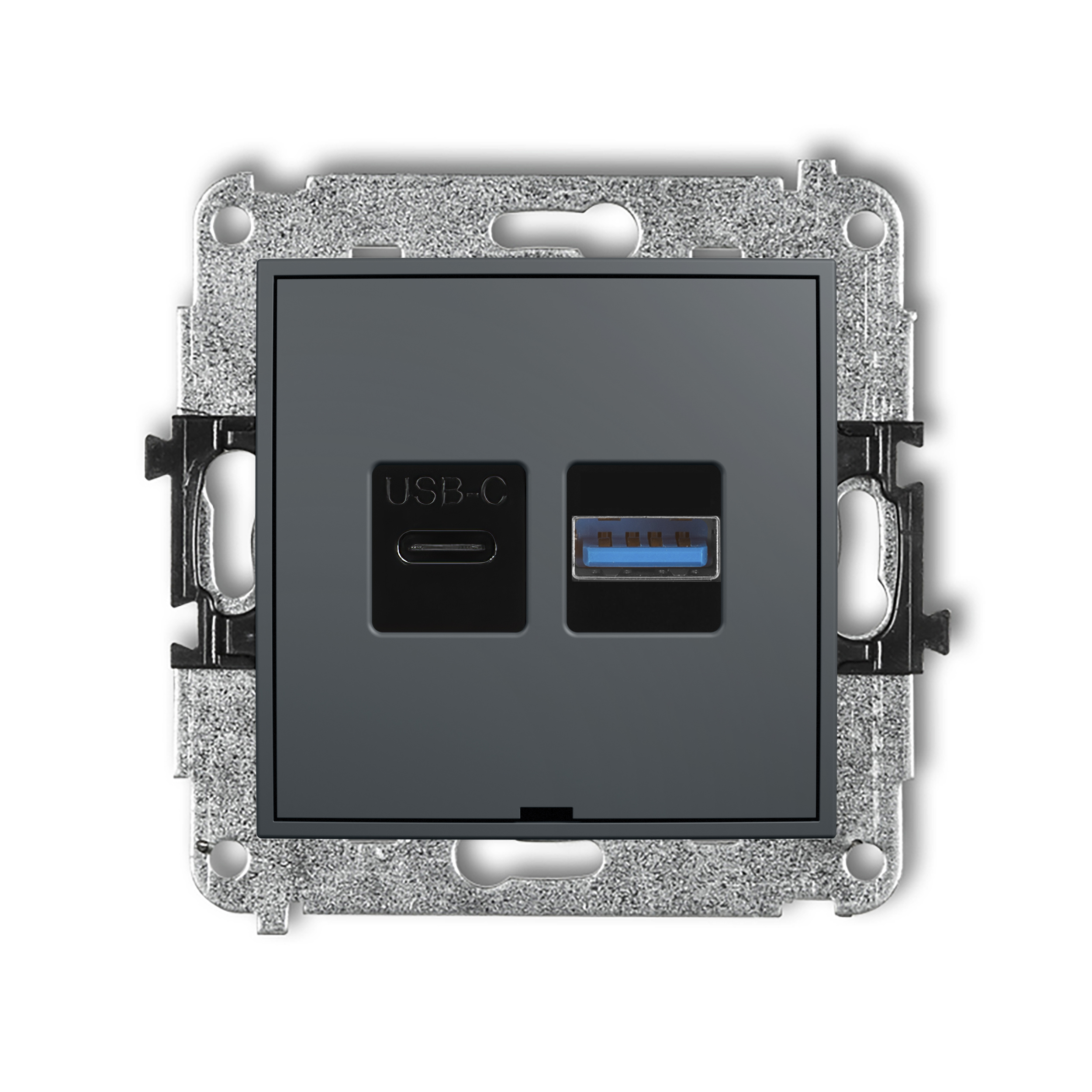

matt graphite
28ICUSBBO-10
-

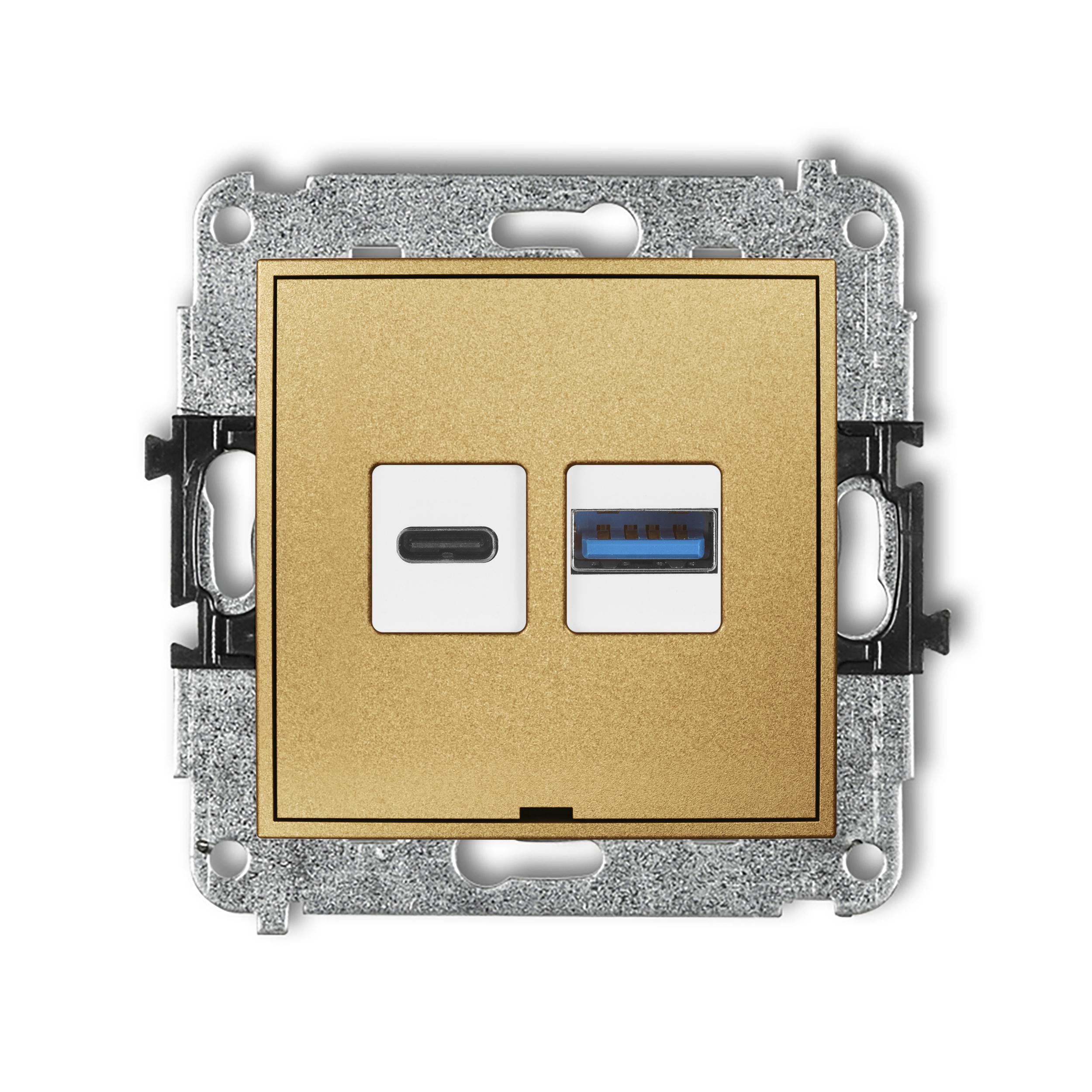

gold
29ICUSBBO-10
-
taupe
60ICUSBBO-10
-

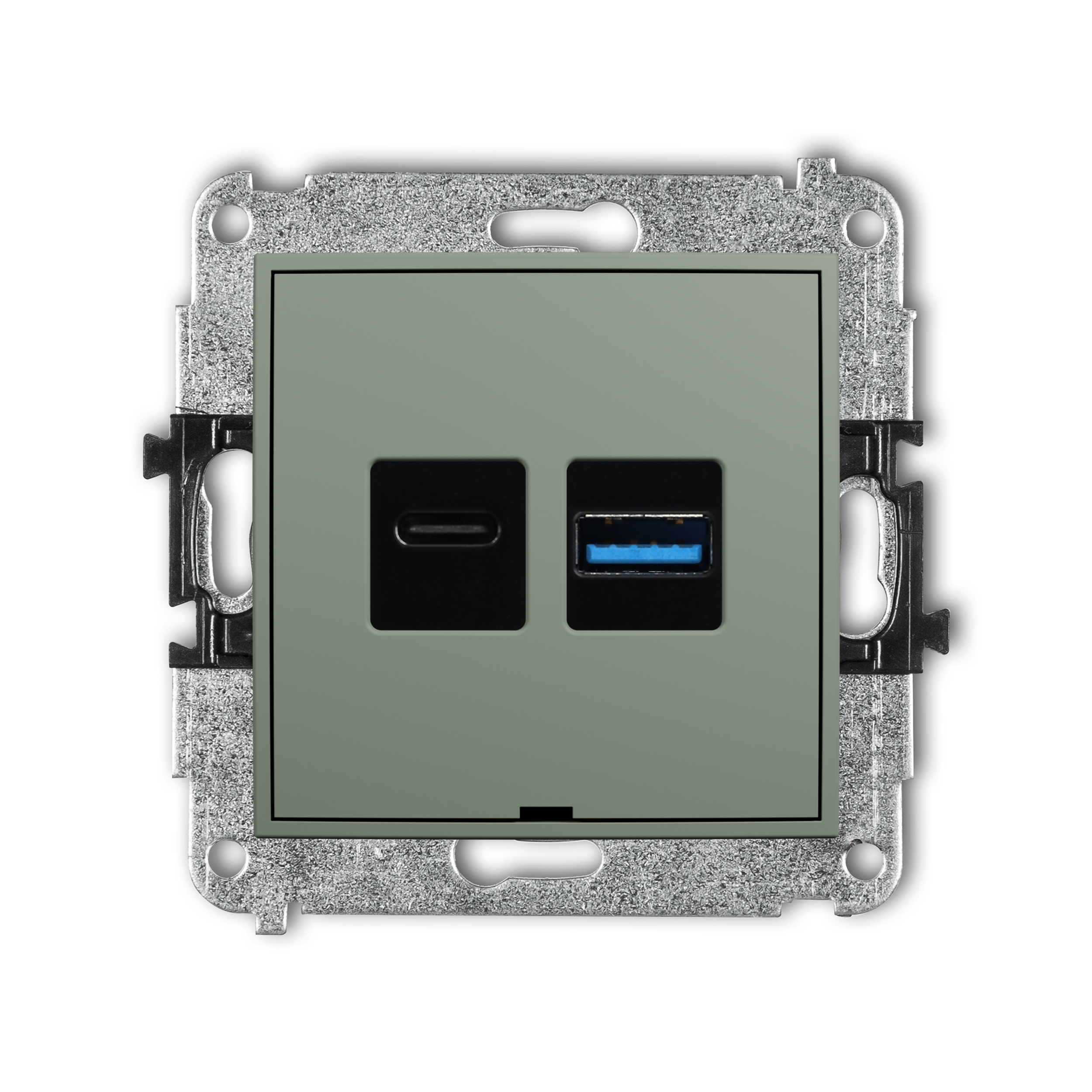

sage
61ICUSBBO-10
-

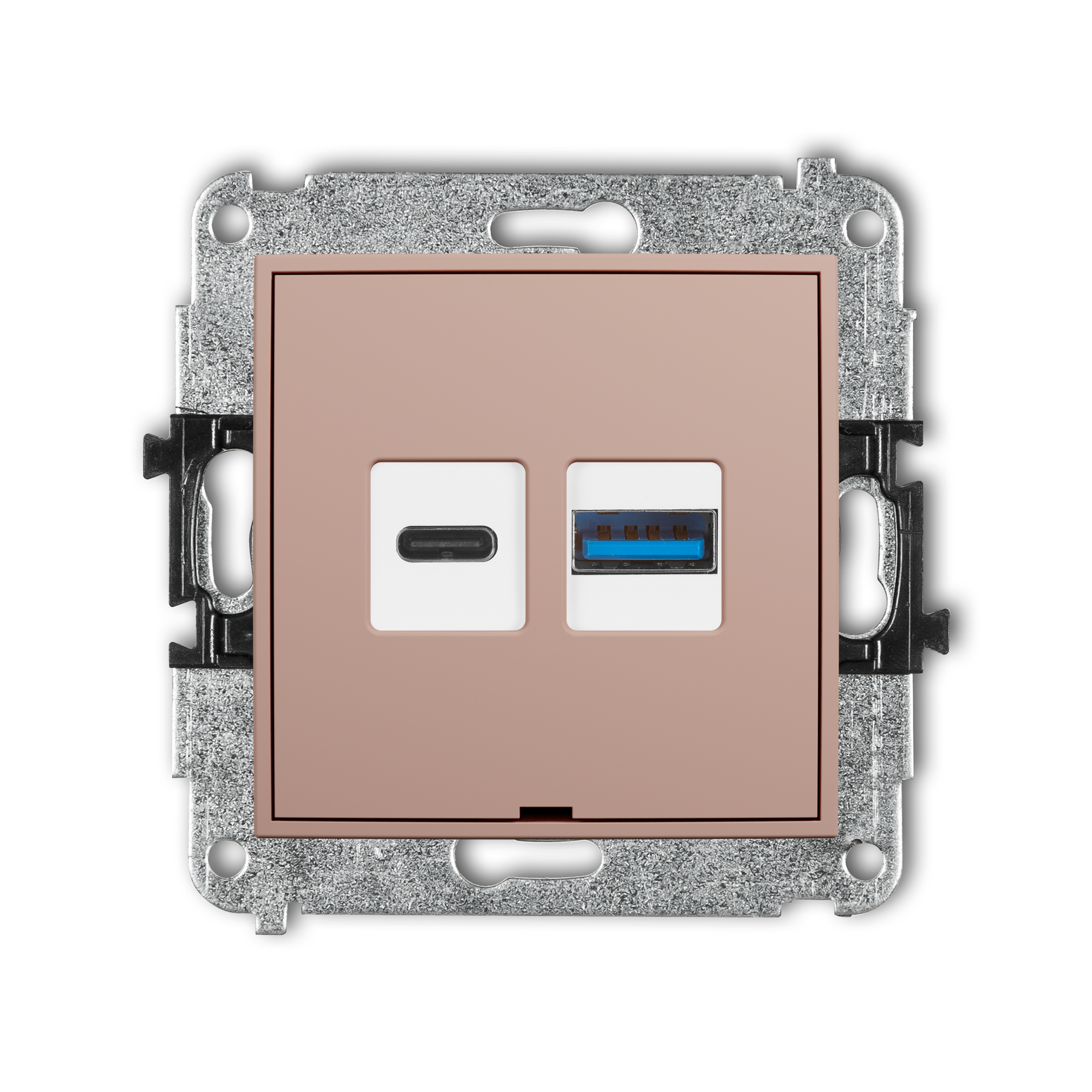

salmon
62ICUSBBO-10
-

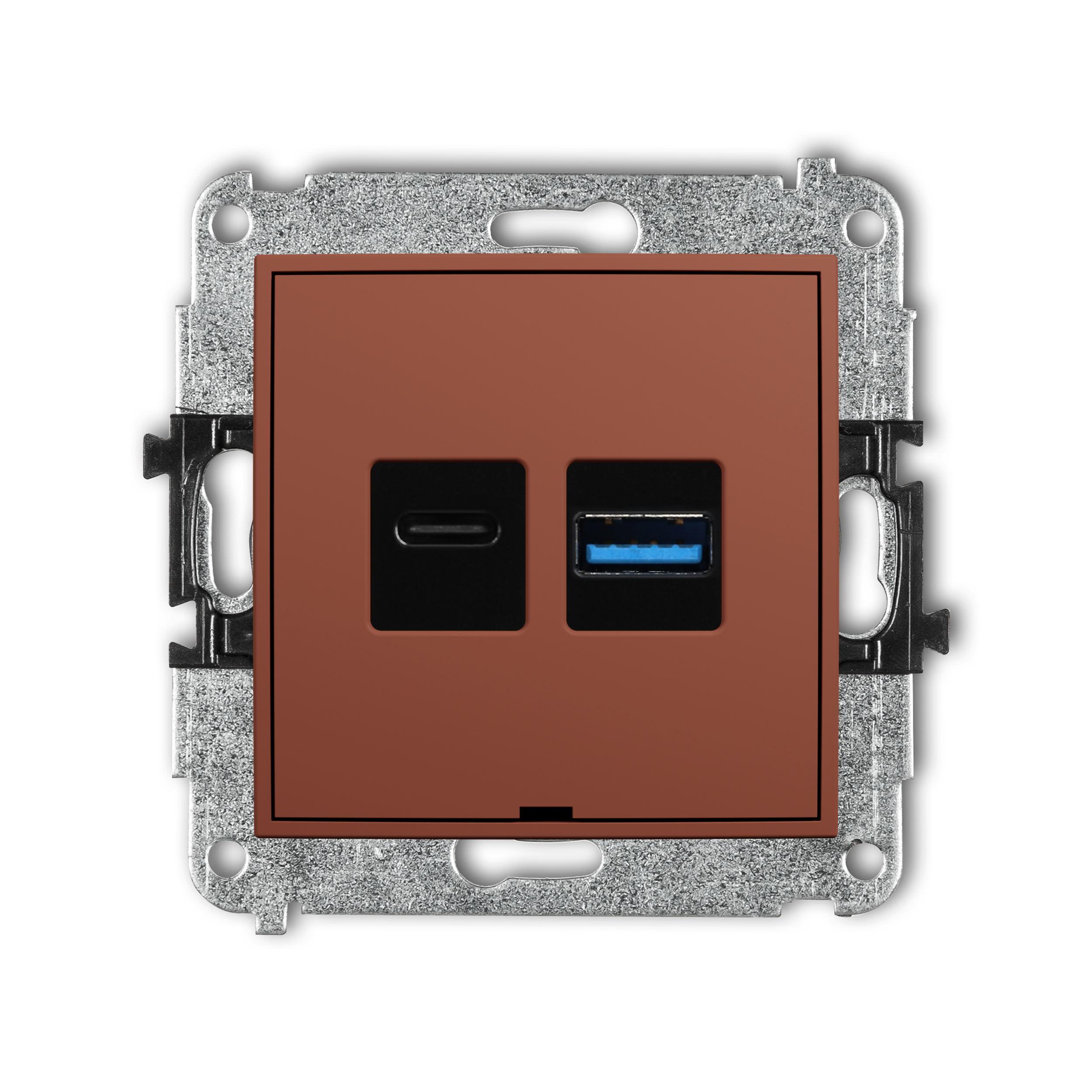

terracotta
63ICUSBBO-10
-

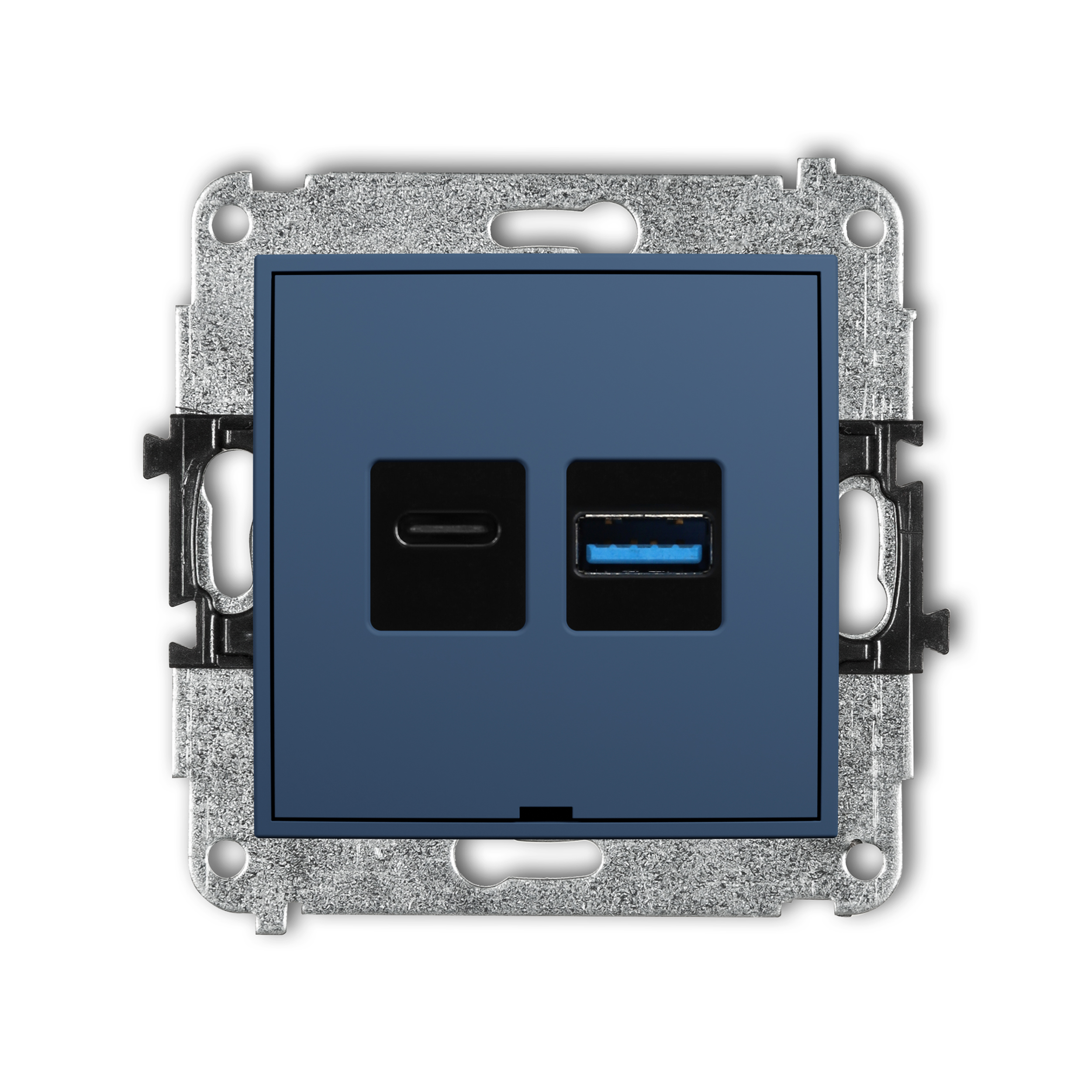

navy blue
64ICUSBBO-10
Product description
Downloads
USB charger mechanism with idle power supplu consumes less than about 0,1W.
The charger achieves a maximum output current of 3A when only one device is connected. When connecting two devices, the output current is divided equally between each USB port.
ICON mechanisms and frames are sold separately.
ICON series multimedia sockets connection method you find here.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated input voltage | 100-240 V~ 50/60Hz |
| Rated output current | 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, 30W Max (when connecting a device to only one USB-C output) |
| Rated output current | 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A, 30W Max (when connecting a device to only one USB-A output) |
| Rated output current | 5V/3A 15W Max (when connecting devices to two USB-A + USB-C outputs) |
| Connection type | USB-A, USB-C |
| Connection | Screw clamps |
| UV resistance | Resistant |
Complementary products
Related products
-
Single socket with the 2P+Z earth mechanism (with increased contact protection/shutter)
matt black
12IGP-1zp
-
Splash proof socket with the 2P+Z earth mechanism (shaded transparent cover, with increased contact protection/shutter)
matt white
25IGPB-1zdp
-
Single telephone socket 1xRJ11, tool-less + single computer socket mechanism 1xRJ45, cat. 5e, 8-contact
matt grey
27IGTK
-
Single antenna F type socket (SAT) + single computer socket mechanism 1xRJ45, cat. 6, screened, 8-contact, without description field
gold
29IGFKBO-5
-
Triple switch mechanism
terracotta
63IWP-7
-

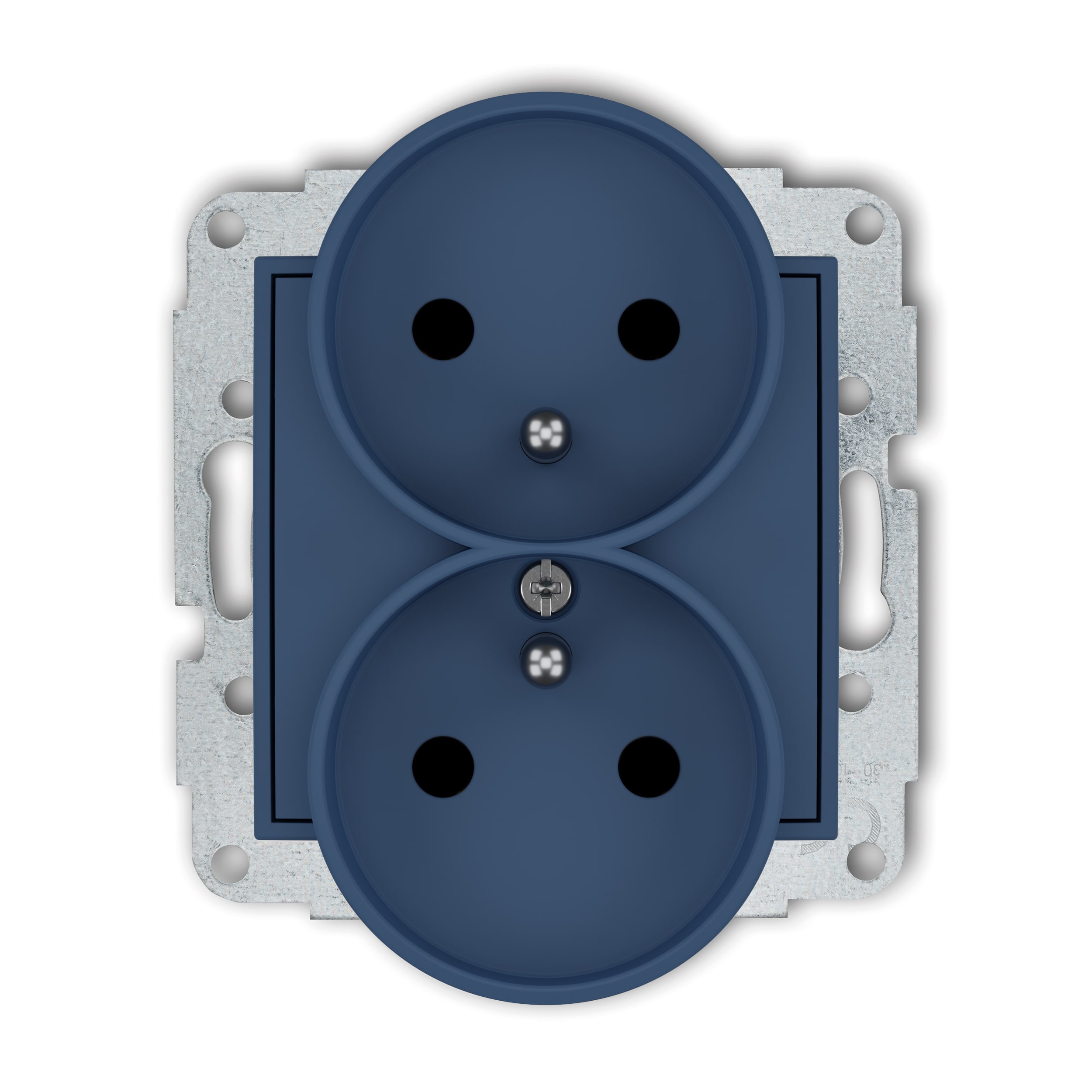

Double socket to a frame with the 2x(2P+Z) earth mechanism (with increased contact protection/shutter)
