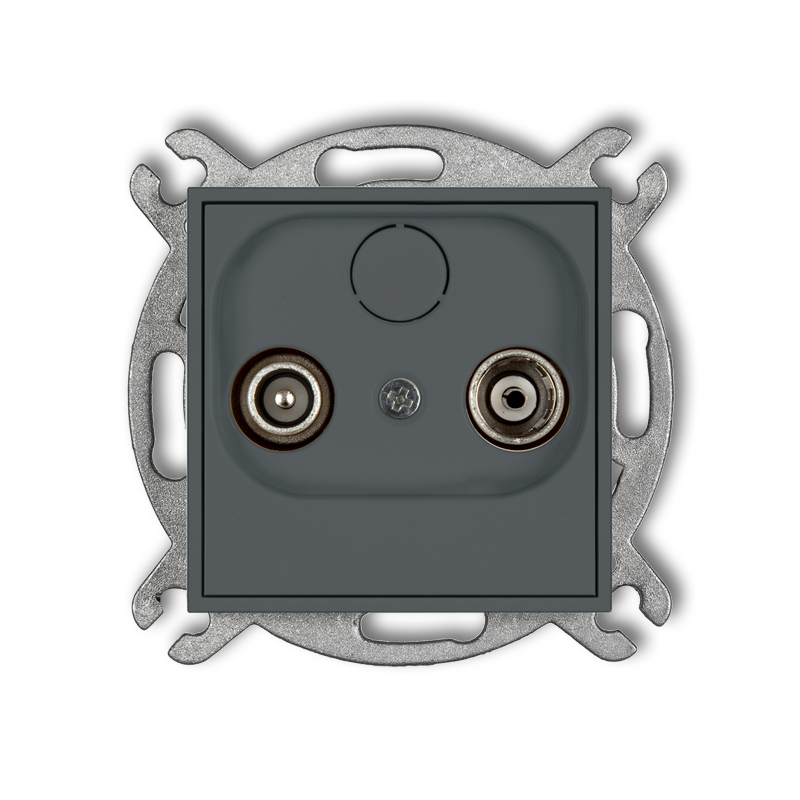

Radio/TV through socket mechanism the 15 dB
	graphite
11IG15P
Product description
Downloads
Technical data
| Protection index | IP 20 |
| Input circut frequency range 1 | 5 ÷ 862 MHz |
| TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
| Radio circut frequency range | 88 ÷ 108 MHz |
| Compression damping | 16 dB |
| Wave impedance (characteristic) | 75 Om |
| Connection | Screw terminals |
| UV resistance | Resistant |
Product variants
-


                    Radio/TV final socket mechanism the 2 dB
white
IG2K
 -


                    3F DATA (UPC) multimedia socket mechanism
matt black
12IGMU
 -


                    Radio/TV/SAT final socket mechanism the 1,5 dB
matt grey
27IGS
 -


                    Radio/TV/SAT final socket (two antenna inputs) mechanism
matt graphite
28IGST
 -


                    Radio/TV/SAT multimedia socket mechanism (Internet)
taupe
60IGM
 -


                    Radio/TV through socket mechanism the 9 dB
sage
61IG9P
