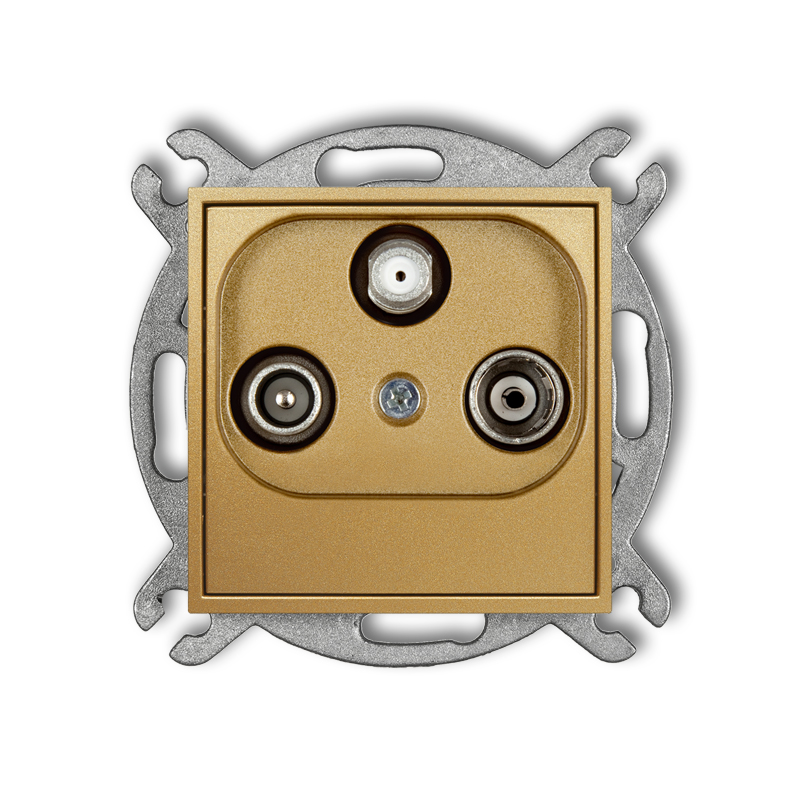

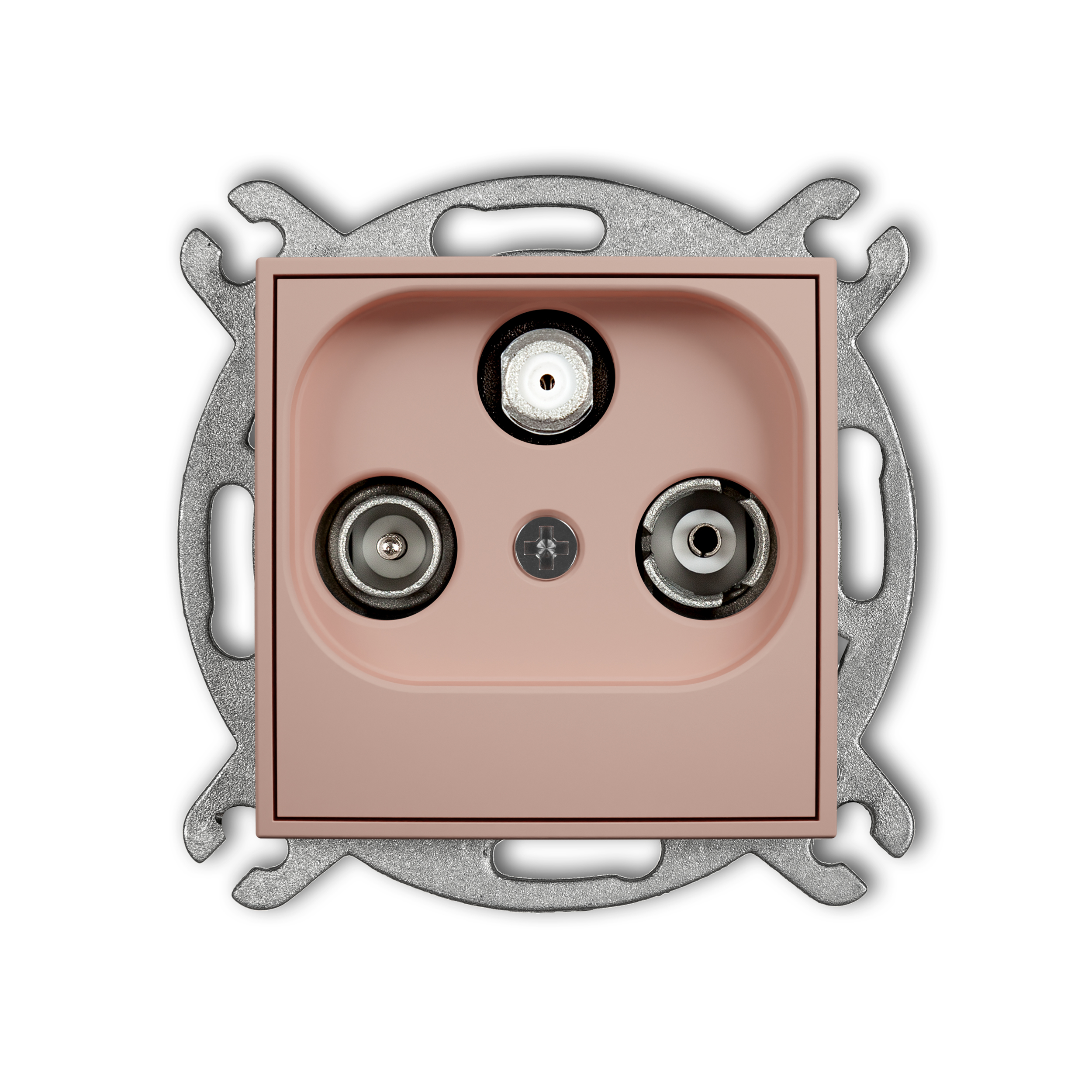

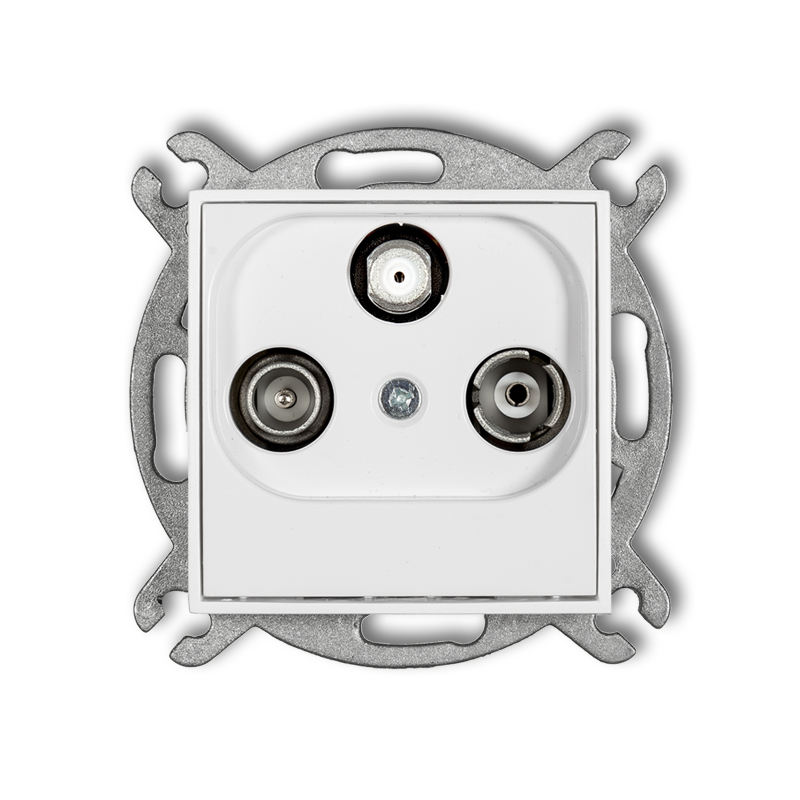

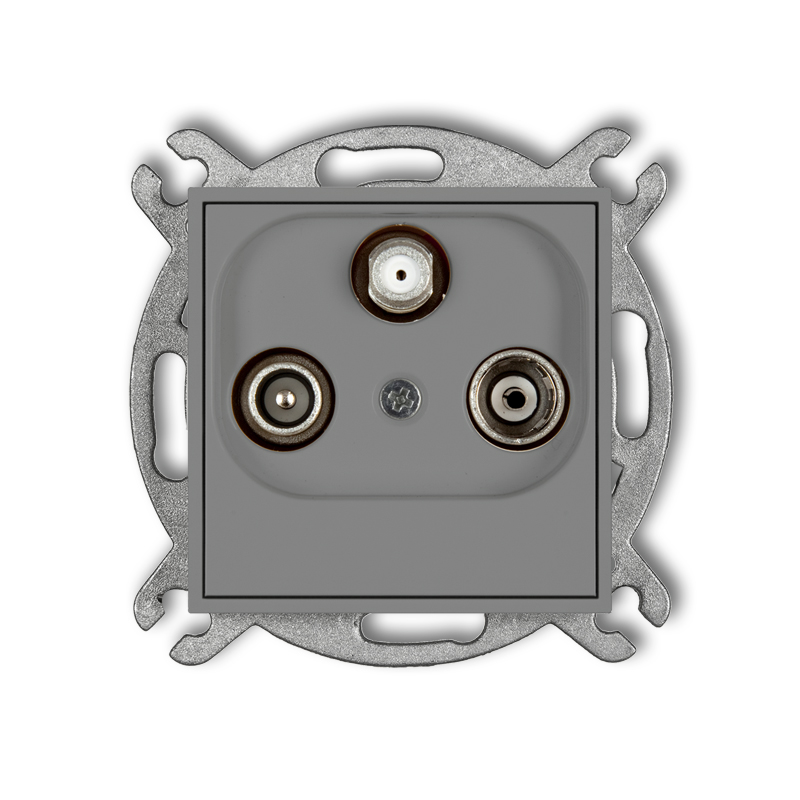

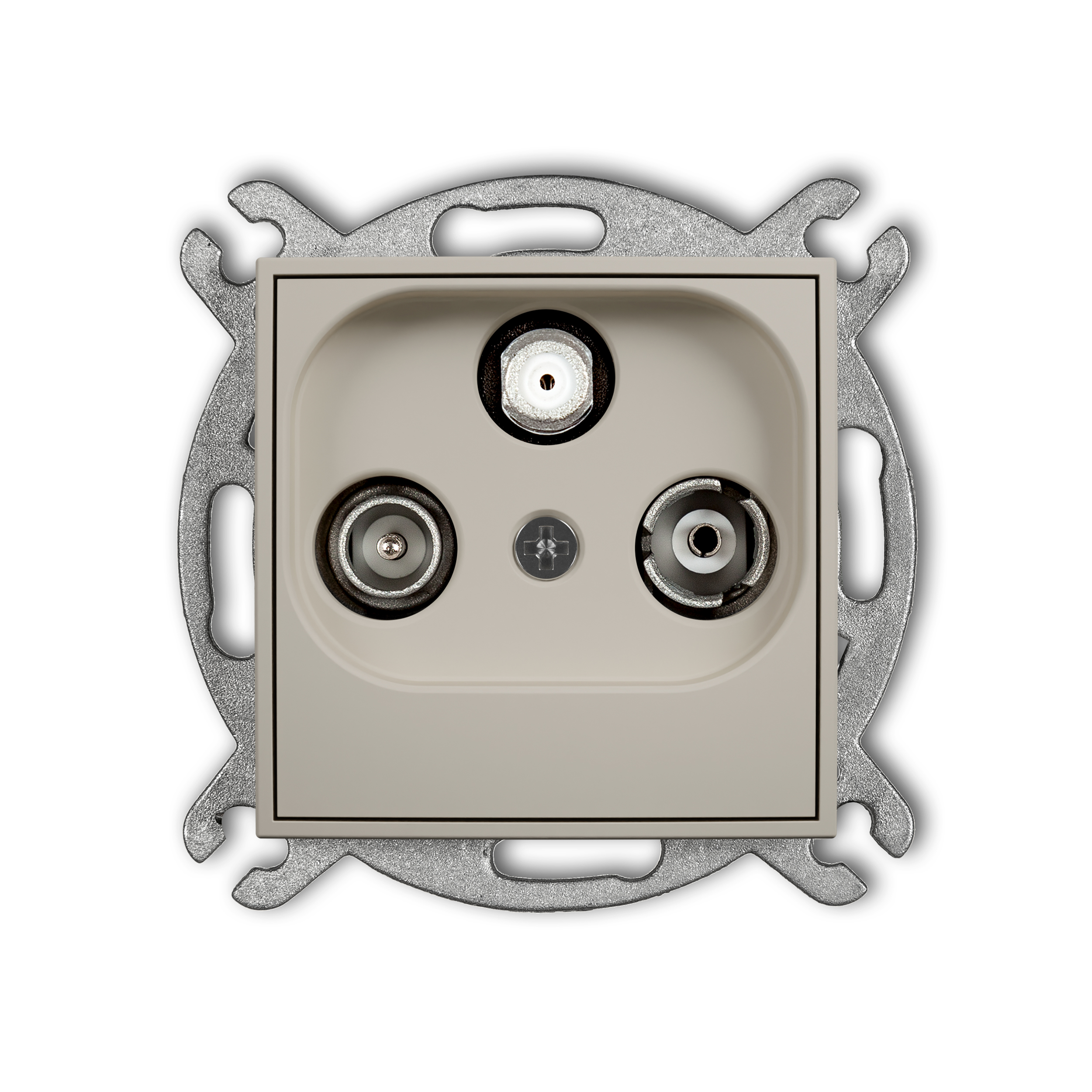

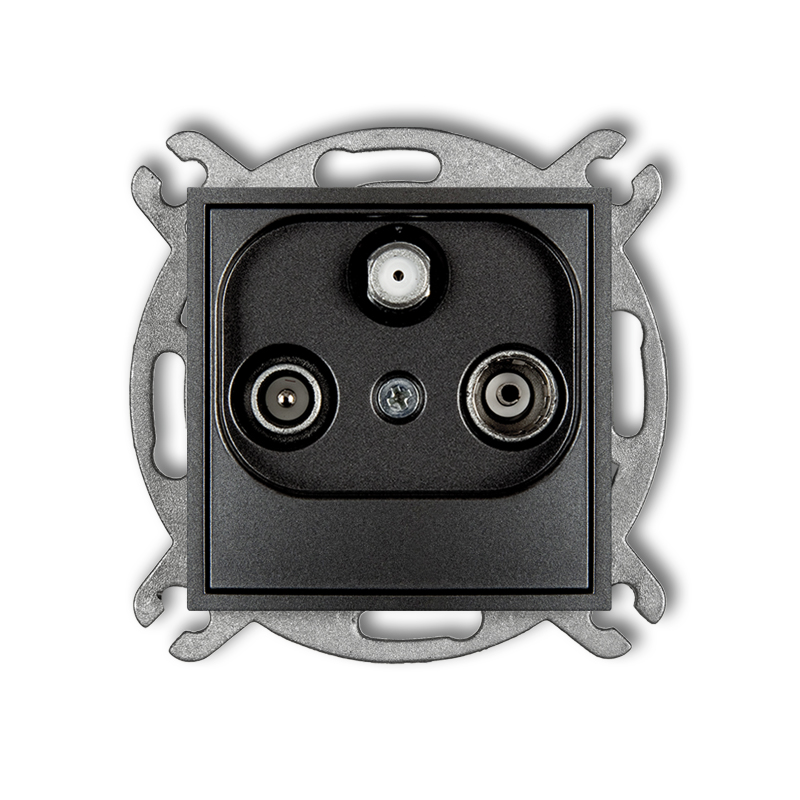

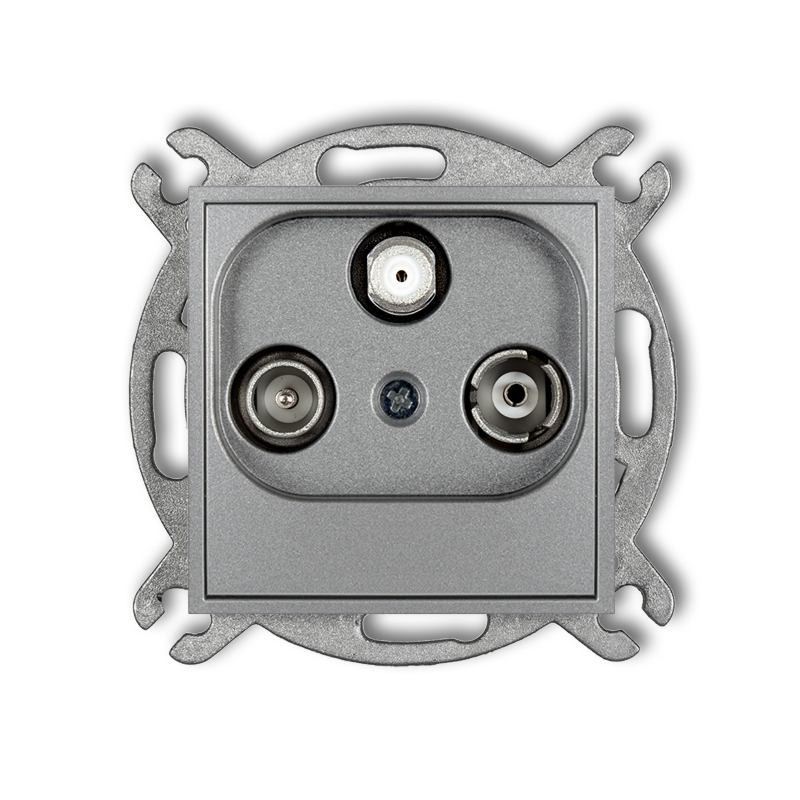

Radio/TV/SAT final socket (two antenna inputs) mechanism
	white
IGST
Product description
Downloads
Technical data
| Protection index | IP 20 |
| Input circut frequency range 1 | 5 ÷ 2400 MHz |
| TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
| Radio circut frequency range | 88 ÷ 108 MHz |
| SAT circut frequency range | 5 ÷ 2400 MHz |
| Compression damping | 1,5 dB |
| Wave impedance (characteristic) | 75 Om |
| Connection | Screw clamps |
| UV resistance | Resistant |
Product variants
-

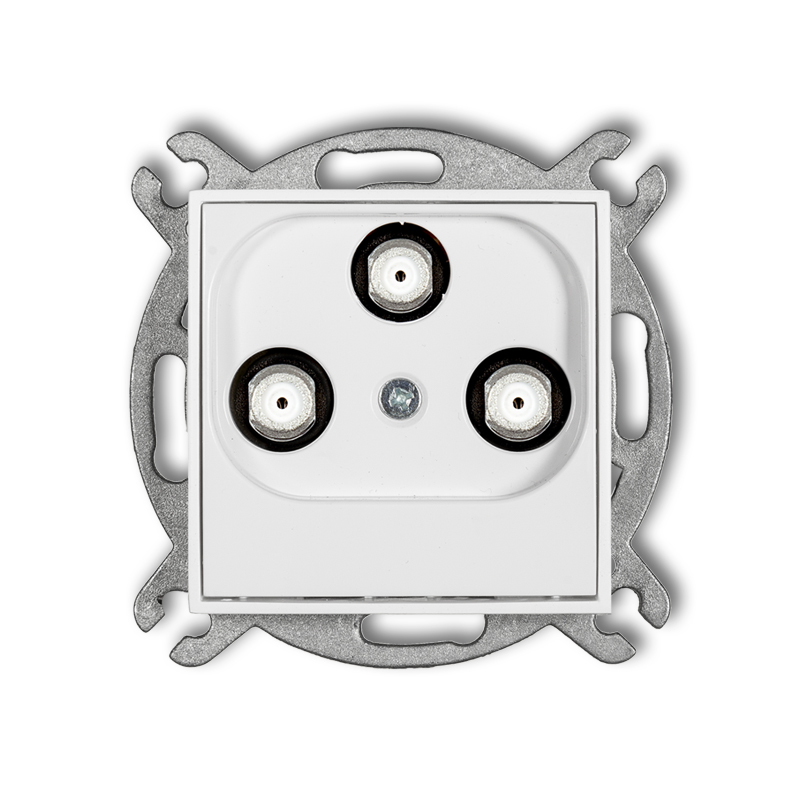

                    3F DATA (UPC) multimedia socket mechanism
white
IGMU
 -

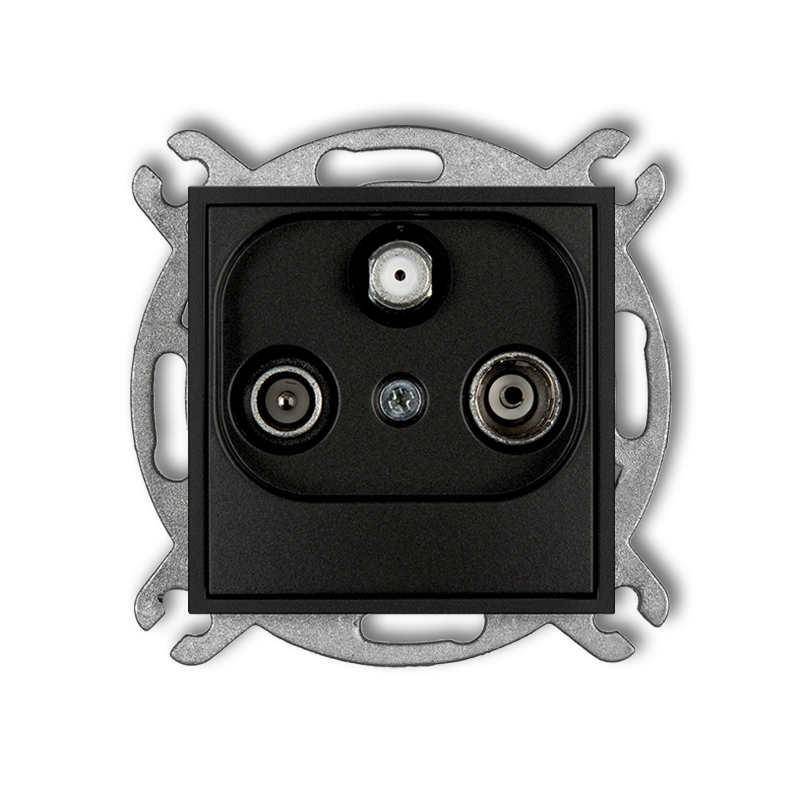

                    Radio/TV/SAT final socket mechanism the 1,5 dB
matt black
12IGS
 -


                    Radio/TV/SAT multimedia socket mechanism (Internet)
matt grey
27IGM
 -

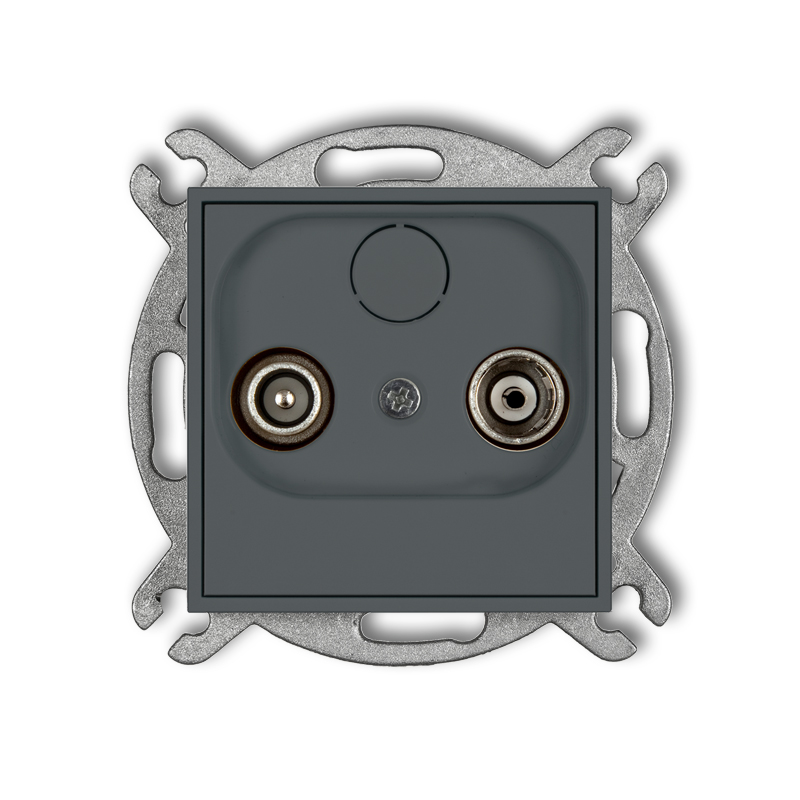

                    Radio/TV final socket mechanism the 2 dB
matt graphite
28IG2K
 -


                    Radio/TV/SAT through socket mechanism the 10 dB
sage
61IGSP
 -

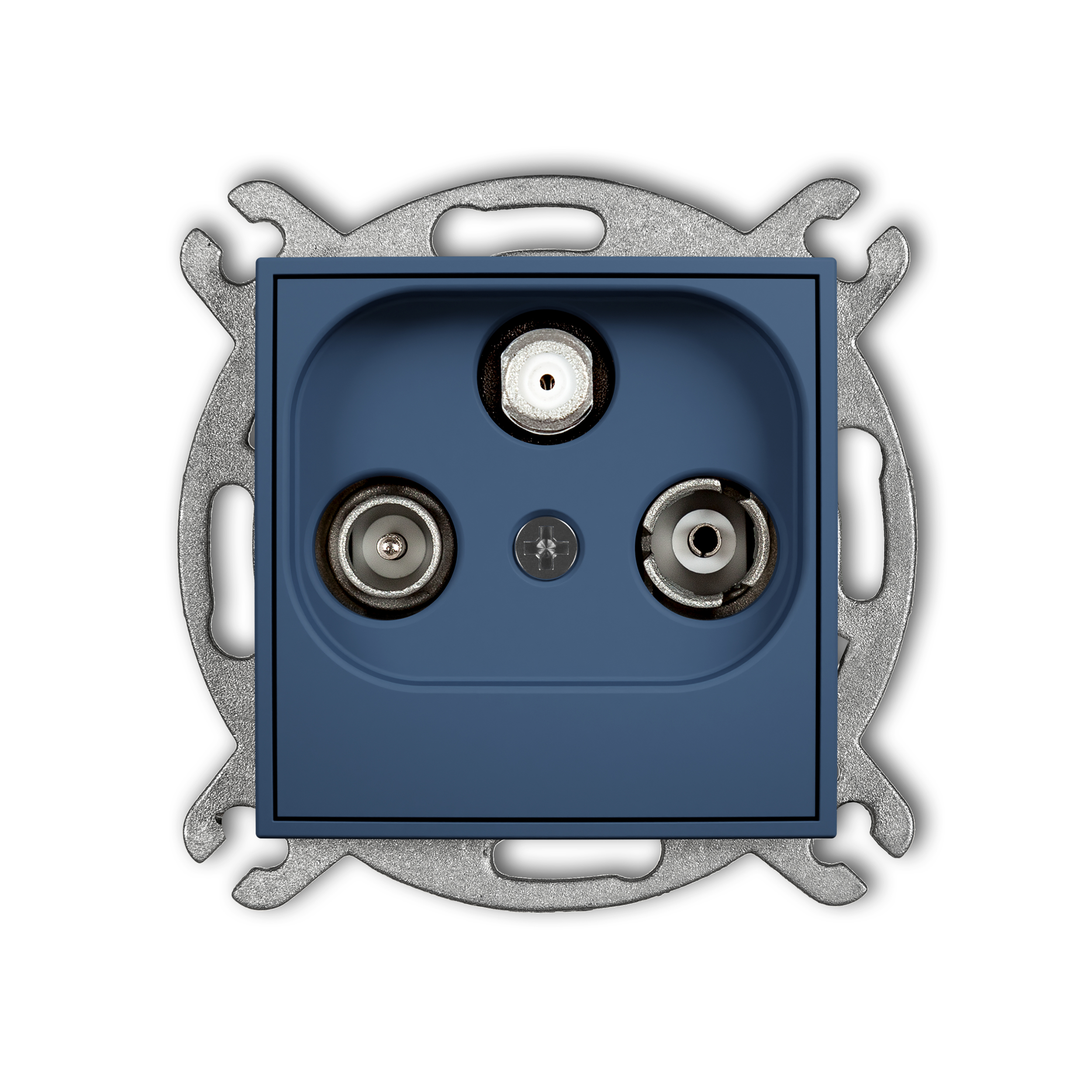

                    Radio/TV/SAT through socket mechanism the 10 dB
navy blue
64IGSP

Complementary products
Related products
-

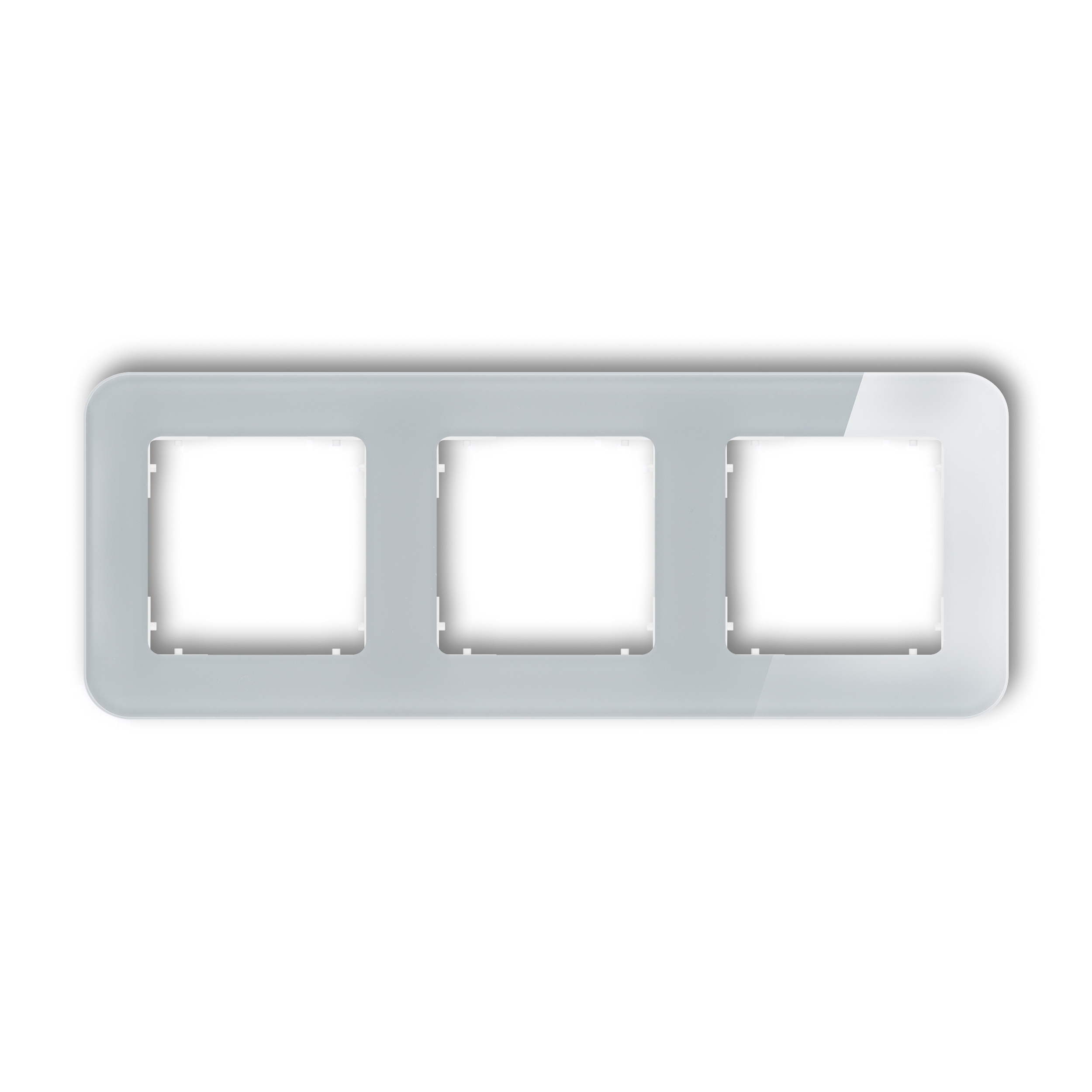

                    3-gang universal frame with rounded edges - glass effect
grey frame / white rear
15-0-IRSZ-3
 -

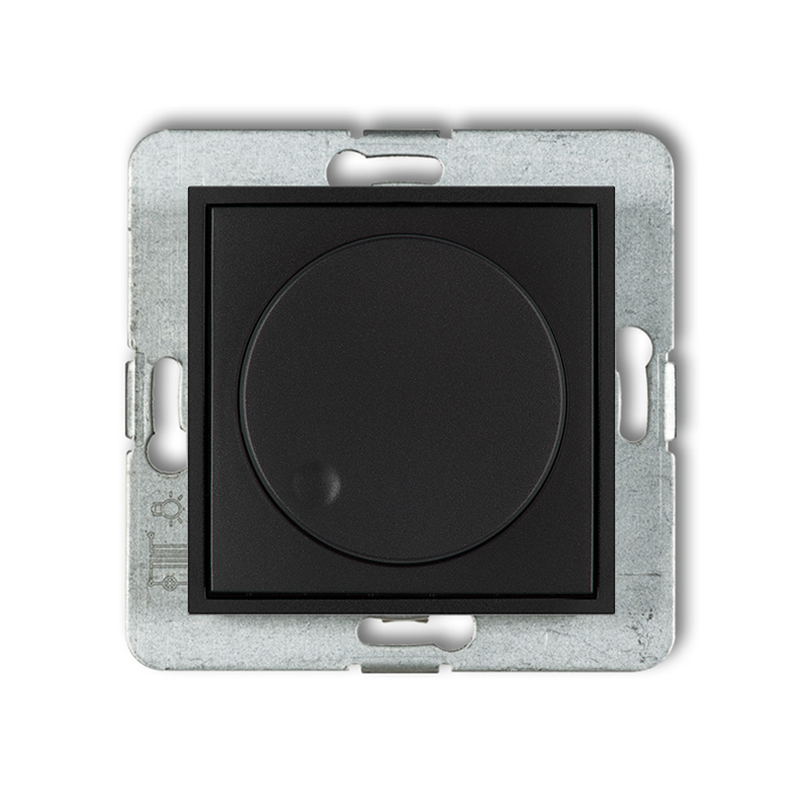

                    Electronic dimmer push-rotary mechanism
