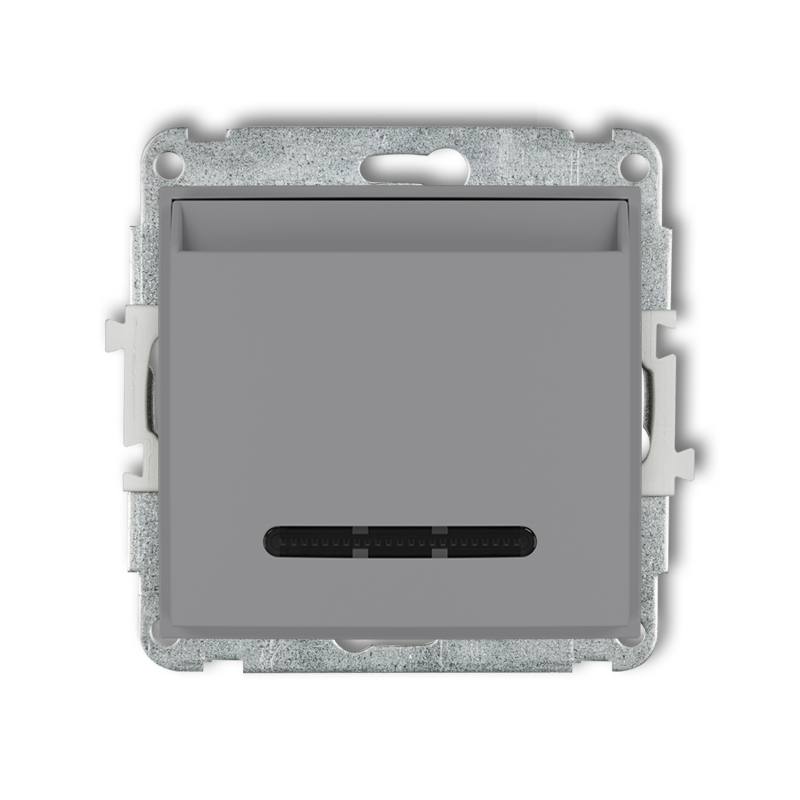

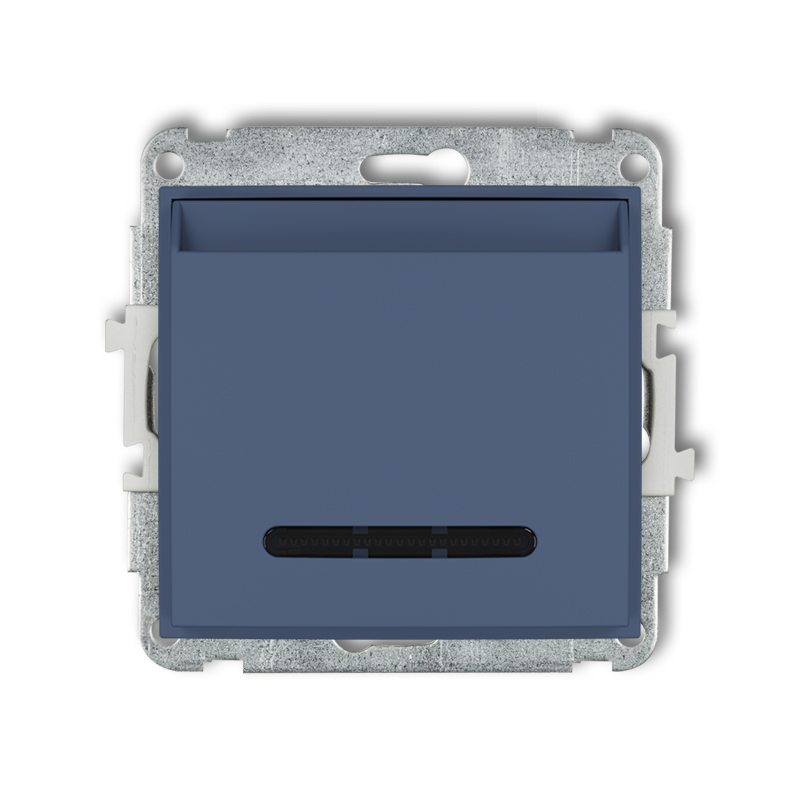

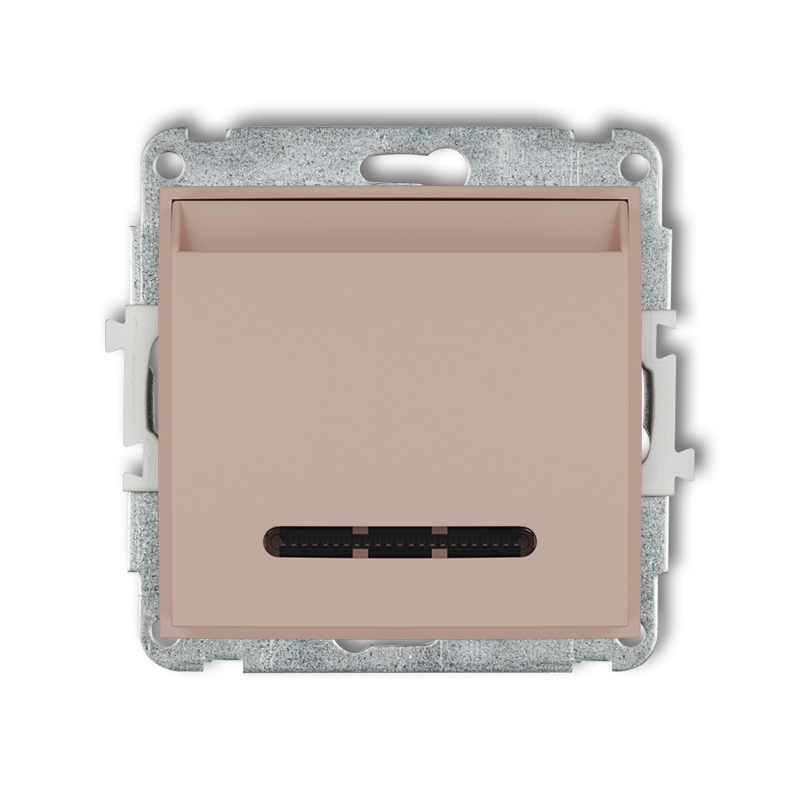

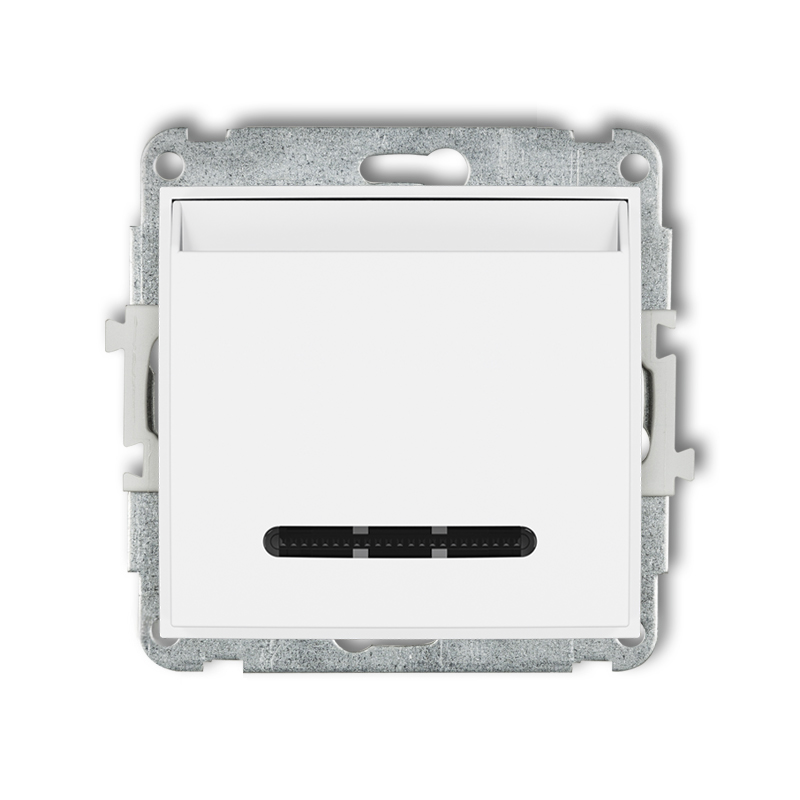

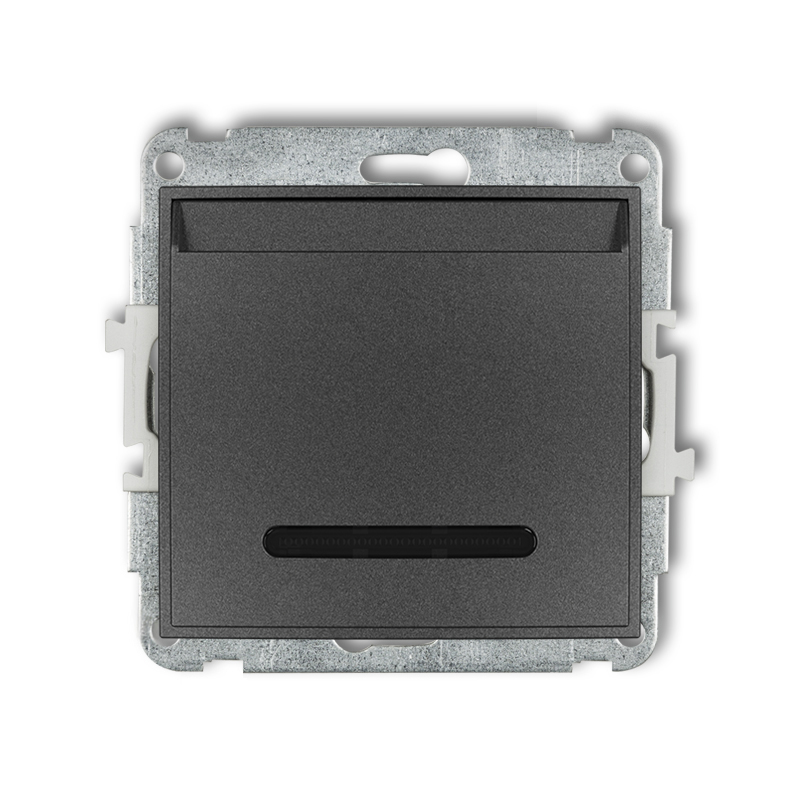

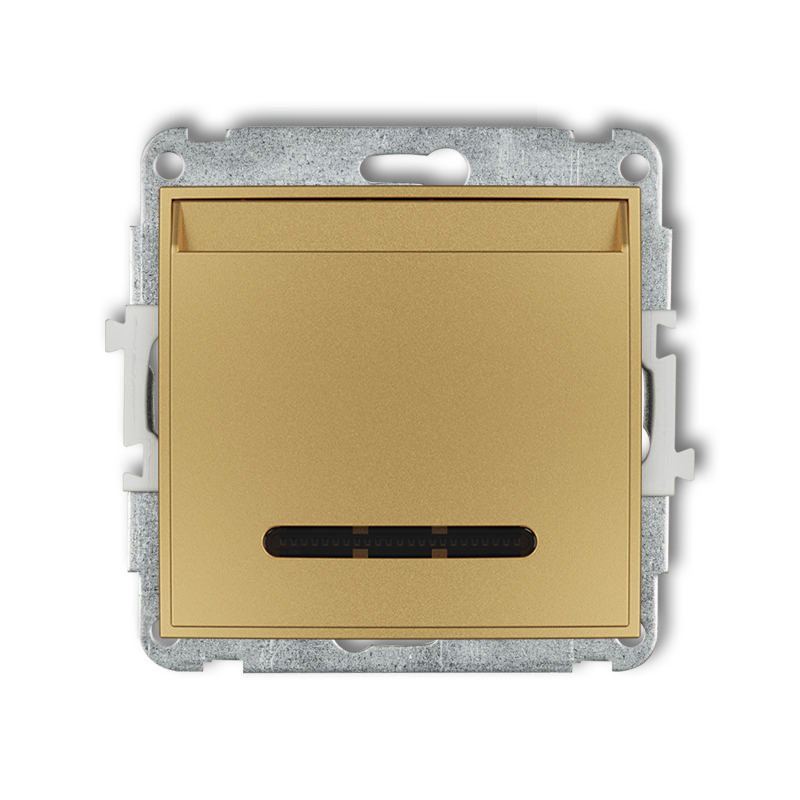

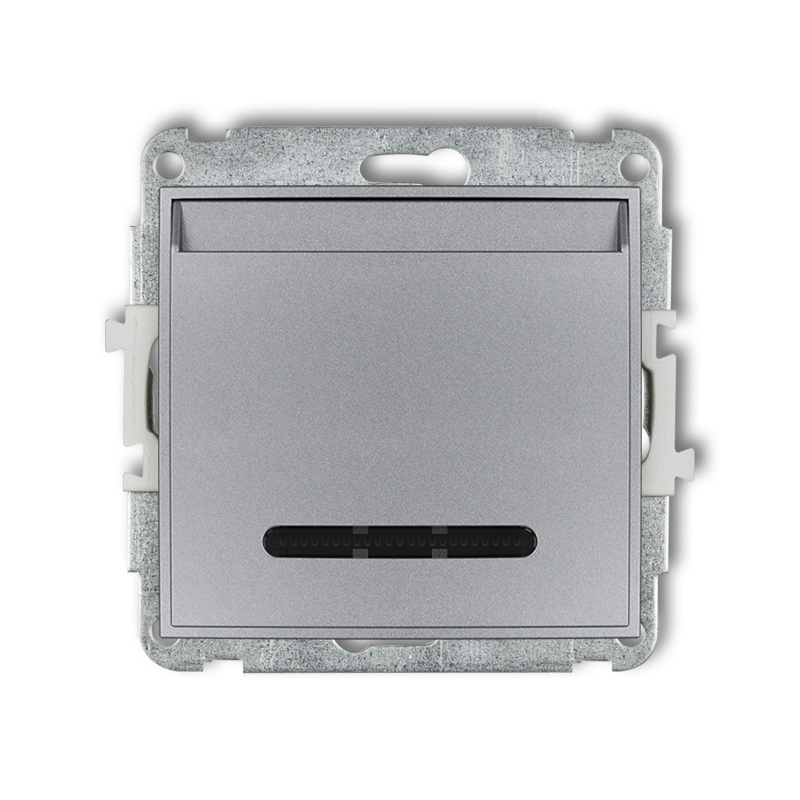

Single hotel switch mechanism (white backlight)
	white
ISH-1.1
Product description
Downloads
ICON mechanisms and frames are sold separately.
Note! The switch is designed to switch on the power supply via a relay/contactor or to directly switch on circuits with a maximum current of 1A.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated voltage | 230 V, 50 Hz |
| Rated current | 10(1.5)A 250 AC |
| Supply wires cross-section | 1 mm^2 |
| Connection type | Card 54 x 86 mm |
| Card thickness | 0,75 x 1 mm |
| Control light window | Yes, white LED backlight |
| Number of connection clamps | 2 |
| Insulation distance | µ (micro-gap) |
Product variants
-


                    Single hotel switch mechanism (blue backlight)
white
ISH-1.2
 -


                    Double hotel switch mechanism (blue backlight)
matt black
12ISH-2.2
 -


                    Double hotel switch mechanism (white backlight)
matt white
25ISH-2.1
 -


                    Double hotel switch mechanism (white backlight)
matt grey
27ISH-2.1
 -


                    Single hotel switch mechanism (blue backlight)
taupe
60ISH-1.2
 -


                    Double hotel switch mechanism (blue backlight)
terracotta
63ISH-2.2

Complementary products
-

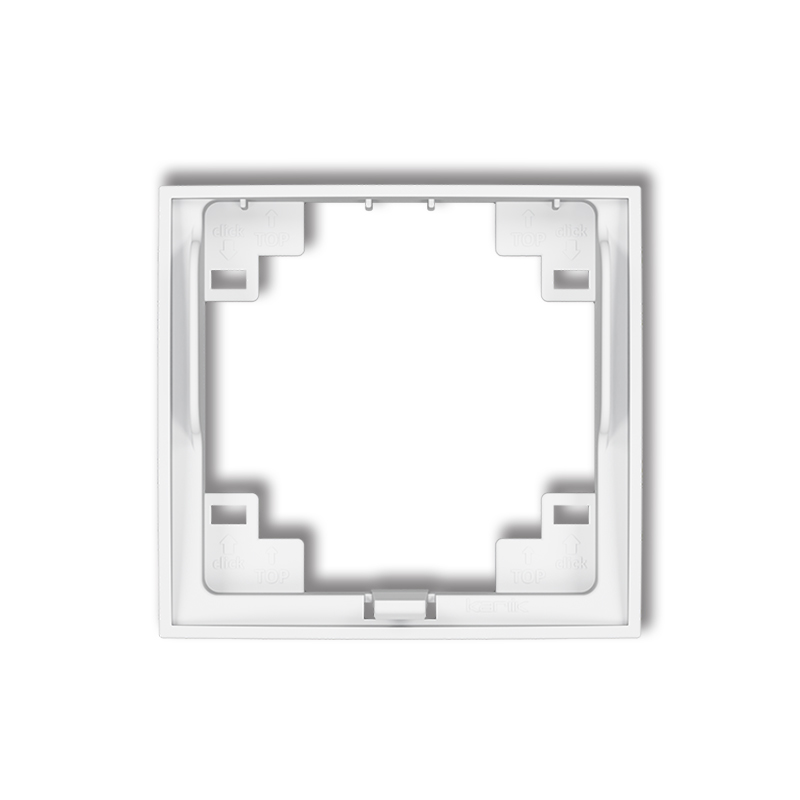

                    The intermediate frame for hotel switch
white
IRP-4
 -


                    The intermediate frame for hotel switch
matt black
12IRP-4
 -


                    The intermediate frame for hotel switch
matt white
25IRP-4
 -

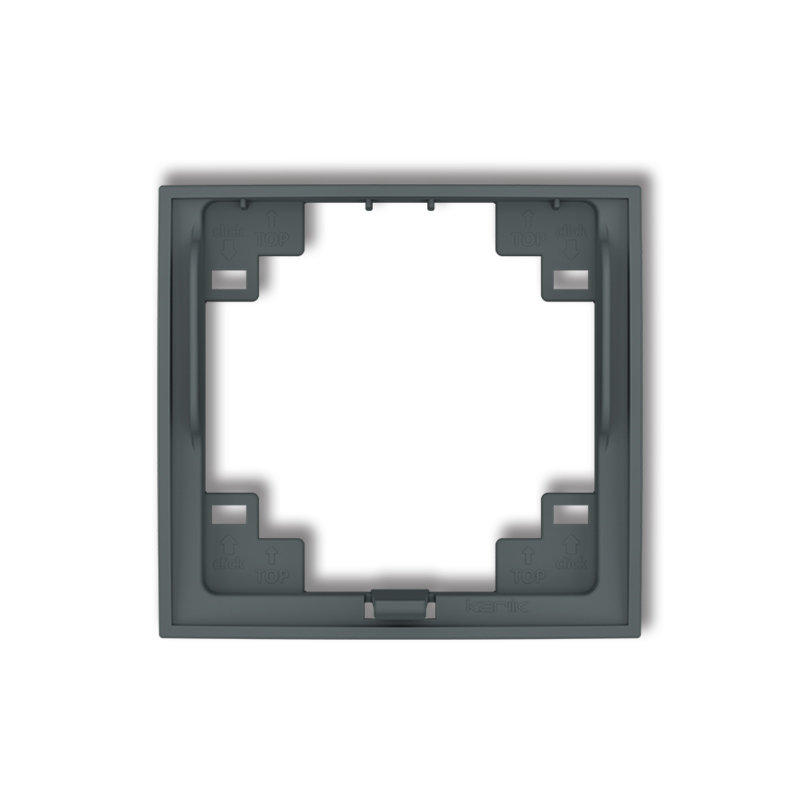

                    The intermediate frame for hotel switch
