Single hotel switch mechanism (blue backlight)
white
ISH-1.2
-
white
ISH-1.2
-

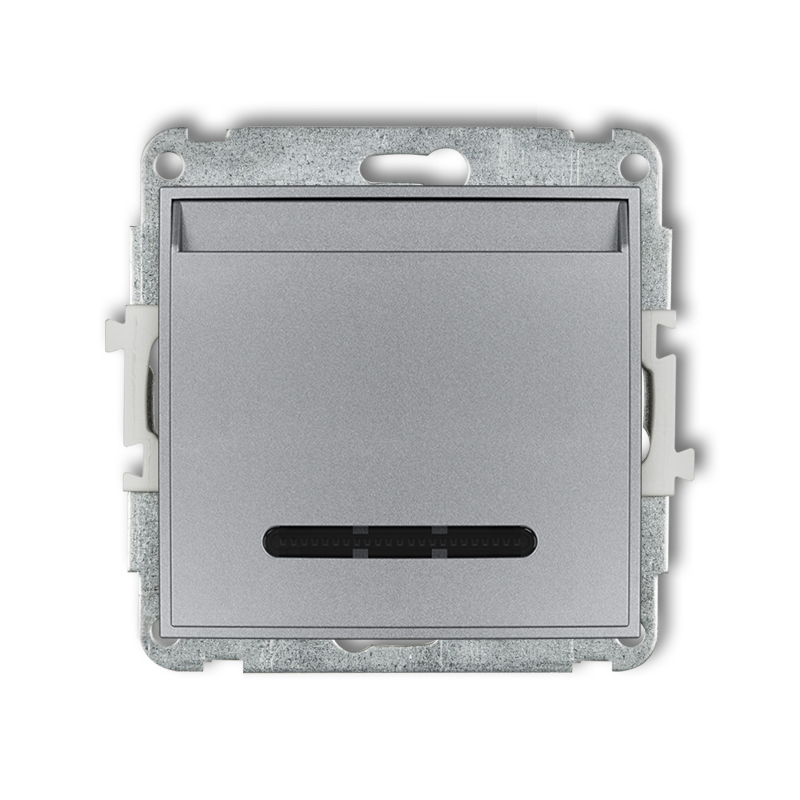

silver metallic
7ISH-1.2
-

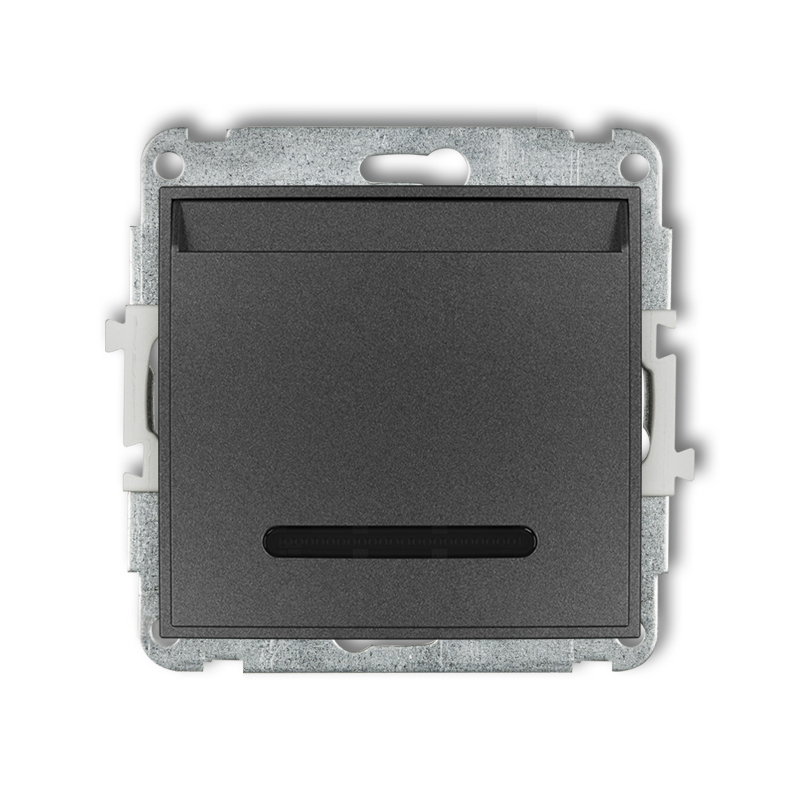

graphite
11ISH-1.2
-
matt black
12ISH-1.2
-

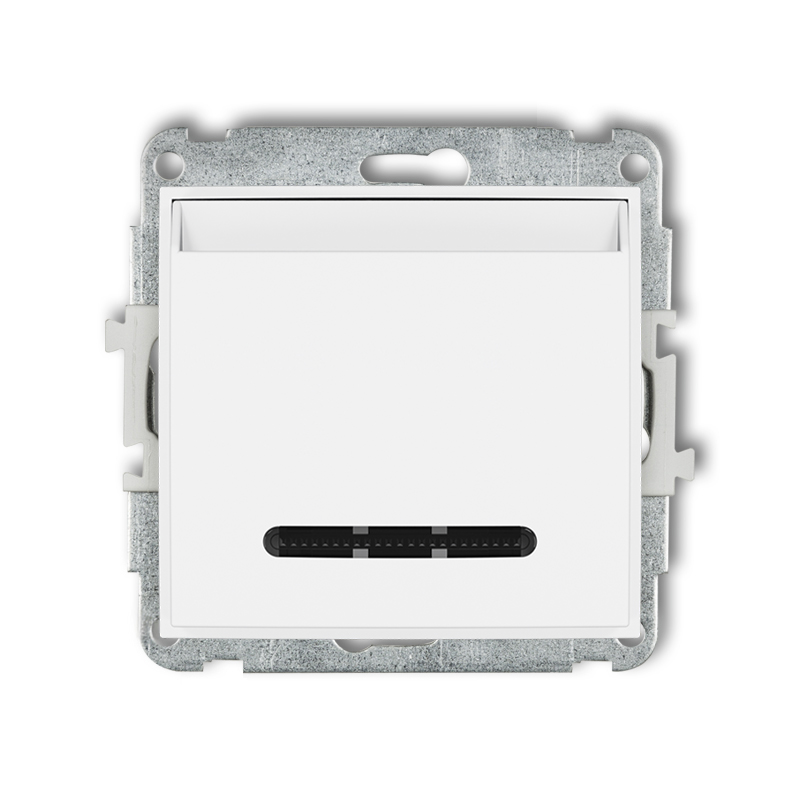

matt white
25ISH-1.2
-
matt grey
27ISH-1.2
-
matt graphite
28ISH-1.2
-

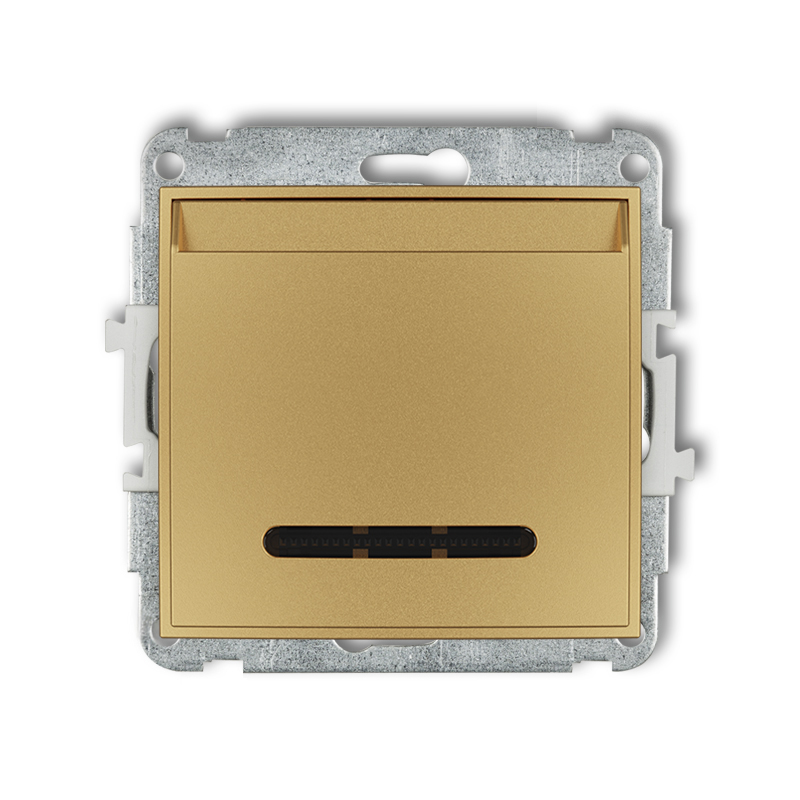

gold
29ISH-1.2
-
taupe
60ISH-1.2
-

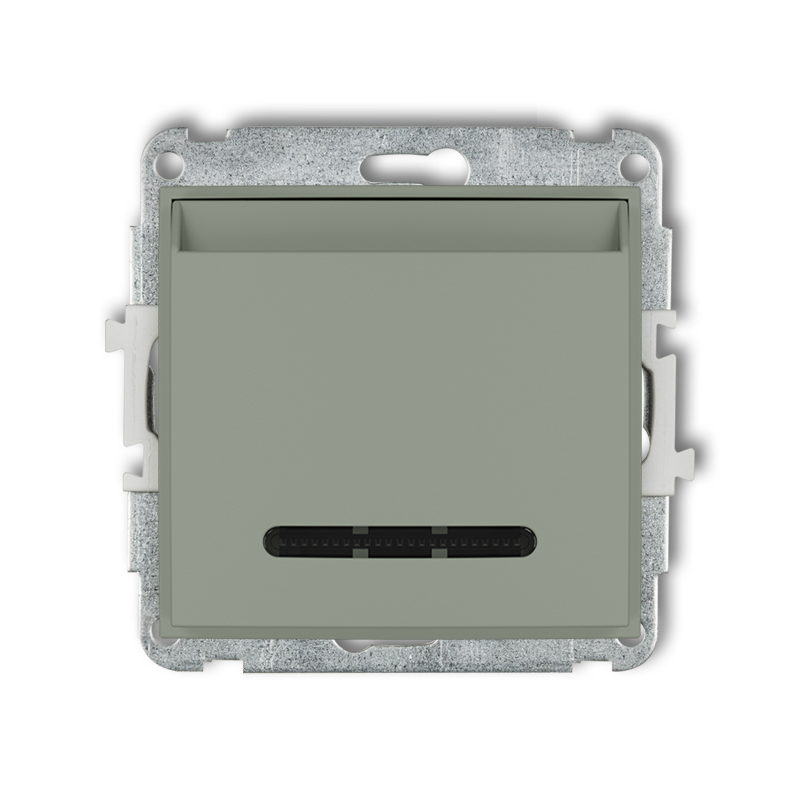

sage
61ISH-1.2
-

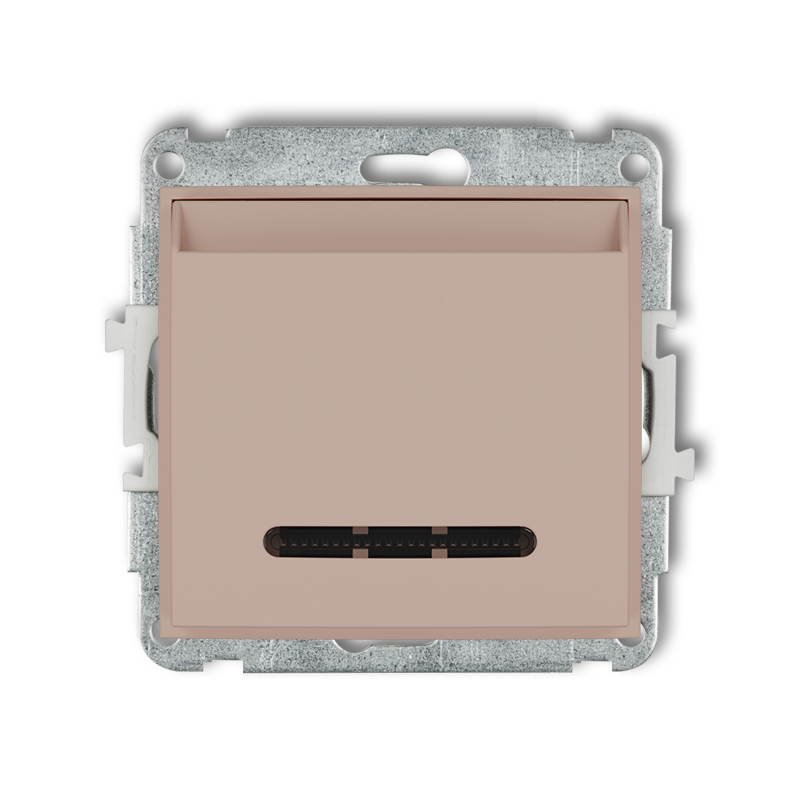

salmon
62ISH-1.2
-
terracotta
63ISH-1.2
-

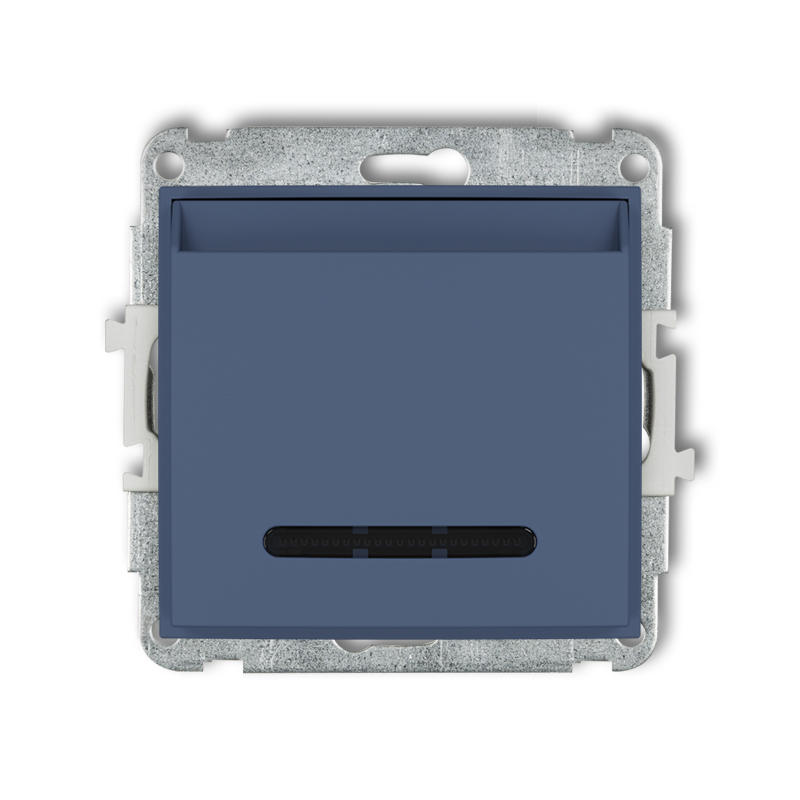

navy blue
64ISH-1.2
Product description
Downloads
ICON mechanisms and frames are sold separately.
Note! The switch is designed to switch on the power supply via a relay/contactor or to directly switch on circuits with a maximum current of 1A.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated voltage | 230 V, 50 Hz |
| Rated current | 10(1.5)A 250 AC |
| Supply wires cross-section | 1 mm^2 |
| Connection type | Card 54 x 86 mm |
| Card thickness | 0,75 x 1 mm |
| Control light window | Yes, blue LED backlight |
| Number of connection clamps | 2 |
| Insulation distance | µ (micro-gap) |
Product variants
-

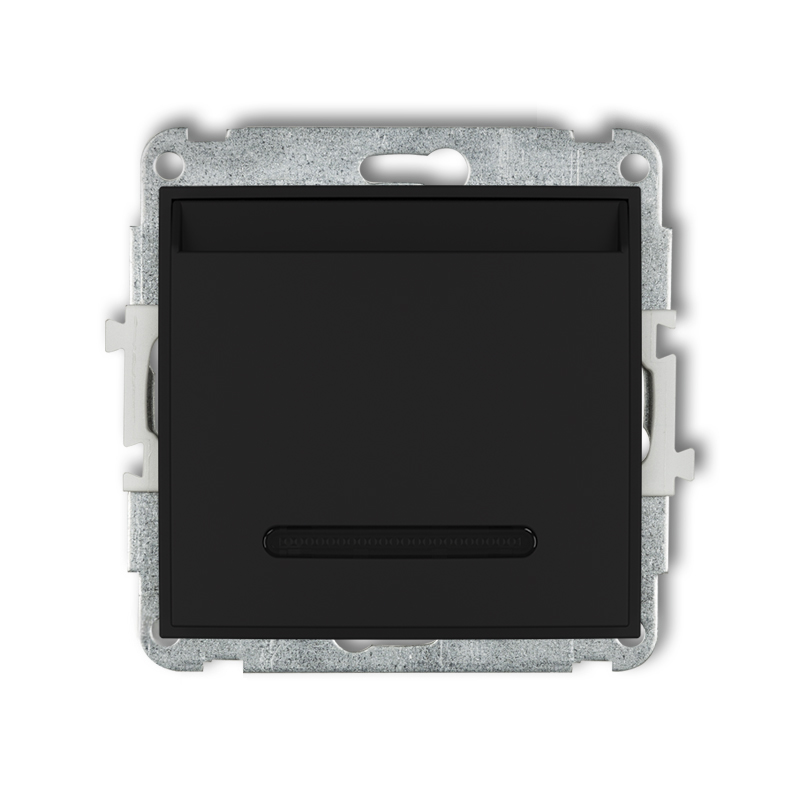

Single hotel switch mechanism (white backlight)
matt black
12ISH-1.1
-

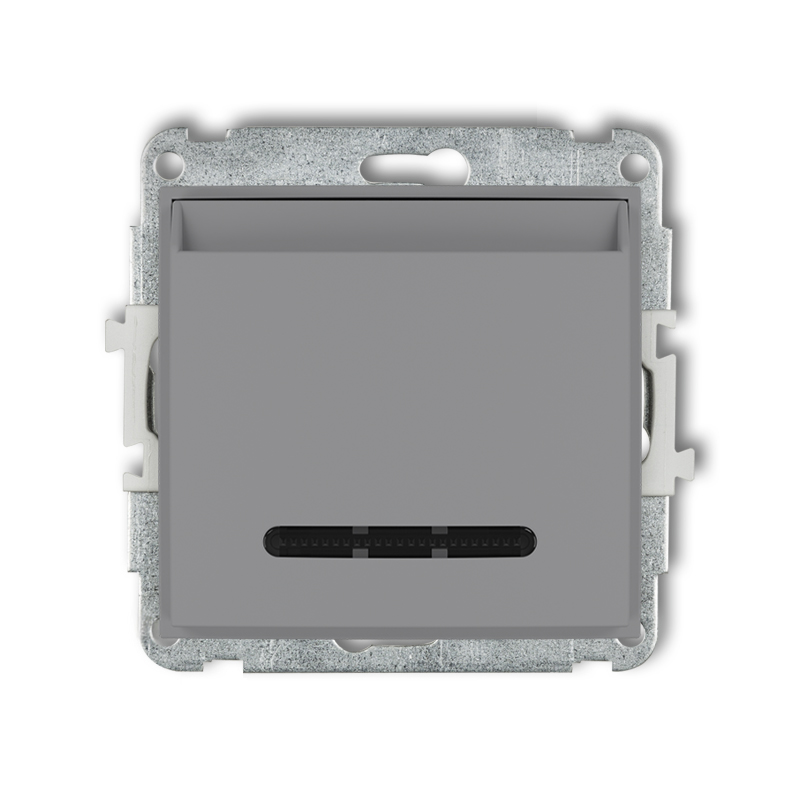

Double hotel switch mechanism (white backlight)
matt grey
27ISH-2.1
-
Double hotel switch mechanism (blue backlight)
matt graphite
28ISH-2.2
-
Single hotel switch mechanism (white backlight)
taupe
60ISH-1.1
-

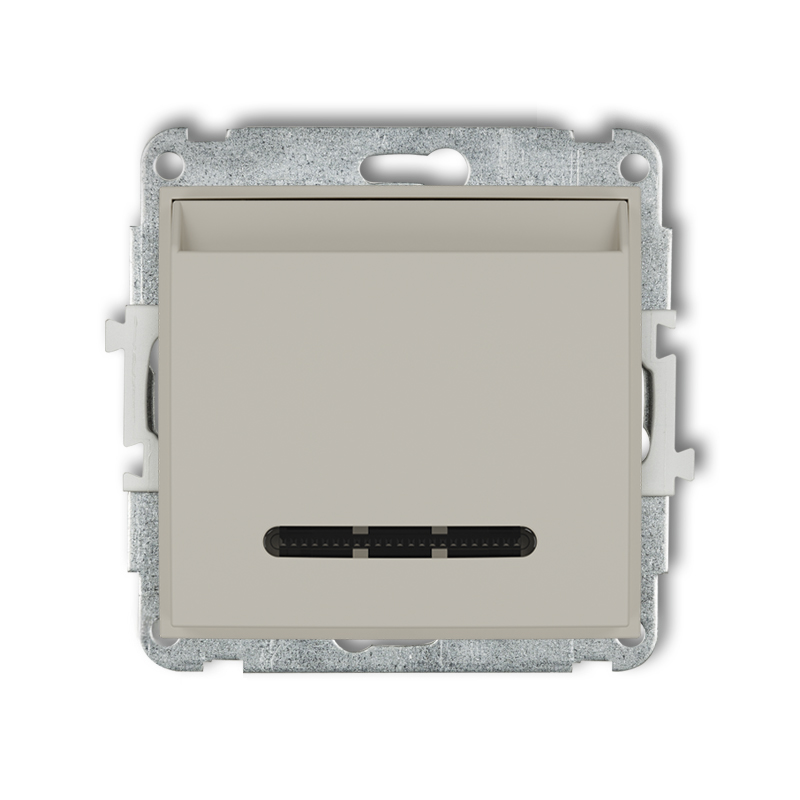

Single hotel switch mechanism (white backlight)
taupe
60MSH-1.1
-
Single hotel switch mechanism (blue backlight)
terracotta
63ISH-1.2
Complementary products
-

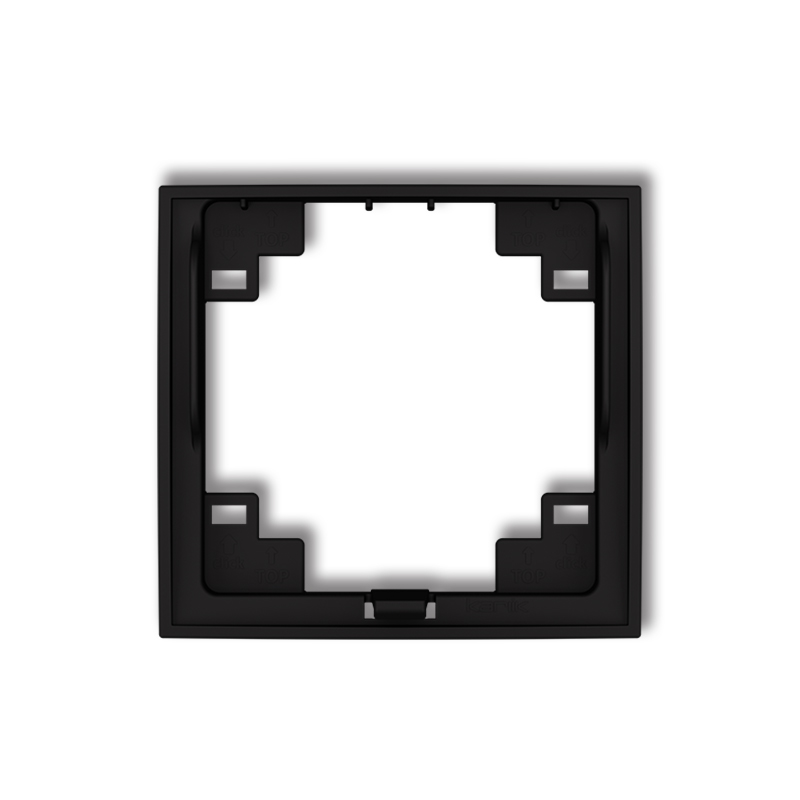

The intermediate frame for hotel switch
matt black
12IRP-4
-

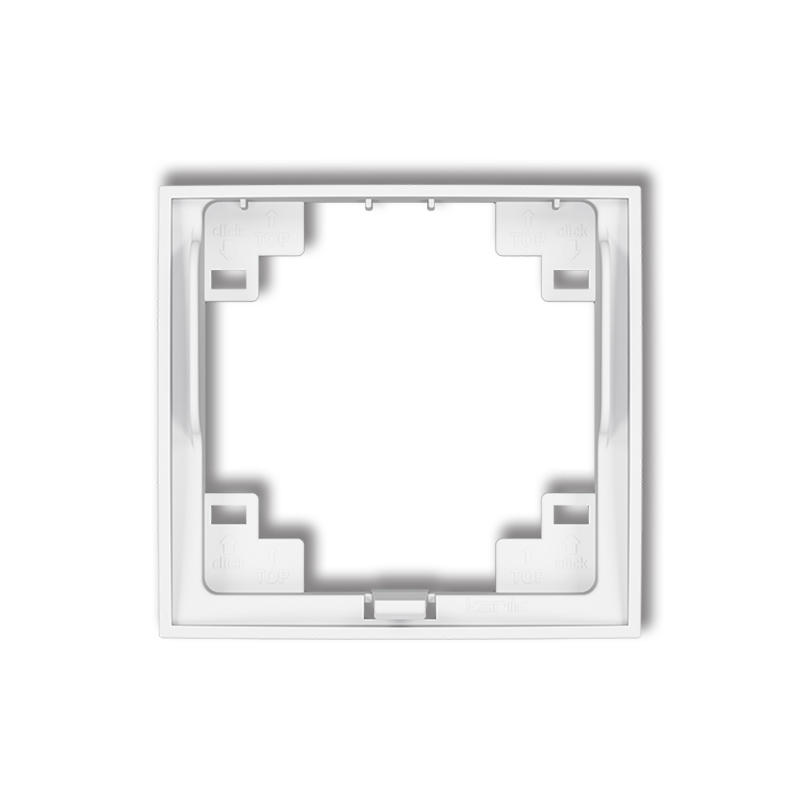

The intermediate frame for hotel switch
matt white
25IRP-4
-

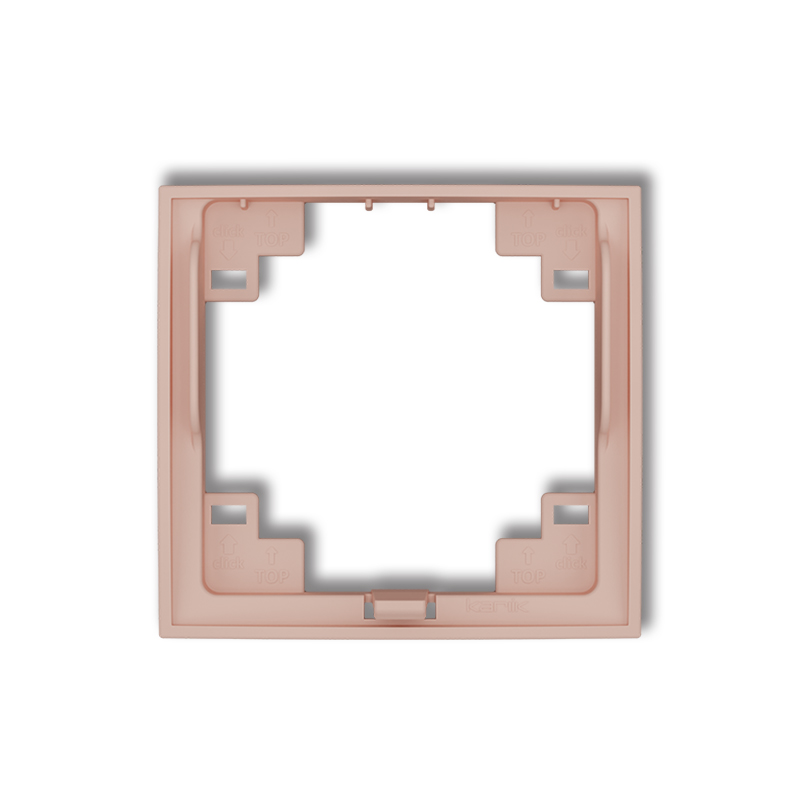

The intermediate frame for hotel switch
salmon
62IRP-4
-

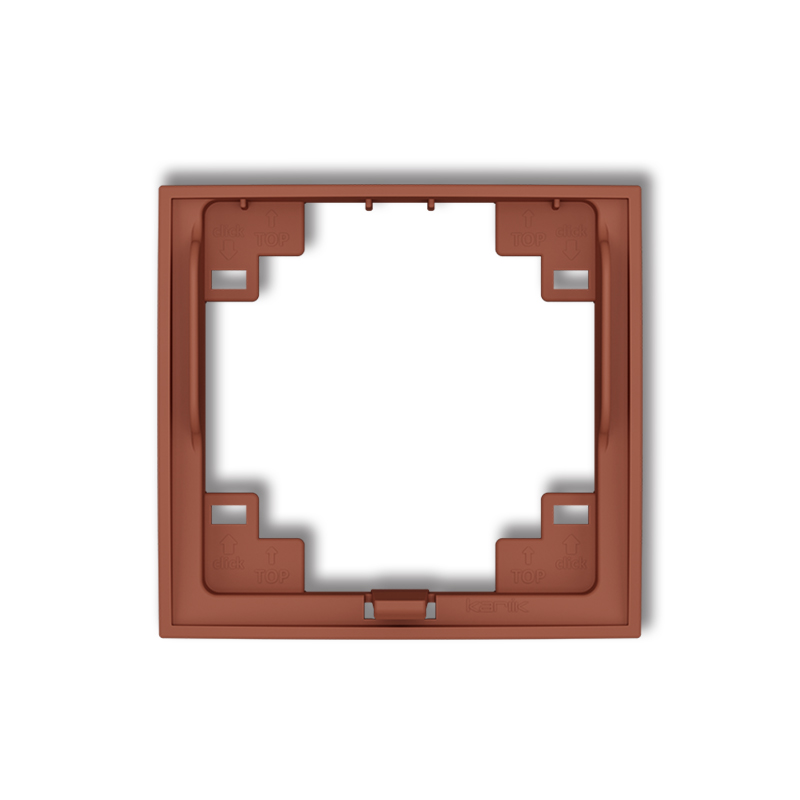

The intermediate frame for hotel switch
terracotta
63IRP-4
-

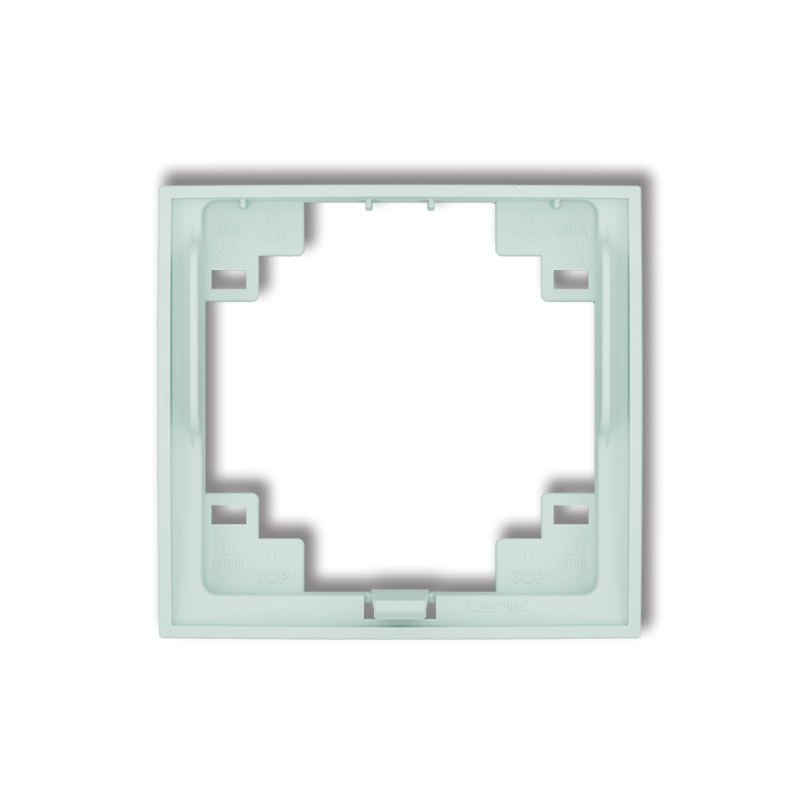

The intermediate frame for hotel switch
