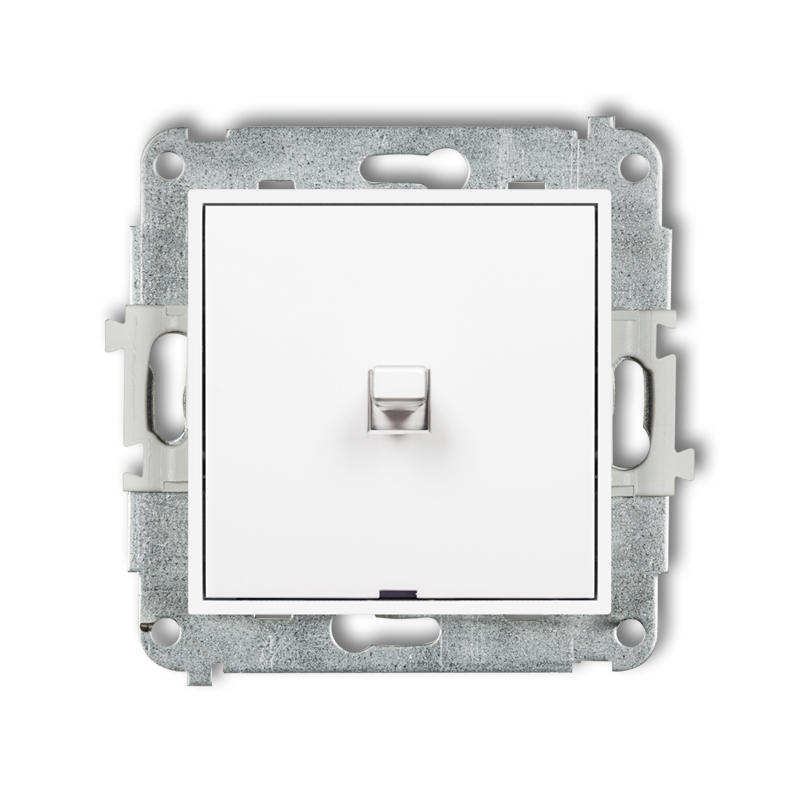

American-style single pole switch mechanism
	white
IWPUS-1
Product description
Downloads
ICON mechanisms and frames are sold separately.

ICON switches in American style are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all ICON switches besides the following switches: IWPUS-8, IWPUS-44.2, IWPUS-33, IWPUS-33.1, IWPUS-10.2, IWPUS-10.21.
ICON switches in american style are not available in hermetic type (IP44) - sealant can not be used with the American style switches mechanisms.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated current | 10 AX |
| Rated voltage | 250 V~ |
| Connection | Screw terminals |
| UV resistance | Resistant |
Product variants
-


                    American-style double two-way switch mechanism (double push button without pictograms)
white
IWPUS-33.1
 -


                    American-style two-way switch mechanism
silver metallic
7IWPUS-3
 -


                    American-style double pole switch mechanism
matt black
12IWPUS-9
 -


                    American-style single push button "light" mechanism
matt grey
27IWPUS-5
 -


                    American-style roller blind switch mechanism (double push button without pictograms)
sage
61IWPUS-8
 -


                    American-style two-circuit switch mechanism
salmon
62IWPUS-2
