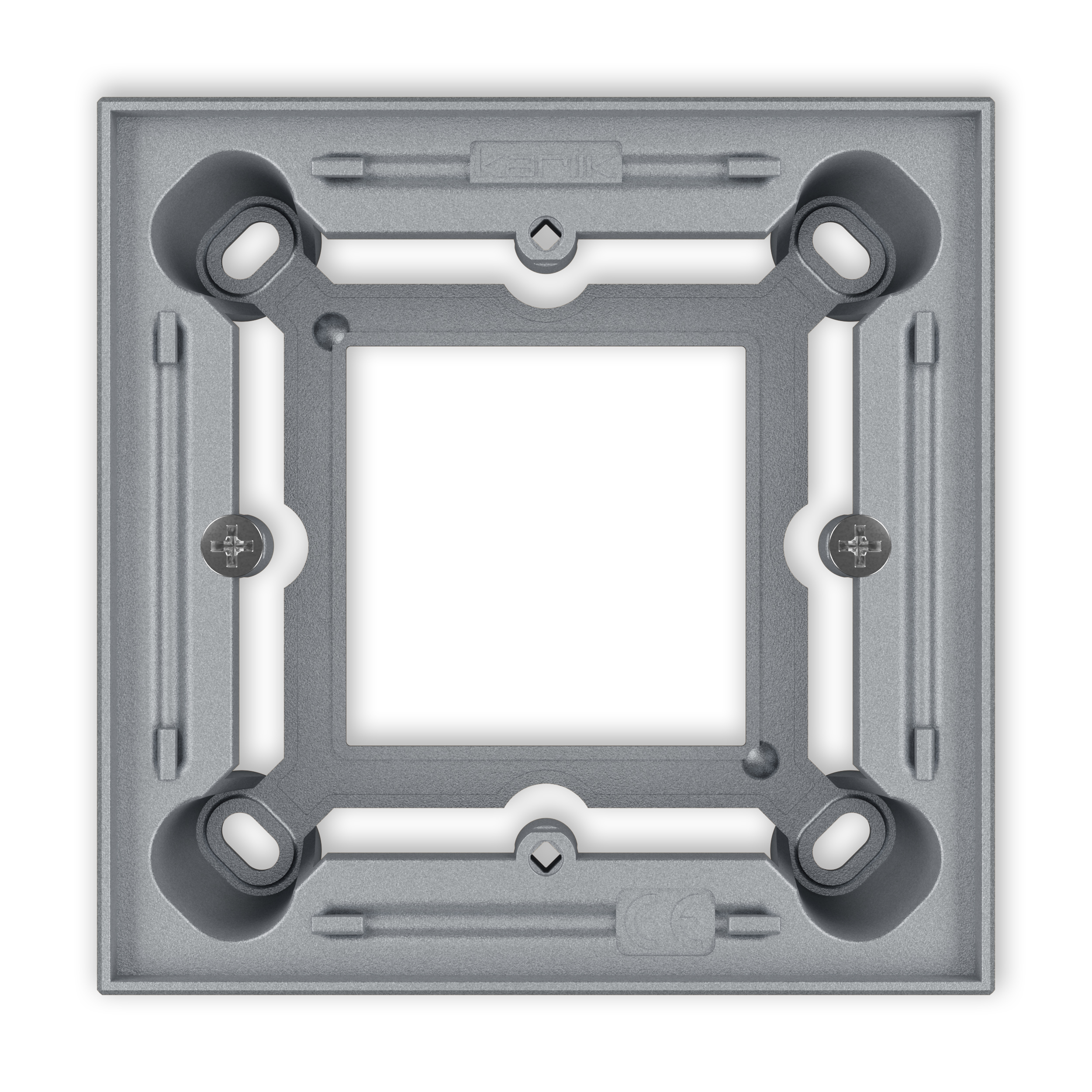

Single square surface-mount box ICON

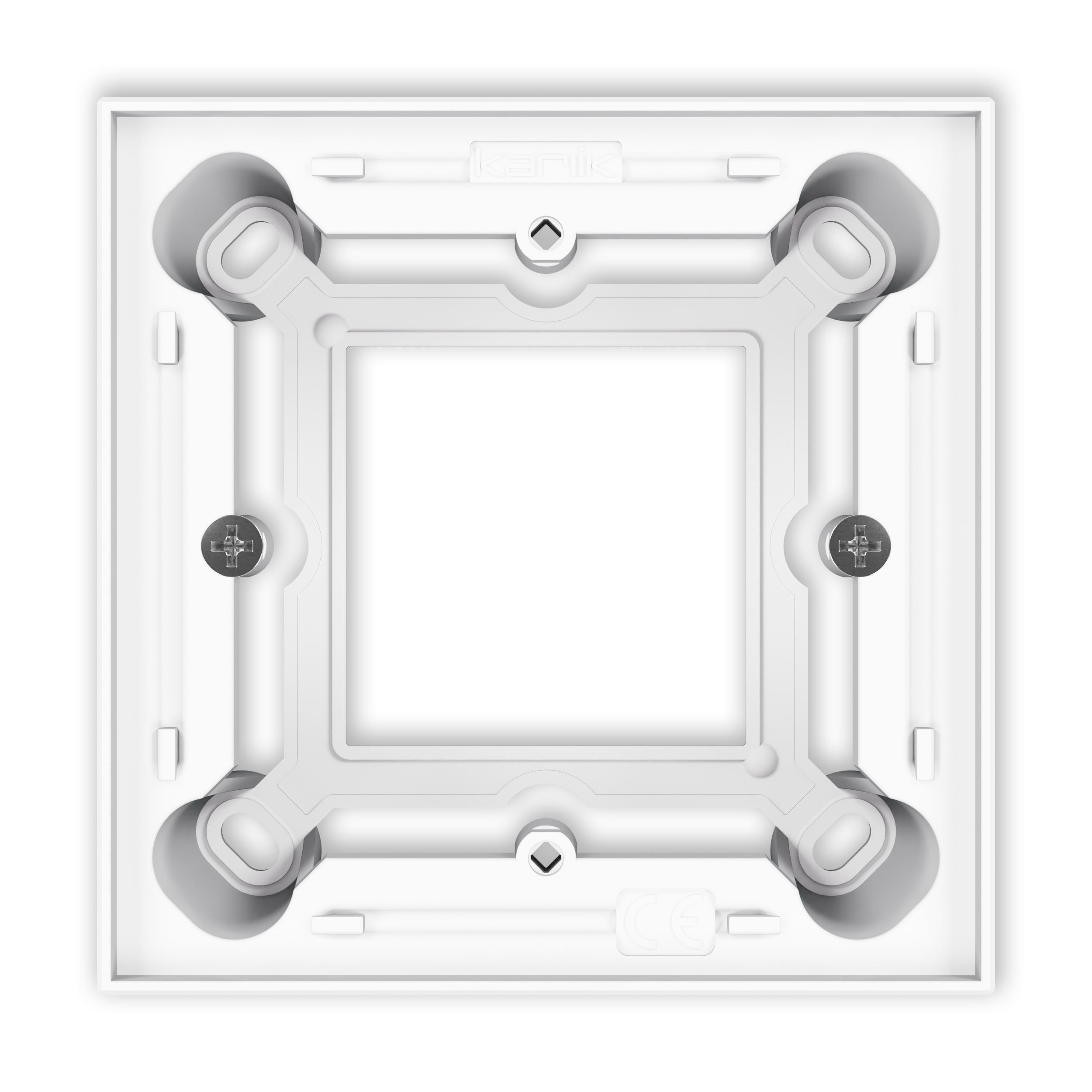

white
PUK-1
-
white
PUK-1
-

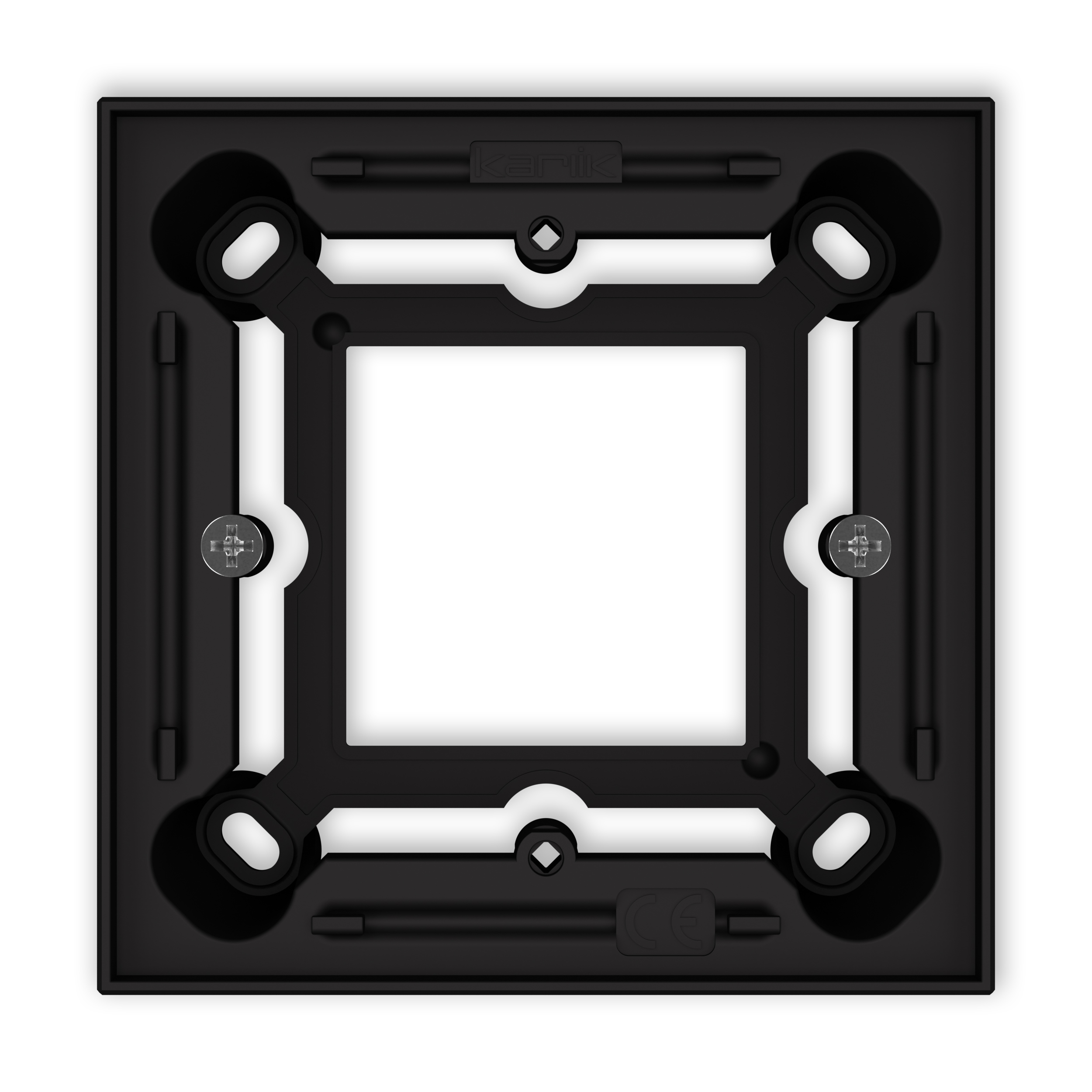

matt black
12PUK-1
-
matt white
25PUK-1
-
silver metalic
7PUK-1
-

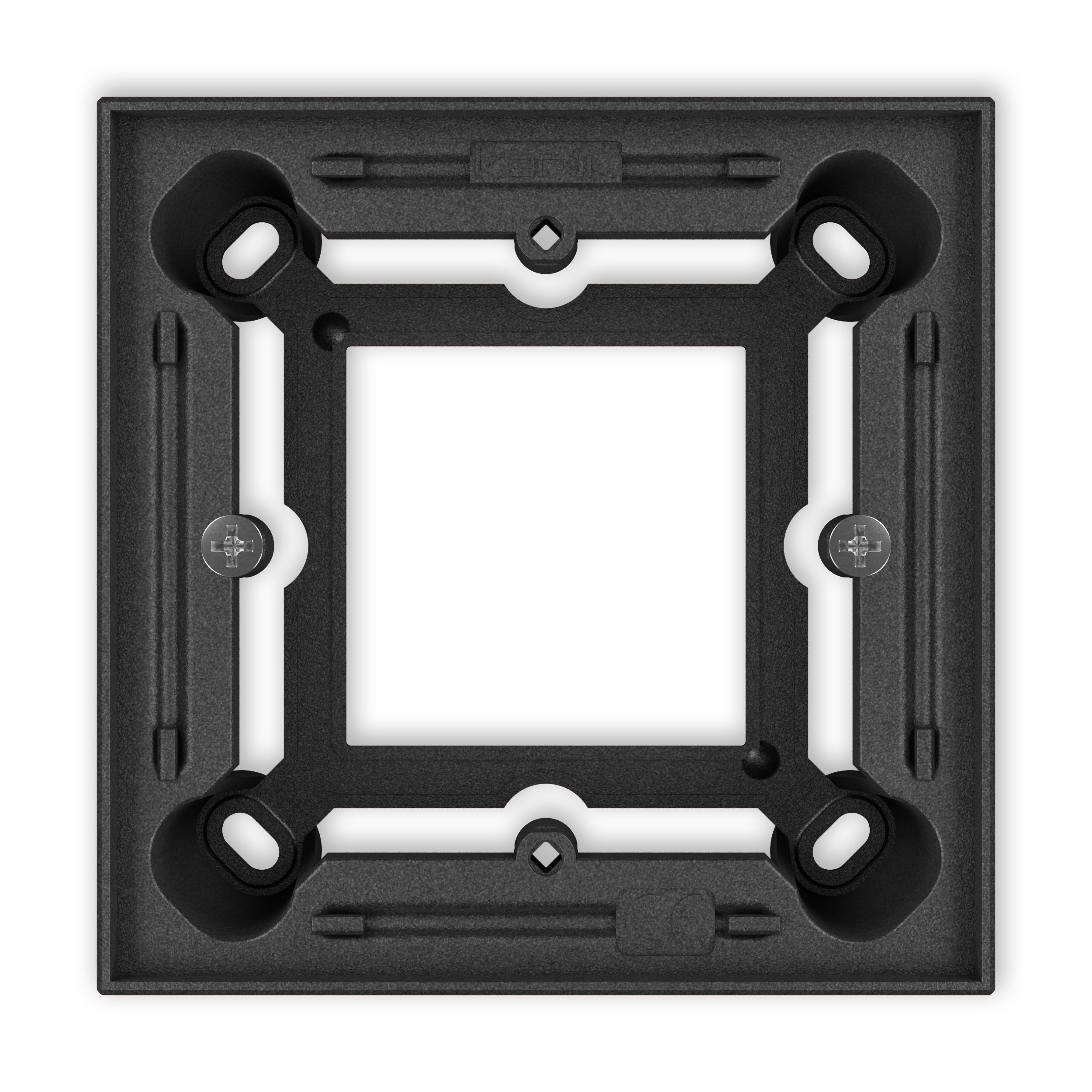

graphite
11PUK-1
-

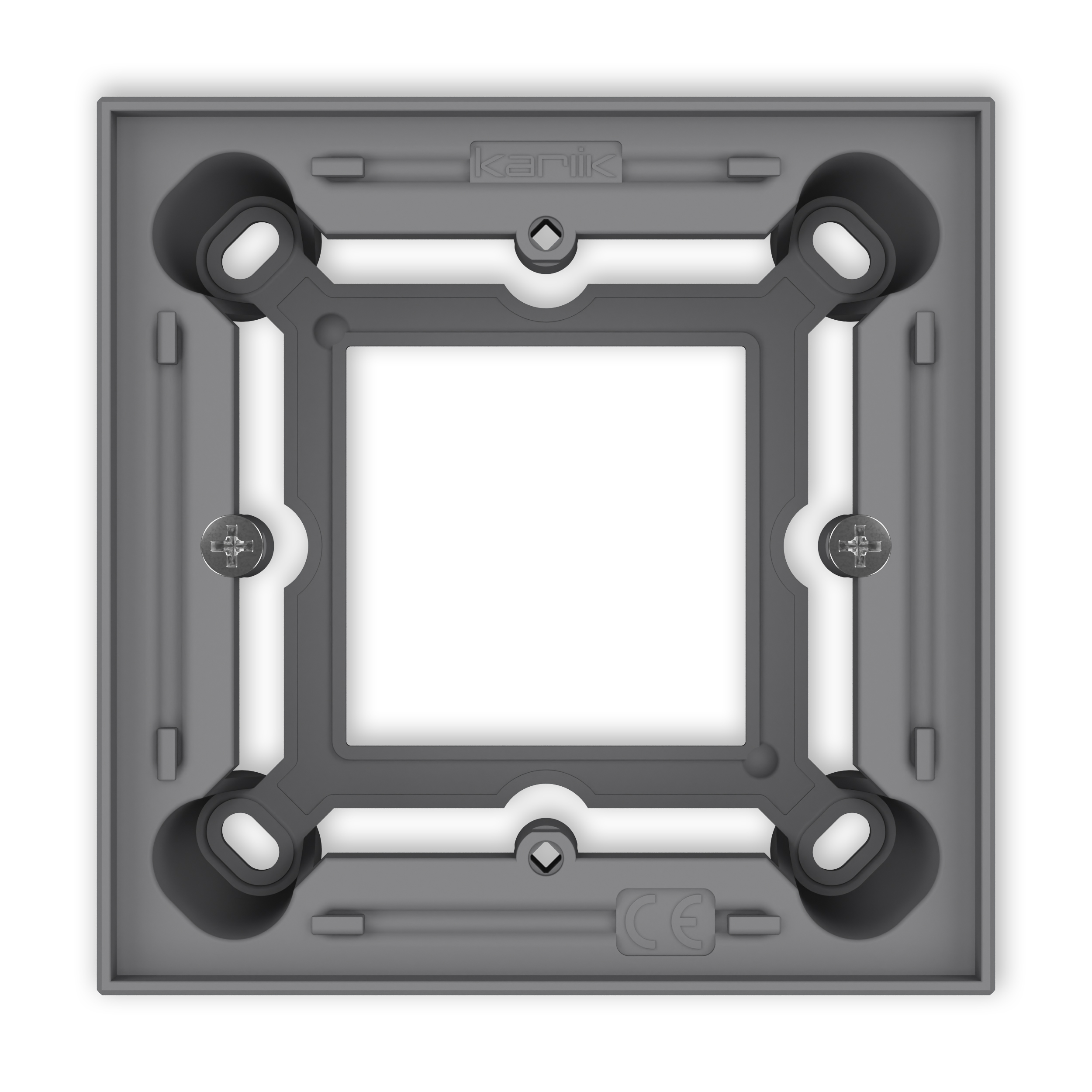

matt grey
27PUK-1
-

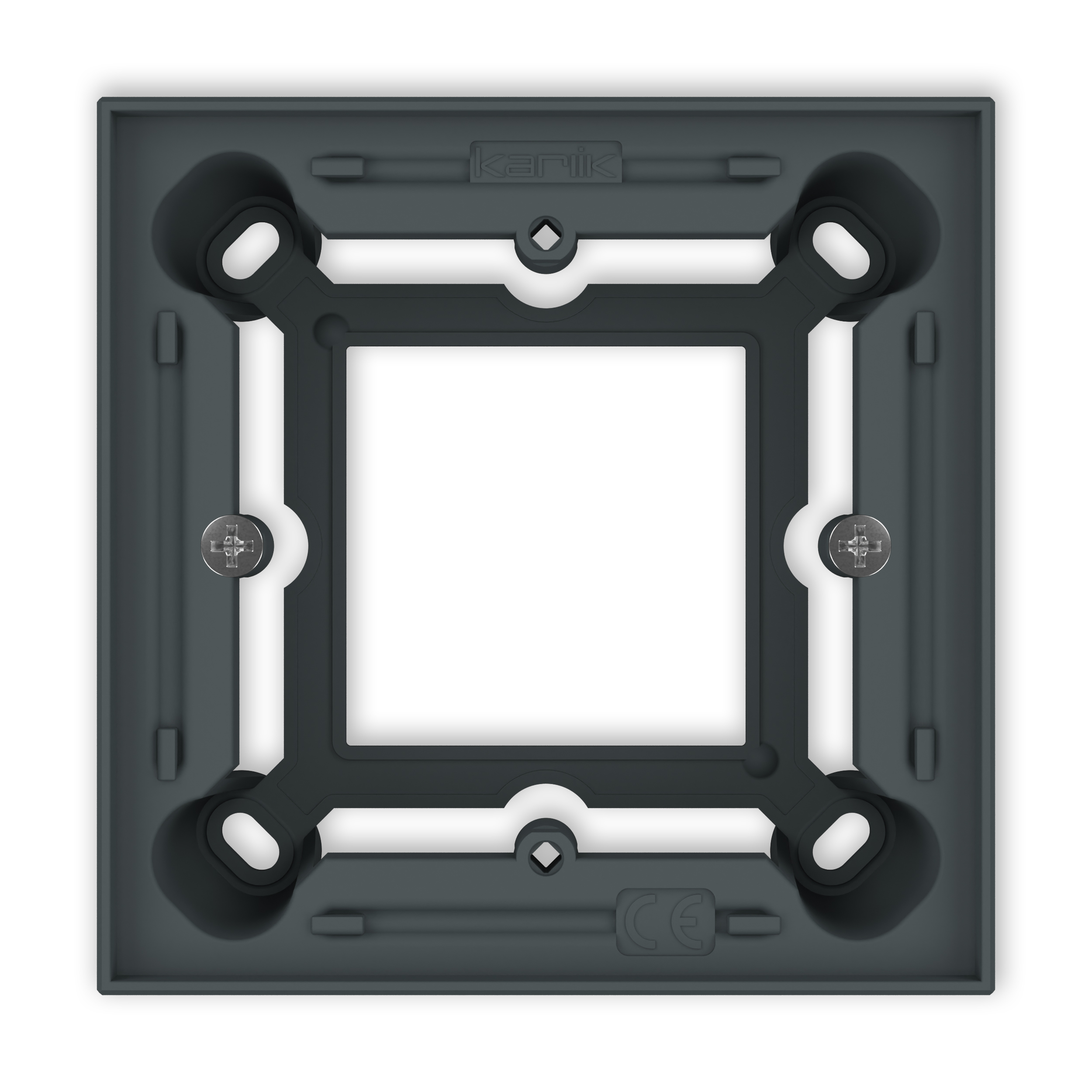

matt graphite
28PUK-1
-

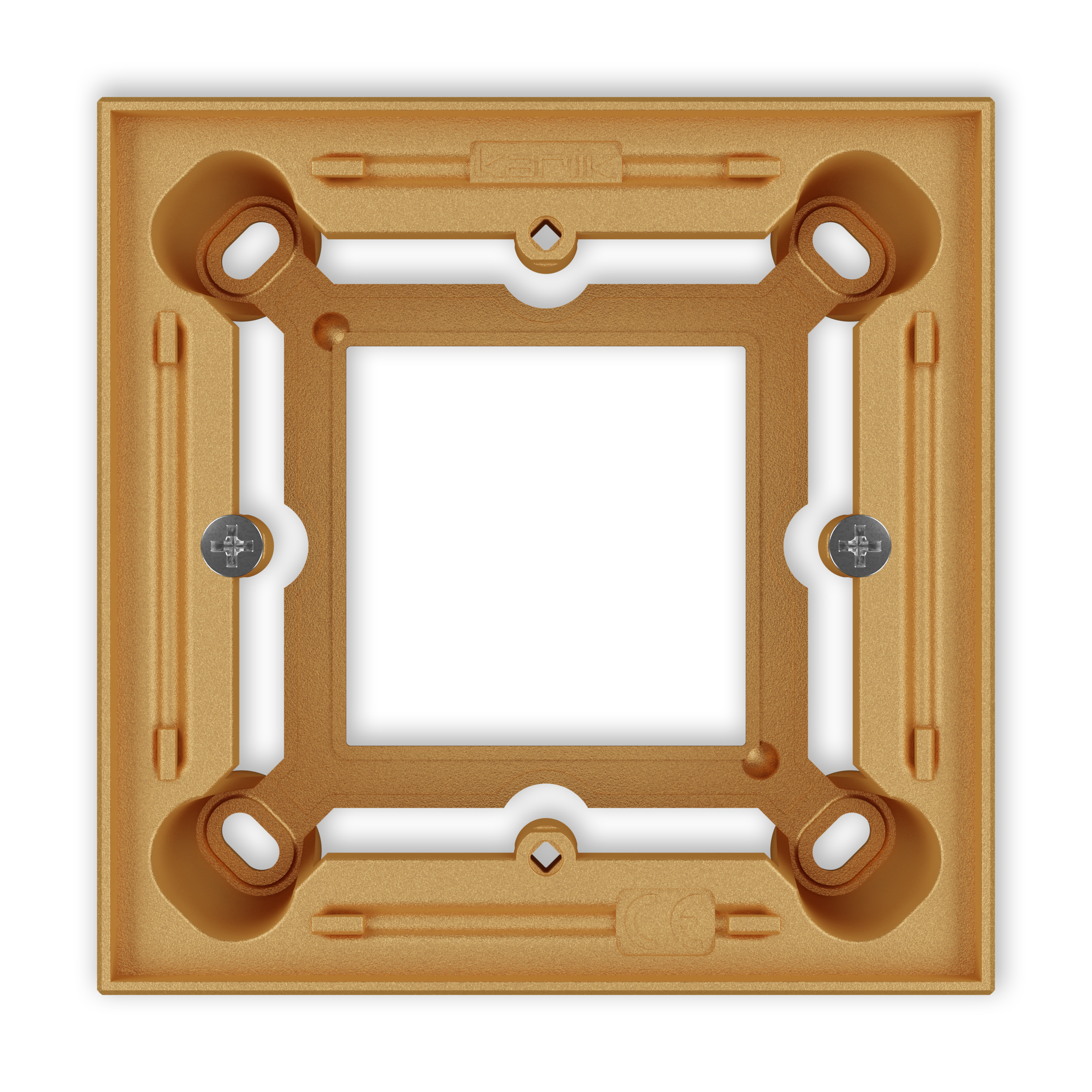

gold
29PUK-1
-

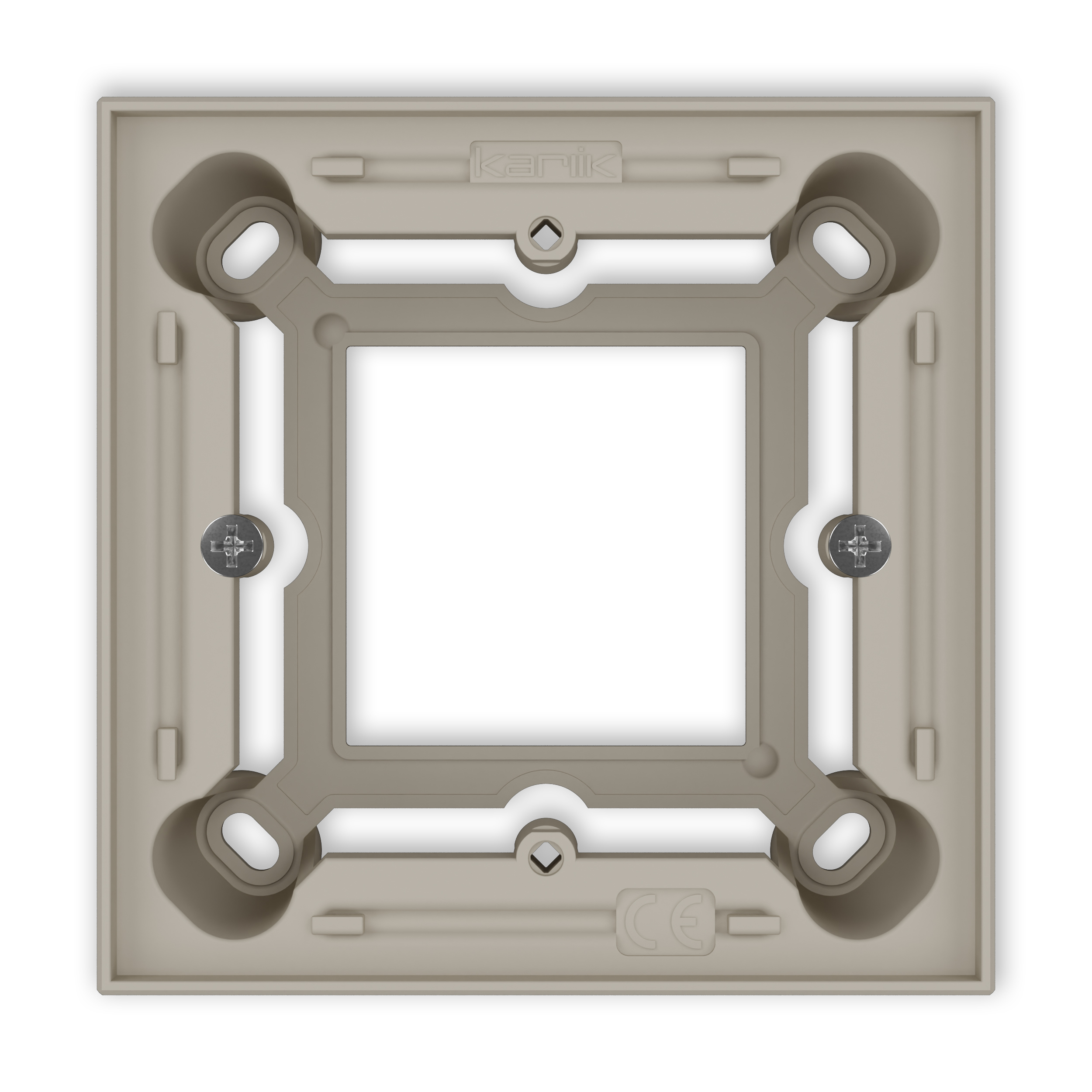

taupe
60PUK-1
-

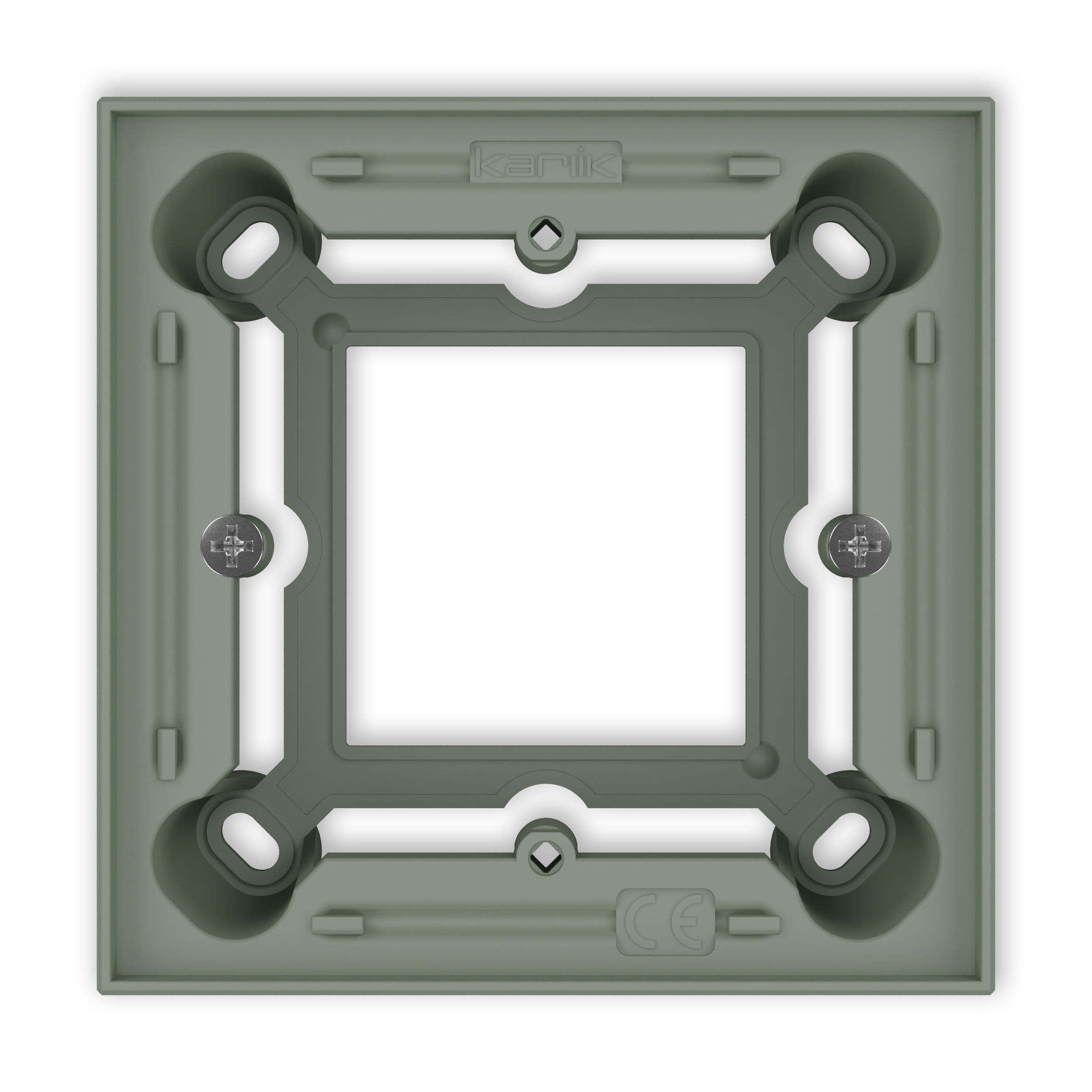

sage
61PUK-1
-

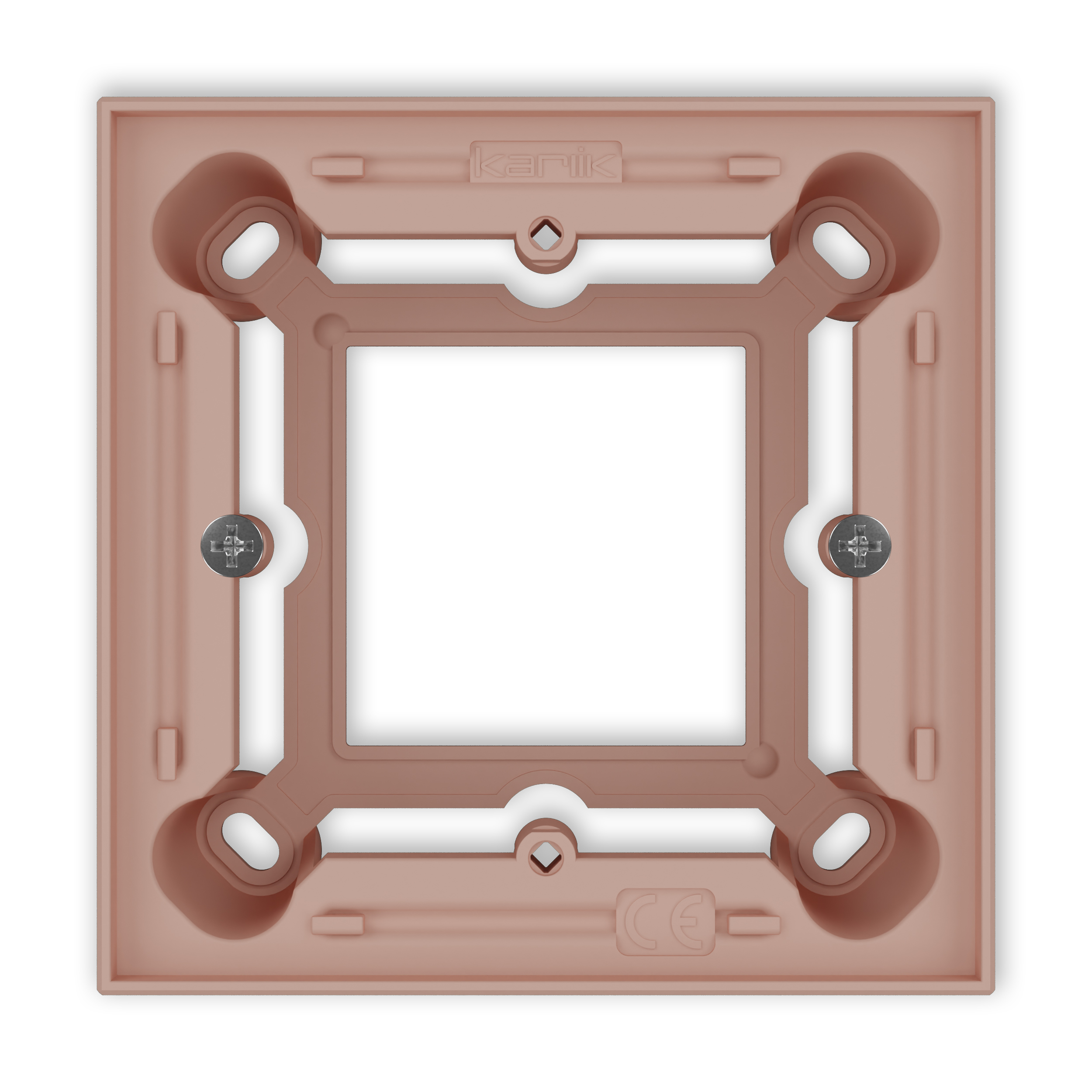

salmon
62PUK-1
-

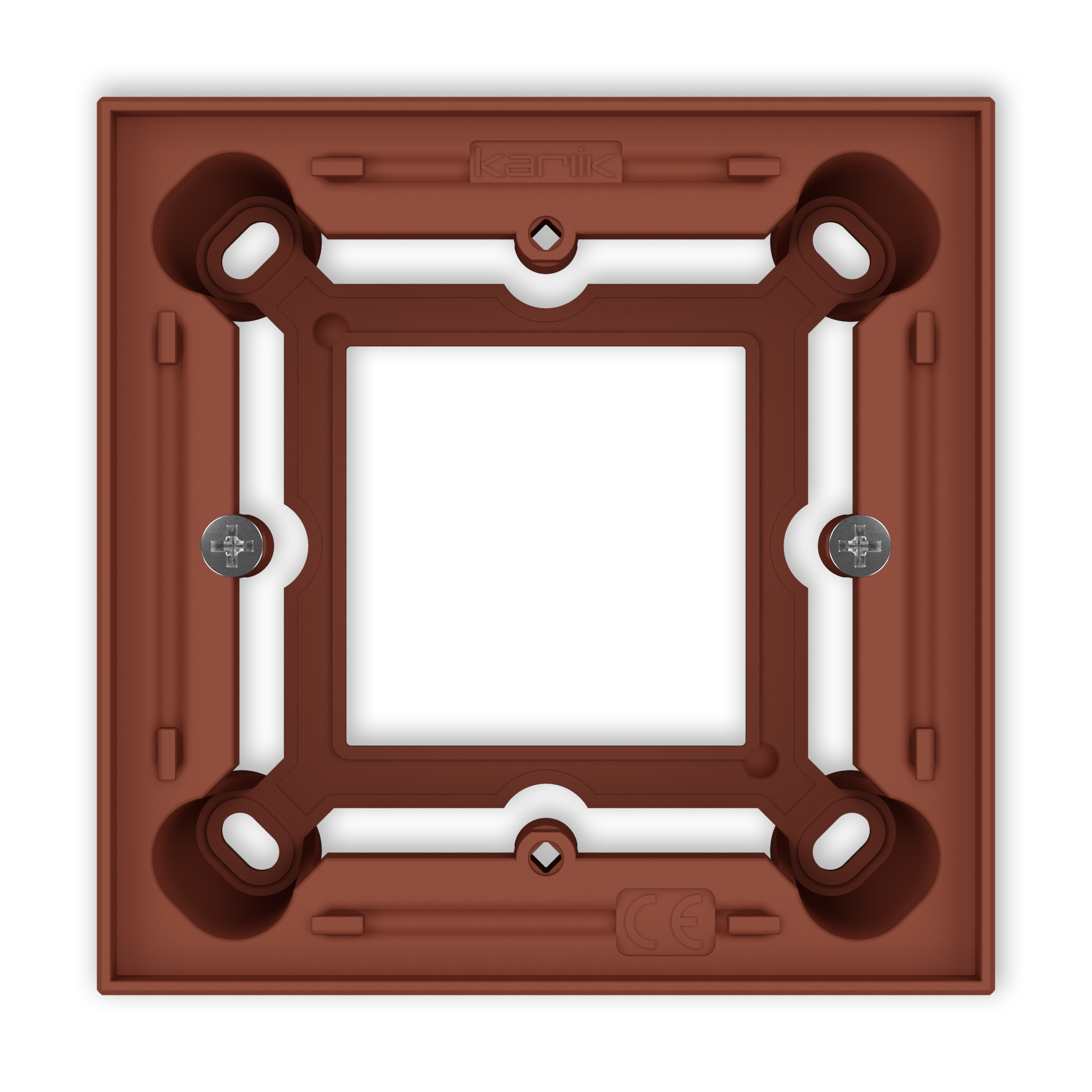

terracotta
63PUK-1
-

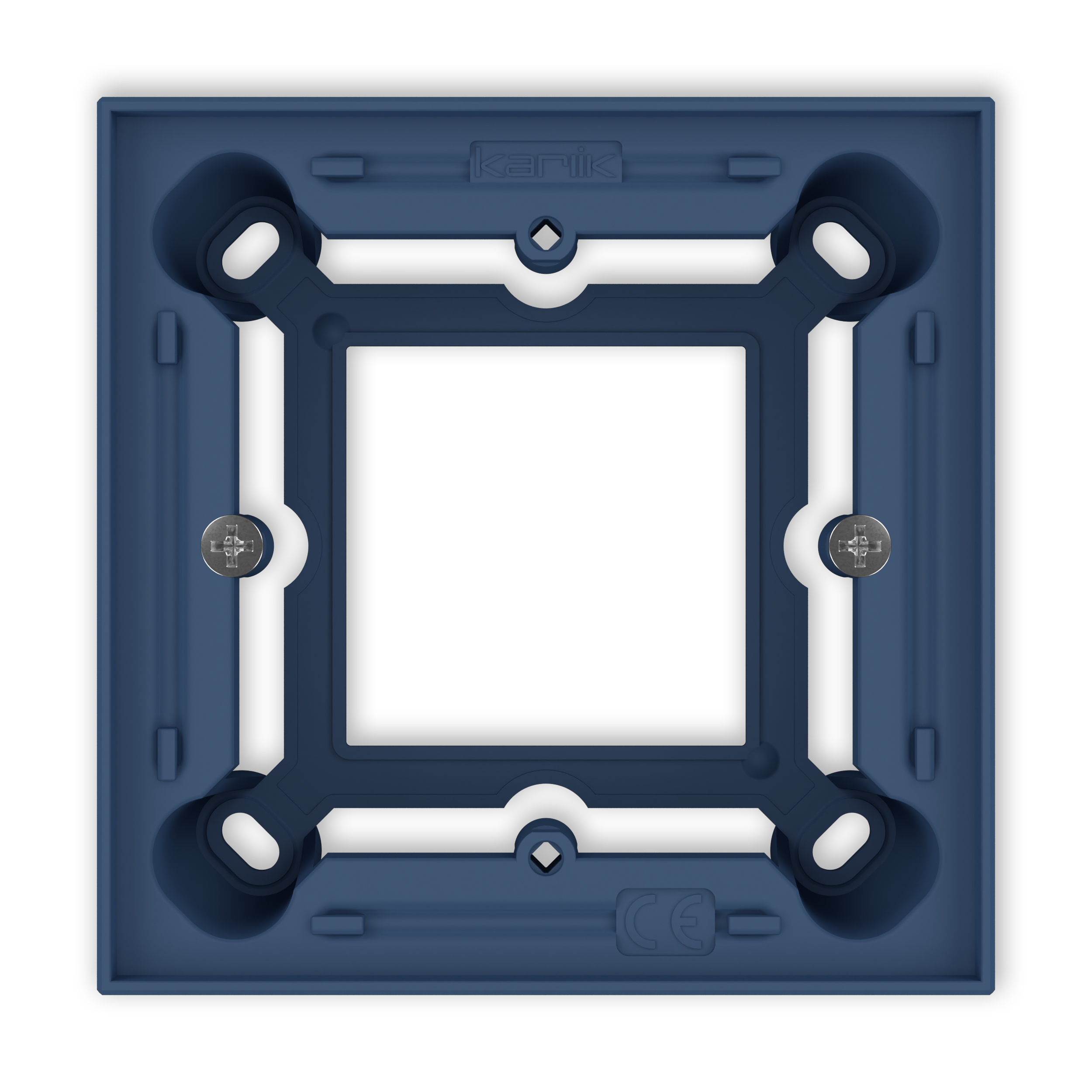

navy blue
64PUK-1
Product description
Downloads
Single square surface-mount boxes are used to convert flush-mounted switches and sockets to surface-mounted versions. The boxes are compatible with the ICON series' single square universal glass-effect frames.
The square boxes come standard with four full vertically and horizontally aligned end caps. Useful accessories are available for separate purchase for surface-mounted boxes, allowing you to aesthetically connect two or more boxes into multiple vertical or horizontal configurations.
Technical data
Dimensions of single square surface-mount box ICON are compatible with dimensions of single square ICON frames.
| Protection index | IP 20 |
| UV resistance | Resistant |
Complementary products
-
End cap with an 18 mm pipe inlet for single surface-mount box PUK-1 / PUZ-1
white
ZAPUKZ-1
-

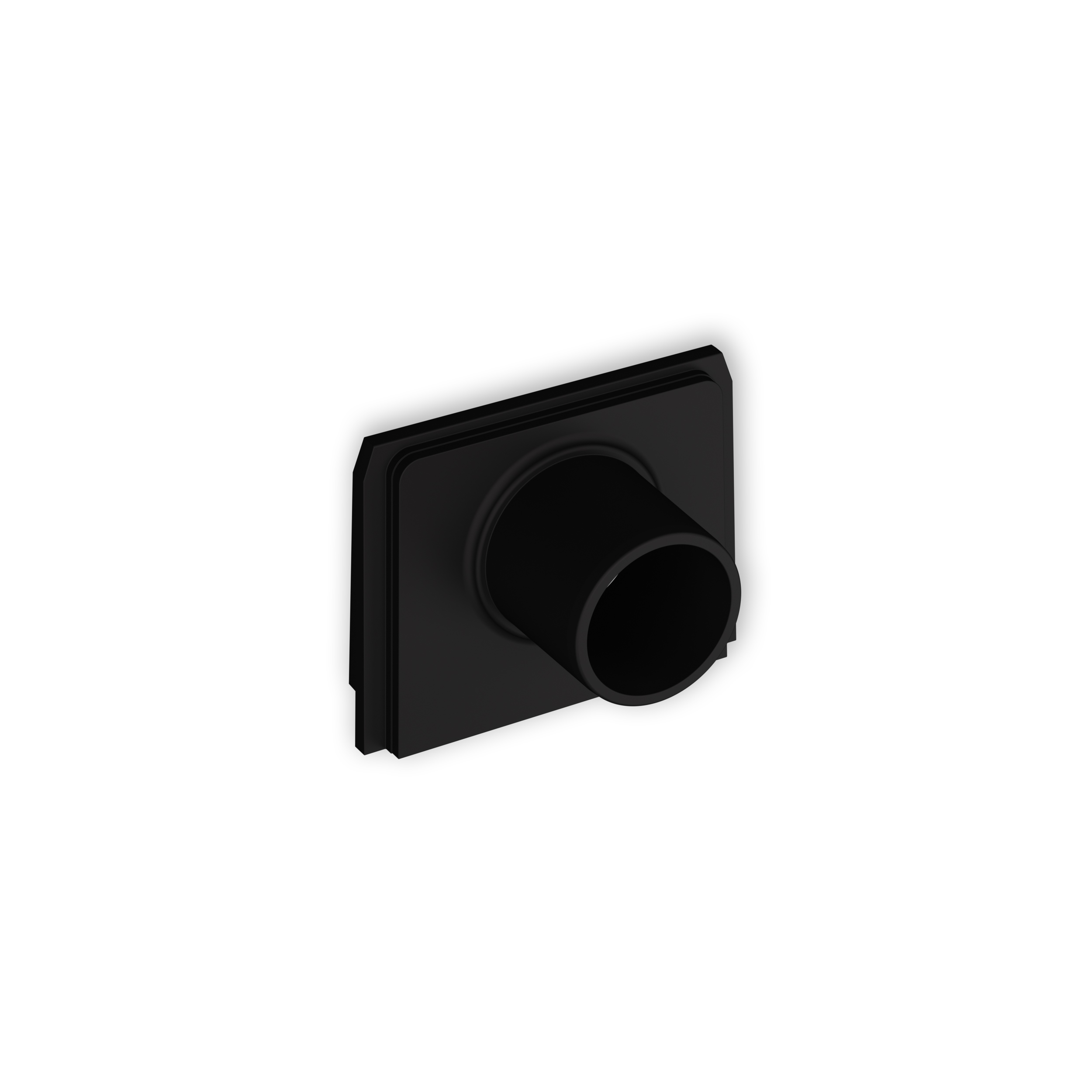

End cap with an 18 mm pipe outlet for single surface-mount box PUK-1 / PUZ-1
matt black
12ZAPUKZ-2
-

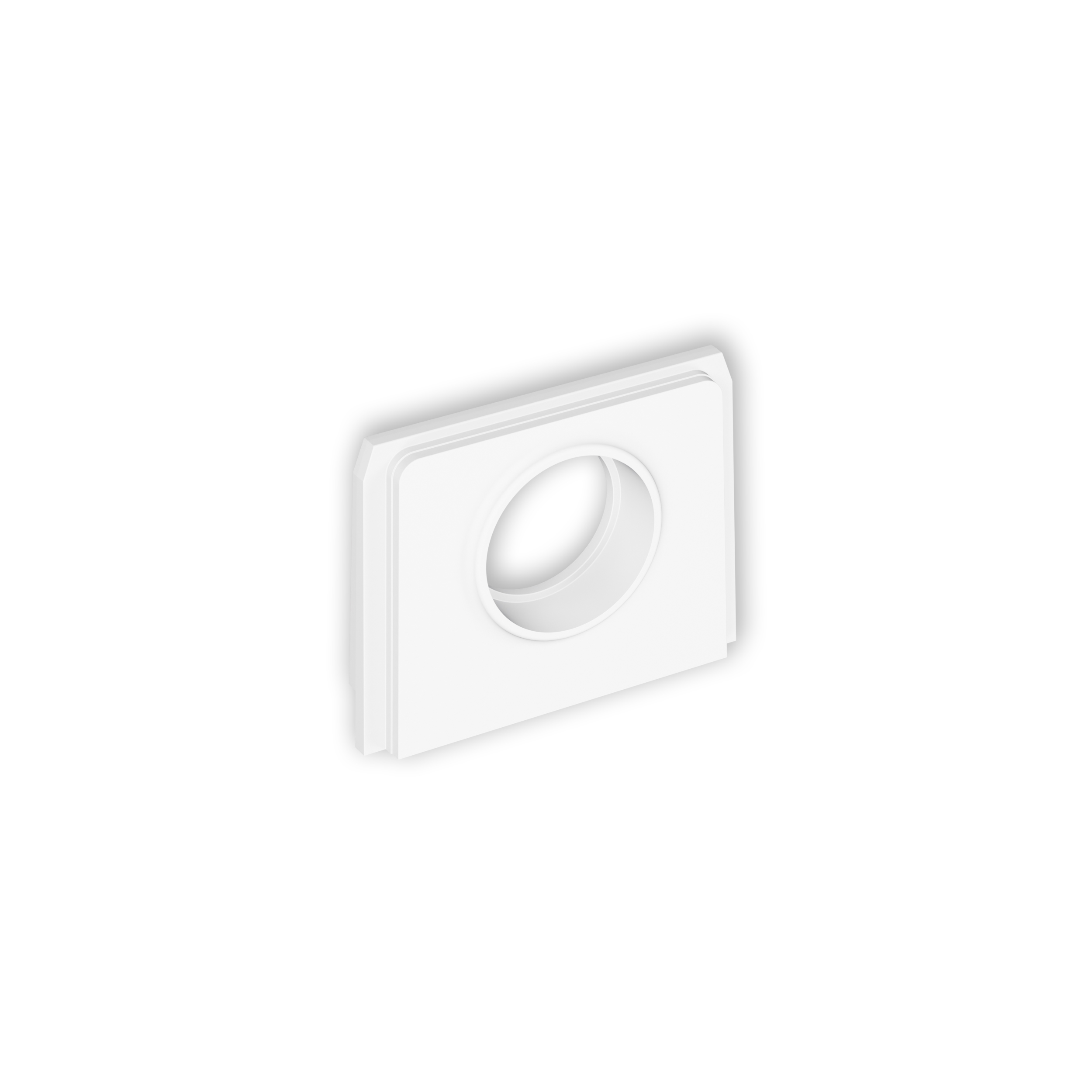

End cap with an 18 mm pipe inlet for single surface-mount box PUK-1 / PUZ-1
matt white
25ZAPUKZ-1
-

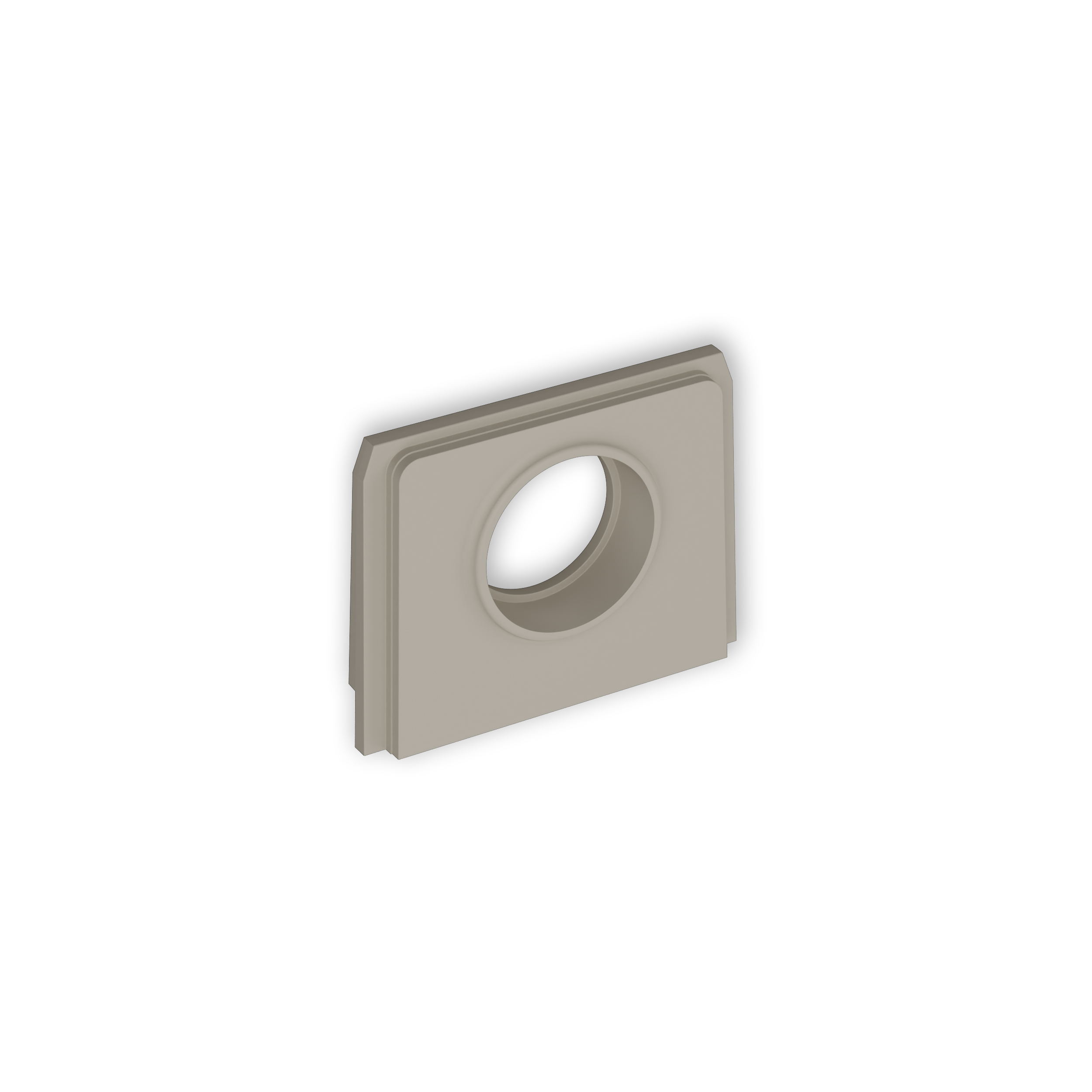

End cap with an 18 mm pipe inlet for single surface-mount box PUK-1 / PUZ-1
taupe
60ZAPUKZ-1
-

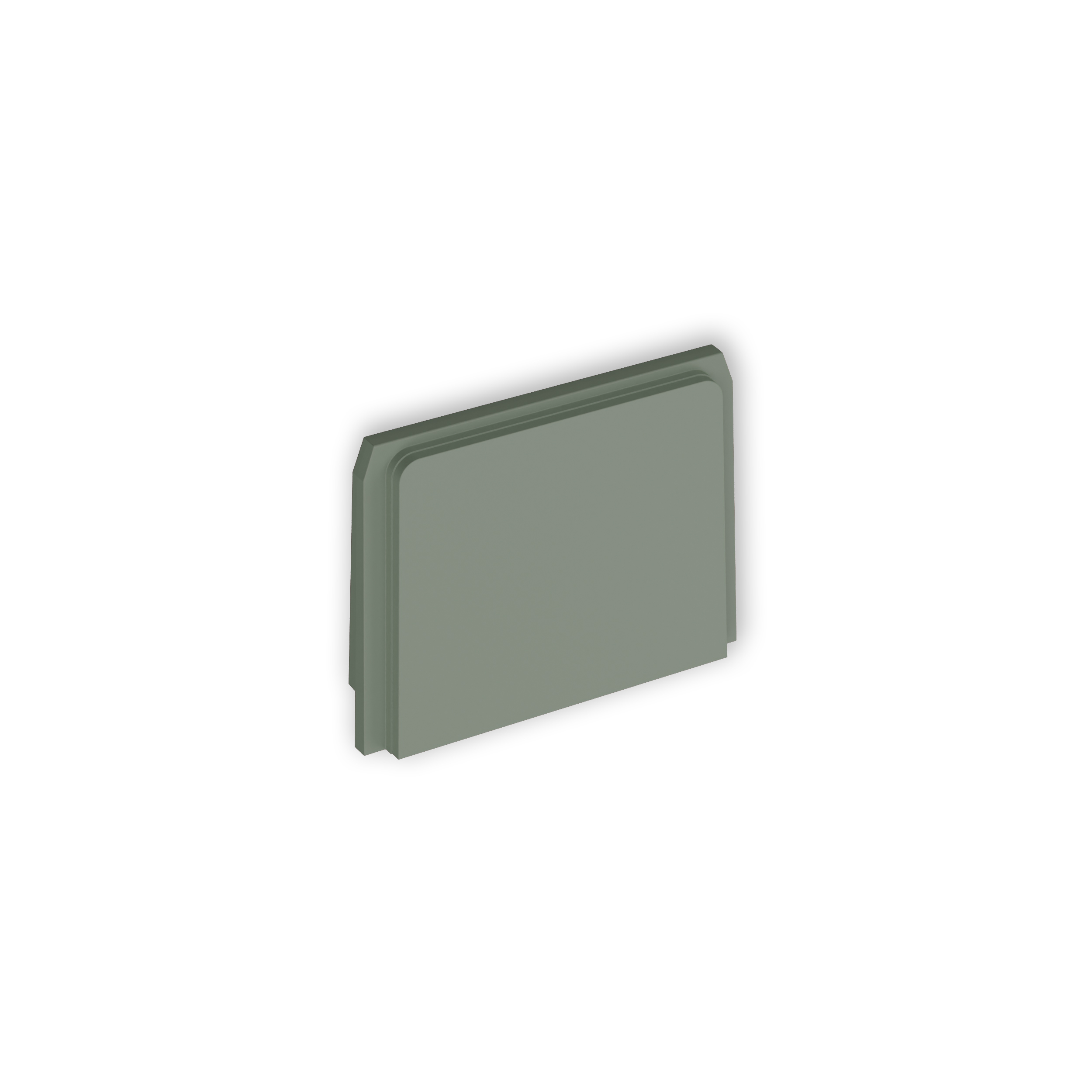

Full end cap for single surface-mounted box PUK-1 / PUZ-1
sage
61ZAPUKZ-4
-

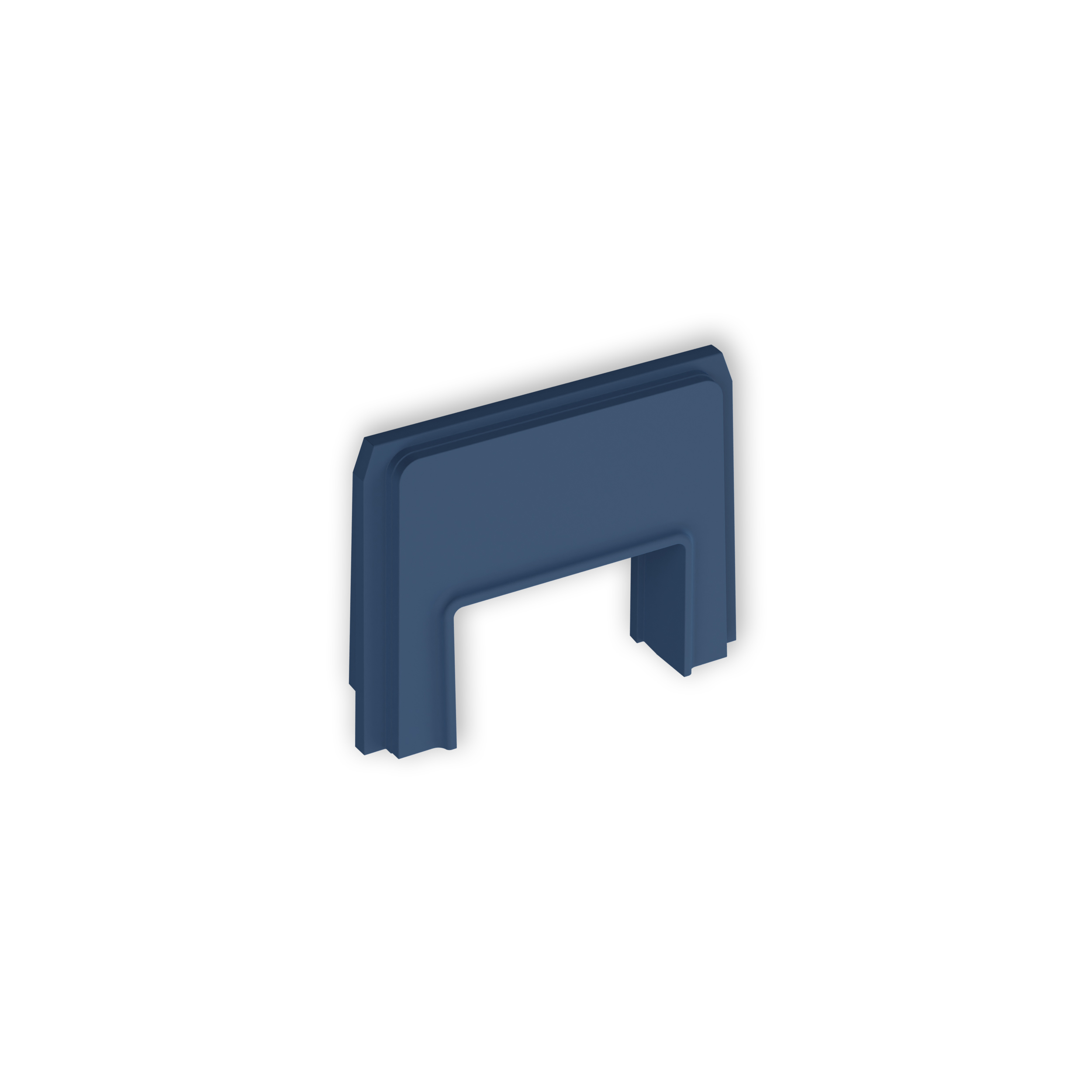

End cap with a 25x15 mm cable tray inlet for single surface-mount box PUK-1 / PUZ-1
