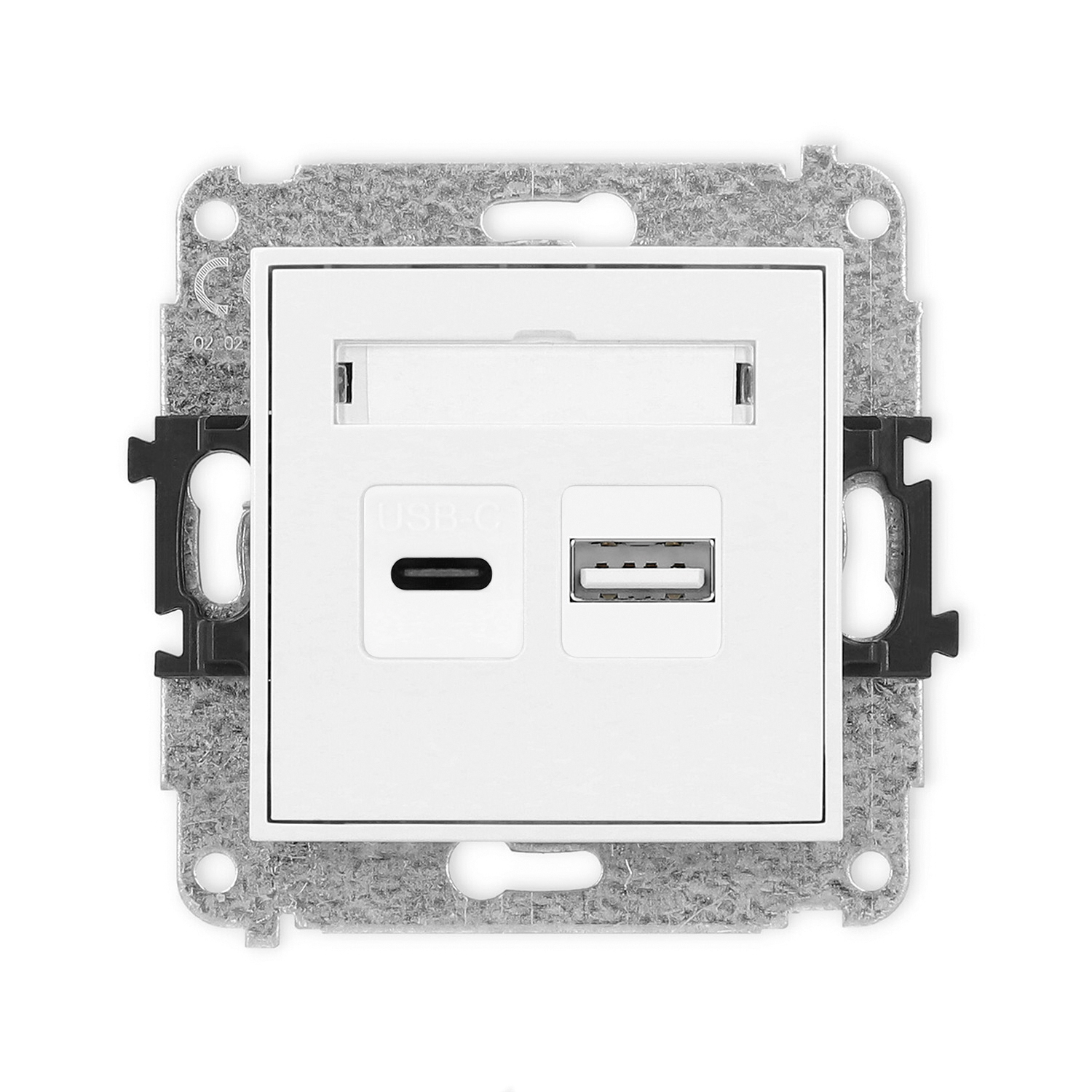

Dual USB charger mechanism USB C + USB A, 30W max.
white
MCUSB-10
Product description
Downloads
Configurator
Подключенное зарядное USB-устройство, если не используется, потребляет менее около 0,1W.
The charger achieves a maximum output current of 3A when only one device is connected. When connecting two devices, the output current is divided equally between each USB port.
MINI mechanisms and frames are sold separately.
MINI series multimedia sockets connection method you find here.

The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated input voltage | 100-240 V~ 50/60Hz |
| Rated output current | 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, 30W Max (when connecting a device to only one USB-C output) |
| Rated output current | 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A, 30W Max (when connecting a device to only one USB-A output) |
| Rated output current | 5V/3A 15W Max (when connecting devices to two USB-A + USB-C outputs) |
| Connection type | USB-A, USB-C |
| Connection | Screw clamps |
| UV resistance | Resistant |
