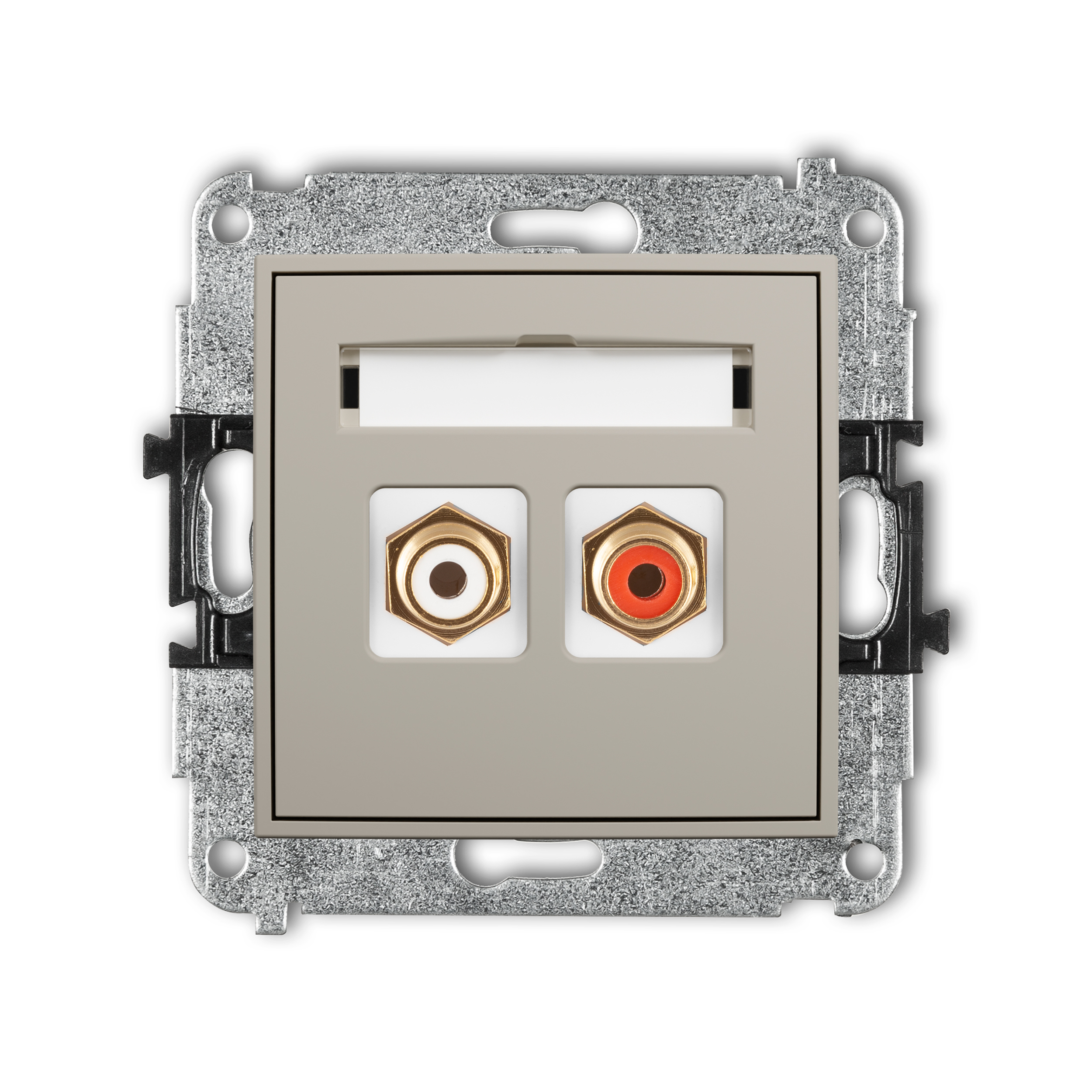

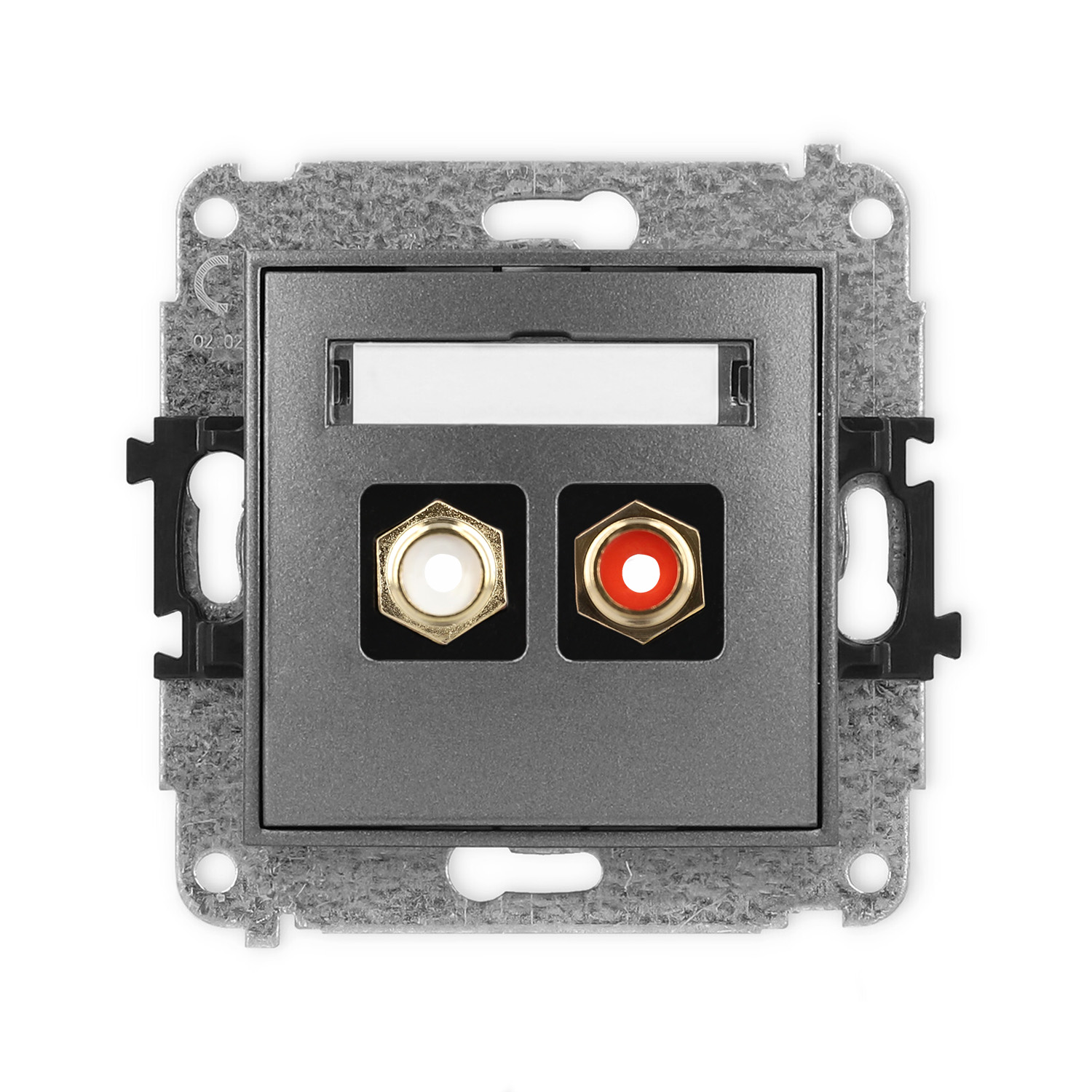

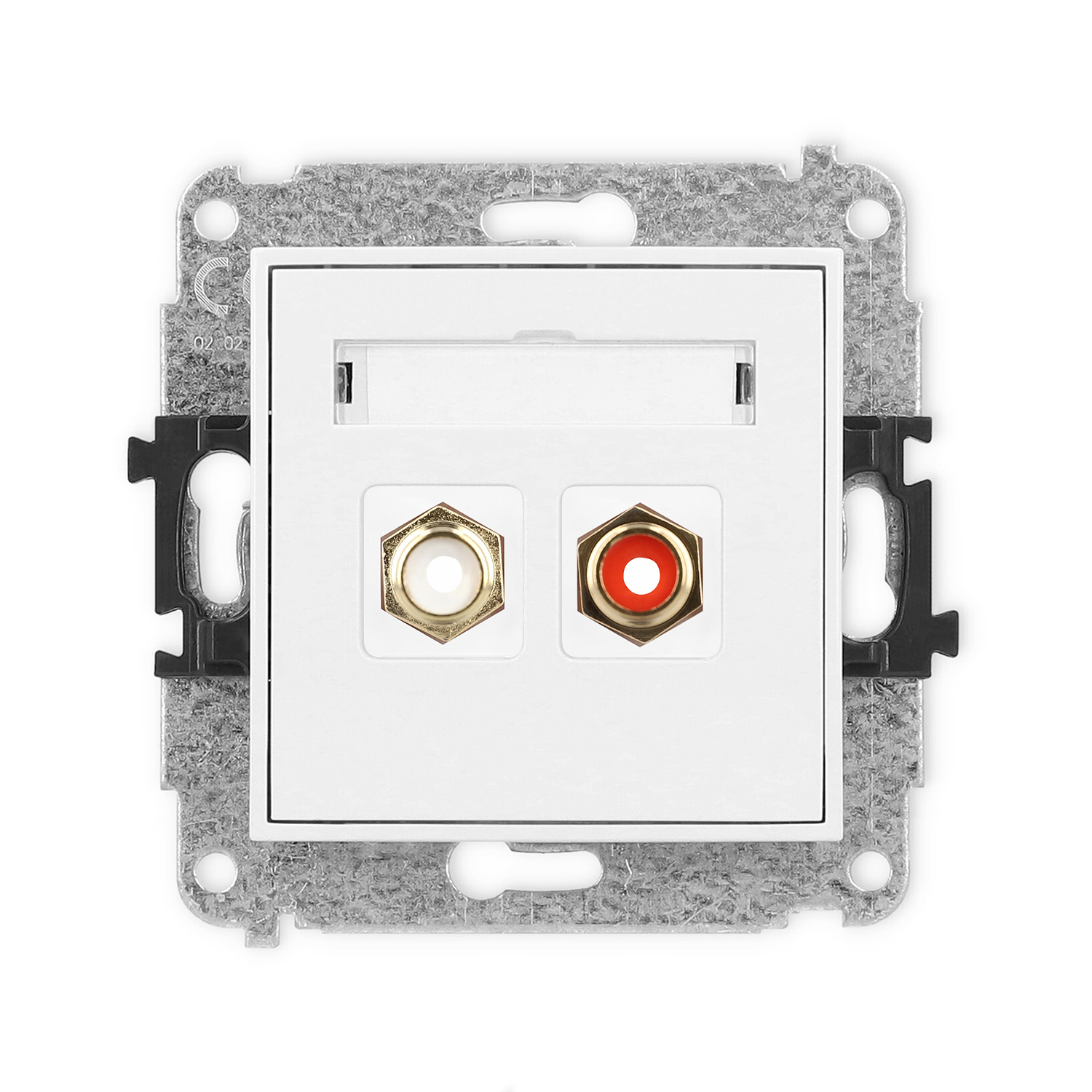

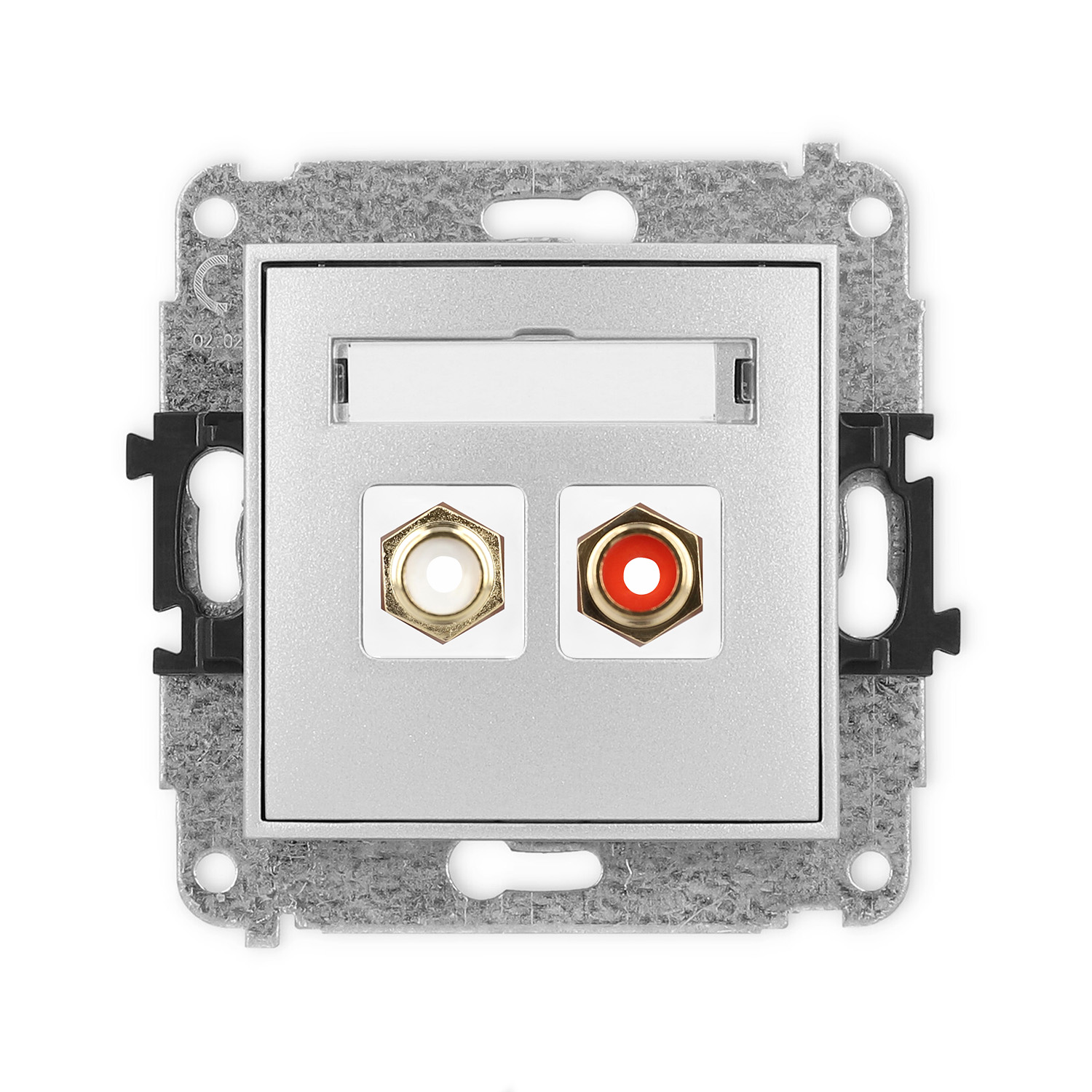

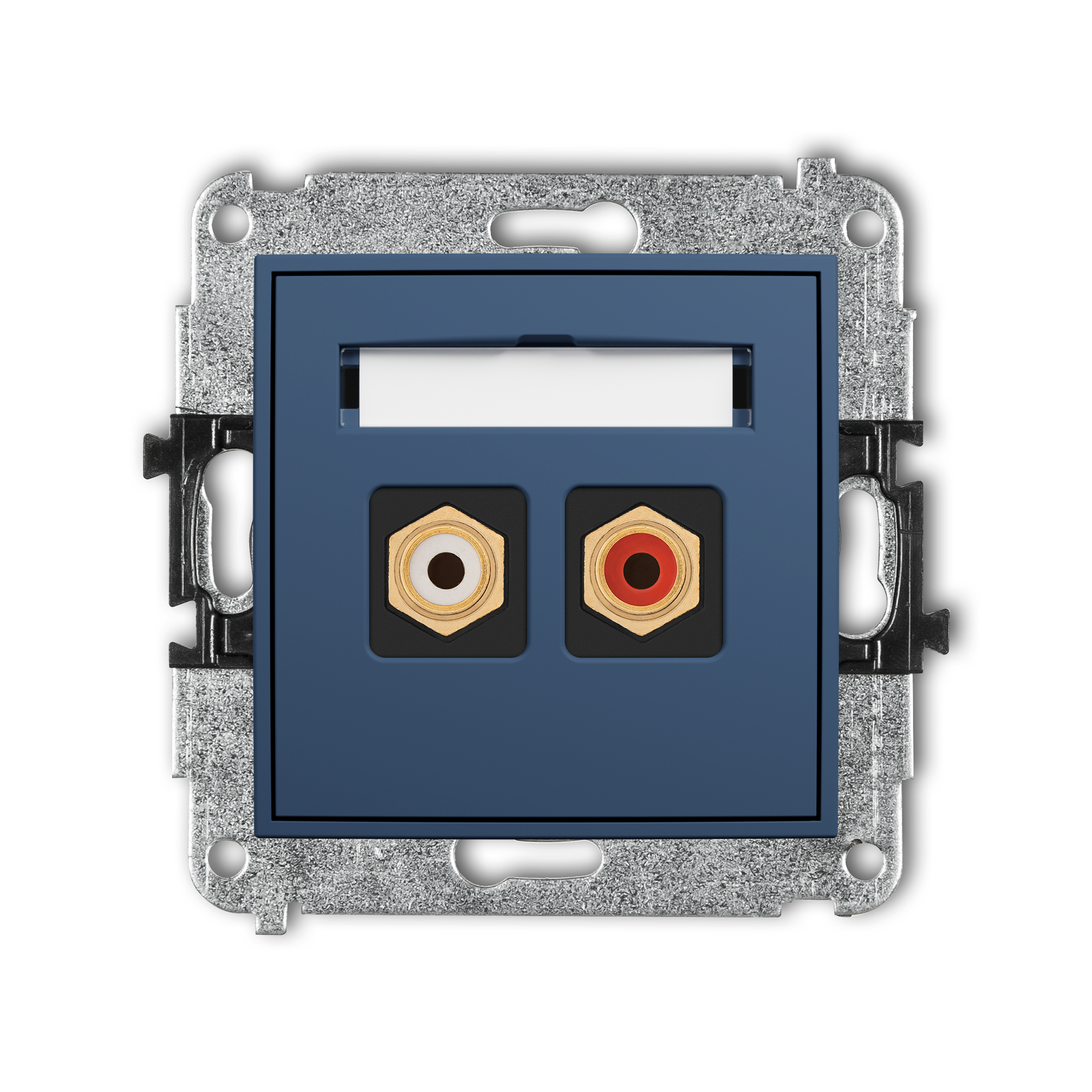

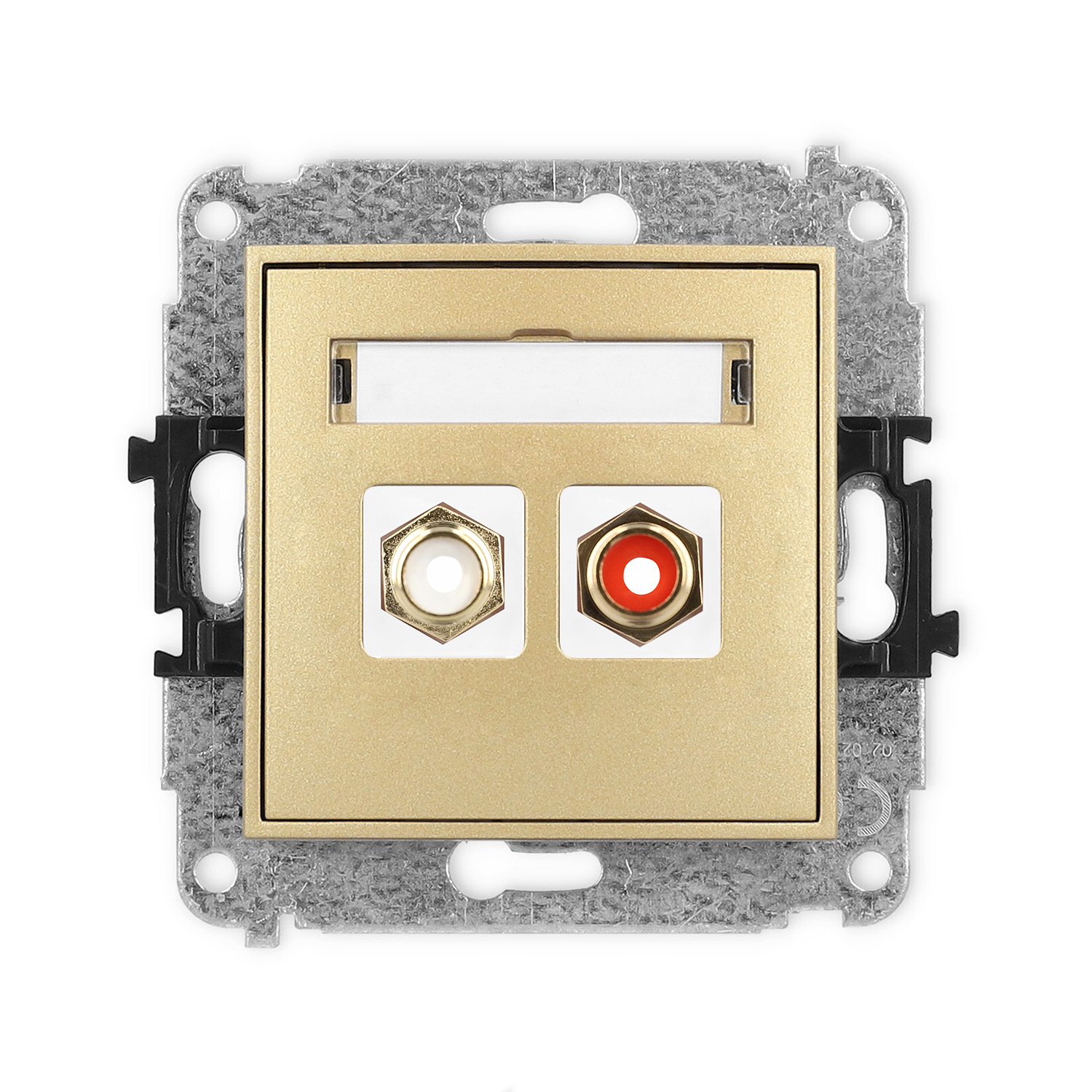

RCA double socket (cinch type-white and red, gold-plated) mechanism
white
MGRCA-2
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.

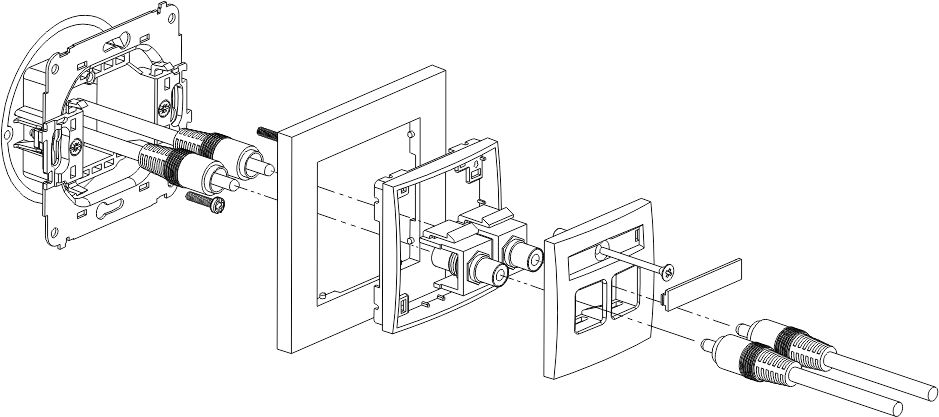

MINI series multimedia sockets connection method you find here.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Connector type | RCA cinch type - white and red, gold-plated |
Connection | Cinch - white and red |
UV resistance | Resistant |
Product variants
-
RCA single socket (cinch type-yellow, gold-plated) mechanism
white
MGRCA-1
-
RCA single socket (cinch type-yellow, gold-plated) mechanism
silver metallic
7MGRCA-1
-
RCA single socket (cinch type-yellow, gold-plated) mechanism
graphite
11MGRCA-1
-
RCA single socket (cinch type-yellow, gold-plated) mechanism
matt black
12MGRCA-1
-
RCA single socket (cinch type-yellow, gold-plated) mechanism
matt grey
27MGRCA-1
-
RCA single socket (cinch type-yellow, gold-plated) mechanism
matt graphite
28MGRCA-1
