Dual USB charger mechanism USB C + USB A, 30W max., without description field
white
MCUSBBO-10
-
white
MCUSBBO-10
-

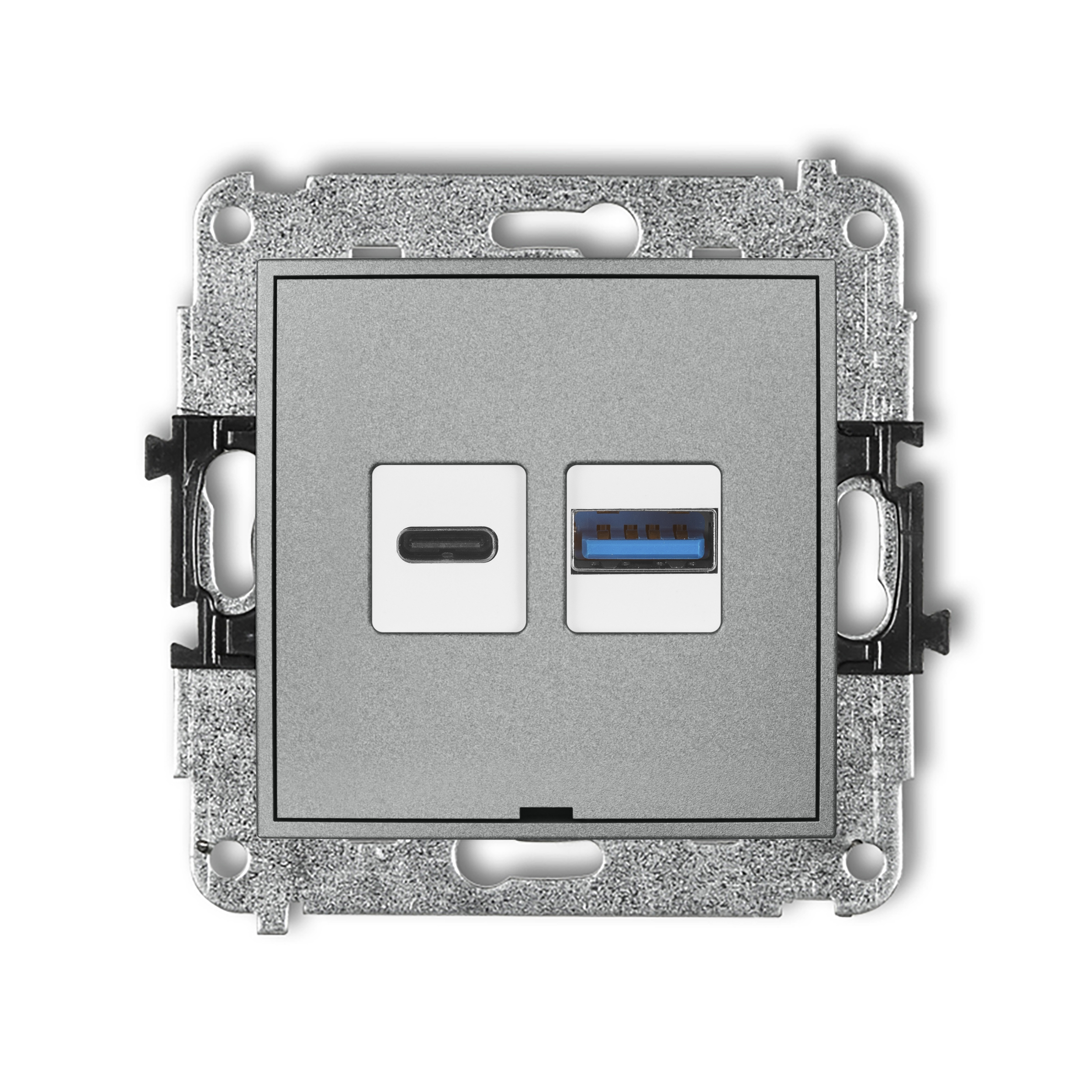

silver metalic
7MCUSBBO-10
-
graphite
11MCUSBBO-10
-

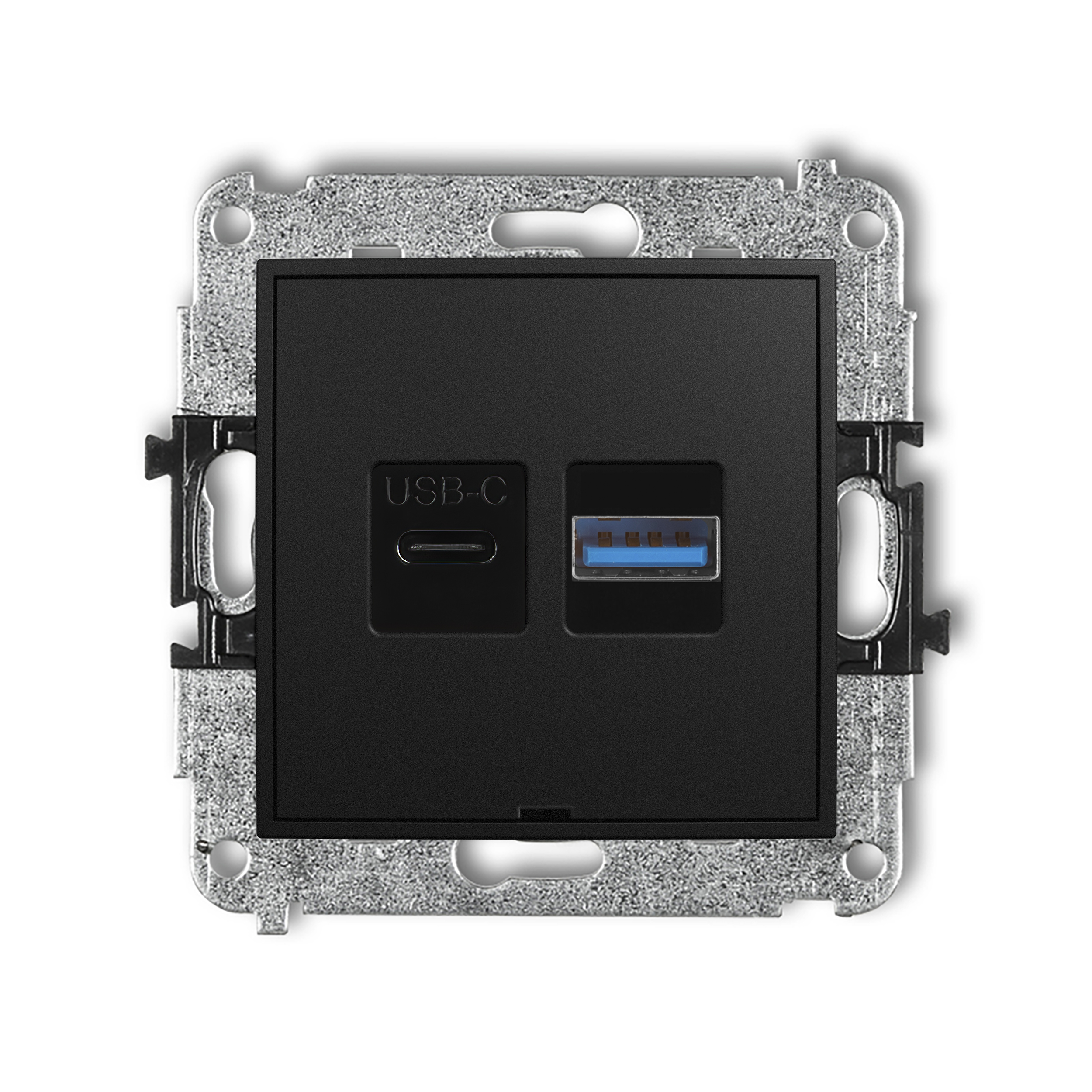

matt black
12MCUSBBO-10
-

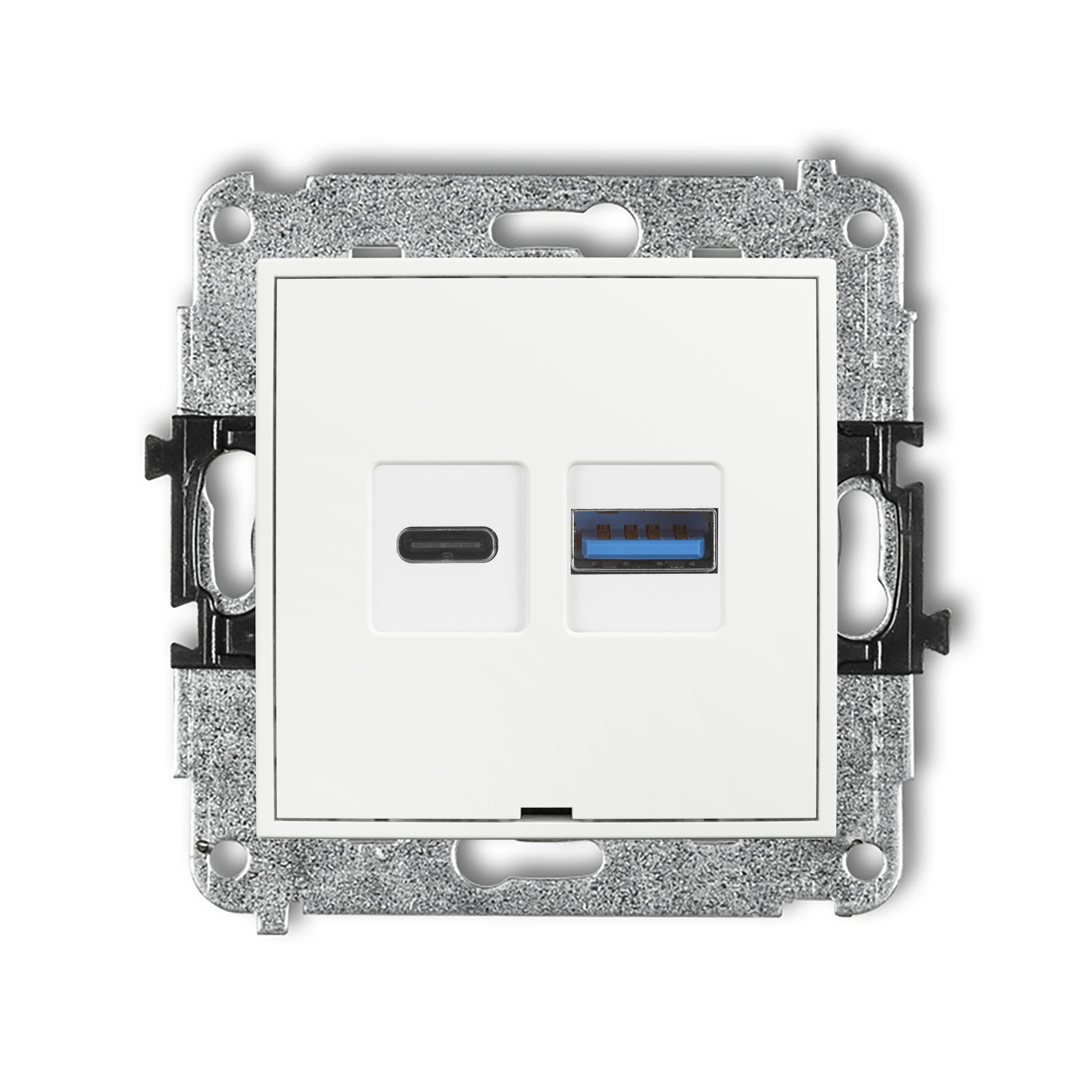

matt white
25MCUSBBO-10
-
matt grey
27MCUSBBO-10
-

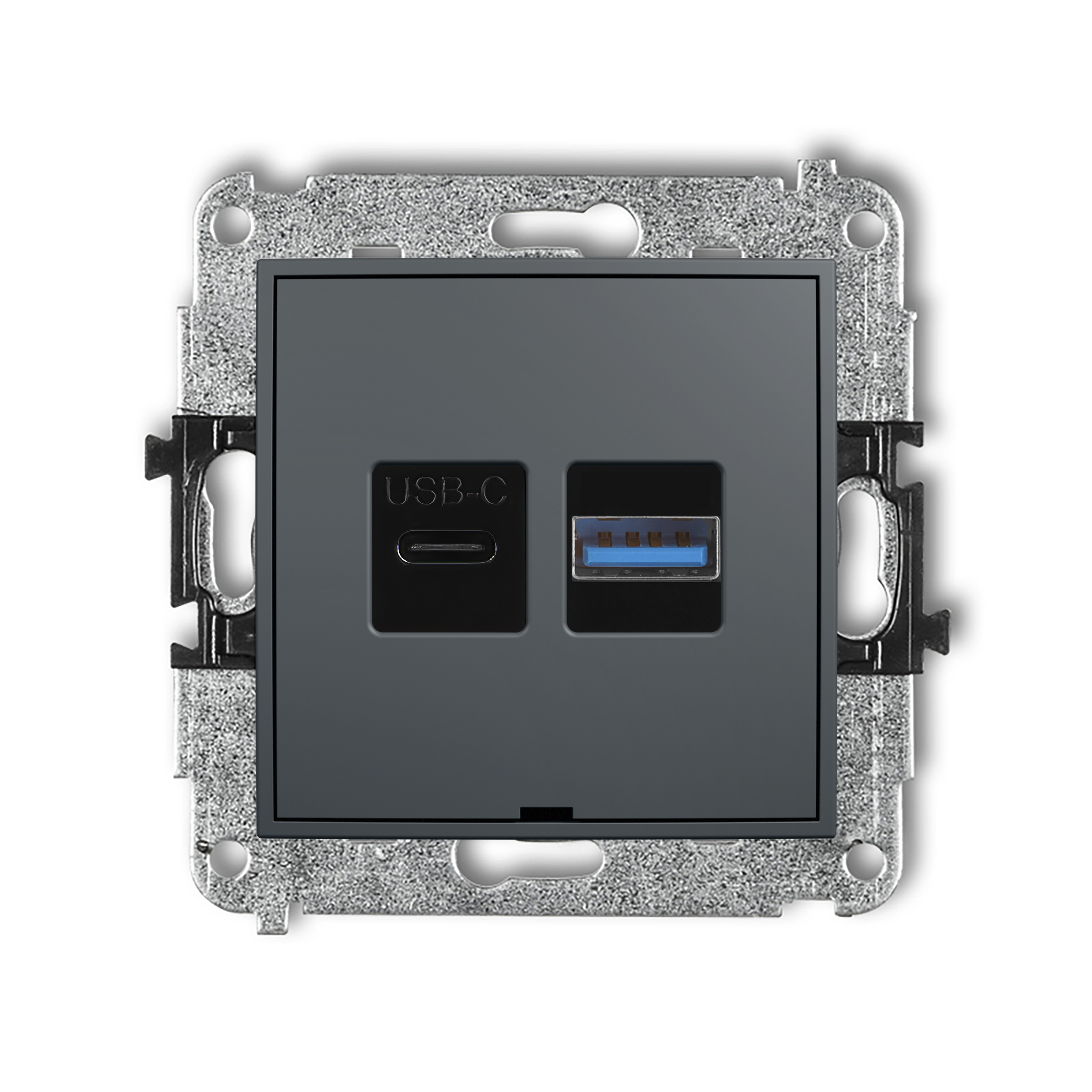

matt graphite
28MCUSBBO-10
-

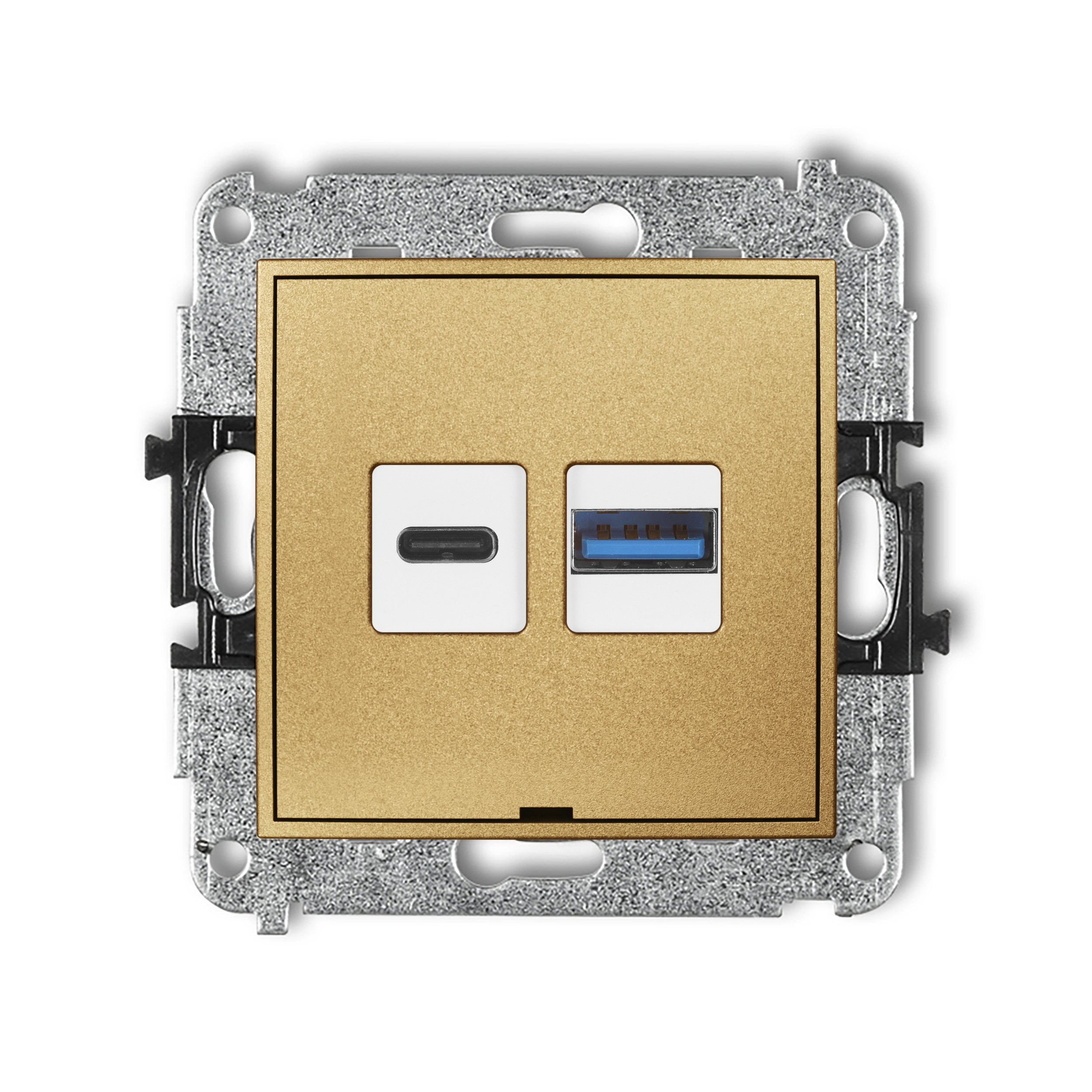

gold
29MCUSBBO-10
-

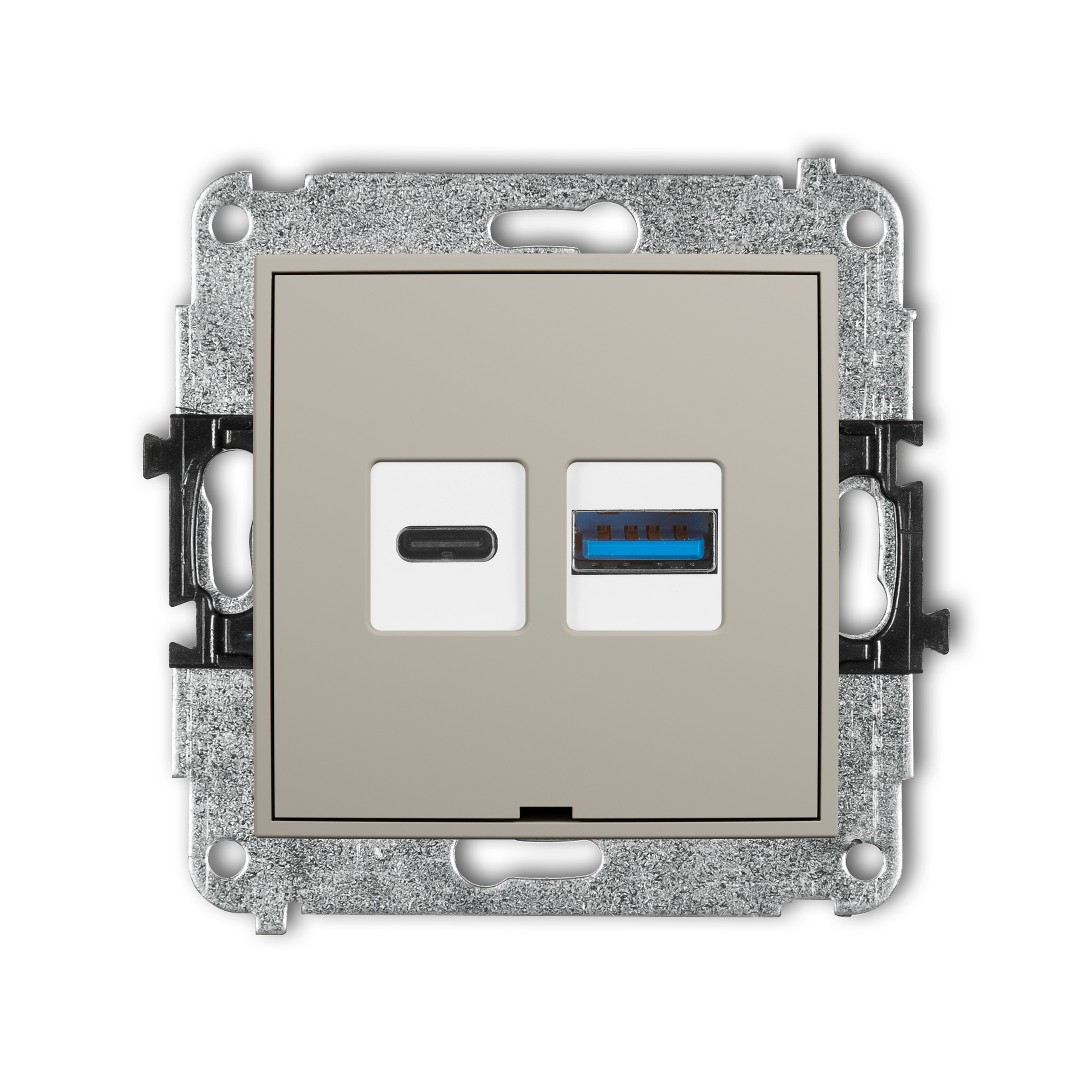

taupe
60MCUSBBO-10
-

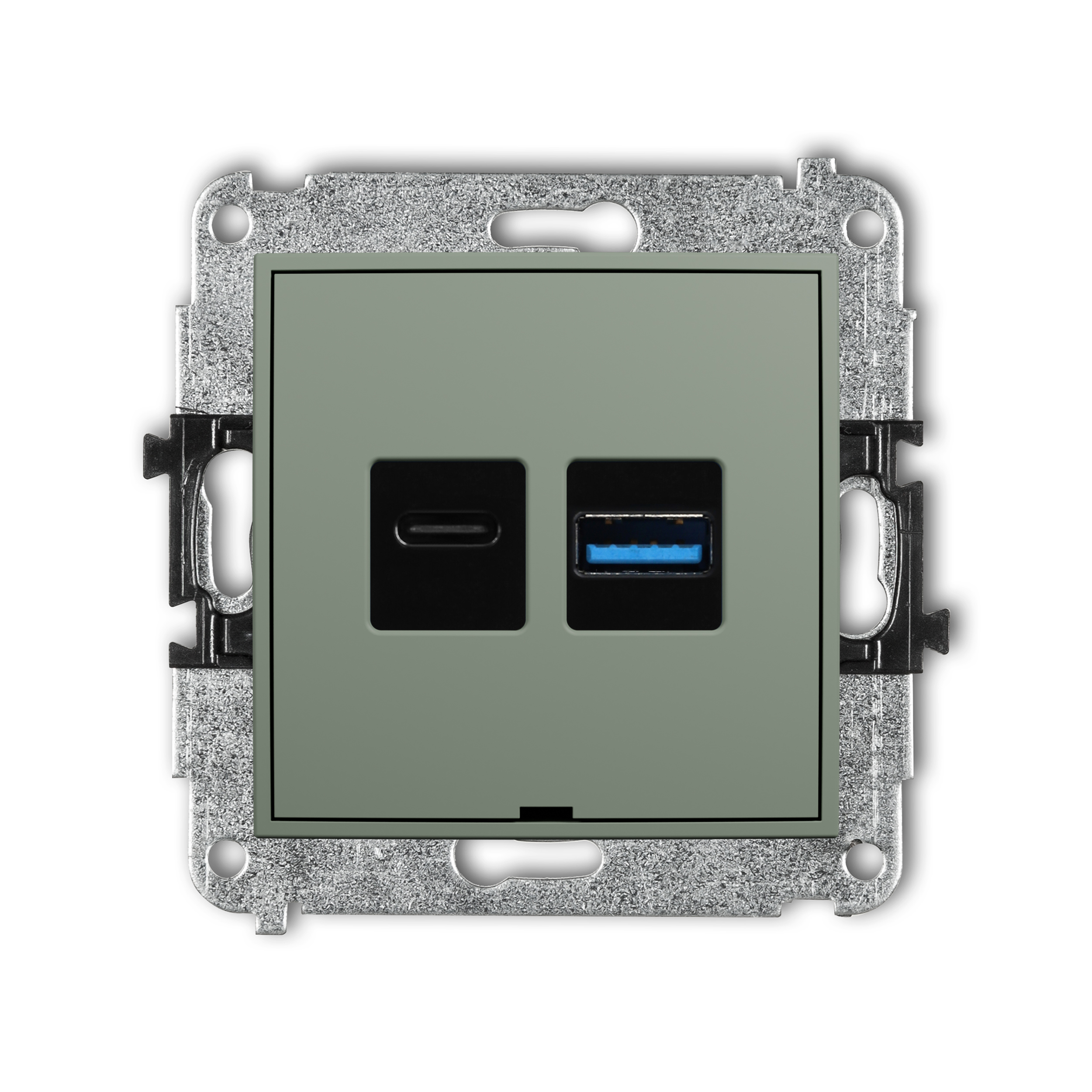

sage
61MCUSBBO-10
-
salmon
62MCUSBBO-10
-

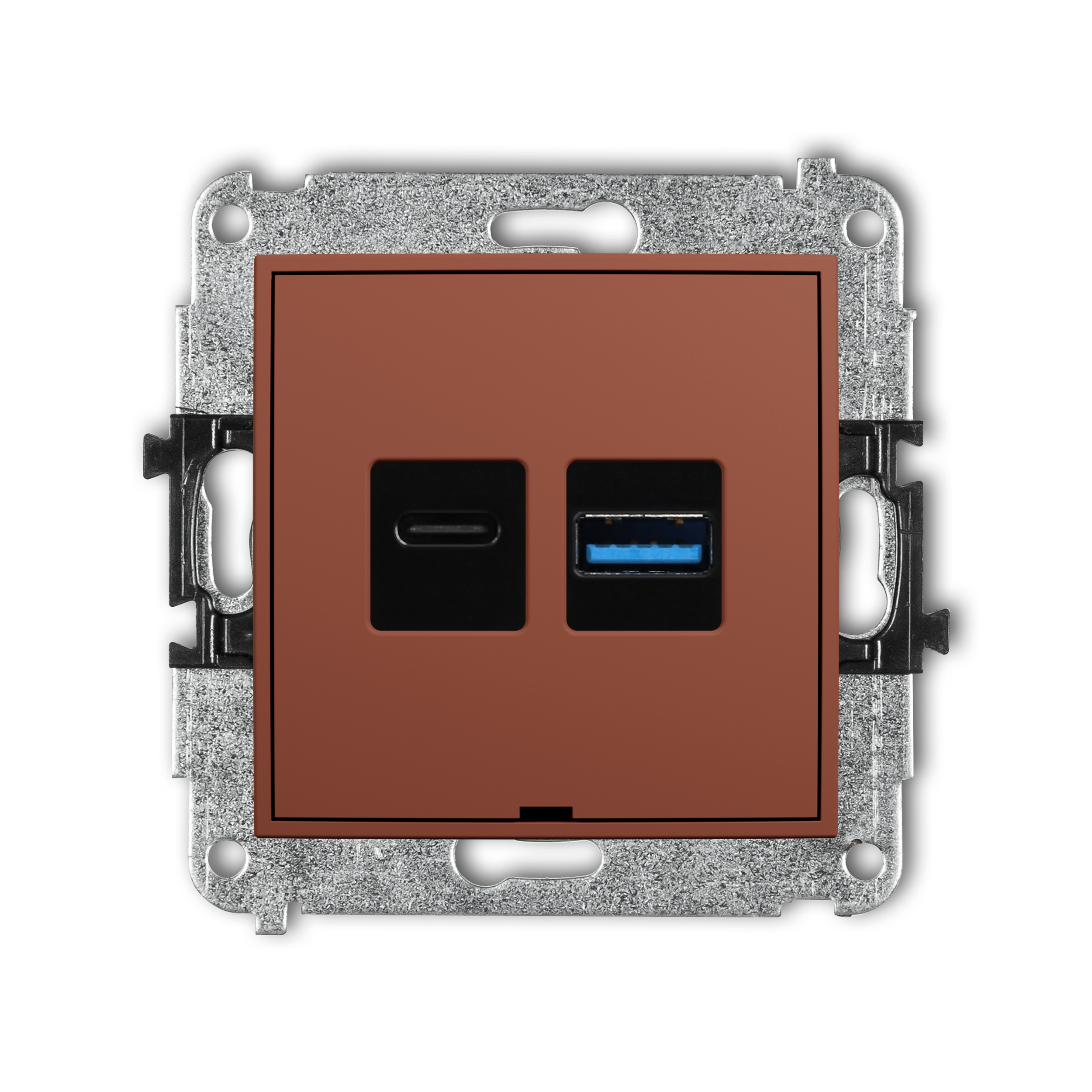

terracotta
63MCUSBBO-10
-

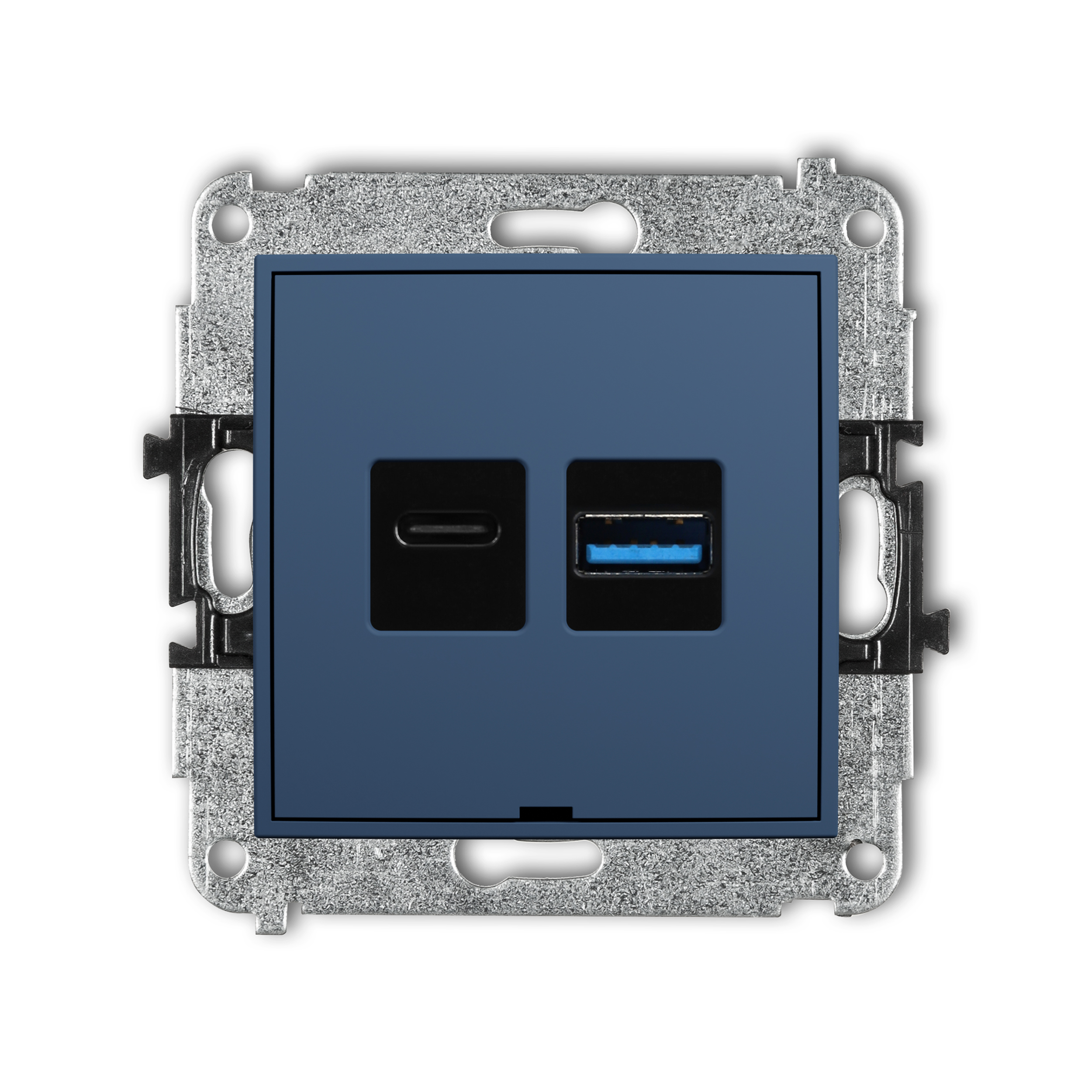

navy blue
64MCUSBBO-10
Product description
Downloads
Configurator
USB charger mechanism with idle power supplu consumes less than about 0,1W.
The charger achieves a maximum output current of 3A when only one device is connected. When connecting two devices, the output current is divided equally between each USB port.
MINI mechanisms and frames are sold separately.
MINI series multimedia sockets connection method you find here.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated input voltage | 100-240 V~ 50/60Hz |
| Rated output current | 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, 30W Max (when connecting a device to only one USB-C output) |
| Rated output current | 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A, 30W Max (when connecting a device to only one USB-A output) |
| Rated output current | 5V/3A 15W Max (when connecting devices to two USB-A + USB-C outputs) |
| Connection type | USB-A, USB-C |
| Connection | Screw clamps |
| UV resistance | Resistant |
