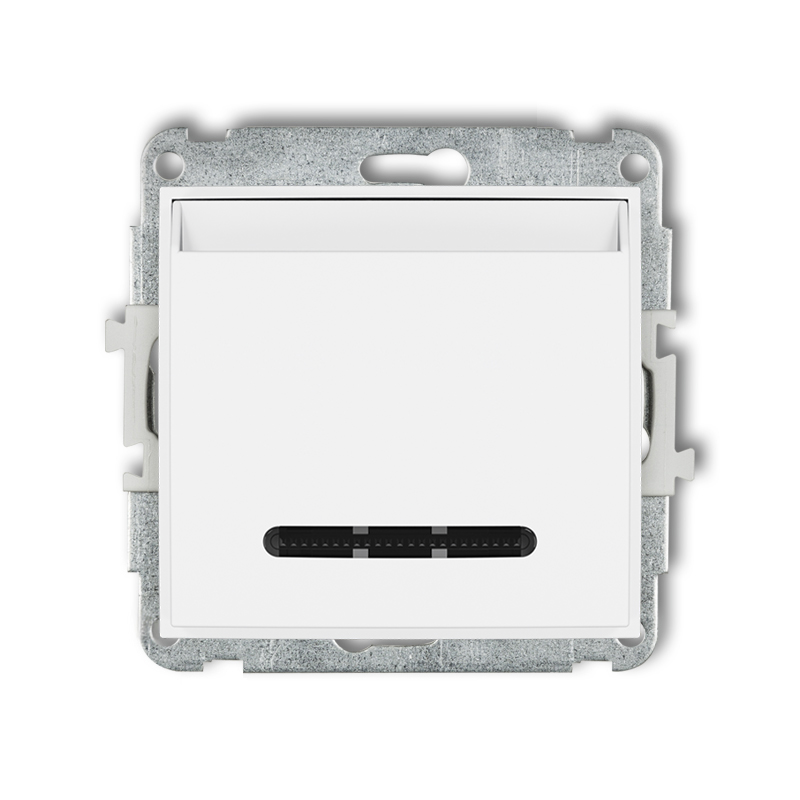

Double hotel switch mechanism (blue backlight)

white
MSH-2.2
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
Note! The switch is designed to switch on the power supply via a relay/contactor or to directly switch on circuits with a maximum current of 1A.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Rated voltage | 230 V, 50 Hz |
Rated current | 10(1.5)A 250 AC |
Supply wires cross-section | 1 mm^2 |
Connection type | Card 54 x 86 mm |
Card thickness | 0,75 x 1 mm |
Control light window | Yes, blue LED backlight |
Number of connection clamps | 4 |
Insulation distance | µ (micro-gap) |

Product variants
-
Single hotel switch mechanism (blue backlight)
white
MSH-1.2
-

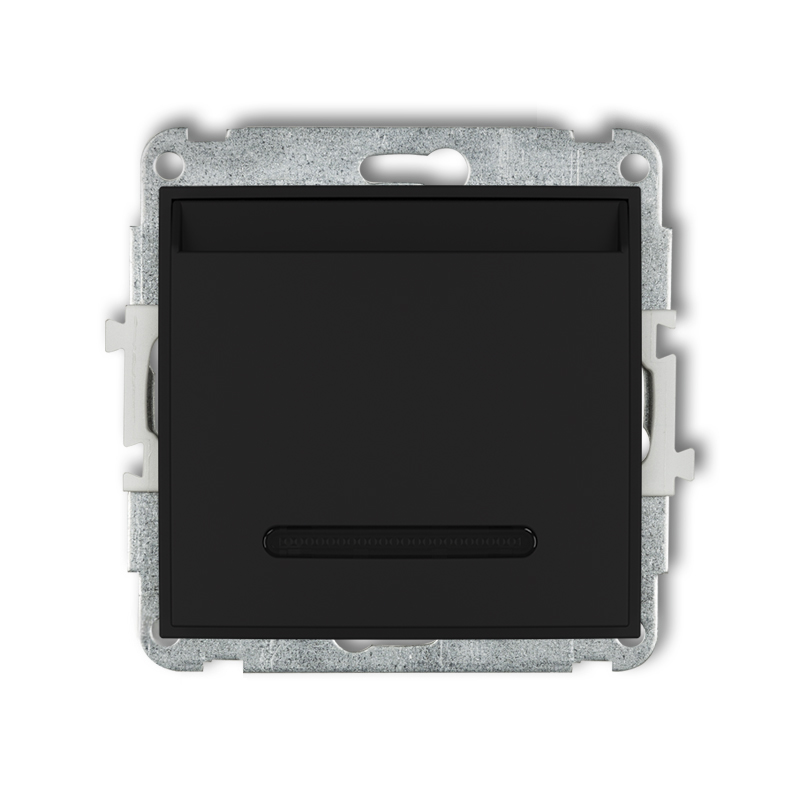

Double hotel switch mechanism (white backlight)
matt black
12MSH-2.1
-
Single hotel switch mechanism (white backlight)
matt grey
27MSH-1.1
-
Single hotel switch mechanism (blue backlight)
salmon
62MSH-1.2
-
Single hotel switch mechanism (white backlight)
terracotta
63MSH-1.1
-

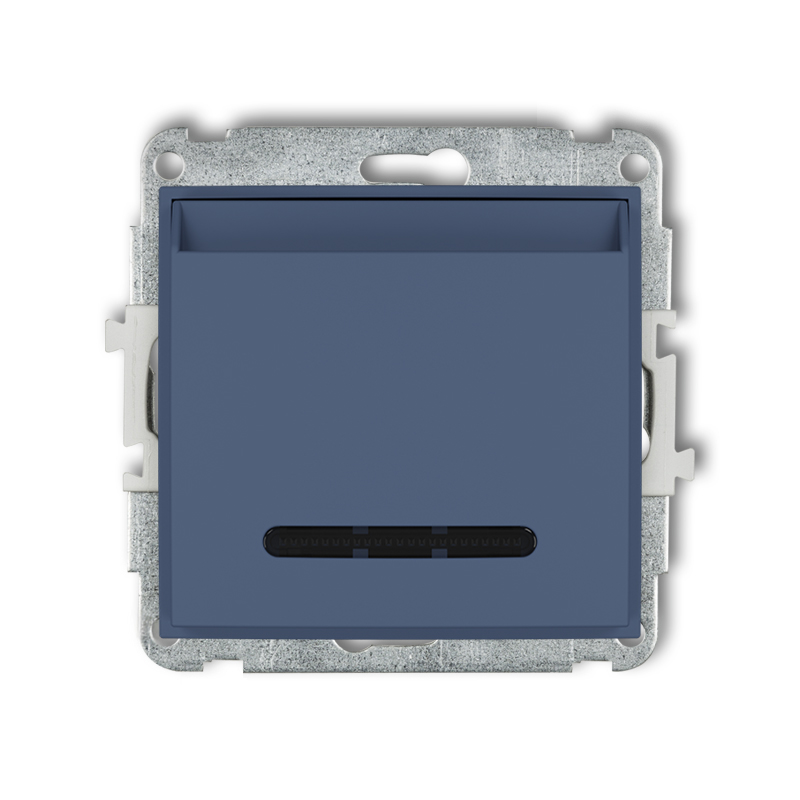

Double hotel switch mechanism (white backlight)
navy blue
64MSH-2.1
Complementary products
-
The intermediate frame for hotel switch
matt white
25MRP-4
-
The intermediate frame for hotel switch
matt grey
27MRP-4
-
The intermediate frame for hotel switch
taupe
60MRP-4
-

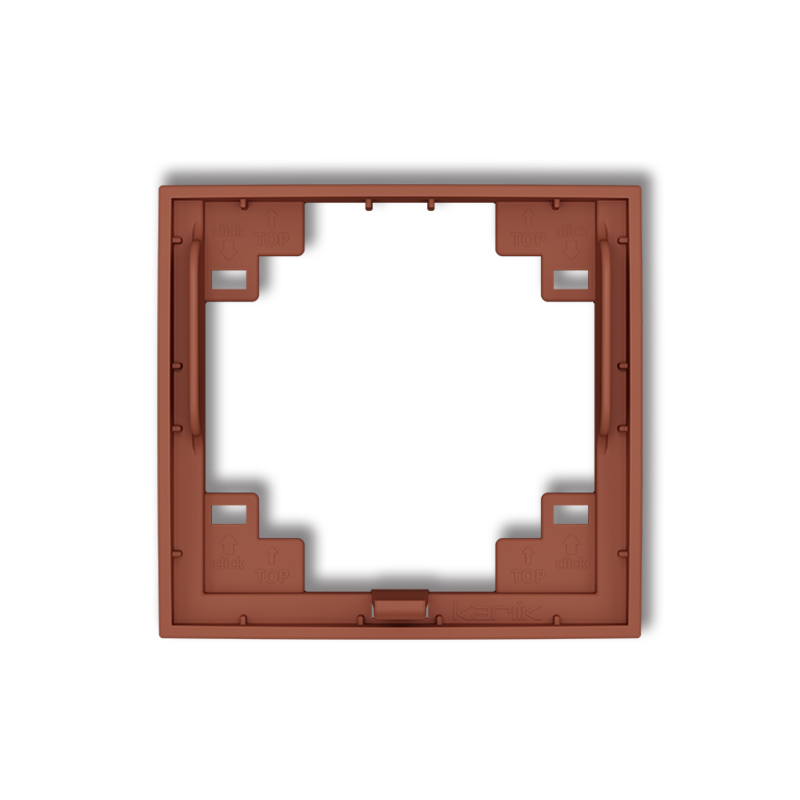

The intermediate frame for hotel switch
