Intermediate switch mechanism (single push button without pictogram)
white
MWP-6.1
-
white
MWP-6.1
-

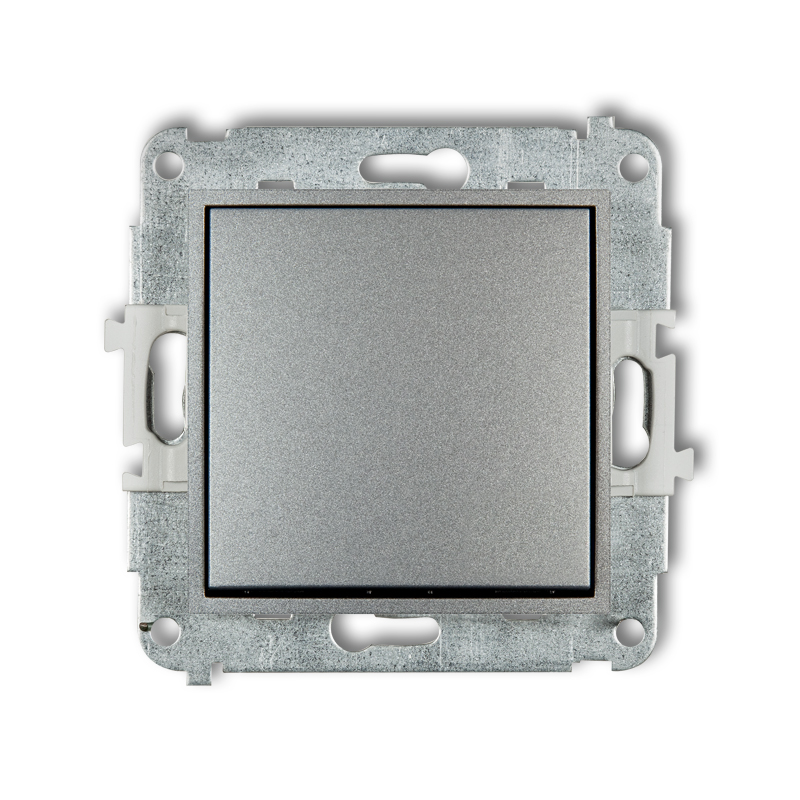

silver metallic
7MWP-6.1
-

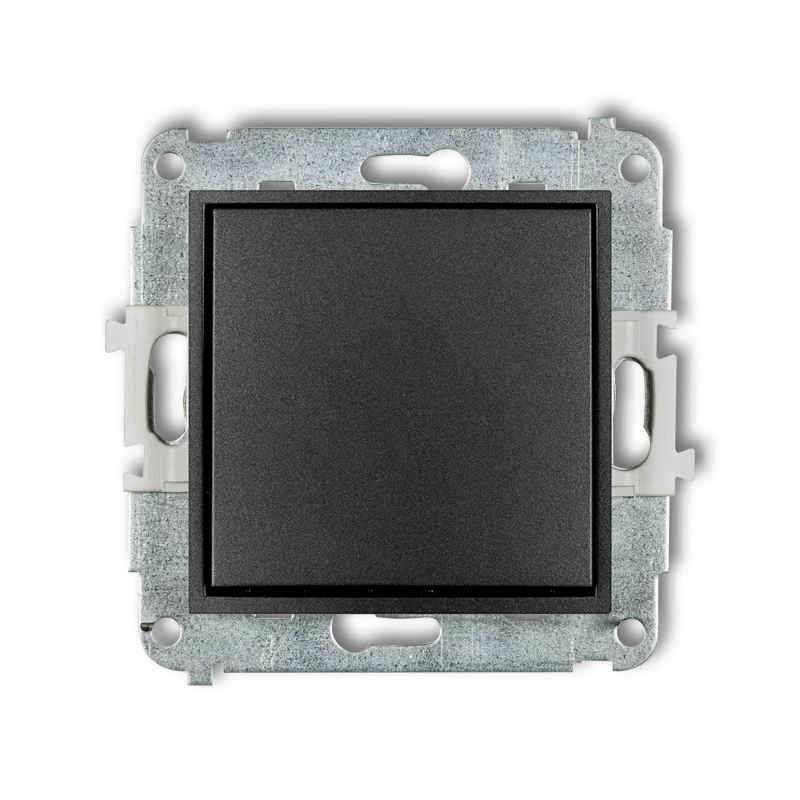

graphite
11MWP-6.1
-
matt black
12MWP-6.1
-
matt white
25MWP-6.1
-

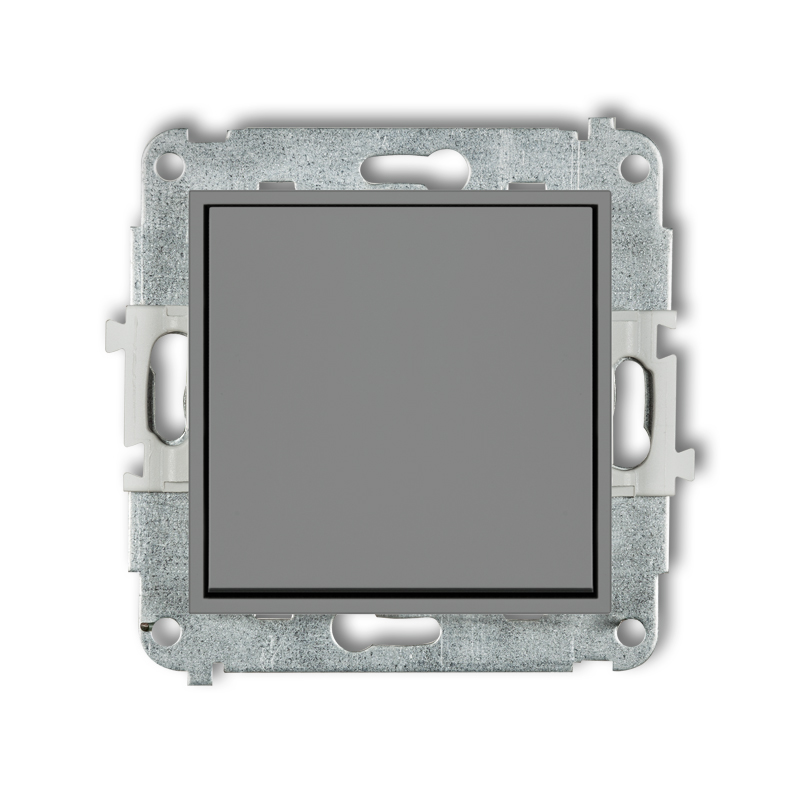

matt grey
27MWP-6.1
-

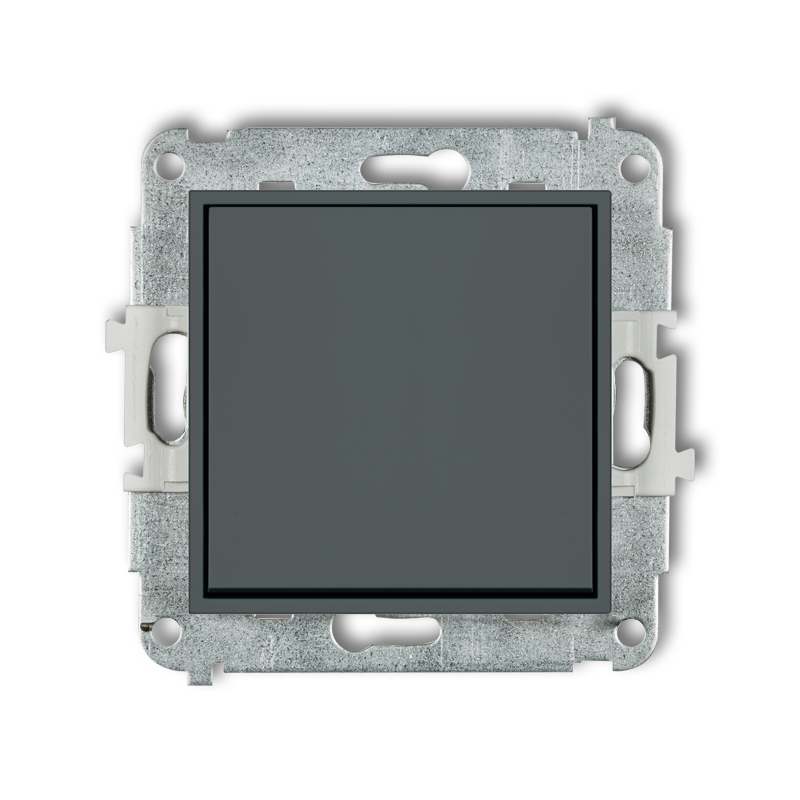

matt graphite
28MWP-6.1
-

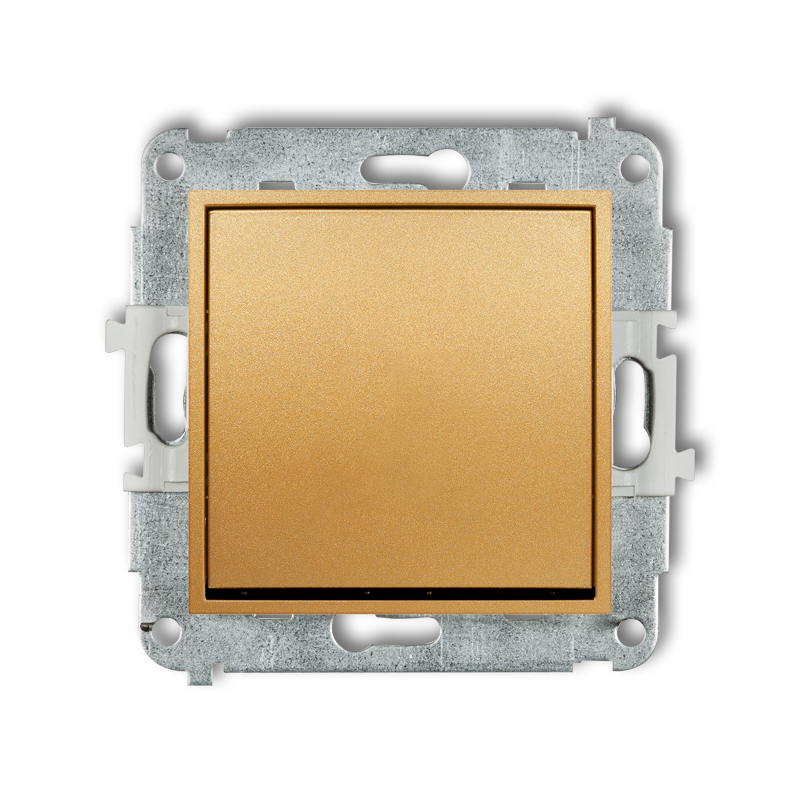

gold
29MWP-6.1
-

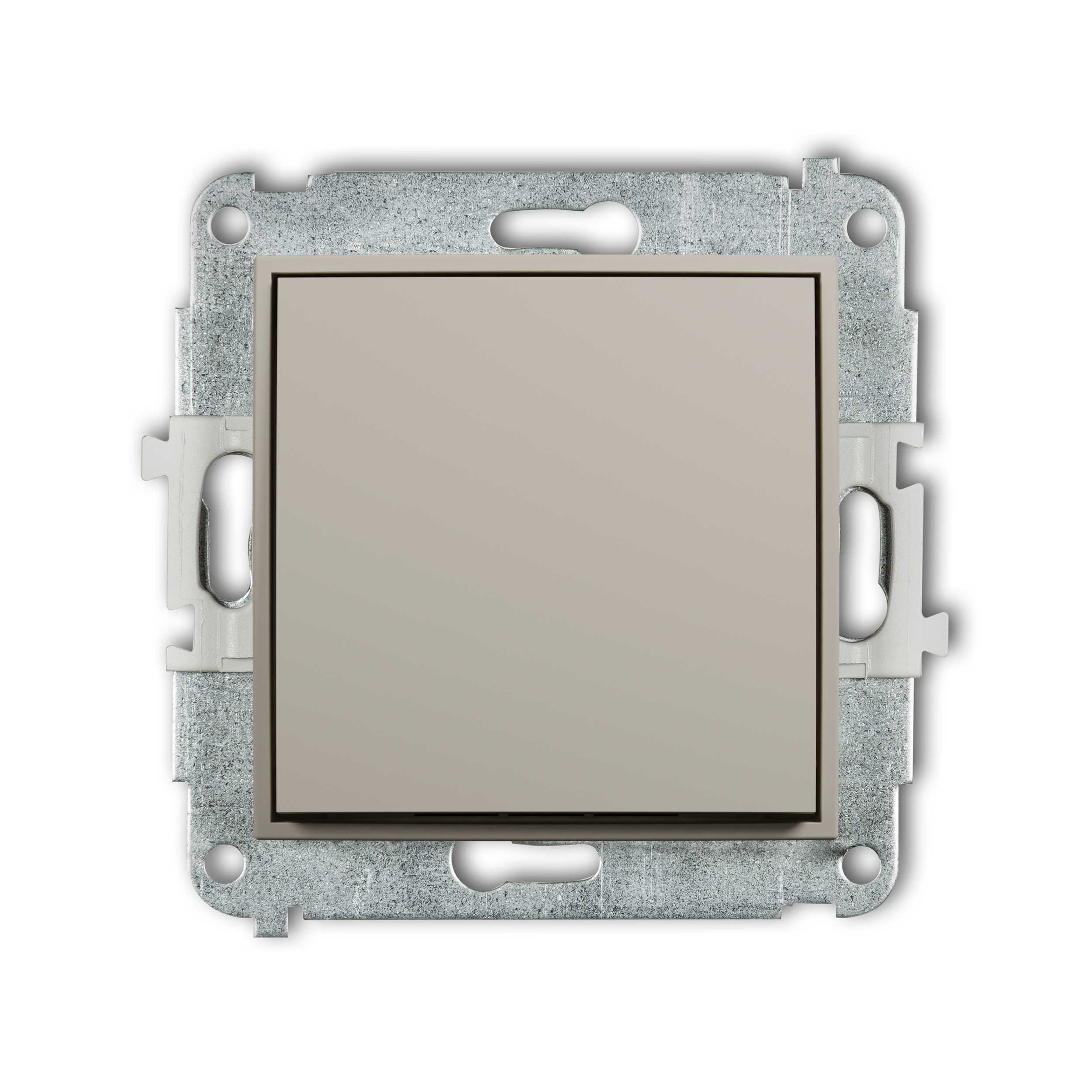

taupe
60MWP-6.1
-

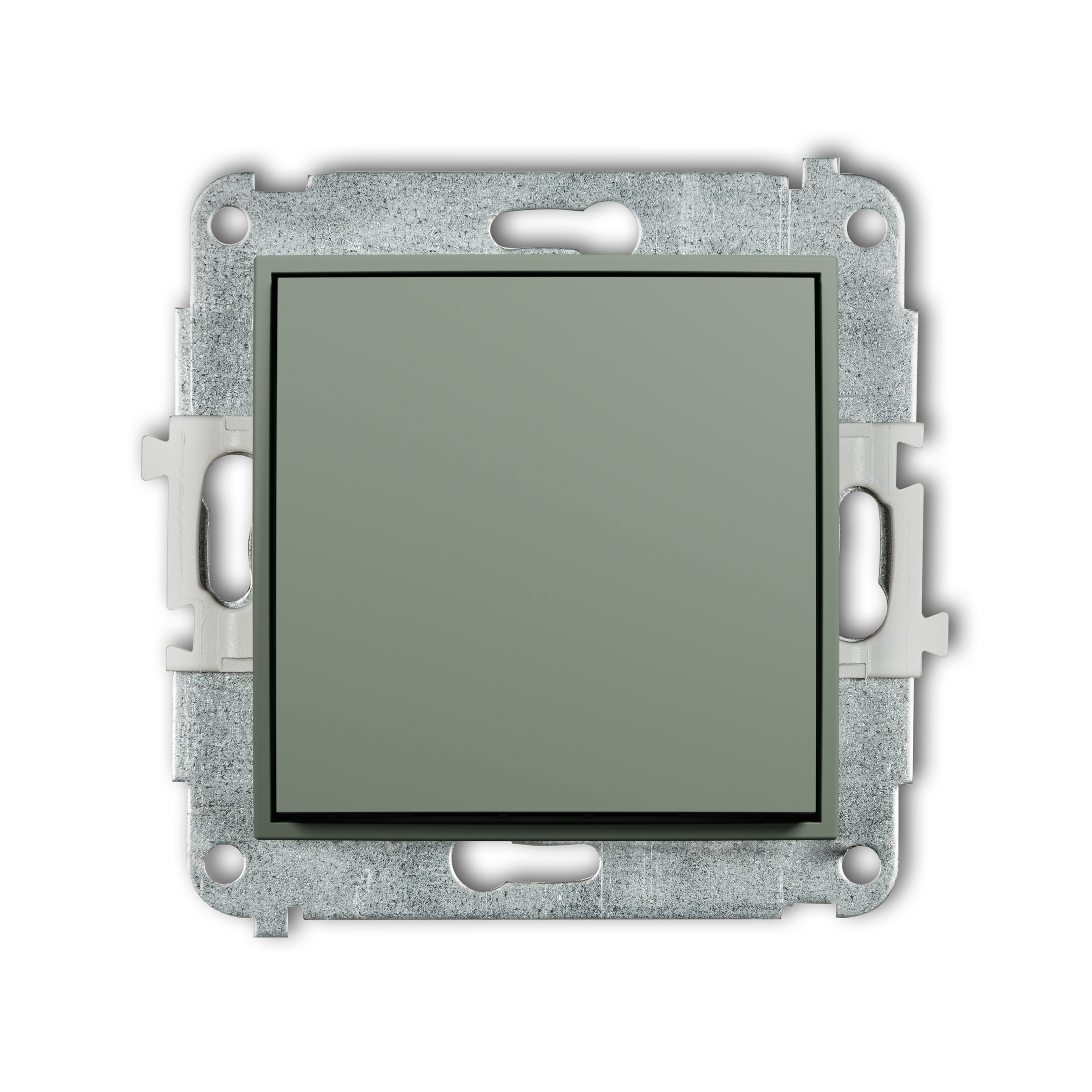

sage
61MWP-6.1
-

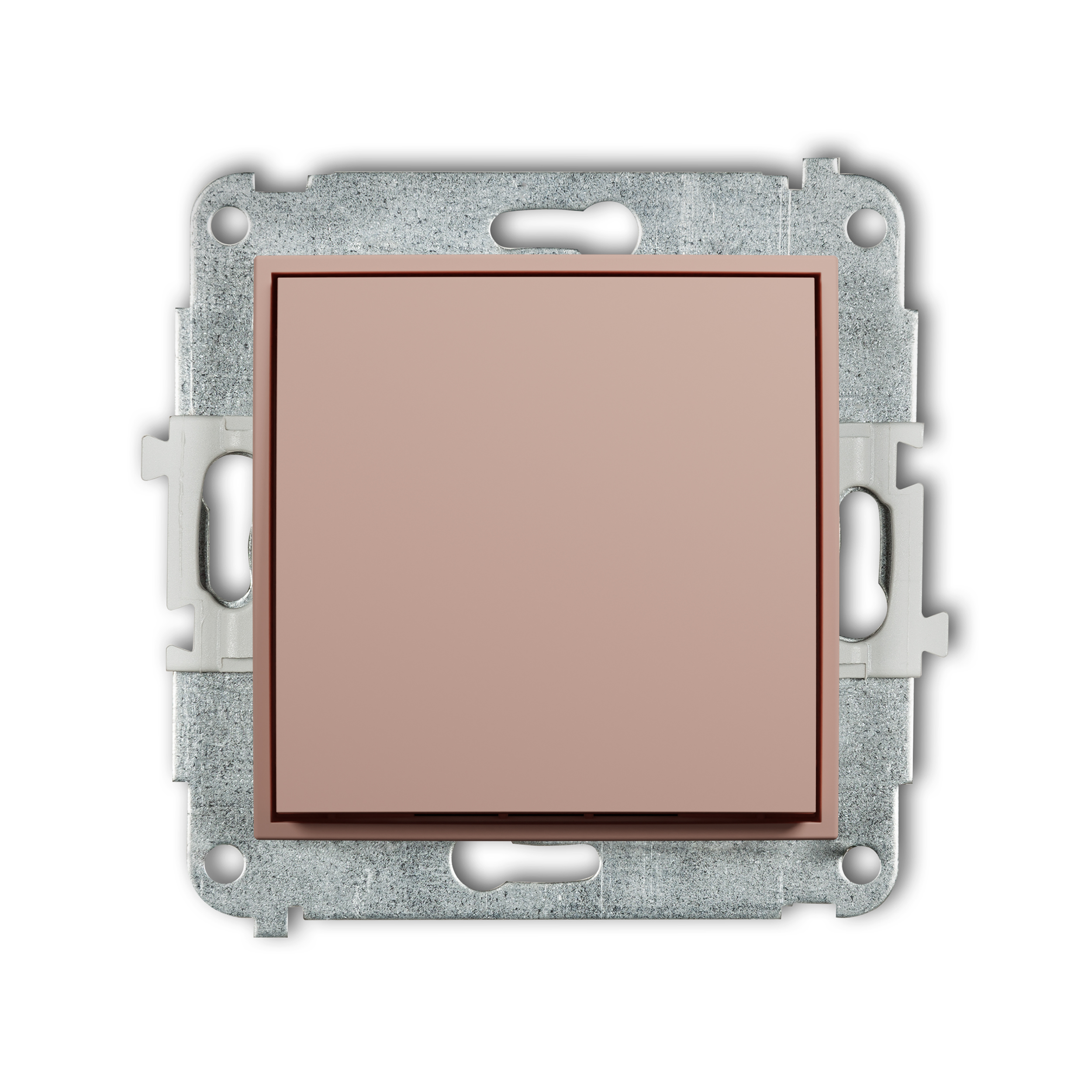

salmon
62MWP-6.1
-
terracotta
63MWP-6.1
-
navy blue
64MWP-6.1
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
MINI switches are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all MINI switches besides the following switches: MWP-7, MWP-8, MWP-8.1, MWP-44.2, MWP-66, MWP-66.1, MWP-88, MWP-88.1, MWP-33, MWP-33.1, MWP-10.2, MWP-10.21.
MINI switches are also available in a hermetic version (IP44) - a sealant shall be bought separately to each switch. A sealant can go with all MINI switches besides the following switches: MWP-66, MWP-66.1, MWP-7, MWP-8, MWP-8.1, MWP-88, MWP-88.1.
The actual appearance of product may be different from the presented photographs.
See how switches in American style work on our You Tube channel.
Technical data
| Protection index | IP 20 / IP 44 |
| Rated current | 10 AX |
| Rated voltage | 250 V~ |
| Connection | Screw terminals |
| UV resistance | Resistant |
