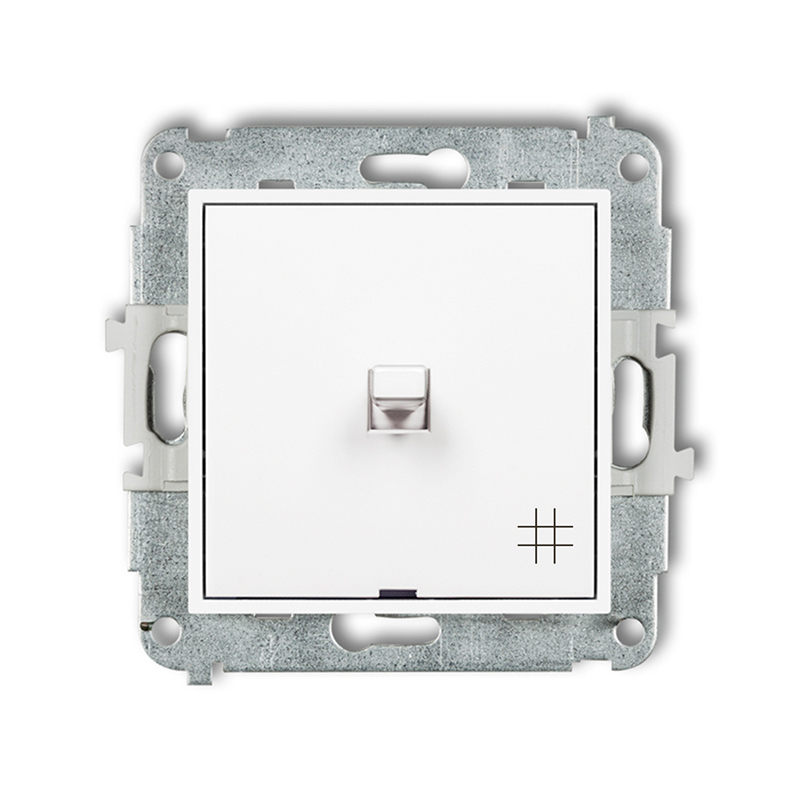

American-style intermediate switch mechanism

	white
MWPUS-6
- Product description
- Downloads
- Configurator
MINI mechanisms and frames are sold separately.

MINI switches in American style are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all MINI switches besides the following switches: MWPUS-8, MWPUS-44.2, MWPUS-33, MWPUS-33.1, MWPUS-10.2, MWPUS-10.21.
MINI switches in american style are not available in hermetic type (IP44) - sealant can not be used with the American style switches mechanisms.
The actual appearance of product may be different from the presented photographs.
See how switches in American style work on our Youtube channel.
Technical data
| Protection index | IP 20 |
| Rated current | 10 AX |
| Rated voltage | 250 V~ |
| Connection | Screw terminals |
| UV resistance | Resistant |

                                    Product variants
-

                      American-style double two-way switch mechanism (double push button without pictograms)white MWPUS-33.1
-

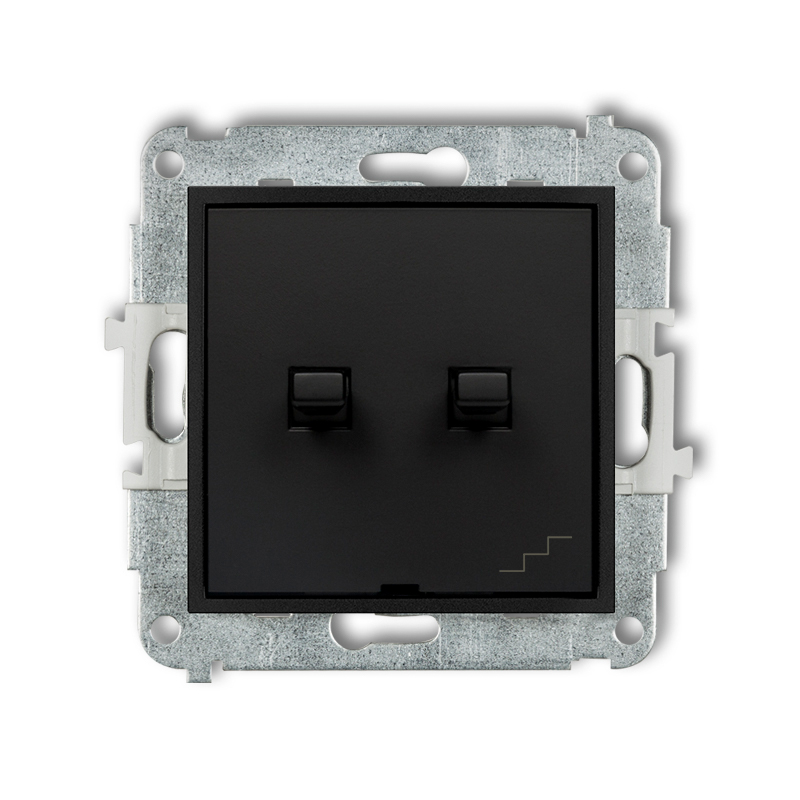

                      American-style single pole with two-way switch mechanism (common power supply)matt black 12MWPUS-10.1
-

                      American-style two-circuit switch mechanismmatt grey 27MWPUS-2
-

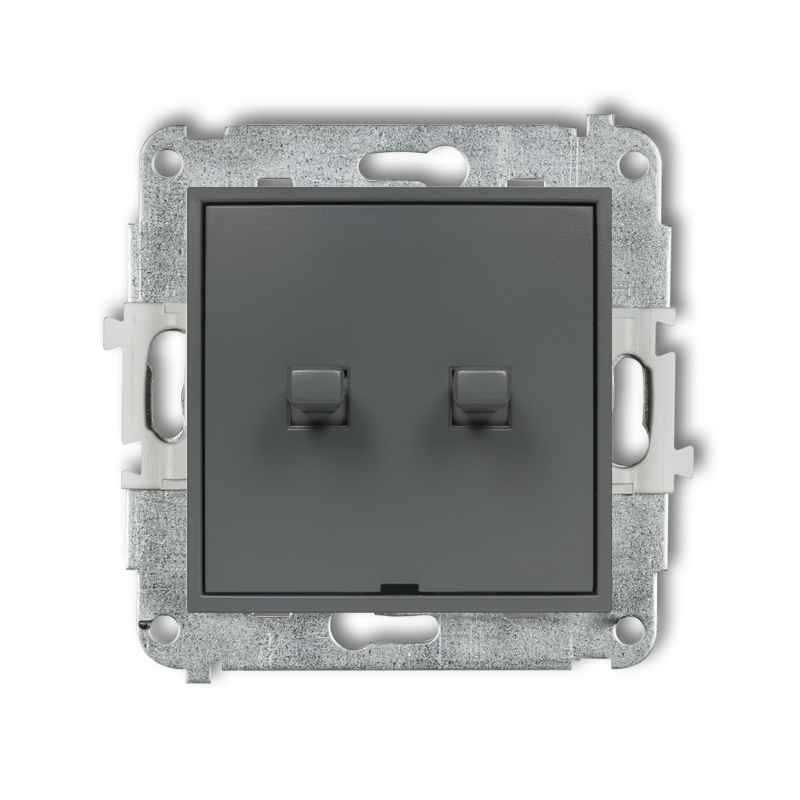

                      American-style double push button switch mechanism (double push button without pictograms, separate power supply)matt graphite 28MWPUS-44.2
-

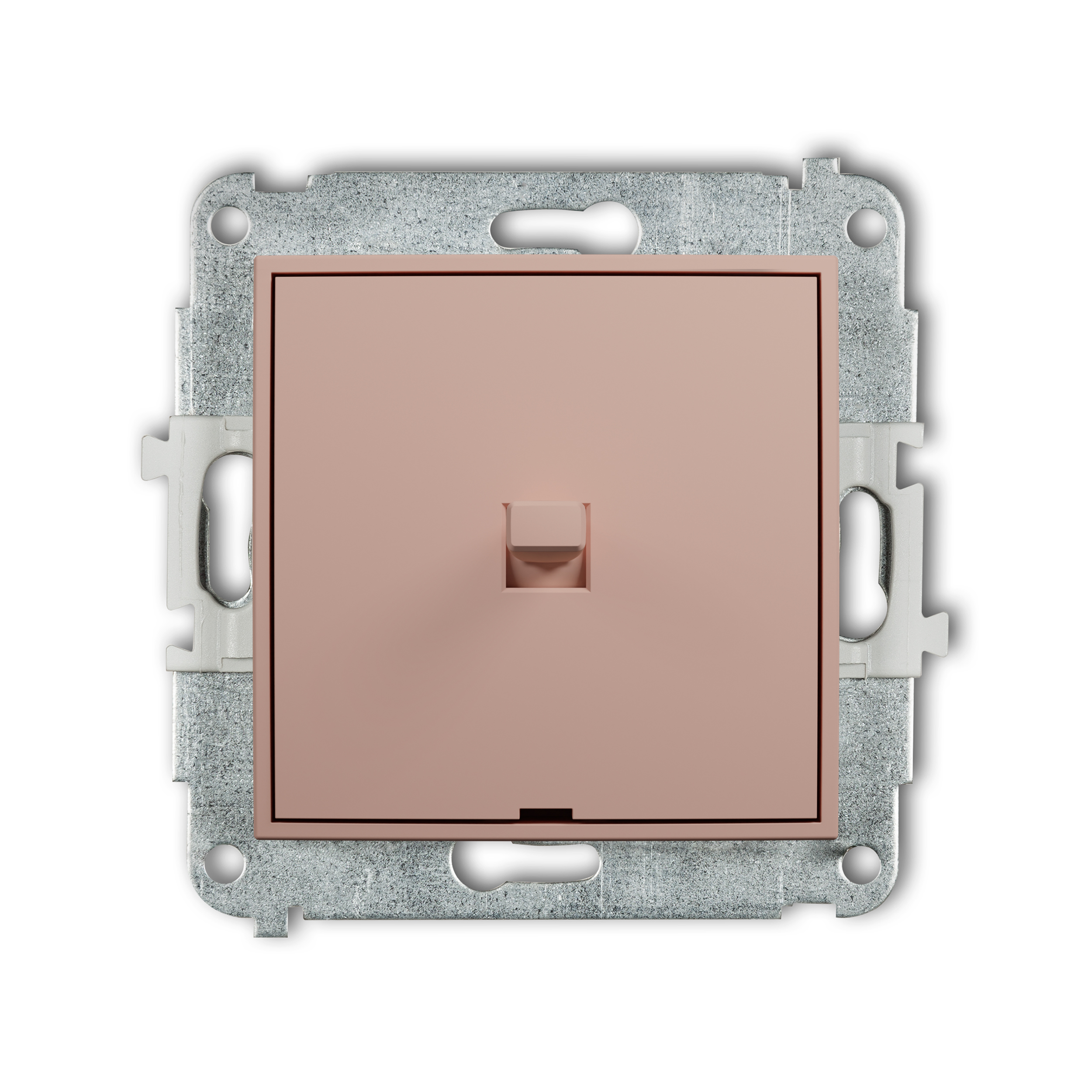

                      American-style single pole switch mechanismsalmon 62MWPUS-1
-

                      American-style roller blind switch mechanism (double push button without pictograms)terracotta 63MWPUS-8
Complementary products
Related products
-

                      BNC single socket mechanismwhite MGBNC-1
-

                      Single socket with the 2P+Z earth mechanism (with increased contact protection/shutter)matt black 12MGP-1zp
-

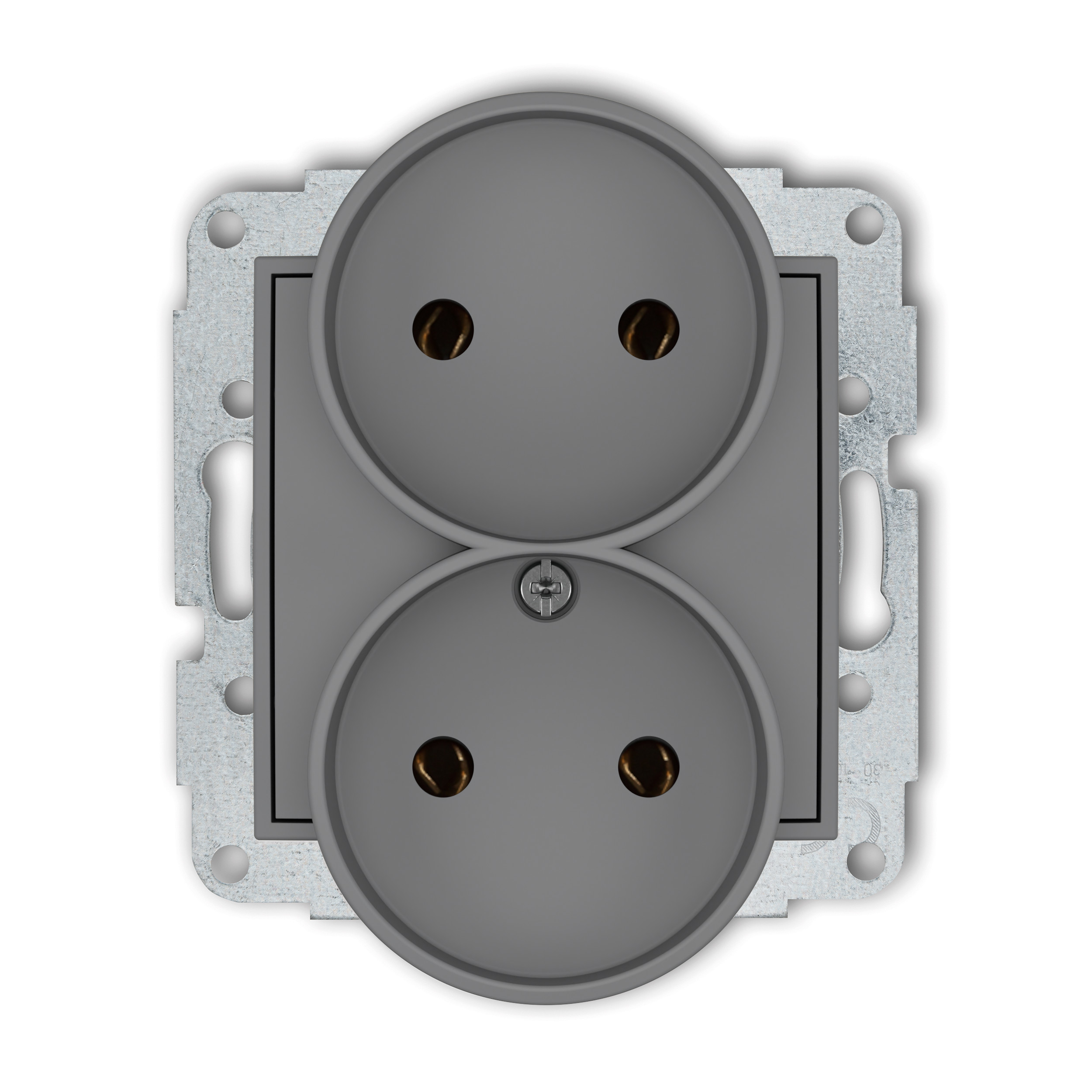

                      Double socket to a frame without the 2x2P earth mechanism (without increased contact protection/shutter)matt grey 27MGPR-2
-
