Dual USB charger mechanism USB C + USB A, 30W max.

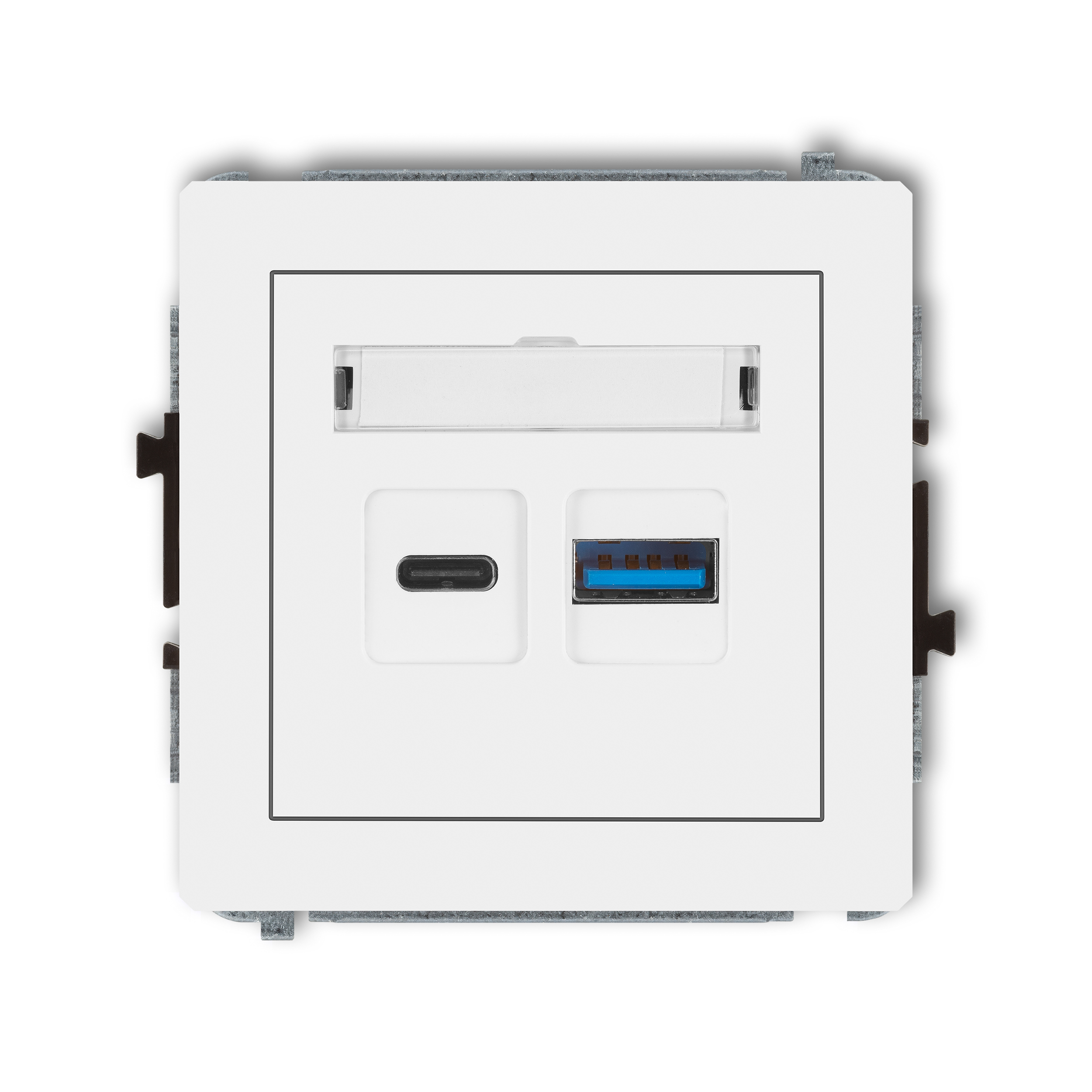

white
DCUSB-10
-
white
DCUSB-10
-
beige
1DCUSB-10
-

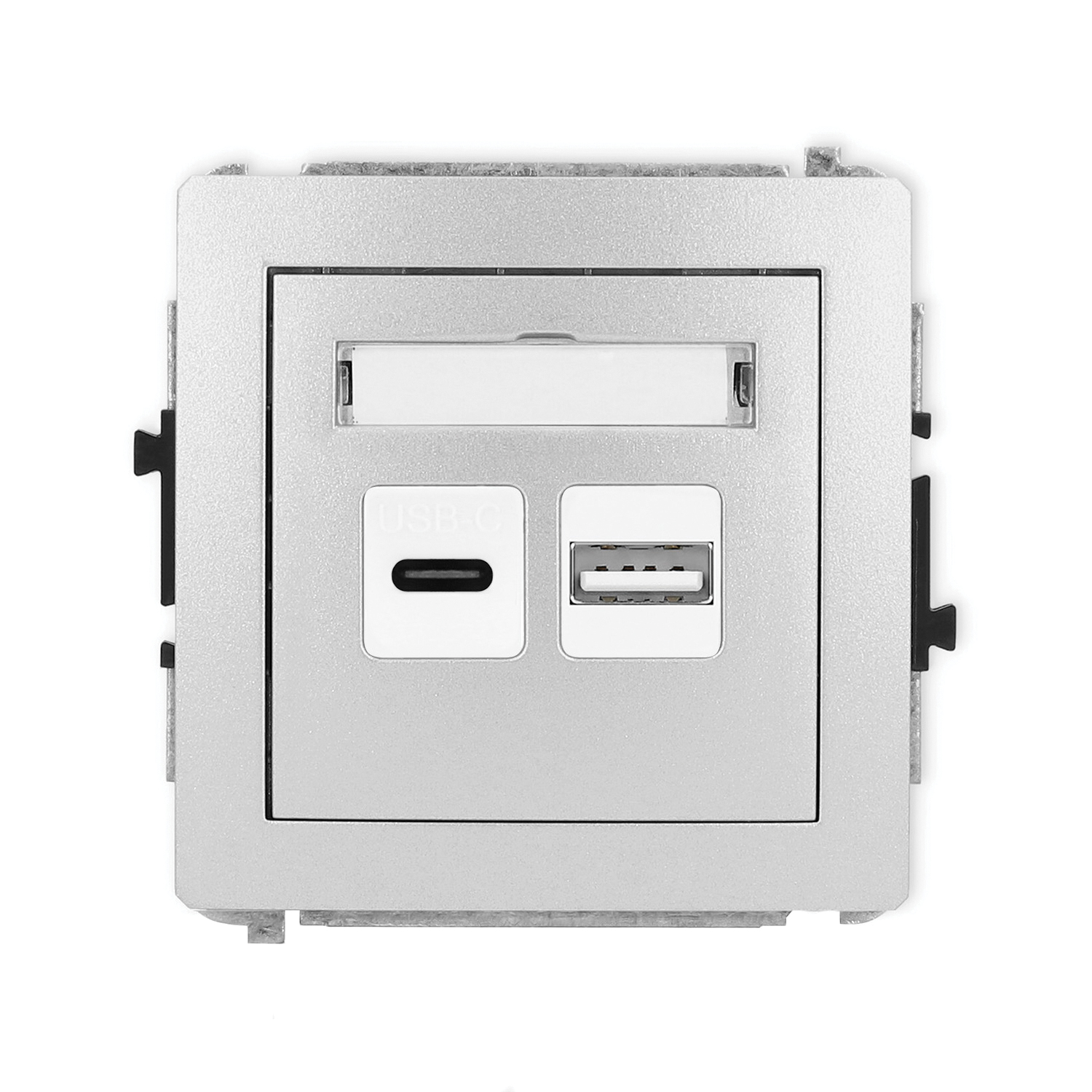

silver metallic
7DCUSB-10
-

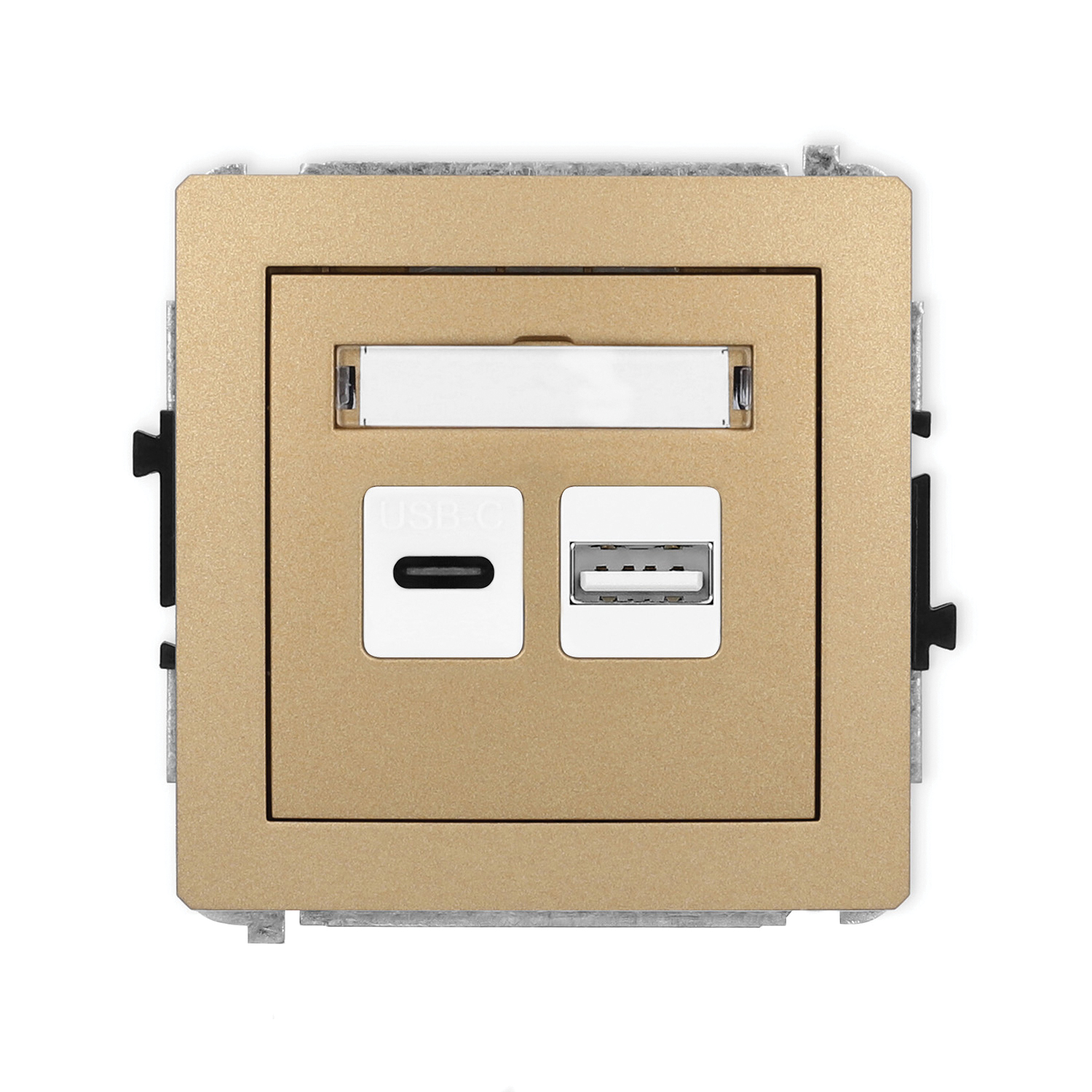

gold metallic
8DCUSB-10
-

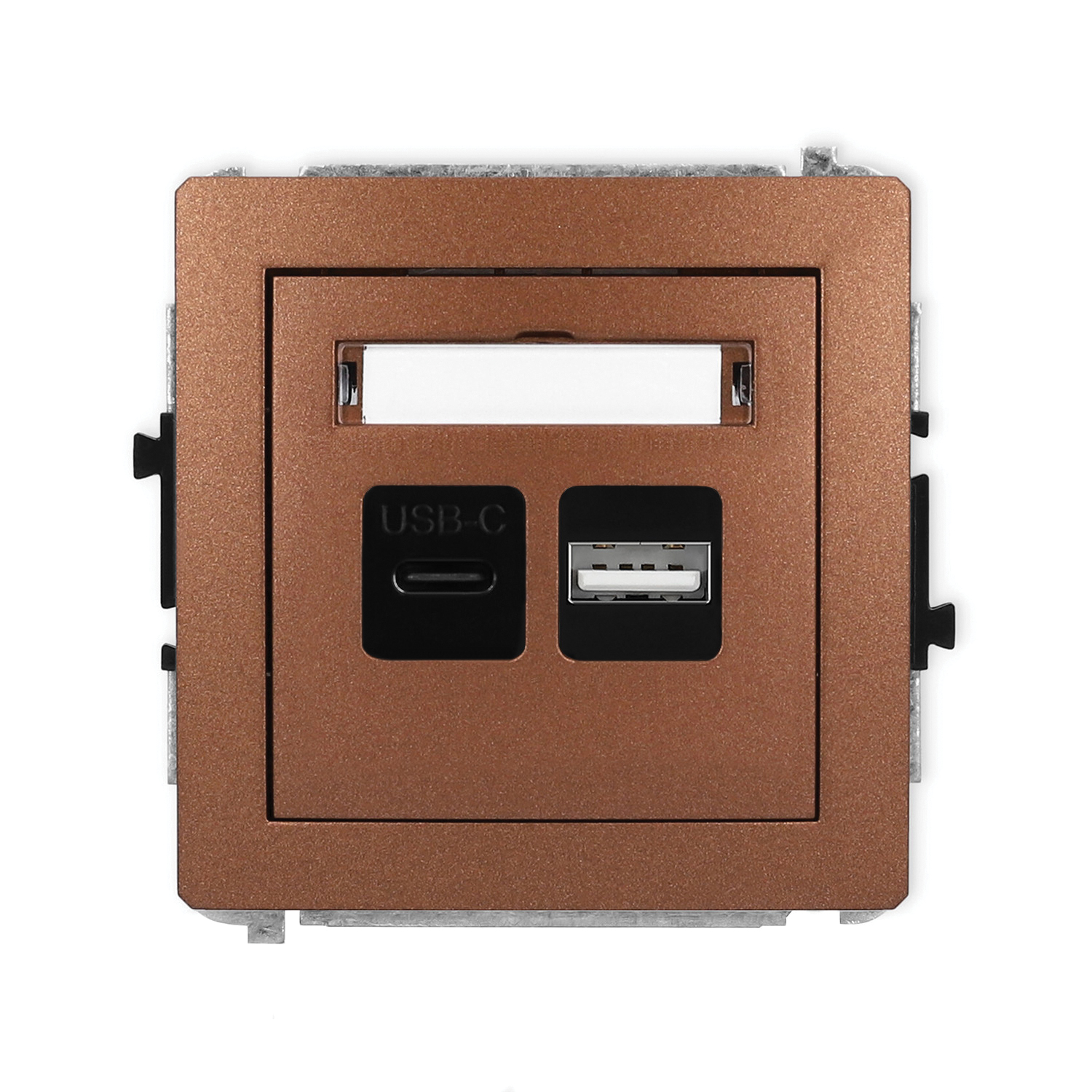

brown metallic
9DCUSB-10
-

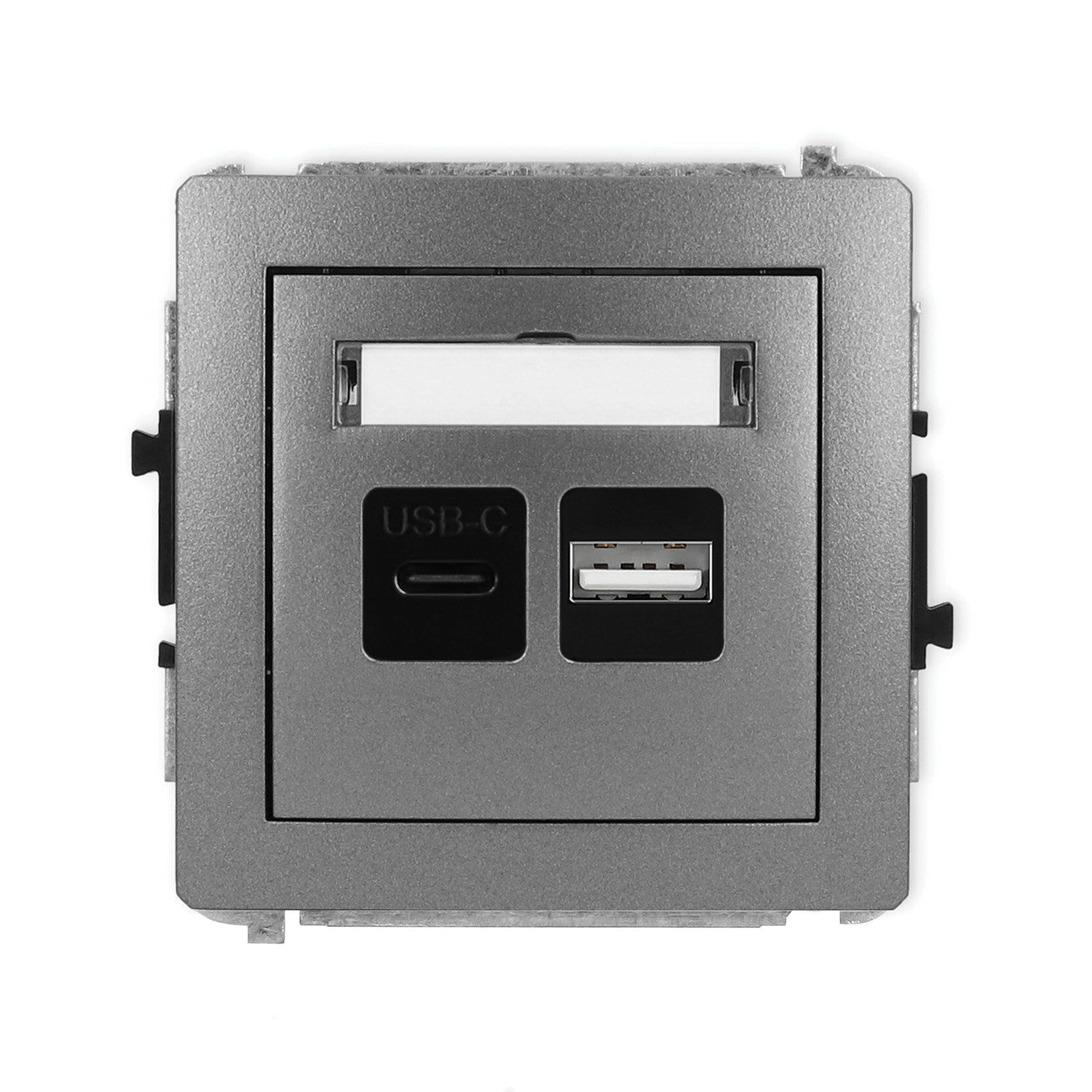

graphite
11DCUSB-10
-

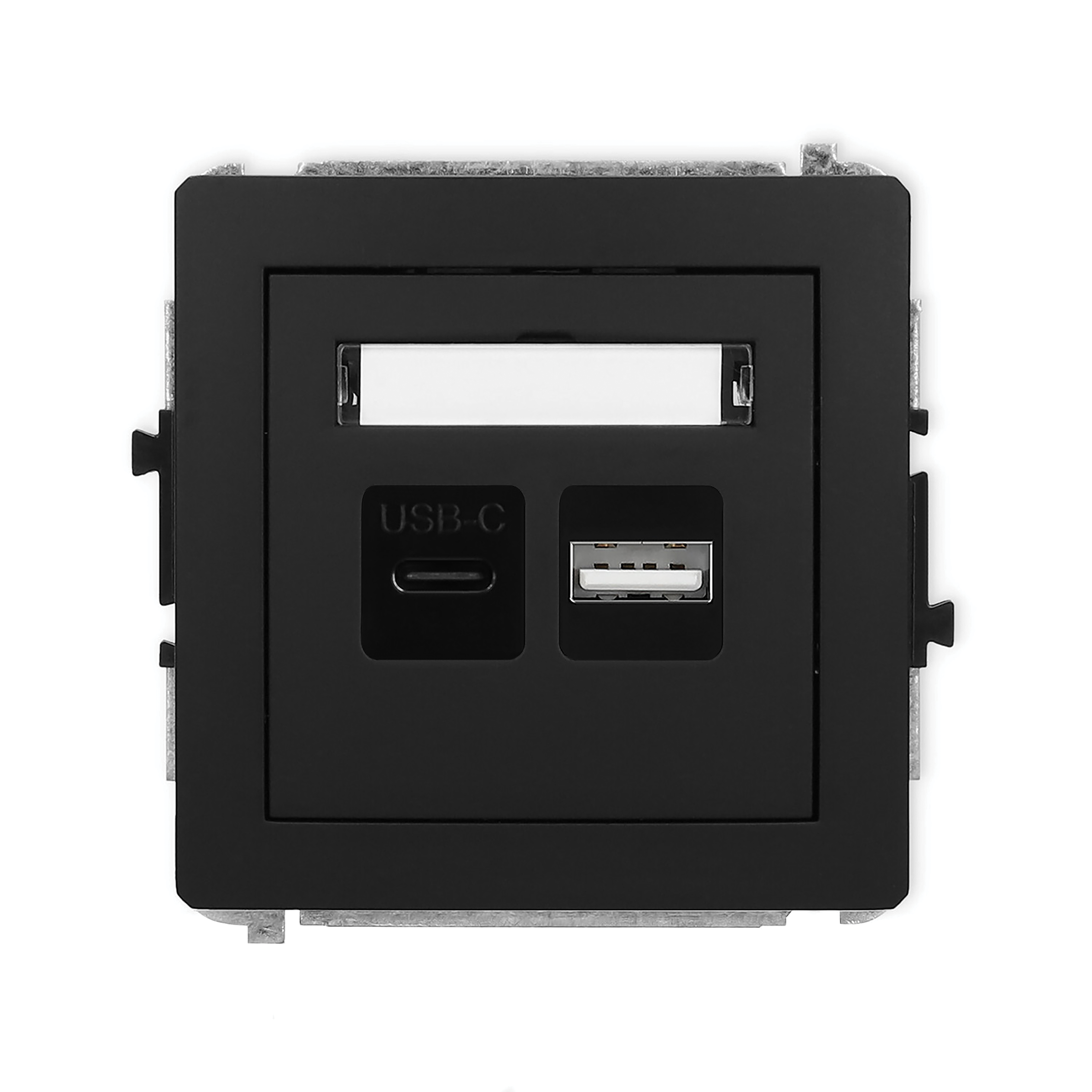

matt black
12DCUSB-10
-

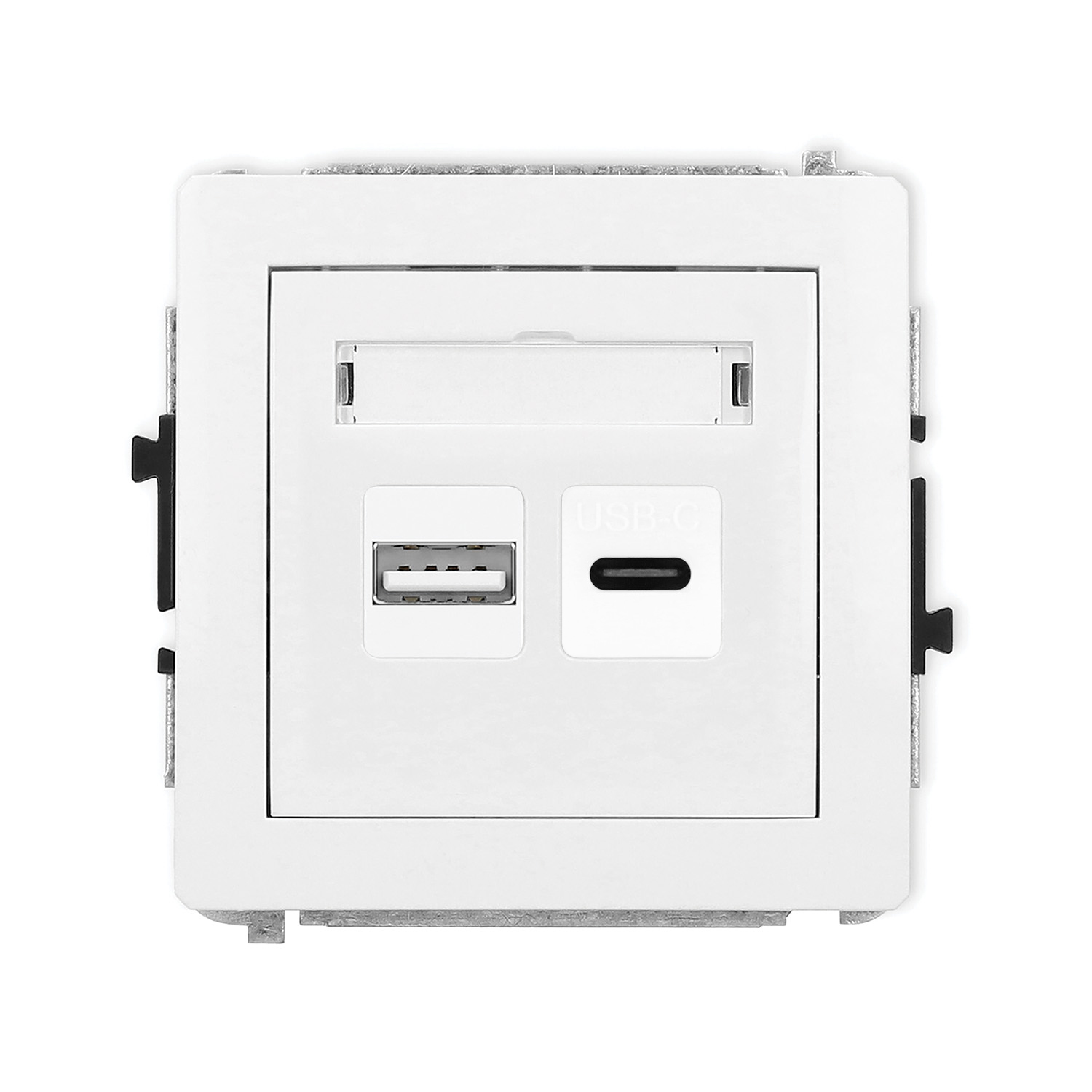

matt white
25DCUSB-10
-

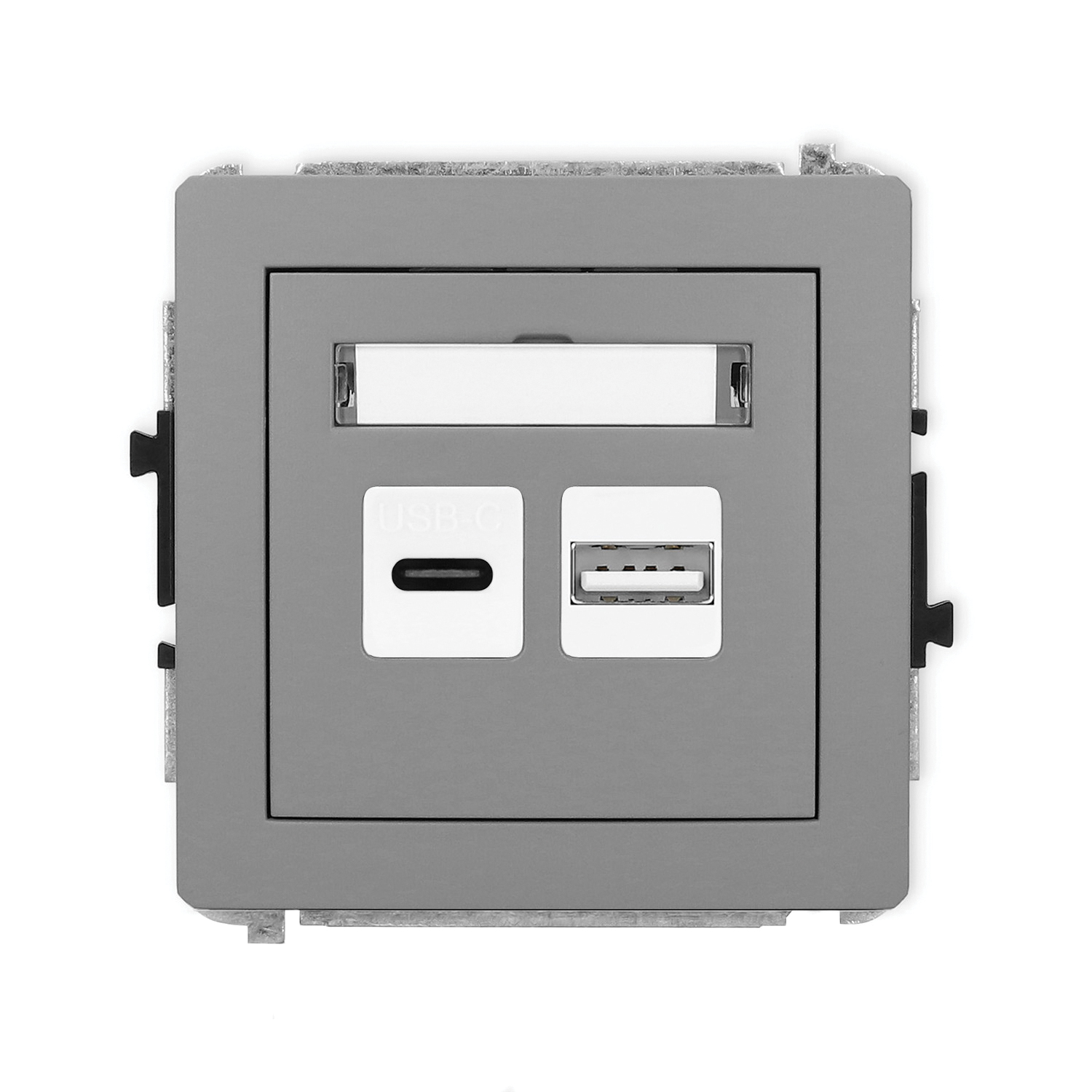

matt grey
27DCUSB-10
-

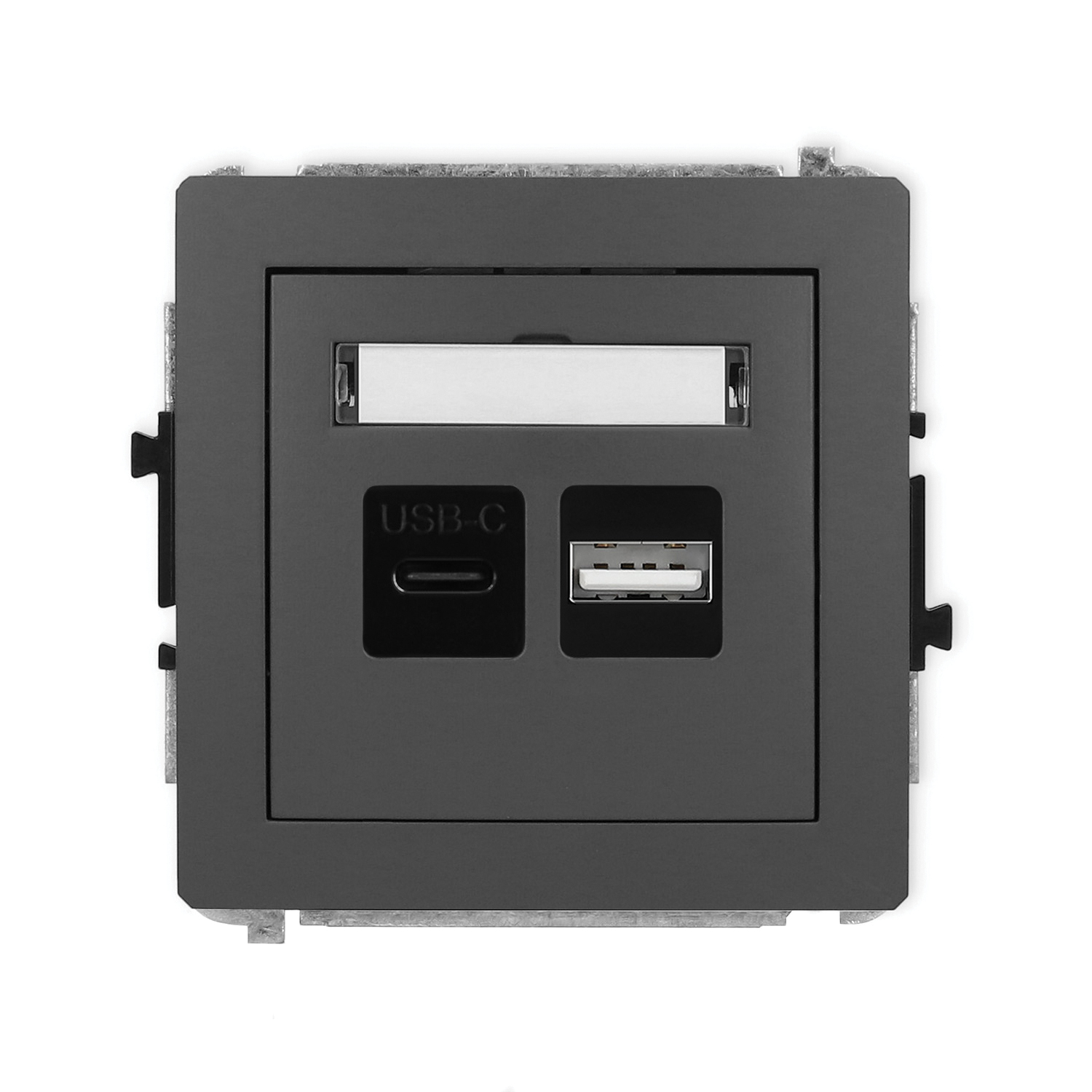

matt graphite
28DCUSB-10
-

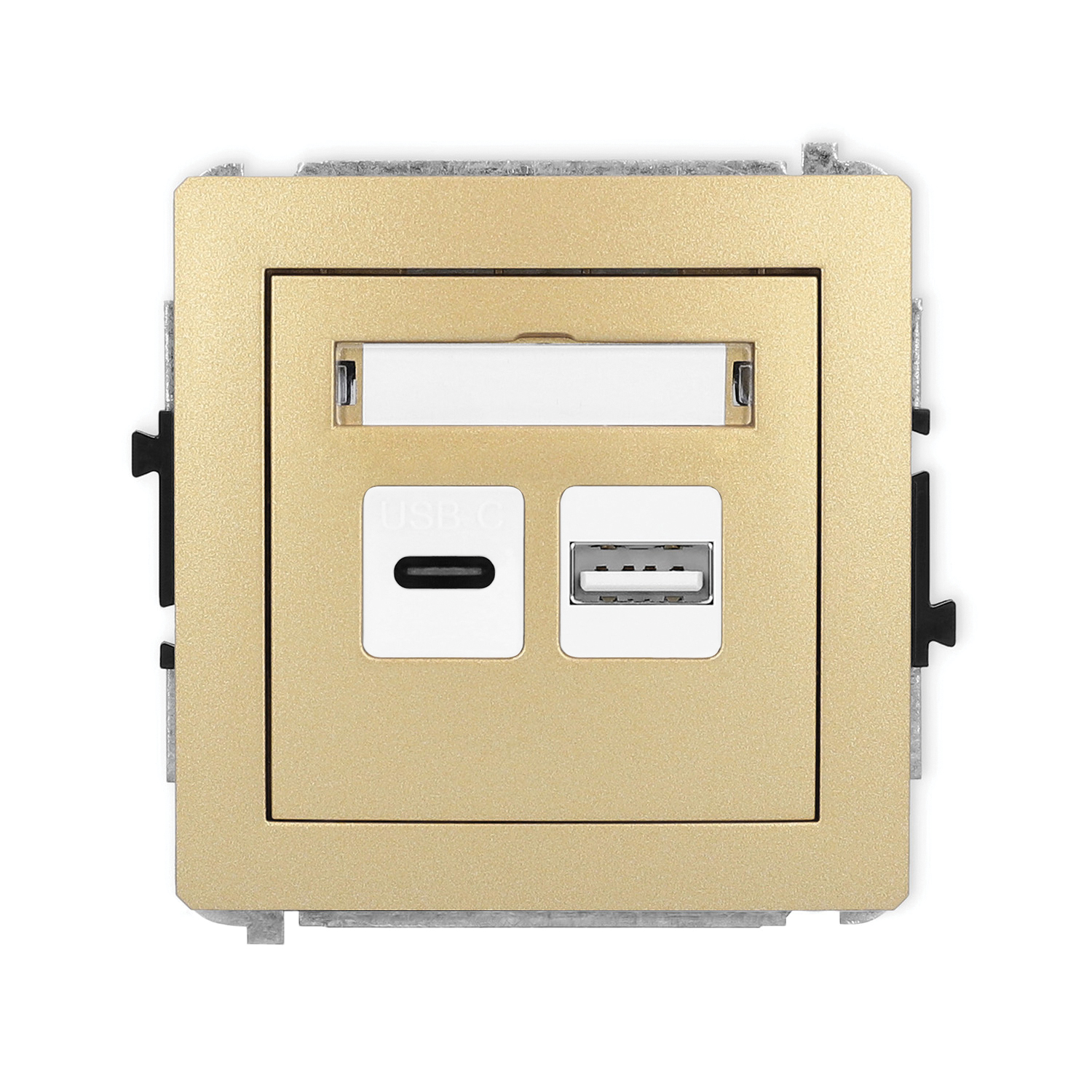

gold
29DCUSB-10
Product description
Downloads
Configurator
USB charger mechanism with idle power supplu consumes less than about 0,1W.
The charger achieves a maximum output current of 3A when only one device is connected. When connecting two devices, the output current is divided equally between each USB port.
DECO mechanisms and frames are sold separately.
DECO series multimedia sockets connection method you find here.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated input voltage | 100-240 V~ 50/60Hz |
| Rated output current | 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, 30W Max (when connecting a device to only one USB-C output) |
| Rated output current | 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A, 30W Max (when connecting a device to only one USB-A output) |
| Rated output current | 5V/3A 15W Max (when connecting devices to two USB-A + USB-C outputs) |
| Connection type | USB-A, USB-C |
| Connection | Screw clamps |
| UV resistance | Resistant |
