Dual USB charger mechanism USB C + USB A, 30W max., without description field

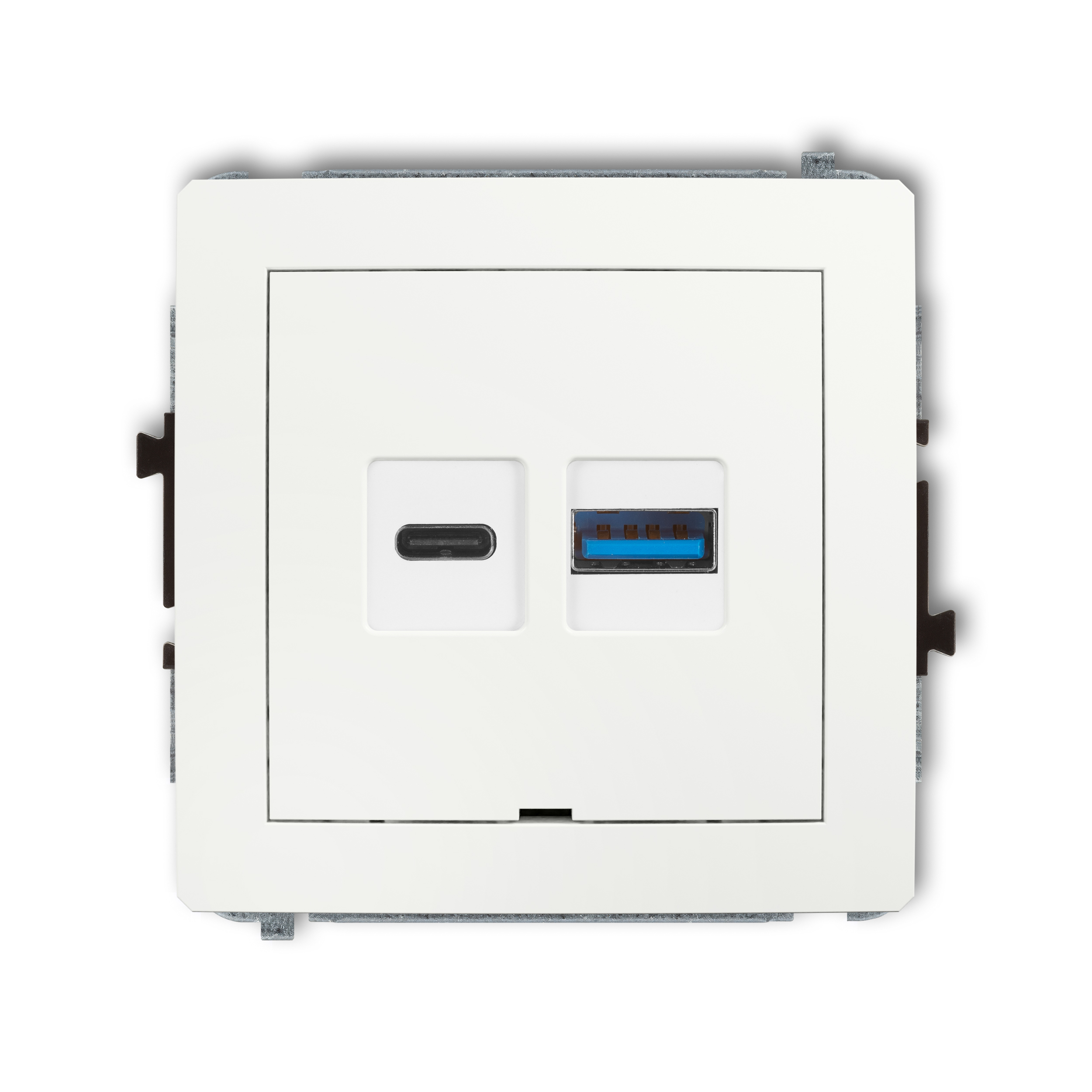

white
DCUSBBO-10
-
white
DCUSBBO-10
-

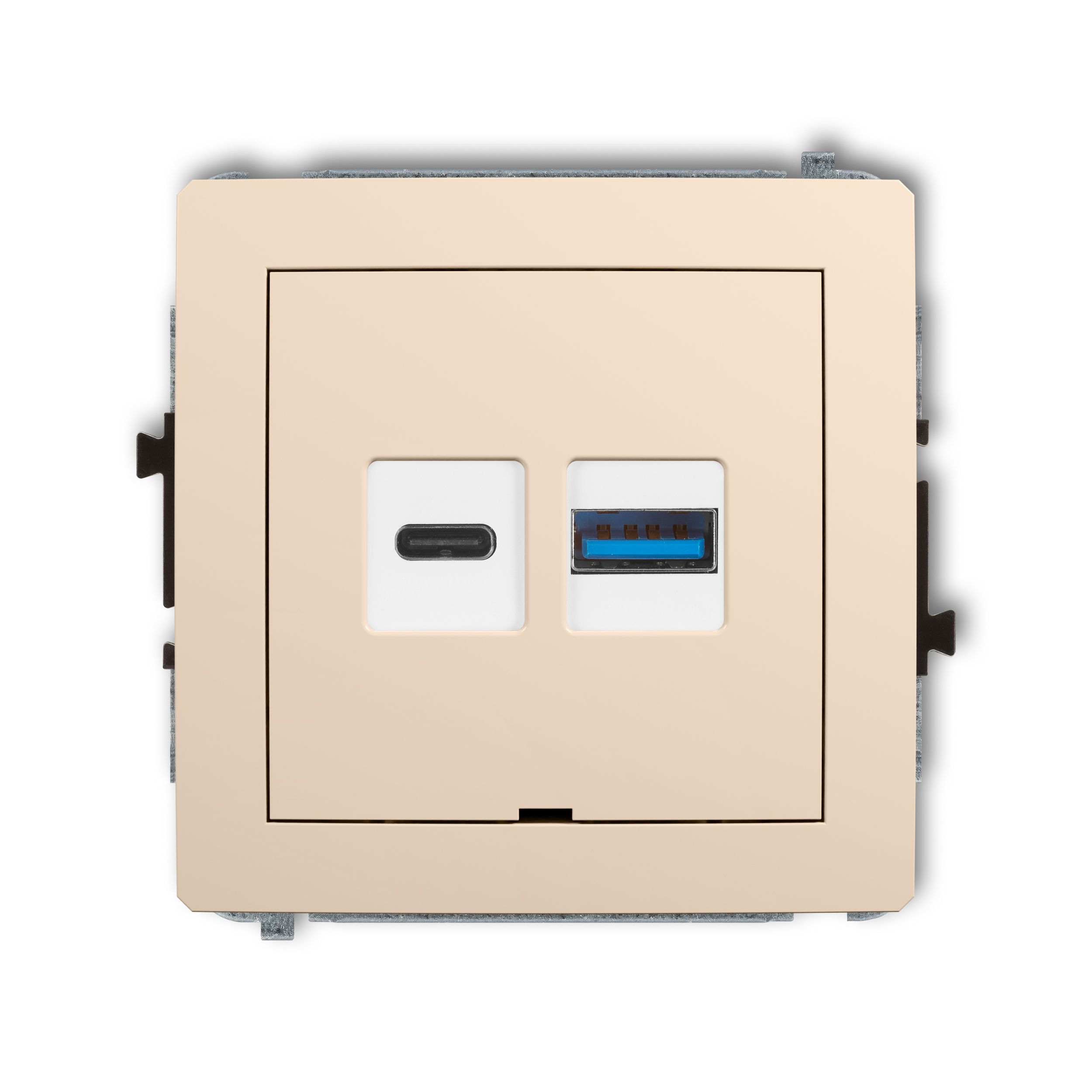

beige
1DCUSBBO-10
-
silver metallic
7DCUSBBO-10
-

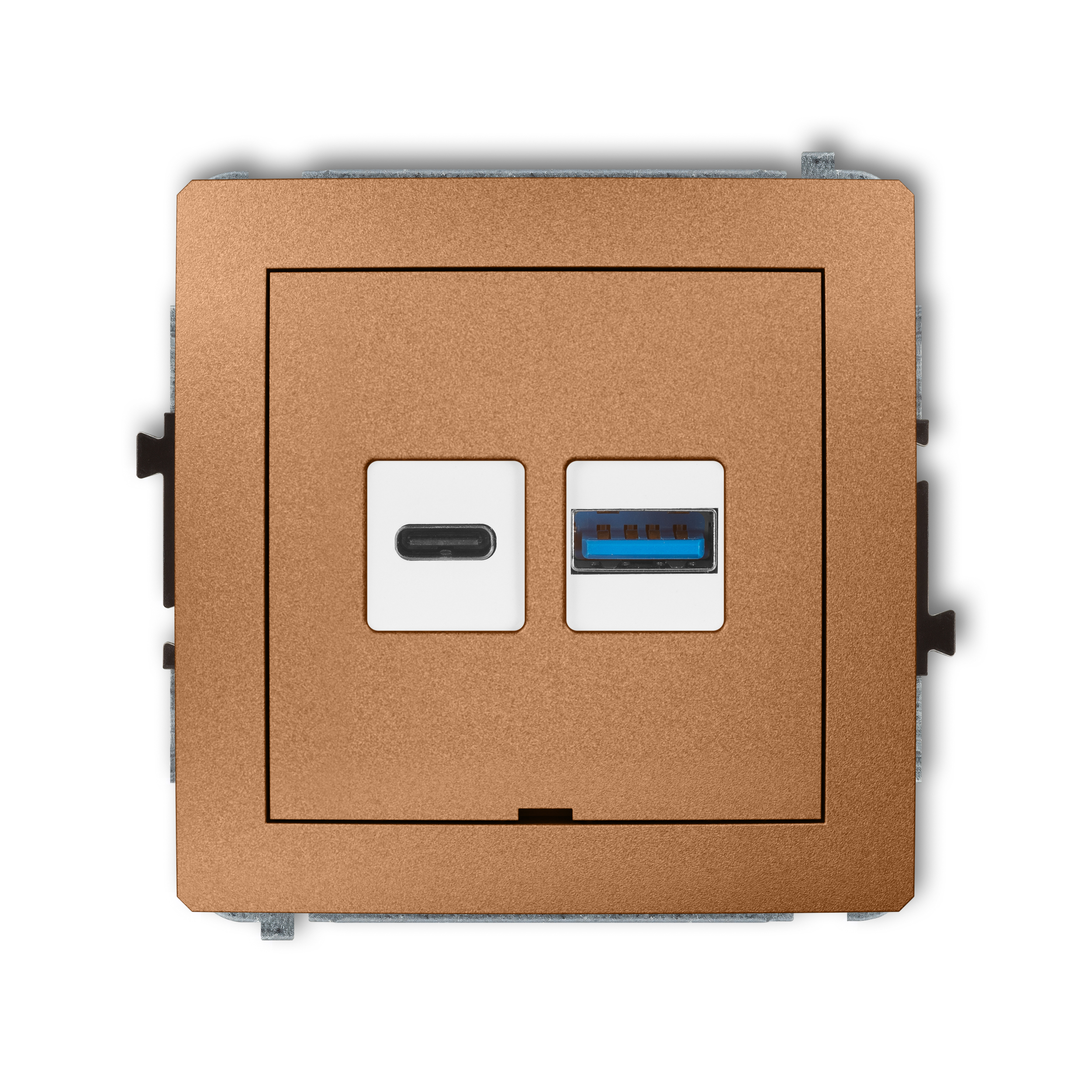

gold metallic
8DCUSBBO-10
-

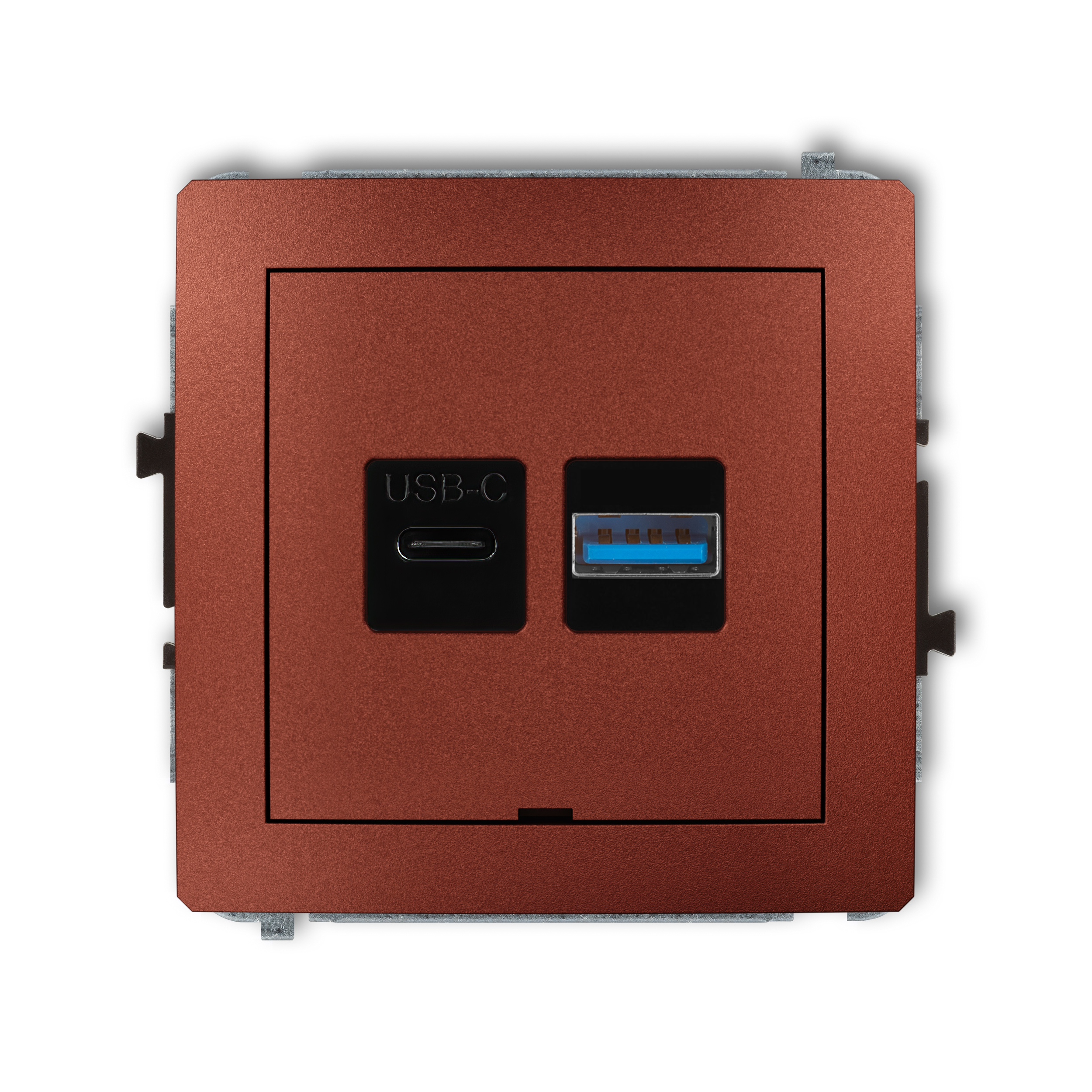

brown metallic
9DCUSBBO-10
-

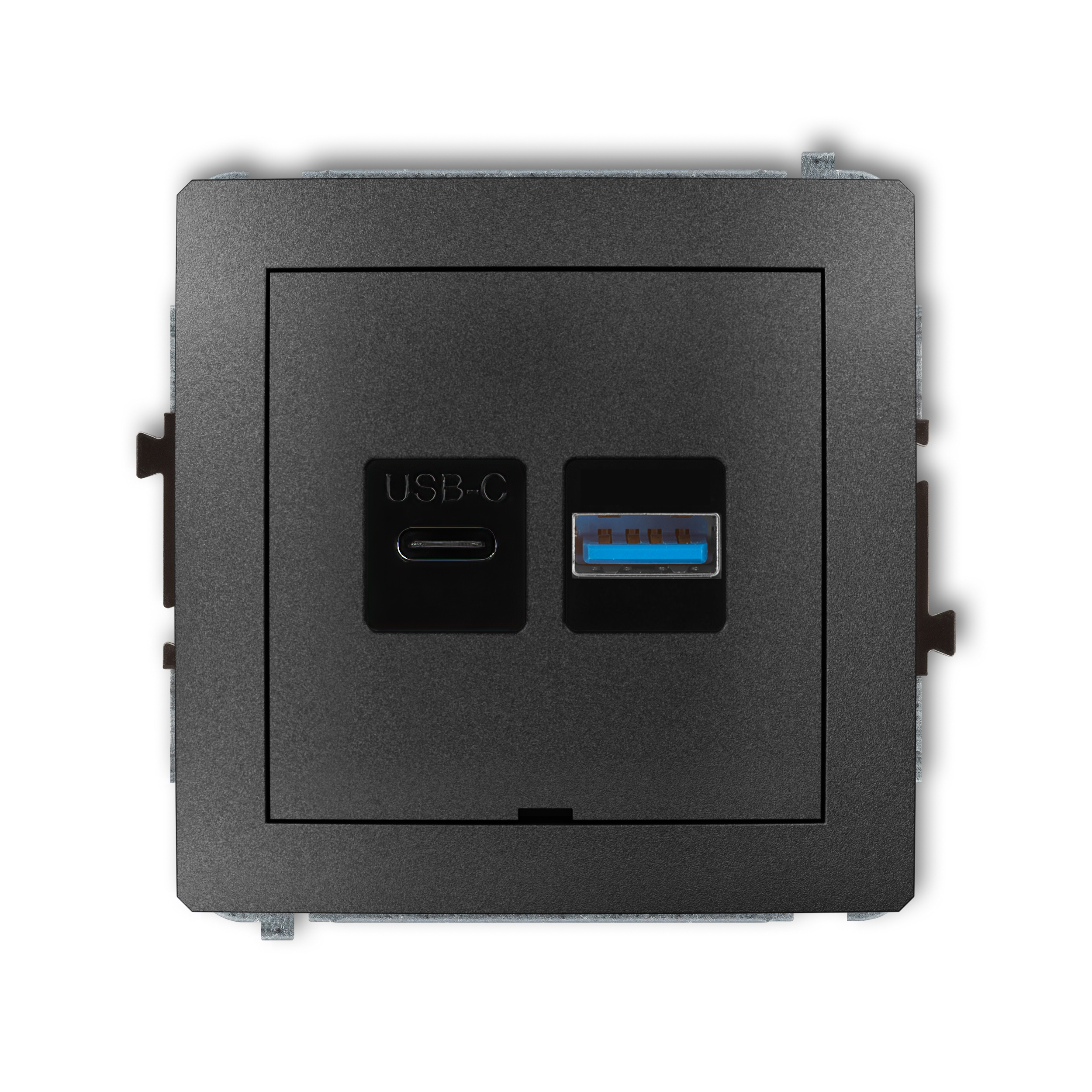

graphite
11DCUSBBO-10
-

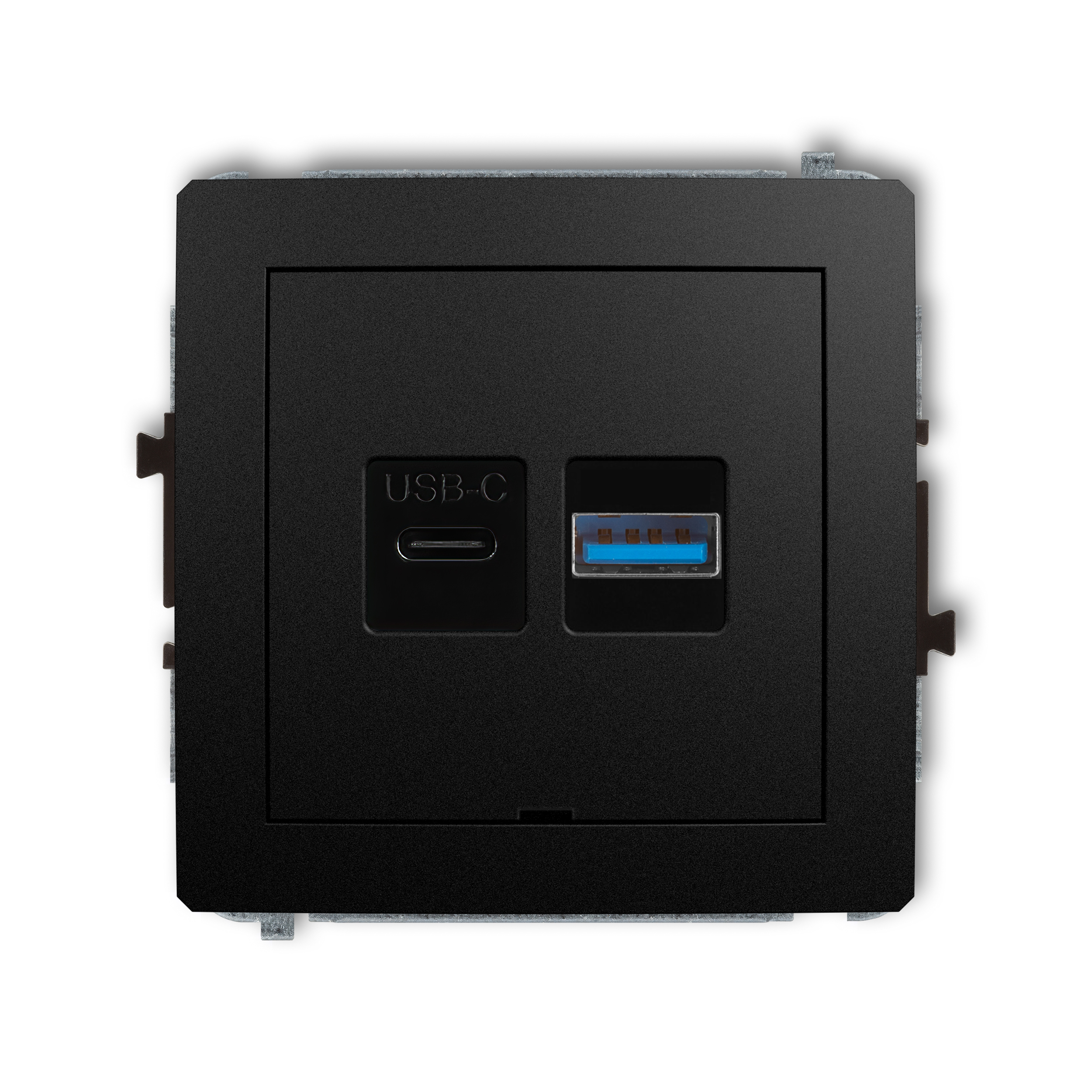

matt black
12DCUSBBO-10
-
matt white
25DCUSBBO-10
-
matt grey
27DCUSBBO-10
-
matt graphite
28DCUSBBO-10
-

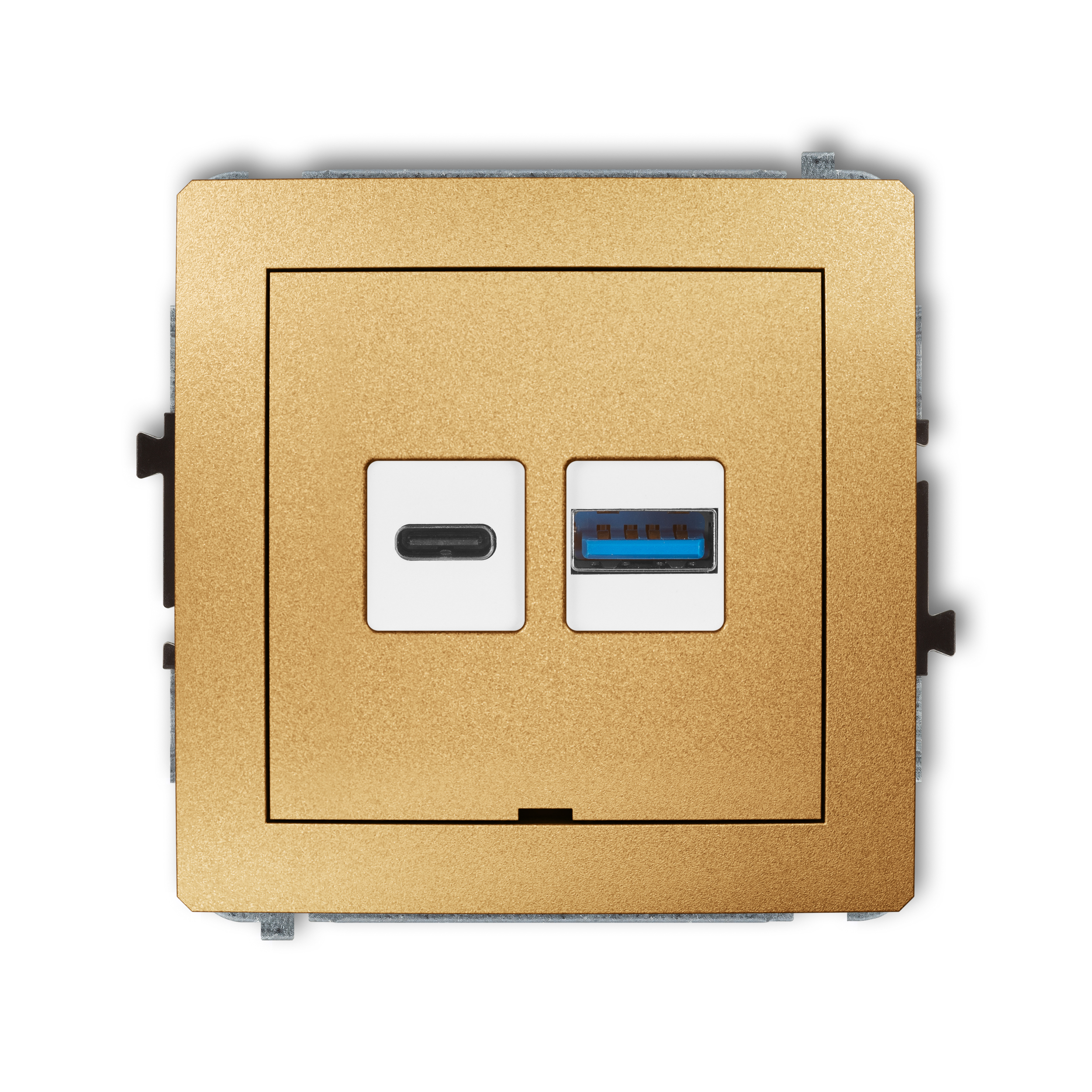

gold
29DCUSBBO-10
Product description
Downloads
Configurator
USB charger mechanism with idle power supplu consumes less than about 0,1W.
The charger achieves a maximum output current of 3A when only one device is connected. When connecting two devices, the output current is divided equally between each USB port.
DECO mechanisms and frames are sold separately.
DECO series multimedia sockets connection method you find here.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated input voltage | 100-240 V~ 50/60Hz |
| Rated output current | 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, 30W Max (when connecting a device to only one USB-C output) |
| Rated output current | 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A, 30W Max (when connecting a device to only one USB-A output) |
| Rated output current | 5V/3A 15W Max (when connecting devices to two USB-A + USB-C outputs) |
| Connection type | USB-A, USB-C |
| Connection | Screw clamps |
| UV resistance | Resistant |
